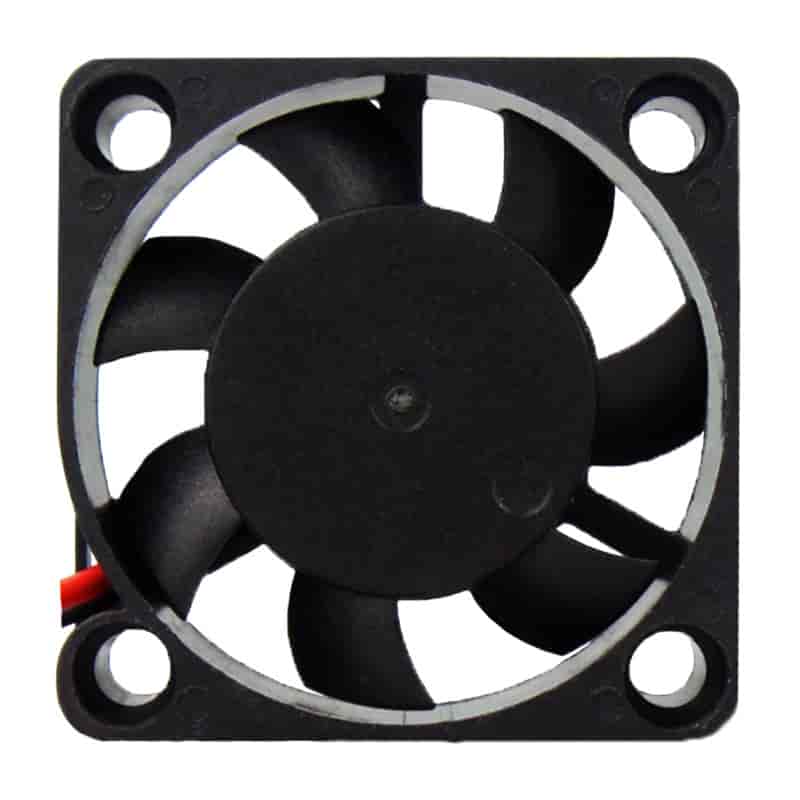

FD3007A

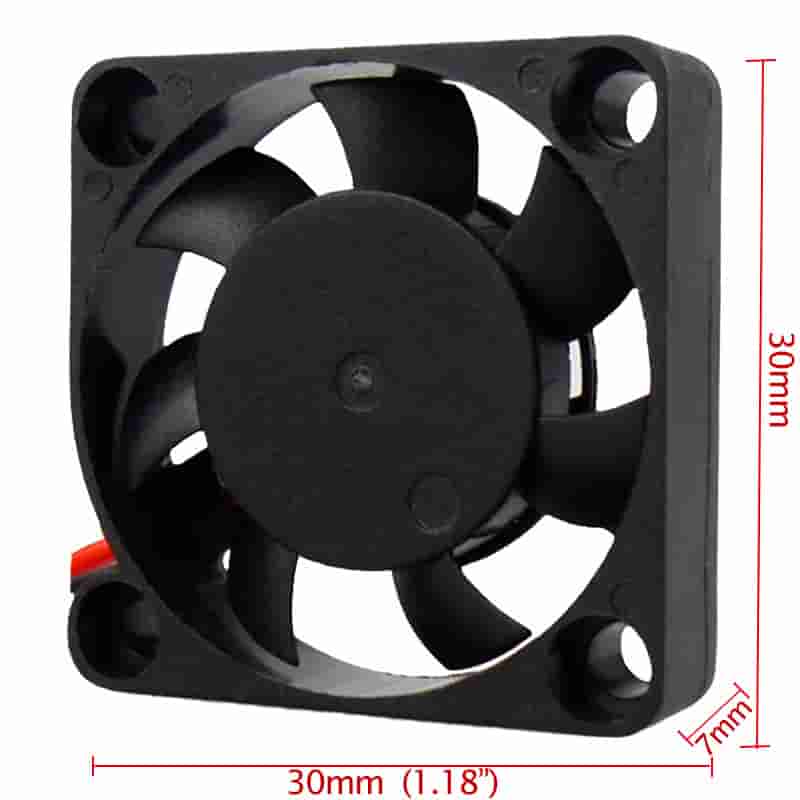

Size:30*30*7mm
Voltage:5V/12V
Speed: L/M/H/U(6000-12000RPM)
Bearing: Sleeve/
Cable: supoort customization
Connector: support customization
IP Rating: IP54/IP55/IP67/IP68
Function: Reverse connection protection, automatic restart, PWM, FG, RD
Datasheet Download
| Model | Rated voltage | Voltage range | Speed | Current | Power | Air volume | Air pressure | Noise | Curve | Weight | ||
| VDC | VDC | RPM | A | W | CFM | M3/h | mmH2O | InH2O | dBA | Color | G | |
| FD3007S2U-AP00 | 12 | 6~14 | 12000 | 0.07 | 0.84 | 4.24 | 7.20 | 6.27 | 0.25 | 35.1 | Black | 6 |
| FD3007S2H-AP00 | 10000 | 0.06 | 0.72 | 3.53 | 6.00 | 4.54 | 0.18 | 29.5 | Red | |||
| FD3007S2M-AP00 | 8000 | 0.05 | 0.60 | 2.79 | 4.74 | 3.09 | 0.12 | 23.8 | Green | |||
| FD3007S2L-AP00 | 6000 | 0.04 | 0.48 | 2.02 | 3.43 | 1.81 | 0.07 | 18.9 | Blue | |||
| FD3007S1U-AP00 | 5 | 3.5~5.5 | 12000 | 0.15 | 0.75 | 4.24 | 7.20 | 6.27 | 0.25 | 35.1 | Black | |
| FD3007S1H-AP00 | 10000 | 0.12 | 0.60 | 3.53 | 6.00 | 4.54 | 0.18 | 29.5 | Red | |||
| FD3007S1M-AP00 | 8000 | 0.10 | 0.50 | 2.79 | 4.74 | 3.09 | 0.12 | 23.8 | Green | |||
| FD3007S1L-AP00 | 6000 | 0.07 | 0.35 | 2.02 | 3.43 | 1.81 | 0.07 | 18.9 | Blue | |||
Product Parameters
The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.
| Parameter | Specification |
| Model | XY-GF200 |
| Air Pressure | 800Pa (Max) |
| Air Flow | 15-50 CFM (Adjustable) |
| Voltage | DC 12/24/48V |
| Noise Level | 35-50 dB(A) |
| Power Consumption | 18W-60W |
| Protection Rating | IP55 (Dustproof & Water-resistant) |
