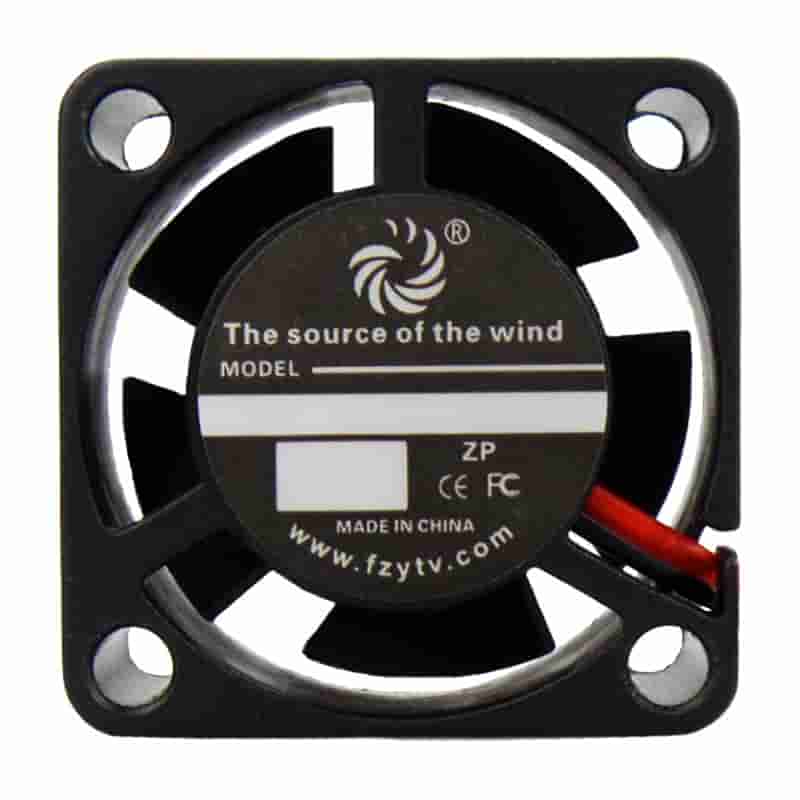

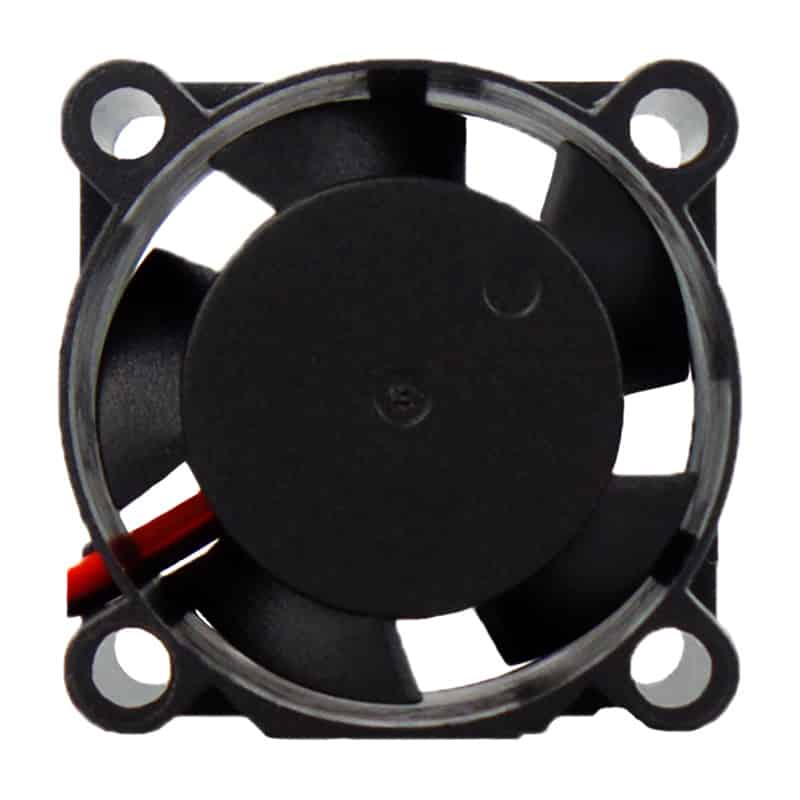

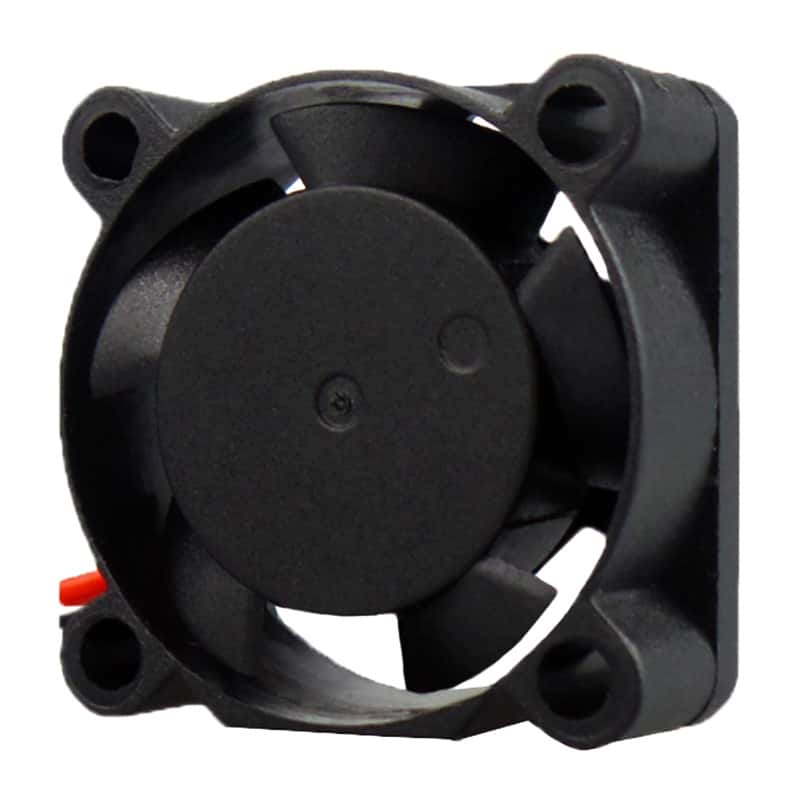

FD2510A

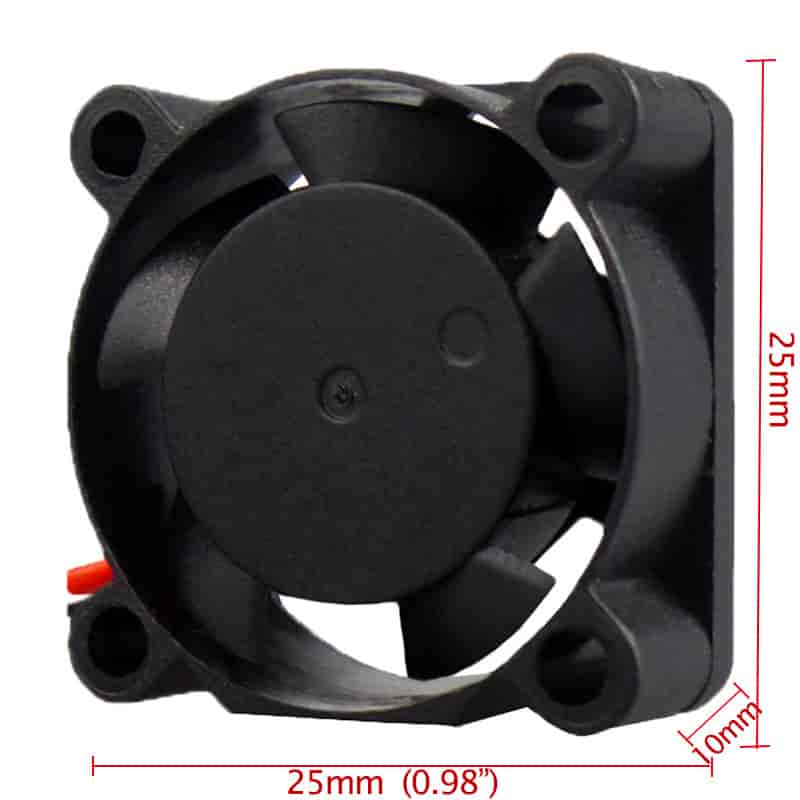

Size:25*25*10mm

Voltage:5V/12V

Speed: L/M/H/U(6000-12000RPM)

Bearing: Sleeve/Dual ball

Cable: supoort customization

Connector: support customization

IP Rating: IP54/IP55/IP67/IP68

Function: Reverse connection protection, automatic restart, PWM, FG, RD

Datasheet Download

Whatsapp: +86 153 6189 2827

Model	Rated voltage	Voltage range	Speed	Current	Power	Air volume		Air pressure		Noise	Curve	Weight
Model	VDC	VDC	RPM	A	W	CFM	M3/h	mmH2O	InH2O	dBA	Color	G
FD2510B2U-AP00	12	6~14	12000	0.06	0.72	2.05	3.48	7.82	0.31	32.2	Black	7
FD2510B2H-AP00			10000	0.05	0.60	1.69	2.87	4.95	0.20	26.9	Red
FD2510B2M-AP00			8000	0.04	0.48	1.35	2.29	1.81	0.07	22.7	Green
FD2510B2L-AP00			6000	0.03	0.36	1.04	1.77	1.32	0.05	20.8	Blue
FD2510B1U-AP00	5	3.5~5.5	12000	0.14	0.70	2.05	3.48	7.82	0.31	32.2	Black
FD2510B1H-AP00			10000	0.09	0.45	1.69	2.87	4.95	0.20	26.9	Red
FD2510B1M-AP00			8000	0.07	0.35	1.35	2.29	1.81	0.07	22.7	Green
FD2510B1L-AP00			6000	0.05	0.25	1.04	1.77	1.32	0.05	20.8	Blue

Product Parameters

The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.

Parameter	Specification
Model	XY-GF200
Air Pressure	800Pa (Max)
Air Flow	15-50 CFM (Adjustable)
Voltage	DC 12/24/48V
Noise Level	35-50 dB(A)
Power Consumption	18W-60W
Protection Rating	IP55 (Dustproof & Water-resistant)
