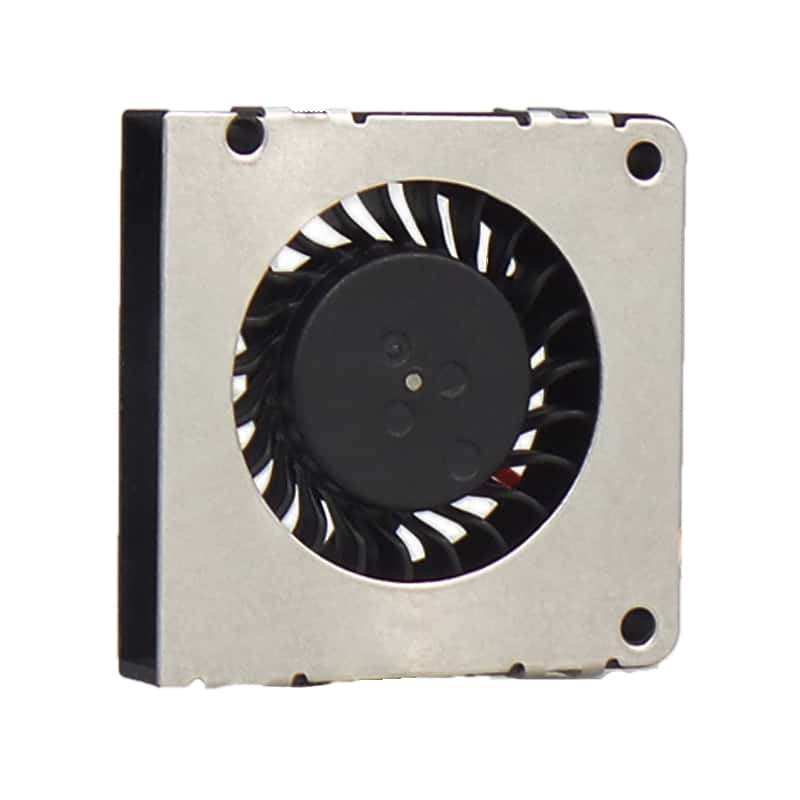

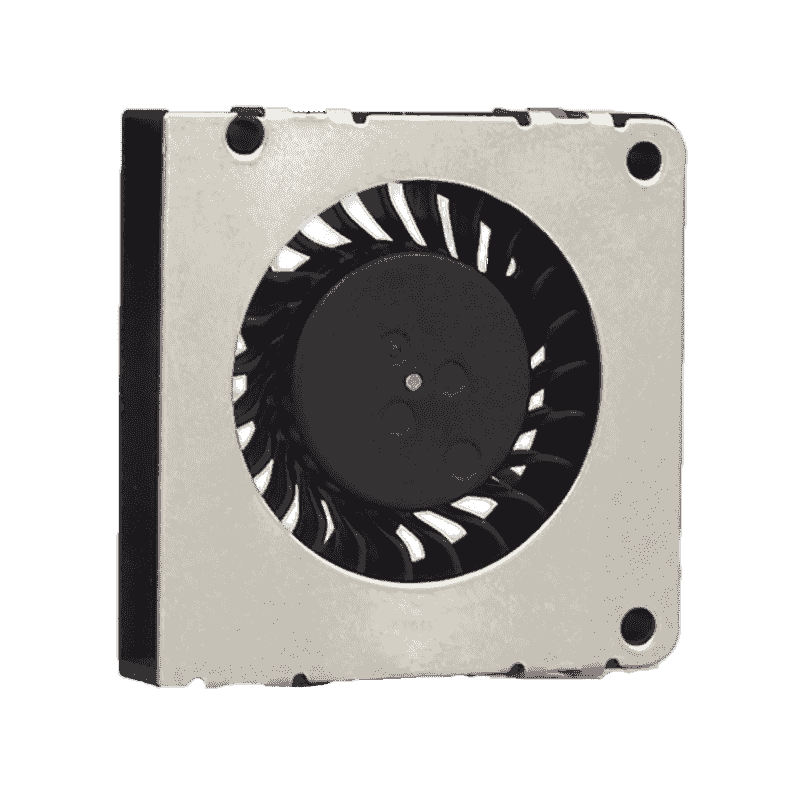

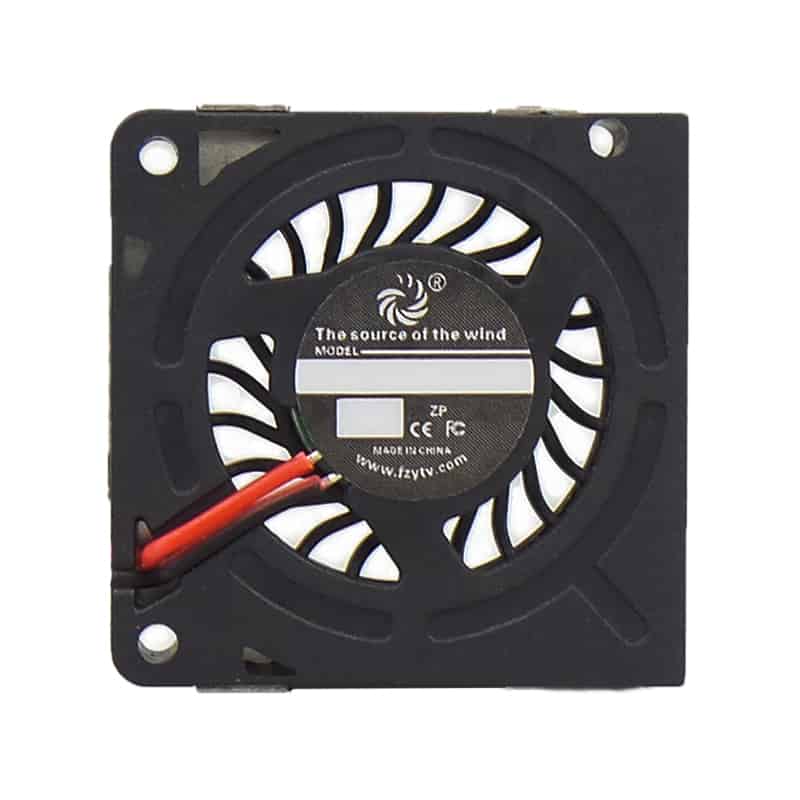

FD3007B
Size:30*30*7mm
Voltage:5V/12V
Speed: L/M/H/U
Bearing: sleeve
Cable: supoort customization
Connector: support customization
| Model | Rated voltage | Voltage Range | Speed | Current | Power | Air Flow | Air Pressure | Noise | Curve | Weight | ||
| VDC | VDC | RPM | A | W | CFM | M3/h | mmH2O | InH2O | dBA | Color | g | |
| FD3007S2U-BP00 | 12 | 6-14 | 10000 | 0.15 | 1.80 | 1.49 | 2.53 | 16.16 | 0.64 | 34.2 | Black | 6.5 |
| FD3007S2H-BP00 | 8500 | 0.10 | 1.20 | 1.31 | 2.23 | 10.89 | 0.43 | 30.5 | Red | |||
| FD3007S2M-BP00 | 7000 | 0.08 | 0.96 | 1.08 | 1.83 | 6.26 | 0.25 | 26.8 | Green | |||
| FD3007S2L-BP00 | 5500 | 0.05 | 0.60 | 0.87 | 1.48 | 4.34 | 0.17 | 23.6 | Blue | |||
| FD3007S1U-BP00 | 5 | 3.5~5.5 | 10000 | 0.25 | 1.25 | 1.49 | 2.53 | 16.16 | 0.64 | 34.2 | Black | |
| FD3007S1H-BP00 | 8500 | 0.20 | 1.00 | 1.31 | 2.23 | 10.89 | 0.43 | 30.5 | Red | |||
| FD3007S1M-BP00 | 7000 | 0.15 | 0.75 | 1.08 | 1.83 | 6.26 | 0.25 | 26.8 | Green | |||
| FD3007S1L-BP00 | 5500 | 0.12 | 0.60 | 0.87 | 1.48 | 4.34 | 0.17 | 23.6 | Blue | |||
Product Parameters
The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.
| Parameter | Specification |
| Model | XY-GF200 |
| Air Pressure | 800Pa (Max) |
| Air Flow | 15-50 CFM (Adjustable) |
| Voltage | DC 12/24/48V |
| Noise Level | 35-50 dB(A) |
| Power Consumption | 18W-60W |
| Protection Rating | IP55 (Dustproof & Water-resistant) |
