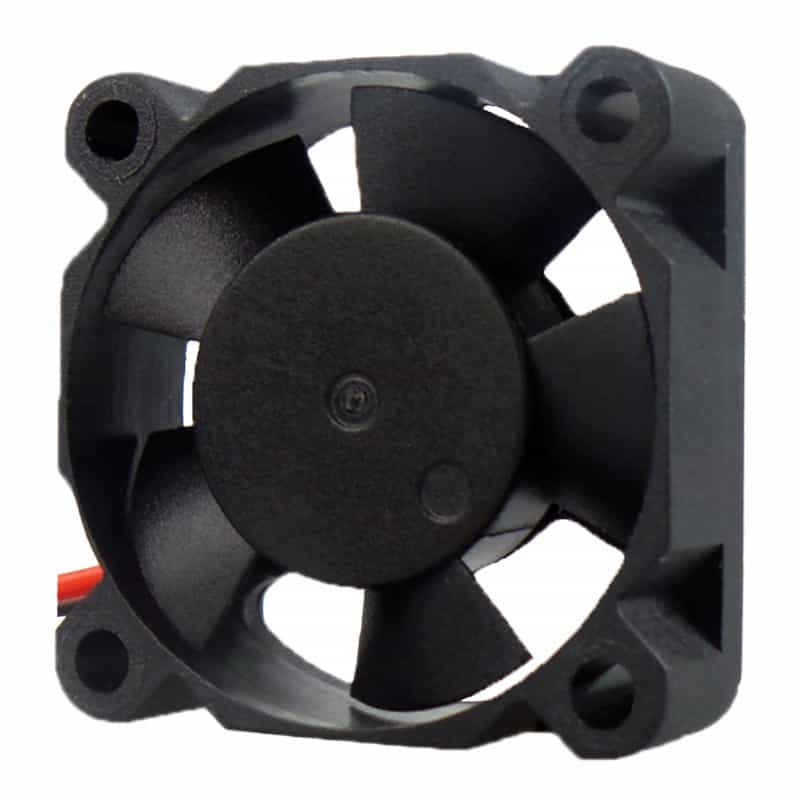

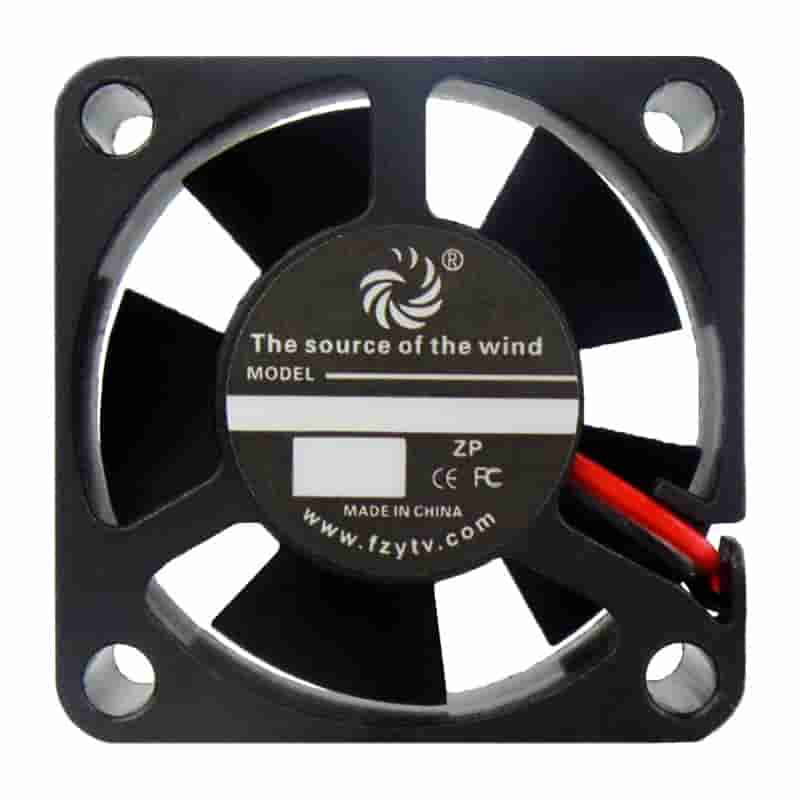

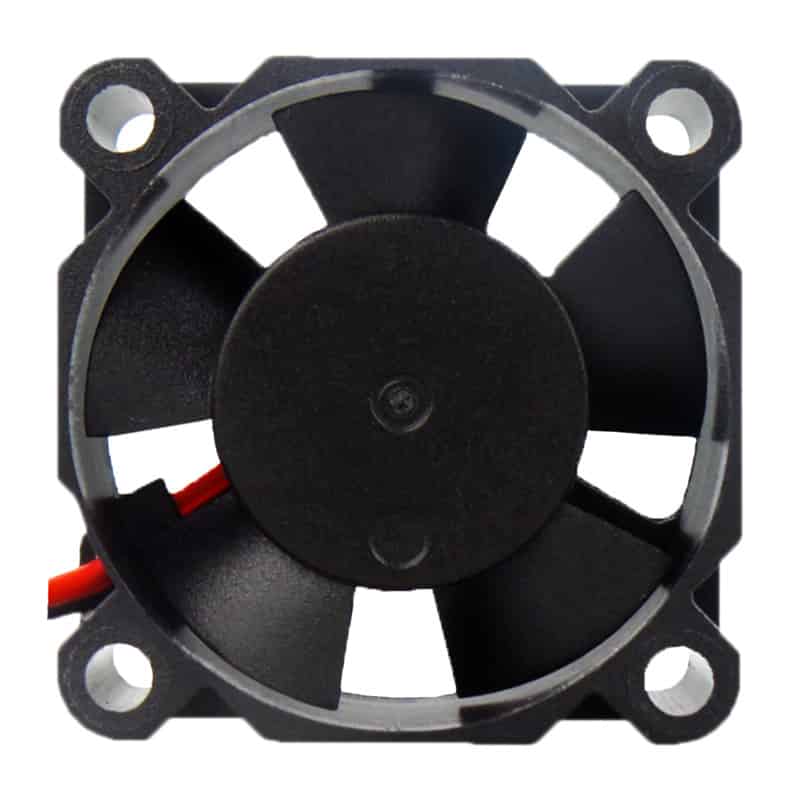

FD3010A

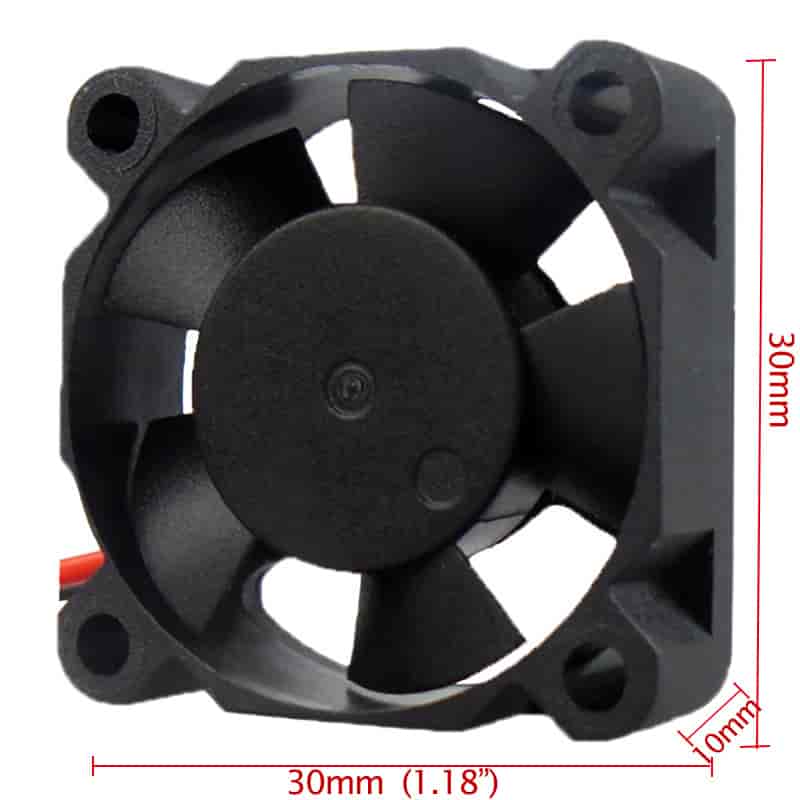

Size:30*30*10mm

Voltage:5V/12V

Speed: L/M/H/U(6000-12000RPM)

Bearing: Hydraulic/Dual ball

Cable: supoort customization

Connector: support customization

IP Rating: IP54/IP55/IP67/IP68

Function: Reverse connection protection, automatic restart, PWM, FG, RD

Whatsapp: +86 153 6189 2827

Model	Rated voltage	Voltage range	Speed	Current	Power	Air volume		Air pressure		Noise	Curve	Weight
Model	VDC	VDC	RPM	A	W	CFM	M3/h	mmH2O	InH2O	dBA	Color	G
FD3010B2U-AP00	12	6~14	12000	0.12	1.44	4.18	7.10	0.29	0.37	35.3	Black	8
FD3010B2H-AP00			10000	0.08	0.96	3.50	5.95	6.75	0.27	30.9	Red
FD3010B2M-AP00			8000	0.06	0.72	2.71	4.60	4.27	0.17	26.3	Green
FD3010B2L-AP00			6000	0.04	0.48	1.96	3.33	2.32	0.09	22.2	Blue
FD3010B1U-AP00	5	3.5~5.5	12000	0.25	1.25	4.18	7.10	9.29	0.37	35.3	Black
FD3010B1H-AP00			10000	0.15	0.80	3.50	5.95	6.75	0.27	30.9	Red
FD3010B1M-AP00			8000	0.10	0.50	2.71	4.60	4.27	0.17	26.3	Green
FD3010B1L-AP00			6000	0.08	0.40	1.96	3.33	2.32	0.09	22.2	Blue

Product Parameters

The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.

Parameter	Specification
Model	XY-GF200
Air Pressure	800Pa (Max)
Air Flow	15-50 CFM (Adjustable)
Voltage	DC 12/24/48V
Noise Level	35-50 dB(A)
Power Consumption	18W-60W
Protection Rating	IP55 (Dustproof & Water-resistant)
