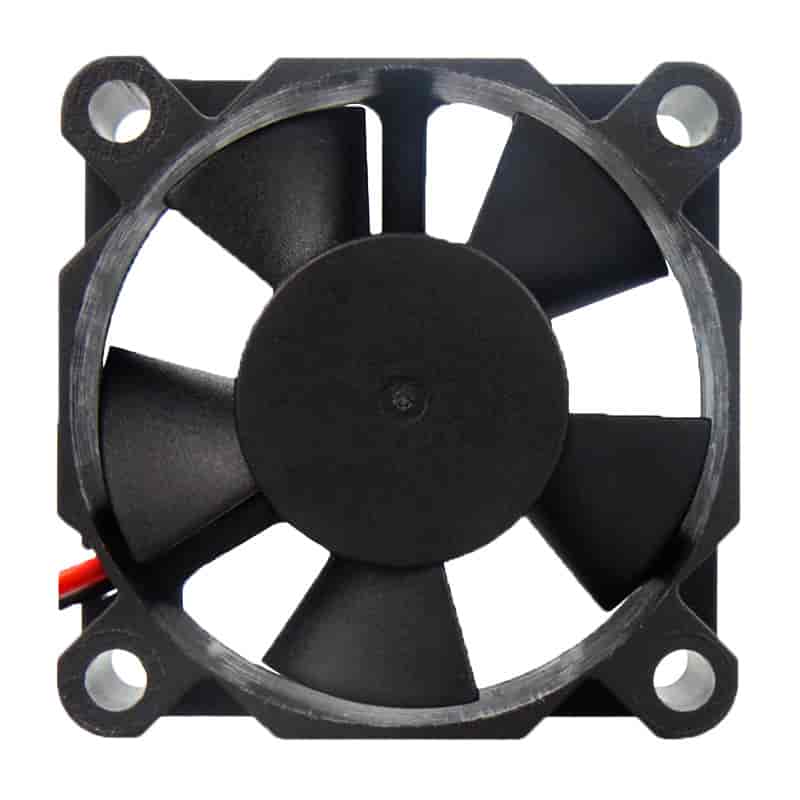

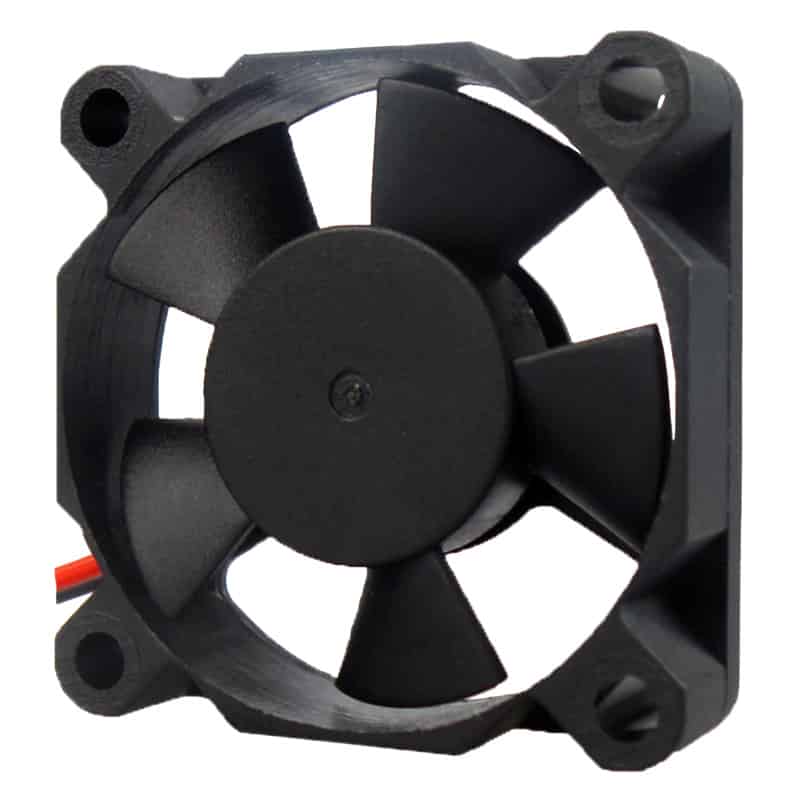

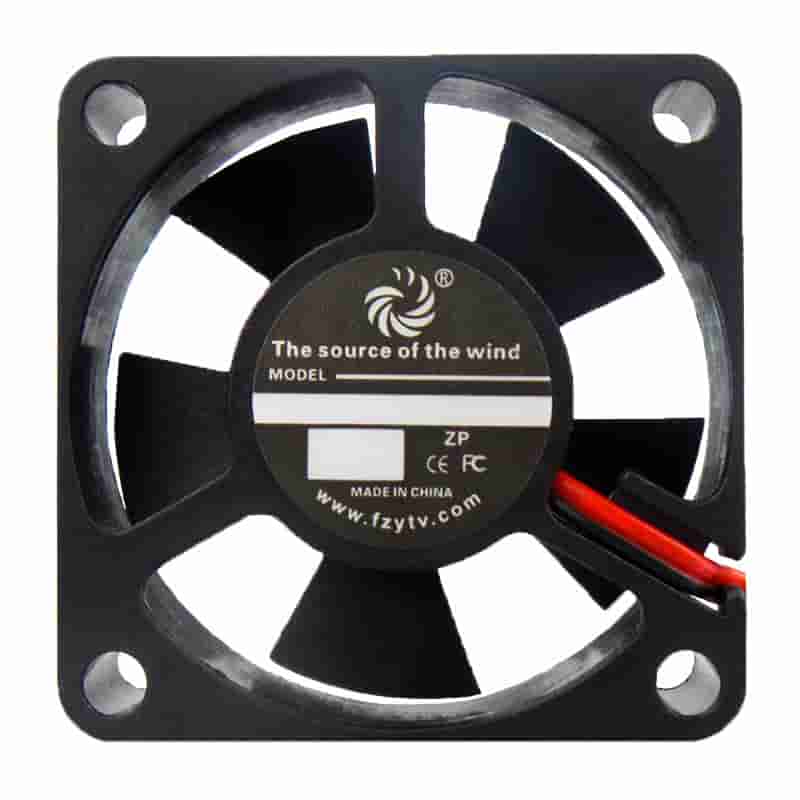

FD3510A

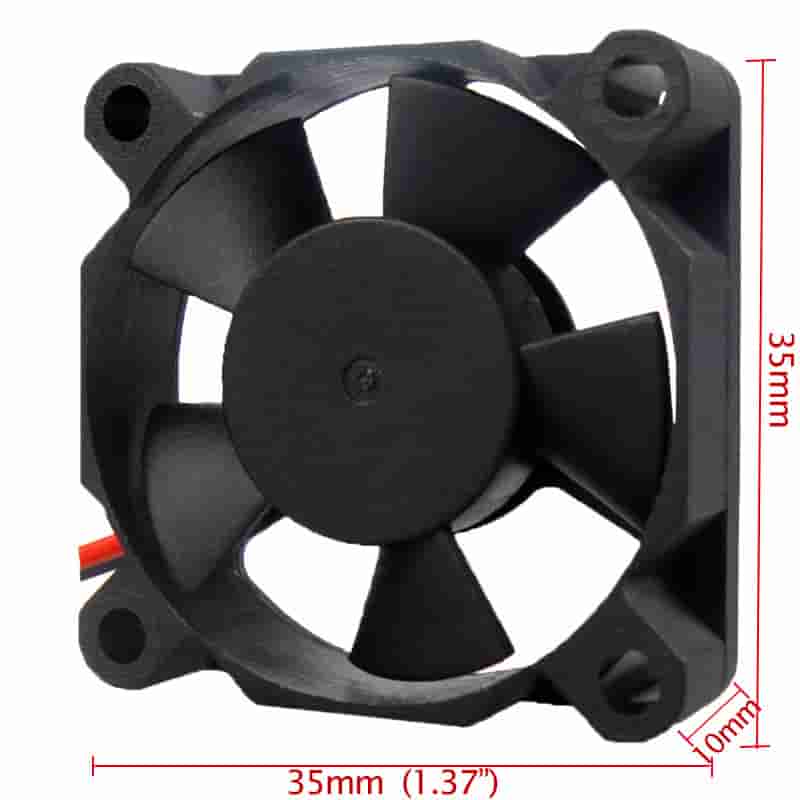

Size:35*35*10mm
Voltage:5V/12V
Speed: L/M/H/U(6000-12000RPM)
Bearing: Hydraulic/Dual ball
Cable: supoort customization
Connector: support customization
IP Rating: IP54/IP55/IP67/IP68
Function: Reverse connection protection, automatic restart, PWM, FG, RD
Datasheet Download
| Model | Rated voltage | Voltage range | Speed | Current | Power | Air volume | Air pressure | Noise | Curve | Weight | ||
| VDC | VDC | RPM | A | W | CFM | M3/h | mmH2O | InH2O | dBA | Color | G | |
| FD3510B2U-AP00 | 12 | 6~14 | 12000 | 0.10 | 1.20 | 6.97 | 11.84 | 9.16 | 0.36 | 36.8 | Black | 9 |
| FD3510B2H-AP00 | 10000 | 0.08 | 0.96 | 5.79 | 9.84 | 6.04 | 0.24 | 32.5 | Red | |||
| FD3510B2M-AP00 | 8000 | 0.06 | 0.72 | 4.36 | 7.41 | 3.92 | 0.15 | 27.8 | Green | |||
| FD3510B2L-AP00 | 6000 | 0.04 | 0.48 | 3.32 | 5.64 | 2.63 | 0.10 | 22.7 | Blue | |||
| FD3510B1U-AP00 | 5 | 3.5~5.5 | 12000 | 0.20 | 1.00 | 6.97 | 11.84 | 9.16 | 0.36 | 36.8 | Black | |
| FD3510B1H-AP00 | 10000 | 0.16 | 0.80 | 5.79 | 9.84 | 6.04 | 0.24 | 32.5 | Red | |||
| FD3510B1M-AP00 | 8000 | 0.12 | 0.60 | 4.36 | 7.41 | 3.92 | 0.15 | 27.8 | Green | |||
| FD3510B1L-AP00 | 6000 | 0.08 | 0.40 | 3.32 | 5.64 | 2.63 | 0.10 | 22.7 | Blue | |||
Product Parameters
The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.
| Parameter | Specification |
| Model | XY-GF200 |
| Air Pressure | 800Pa (Max) |
| Air Flow | 15-50 CFM (Adjustable) |
| Voltage | DC 12/24/48V |
| Noise Level | 35-50 dB(A) |
| Power Consumption | 18W-60W |
| Protection Rating | IP55 (Dustproof & Water-resistant) |
