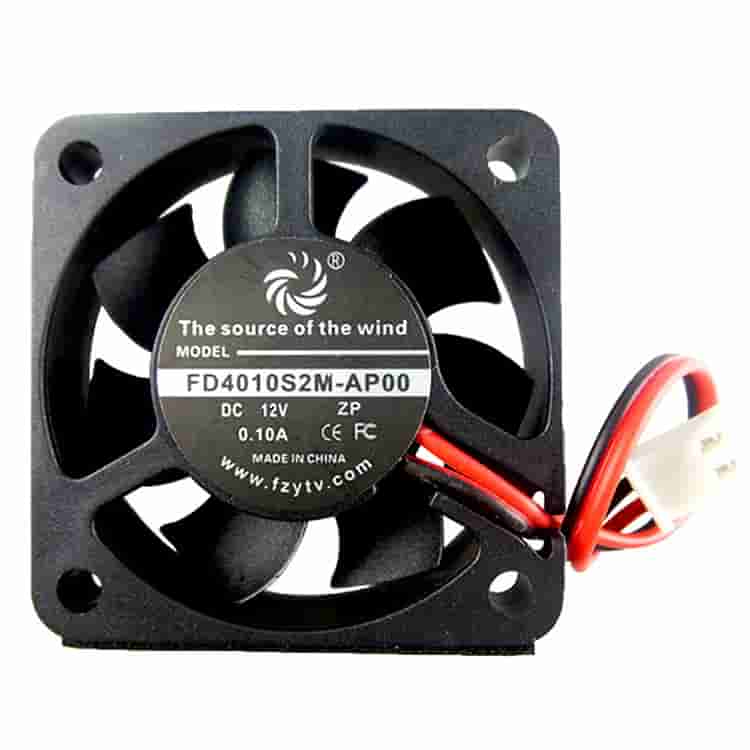

FD4010A

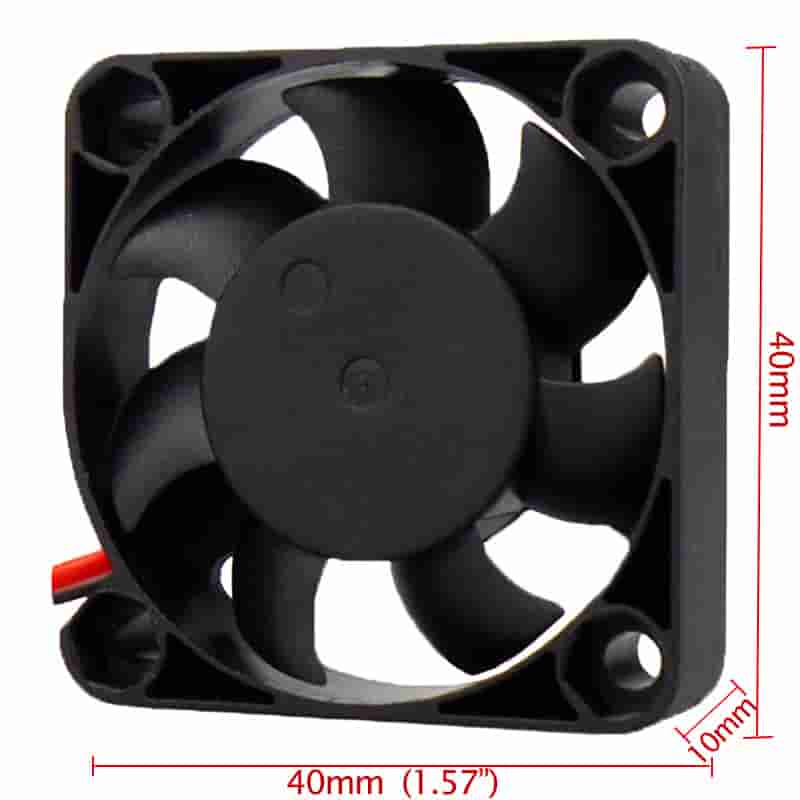

Size:40*40*10mm

Voltage:5V/12V/24V

Speed: L/M/H/U(5000-8000RPM)

Bearing: Hydraulic/Dual ball

Cable: supoort customization

Connector: support customization

IP Rating: IP54/IP55/IP67/IP68

Function: Reverse connection protection, automatic restart, PWM, FG, RD

Datasheet Download

Whatsapp: +86 153 6189 2827

Model	Rated voltage	Voltage range	Speed	Current	Power	Air volume		Air pressure		Noise	Curve	Weight
Model	VDC	VDC	RPM	A	W	CFM	M3/h	mmH2O	InH2O	dBA	Color	G
FD4010B4U-AP00	24	12~26.4	8000	0.06	1.44	7.61	12.93	5.86	0.23	37.6	Black	13
FD4010B4H-AP00			7000	0.05	1.20	6.57	11.16	4.38	0.17	31.3	Red
FD4010B4M-AP00			6000	0.04	0.96	5.63	9.57	3.34	0.13	27.3	Green
FD4010B4L-AP00			5000	0.03	0.72	4.29	7.29	2.38	0.09	24.1	Blue
FD4010B2U-AP00	12	6~14	8000	0.10	1.20	7.61	12.93	5.86	0.23	37.6	Black
FD4010B2H-AP00			7000	0.08	0.96	6.57	11.16	4.38	0.17	31.3	Red
FD4010B2M-AP00			6000	0.06	0.72	5.63	9.57	3.34	0.13	27.3	Green
FD4010B2L-AP00			5000	0.04	0.48	4.29	7.29	2.38	0.09	24.1	Blue
FD4010B1U-AP00	5	3.5~5.5	8000	0.24	1.20	7.61	12.93	5.86	0.23	37.6	Black
FD4010B1H-AP00			7000	0.16	0.80	6.57	11.16	4.38	0.17	31.3	Red
FD4010B1M-AP00			6000	0.10	0.50	5.63	9.57	3.34	0.13	27.3	Green
FD4010B1L-AP00			5000	0.08	0.40	4.29	7.29	2.38	0.09	24.1	Blue
