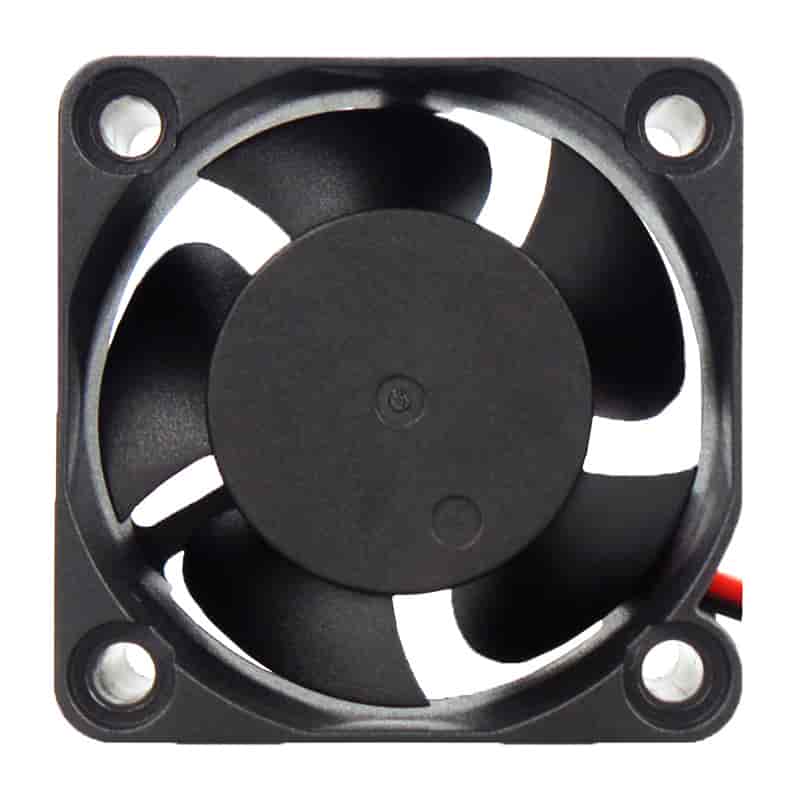

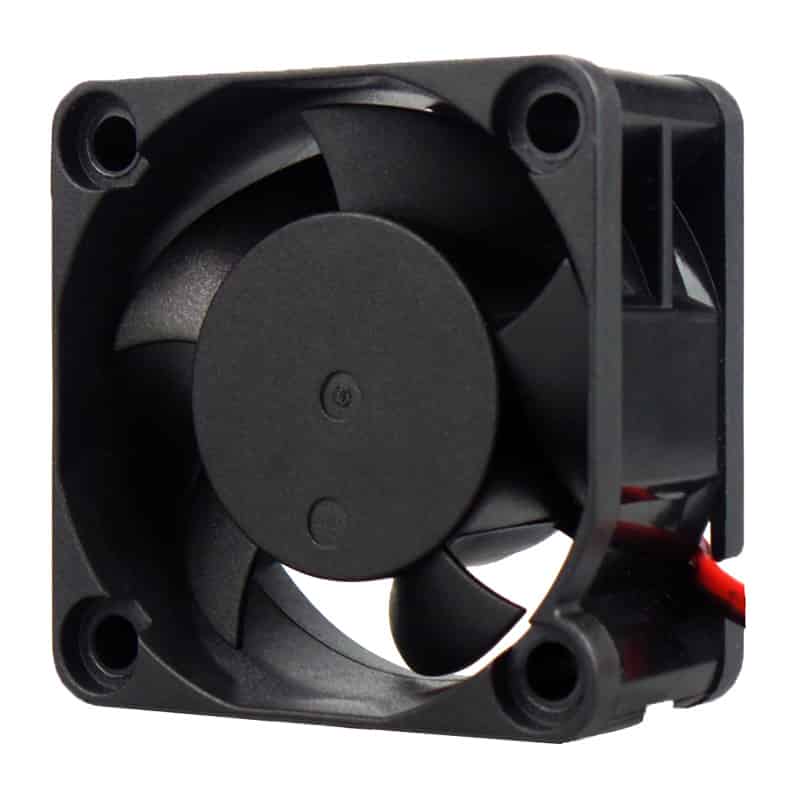

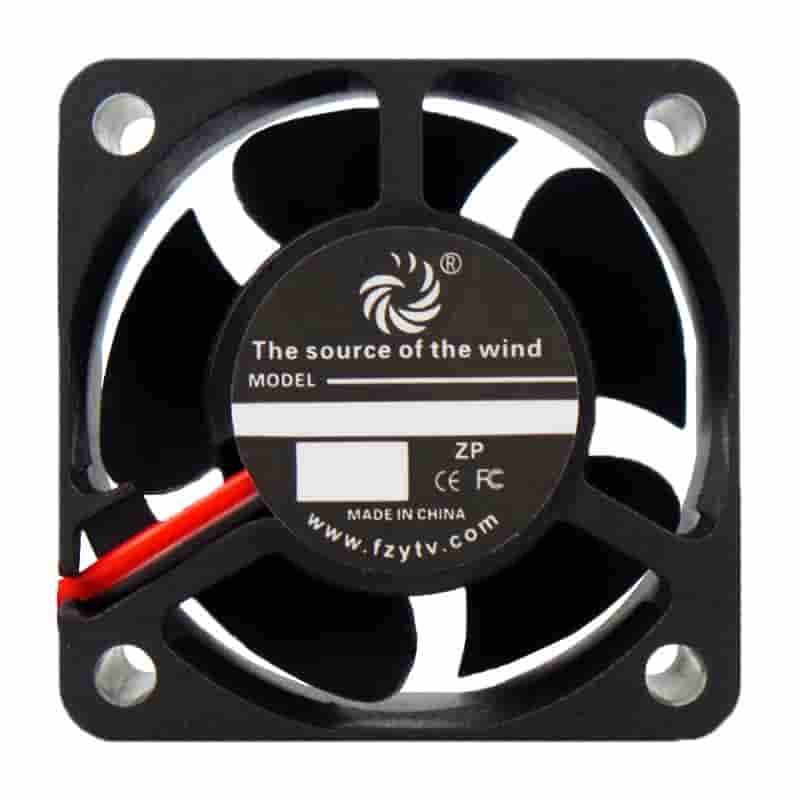

FD4020A

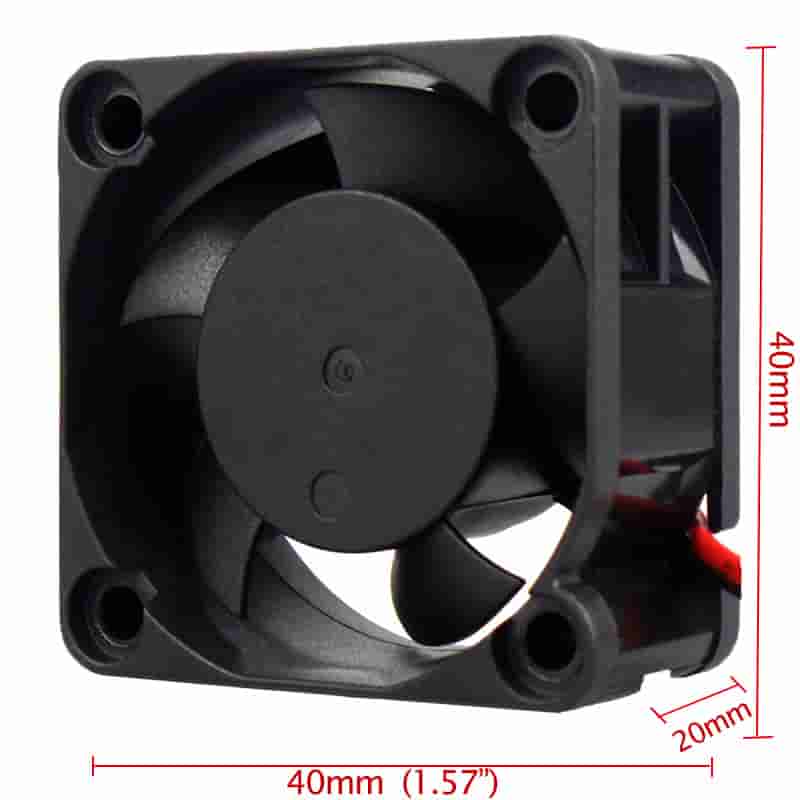

Size:40*40*20mm

Voltage:5V/12V/24V

Speed: L/M/H/U(5000-9500RPM)

Bearing: Hydraulic/Dual ball

Cable: supoort customization

Connector: support customization

IP Rating: IP54/IP55/IP67/IP68

Function: Reverse connection protection, automatic restart, PWM, FG, RD

Datasheet Download

Whatsapp: +86 153 6189 2827

Model	Rated voltage	Voltage range	Speed	Current	Power	Air volume		Air pressure		Noise	Curve	Weight
Model	VDC	VDC	RPM	A	W	CFM	M3/h	mmH2O	InH2O	dBA	Color	G
FD4020B4U-AP00	24	12~26.4	9500	0.07	1.68	11.22	19.06	10.99	0.43	36.2	Black	24
FD4020B4H-AP00			8000	0.06	1.44	9.40	15.97	7.73	0.30	31.4	Red
FD4020B4M-AP00			6500	0.04	0.96	7.57	12.86	4.89	0.19	26.9	Green
FD4020B4L-AP00			5000	0.03	0.72	5.70	9.68	2.96	0.12	22.7	Blue
FD4020B2U-AP00	12	6~14	9500	0.15	1.8	11.22	19.06	10.99	0.43	36.2	Black
FD4020B2H-AP00			8000	0.10	1.2	9.40	15.97	7.73	0.30	31.4	Red
FD4020B2M-AP00			6500	0.06	0.72	7.57	12.86	4.89	0.19	26.9	Green
FD4020B2L-AP00			5000	0.03	0.36	5.70	9.68	2.96	0.12	22.7	Blue
FD4020B1U-AP00	5	3.5~5.5	9500	0.25	1.25	11.22	19.06	10.99	0.43	36.2	Black
FD4020B1H-AP00			8000	0.20	1.00	9.40	15.97	7.73	0.30	31.4	Red
FD4020B1M-AP00			6500	0.12	0.60	7.57	12.86	4.89	0.19	26.9	Green
FD4020B1L-AP00			5000	0.08	0.40	5.70	9.68	2.96	0.12	22.7	Blue

Product Parameters

The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.

Parameter	Specification
Model	XY-GF200
Air Pressure	800Pa (Max)
Air Flow	15-50 CFM (Adjustable)
Voltage	DC 12/24/48V
Noise Level	35-50 dB(A)
Power Consumption	18W-60W
Protection Rating	IP55 (Dustproof & Water-resistant)
