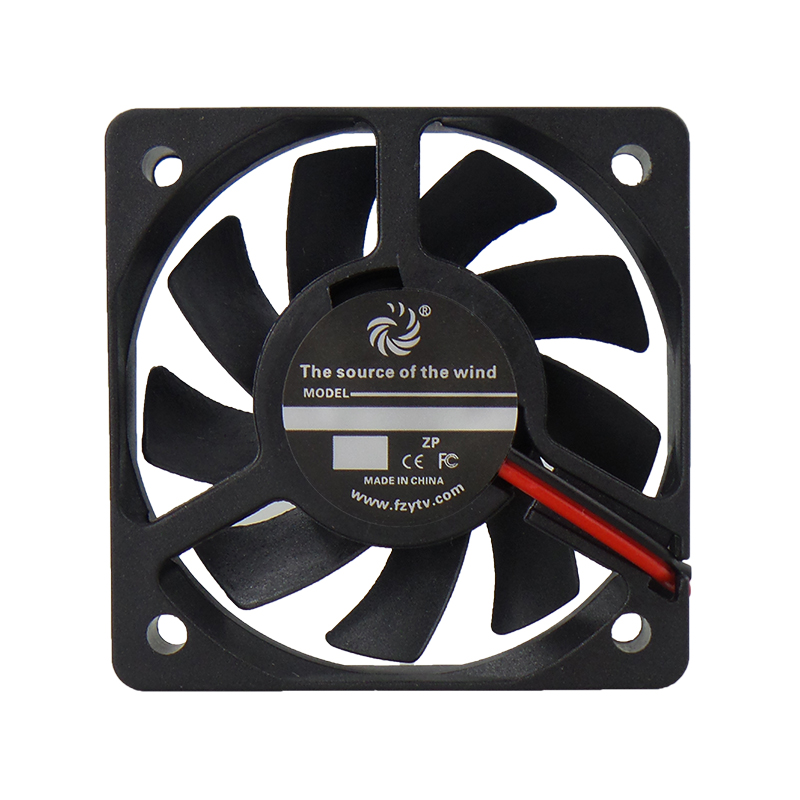

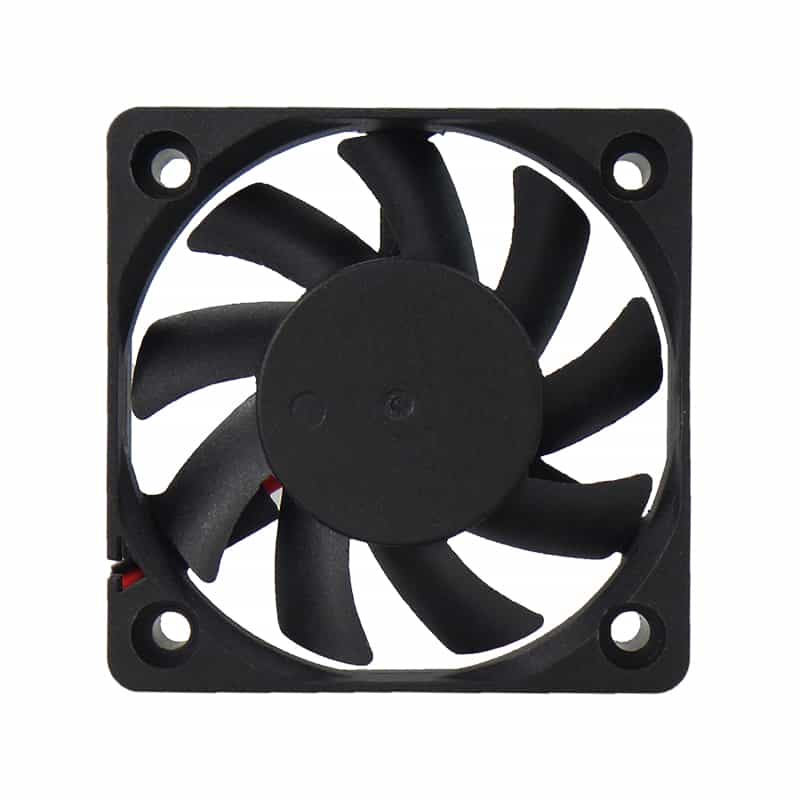

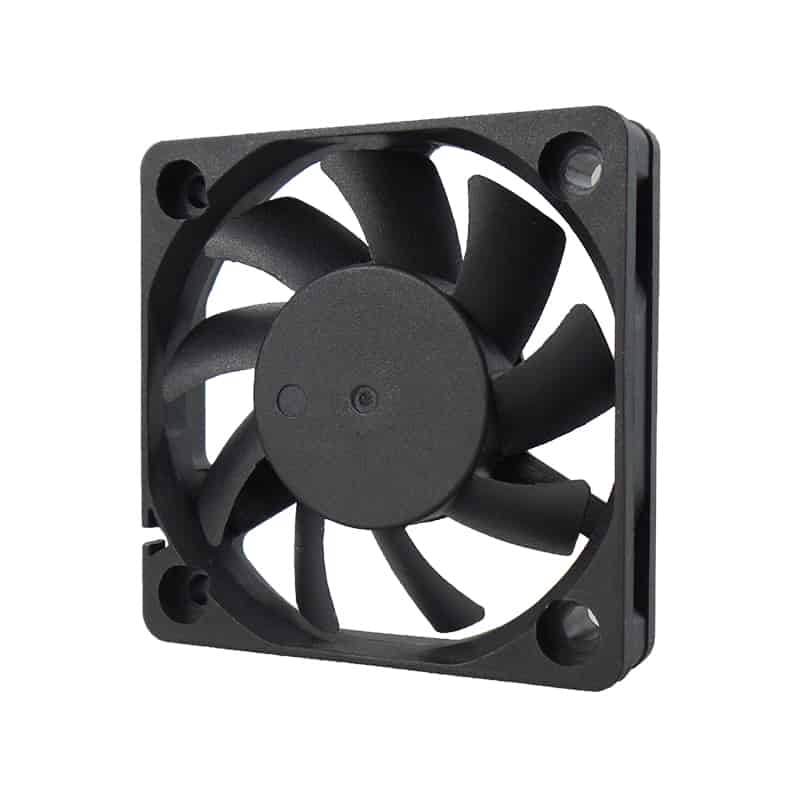

FD5010A-1

Size:50*50*10mm

Voltage:5V/12V/24V

Speed: L/M/H/U(4000-7000RPM)

Bearing: Hydraulic/Dual ball

Cable: supoort customization

Connector: support customization

IP Rating: IP54/IP55/IP67/IP68

Function: Reverse connection protection, automatic restart, PWM, FG, RD

Datasheet Download

Whatsapp: +86 153 6189 2827

Model	Rated voltage	Voltage range	Speed	Current	Power	Air volume		Air pressure		Noise	Curve	Weight
Model	VDC	VDC	RPM	A	W	CFM	M3/h	mmH2O	InH2O	dBA	Color	G
FD5010B4U-AP00	24	12~26.4	7000	0.15	3.60	16.23	27.57	6.31	0.25	38.1	Black	20
FD5010B4H-AP00			6000	0.10	2.40	14.02	23.82	4.77	0.19	33.7	Red
FD5010B4M-AP00			5000	0.08	1.92	11.89	20.20	3.42	0.13	30.4	Green
FD5010B4L-AP00			4000	0.04	0.96	9.38	15.94	2.19	0.09	25.2	Blue
FD5010B2U-AP00	12	6~14	7000	0.18	2.16	16.23	27.57	6.31	0.25	38.1	Black
FD5010B2H-AP00			6000	0.15	1.80	14.02	23.82	4.77	0.19	33.7	Red
FD5010B2M-AP00			5000	0.10	1.20	11.89	20.20	3.42	0.13	30.4	Green
FD5010B2L-AP00			4000	0.06	0.72	9.38	15.94	2.19	0.09	25.2	Blue
FD5010B1U-AP00	5	3.5~5.5	7000	0.40	2.00	16.23	27.57	6.31	0.25	38.1	Black
FD5010B1H-AP00			6000	0.25	1.25	14.02	23.82	4.77	0.19	33.7	Red
FD5010B1M-AP00			5000	0.15	0.75	11.89	20.20	3.42	0.13	30.4	Green
FD5010B1L-AP00			4000	0.10	0.50	9.38	15.94	2.19	0.09	25.2	Blue

Product Parameters

The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.

Parameter	Specification
Model	XY-GF200
Air Pressure	800Pa (Max)
Air Flow	15-50 CFM (Adjustable)
Voltage	DC 12/24/48V
Noise Level	35-50 dB(A)
Power Consumption	18W-60W
Protection Rating	IP55 (Dustproof & Water-resistant)
