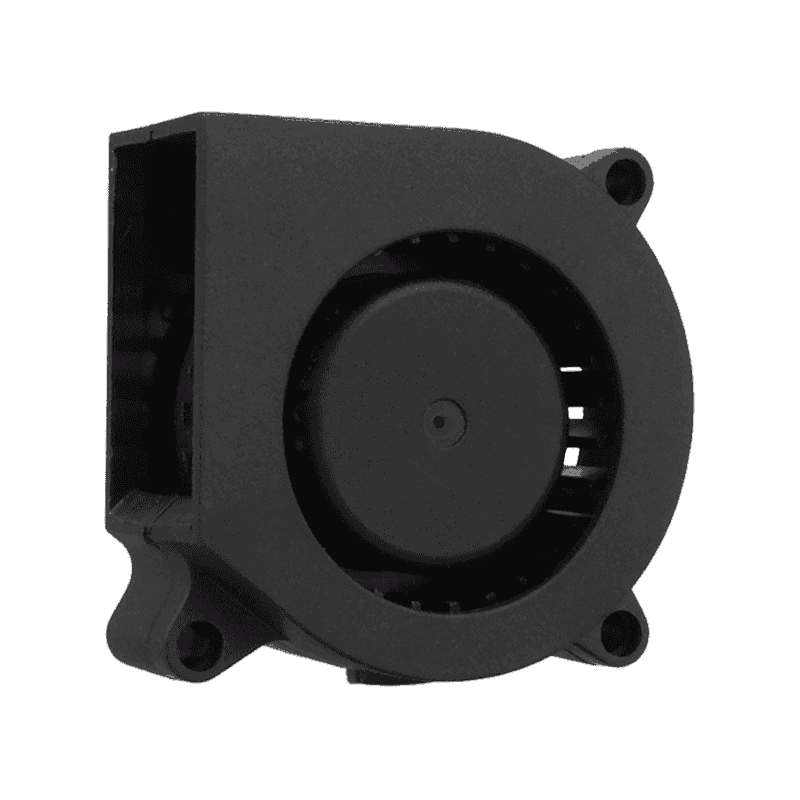

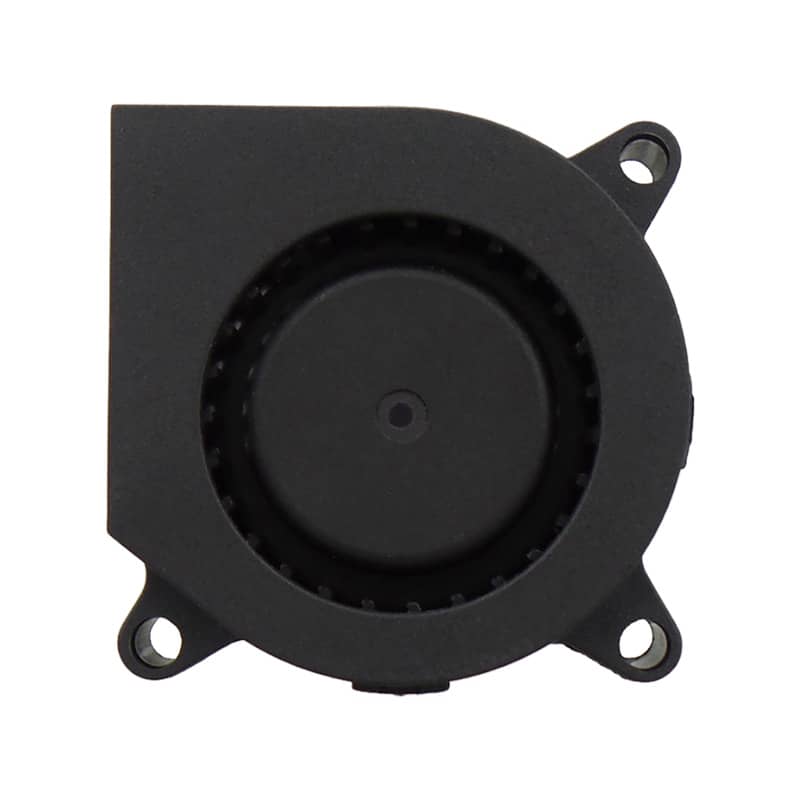

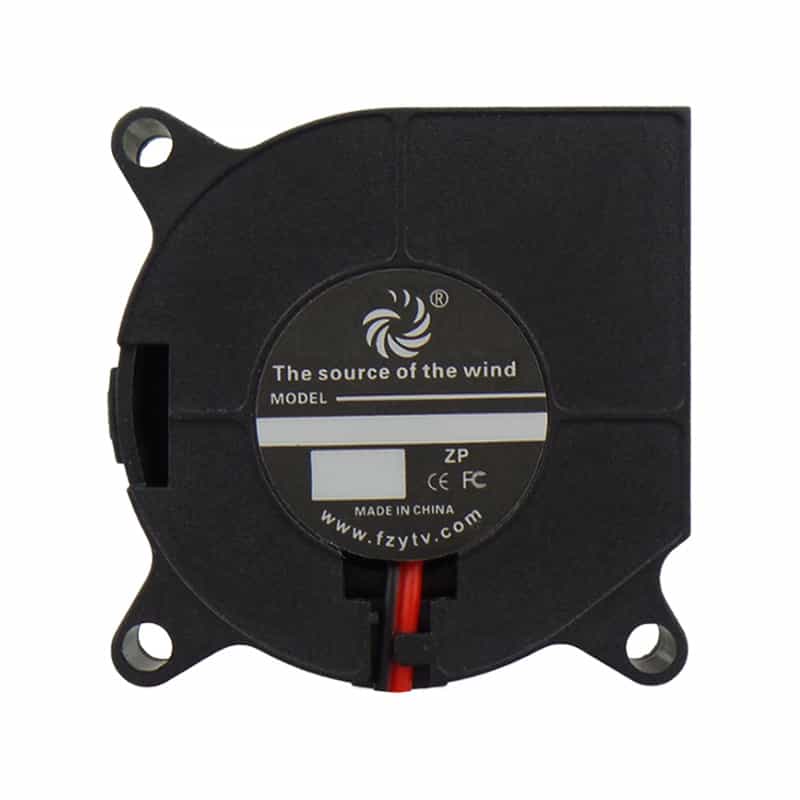

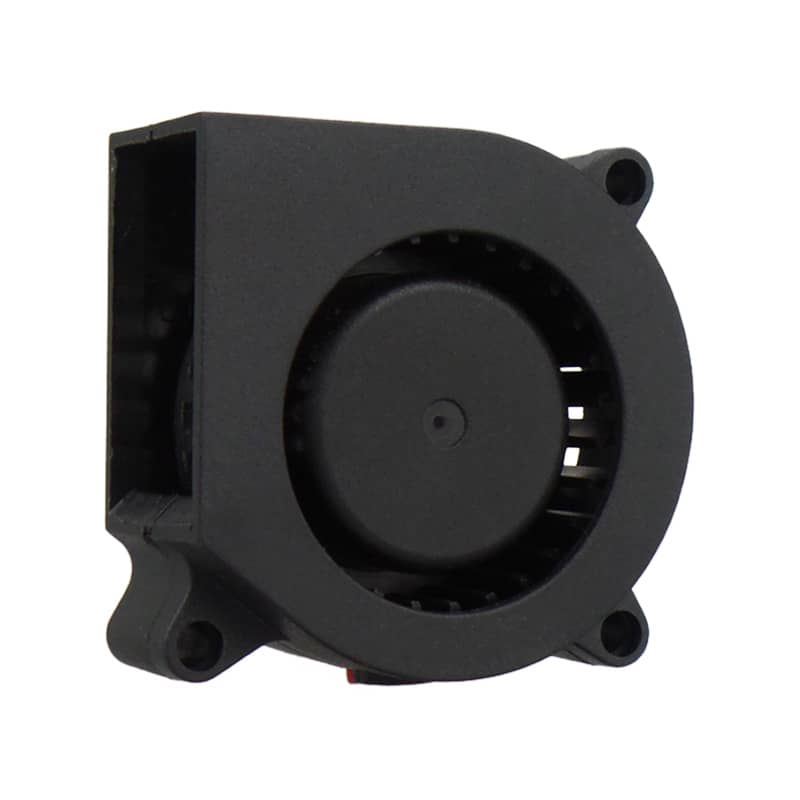

FD4020B
Size:40*40*20mm
Voltage:5V/12V/24V
Speed: L/M/H/U(3500-8000RPM)
Bearing: Sleeve/Dual ball
Cable: supoort customization
Connector: support customization
IP Rating: IP54/IP55/IP67/IP68
Function: Reverse connection protection, automatic restart, PWM, FG, RD
Datasheet Download
| Model | Rated voltage | Voltage range | Speed | Current | Power | Air Flow | Air pressure | Noise | Curve | Weight | ||
| VDC | VDC | RPM | A | W | CFM | M3/h | mmH2O | InH2O | dBA | Color | G | |
| FD4020B4U-BP00 | 24 | 12~26.4 | 8000 | 0.08 | 1.92 | 3.40 | 5.78 | 11.43 | 0.45 | 52.5 | Black | 24 |
| FD4020B4H-BP00 | 6500 | 0.05 | 1.20 | 2.73 | 4.64 | 7.57 | 0.30 | 44.6 | Red | |||
| FD4020B4M-BP00 | 5000 | 0.03 | 0.72 | 2.10 | 3.57 | 4.22 | 0.17 | 35.1 | Green | |||
| FD4020B4L-BP00 | 3500 | 0.02 | 0.48 | 1.24 | 2.11 | 2.13 | 0.08 | 26.7 | Blue | |||
| FD4020B2U-BP00 | 12 | 6-14 | 8000 | 0.15 | 1.80 | 3.40 | 5.78 | 11.43 | 0.45 | 52.5 | Black | |
| FD4020B2H-BP00 | 6500 | 0.08 | 0.96 | 2.73 | 4.64 | 7.57 | 0.30 | 44.6 | Red | |||
| FD4020B2M-BP00 | 5000 | 0.06 | 0.72 | 2.10 | 3.57 | 4.22 | 0.17 | 35.1 | Green | |||
| FD4020B2L-BP00 | 3500 | 0.04 | 0.48 | 1.24 | 2.11 | 2.13 | 0.08 | 26.7 | Blue | |||
| FD4020B1U-BP00 | 5 | 3.5~5.5 | 8000 | 0.30 | 1.50 | 3.40 | 5.78 | 11.43 | 0.45 | 52.5 | Black | |
| FD4020B1H-BP00 | 6500 | 0.20 | 1.00 | 2.73 | 4.64 | 7.57 | 0.30 | 44.6 | Red | |||
| FD4020B1M-BP00 | 5000 | 0.10 | 0.50 | 2.10 | 3.57 | 4.22 | 0.17 | 35.1 | Green | |||
| FD4020B1L-BP00 | 3500 | 0.06 | 0.30 | 1.24 | 2.11 | 2.13 | 0.08 | 26.7 | Blue | |||
Product Parameters
The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.
| Parameter | Specification |
| Model | XY-GF200 |
| Air Pressure | 800Pa (Max) |
| Air Flow | 15-50 CFM (Adjustable) |
| Voltage | DC 12/24/48V |
| Noise Level | 35-50 dB(A) |
| Power Consumption | 18W-60W |
| Protection Rating | IP55 (Dustproof & Water-resistant) |
