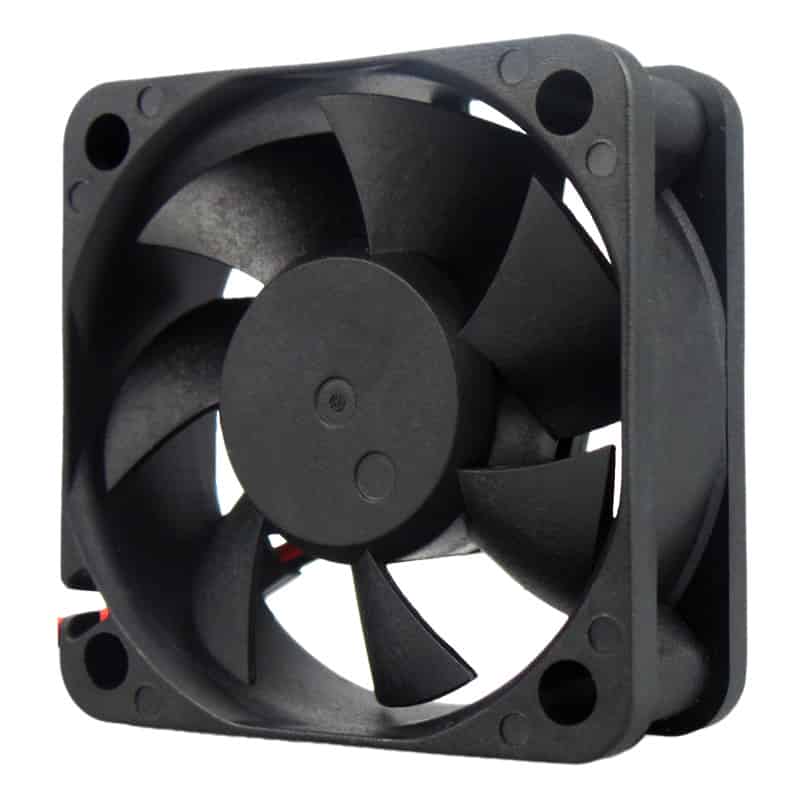

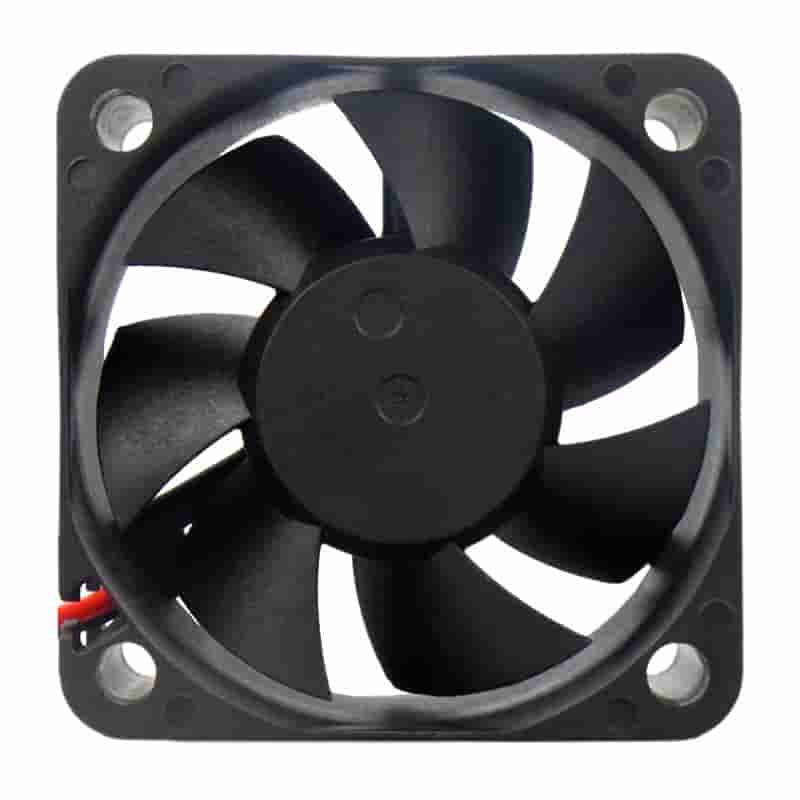

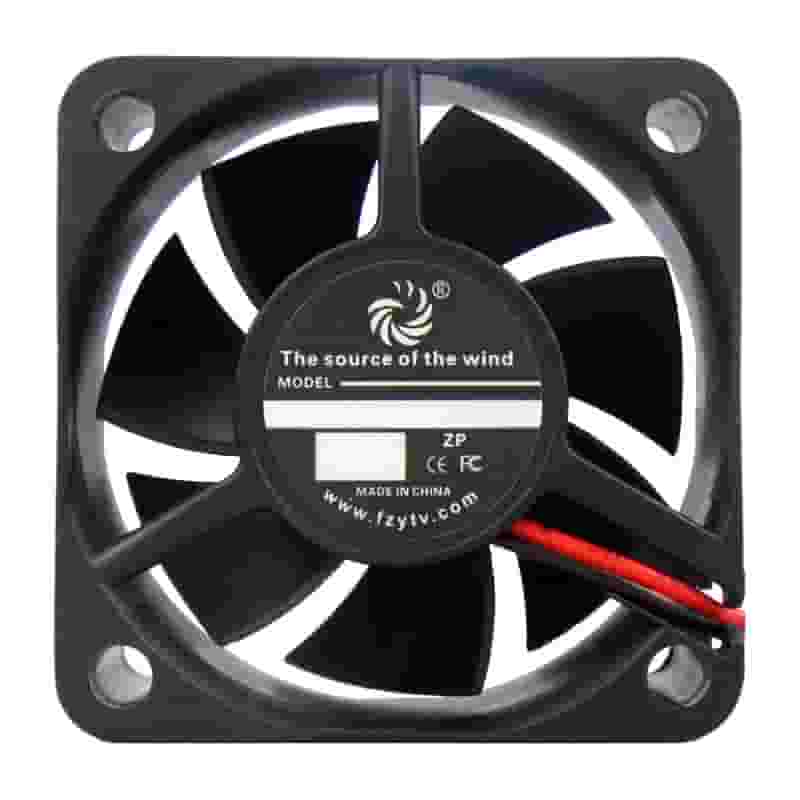

FD5020A

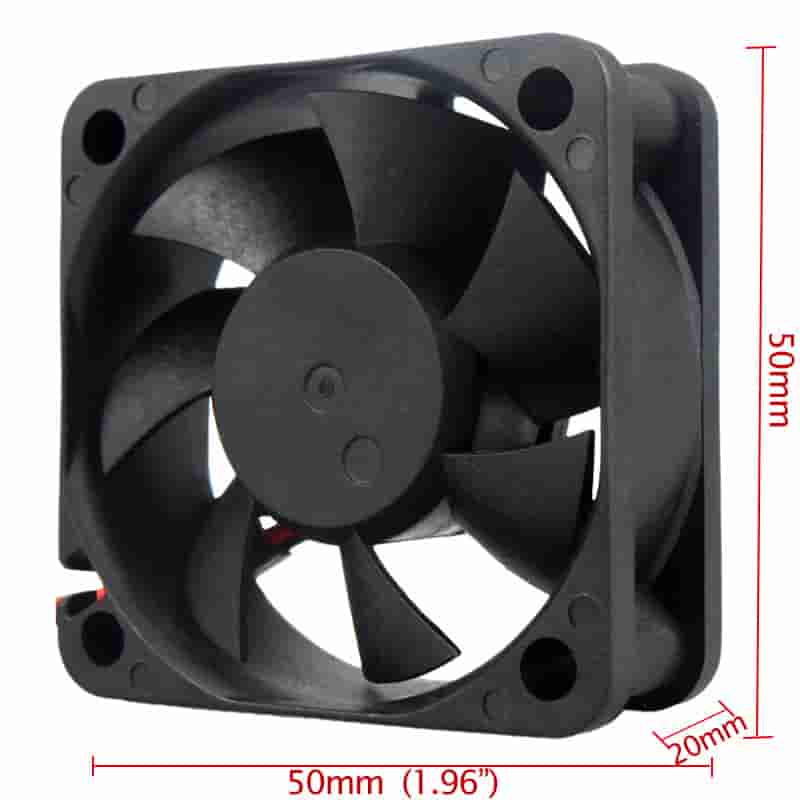

Size:50*50*20mm

Bearing: Hydraulic/Dual ball

Cable: supoort customization

Connector: support customization

IP Rating: IP54/IP55/IP67/IP68

Function: Reverse connection protection, automatic restart, PWM, FG, RD

Datasheet Download

Whatsapp: +86 153 6189 2827

Model	Rated voltage	Voltage range	Speed	Current	Power	Air volume		Air pressure		Noise	Curve	Weight
Model	VDC	VDC	RPM	A	W	CFM	M3/h	mmH2O	InH2O	dBA	Color	g
FD5020B4U-AP00	24	12~26.4	6000	0.06	1.44	16.62	28.24	6.24	0.25	37.8	Black	30
FD5020B4H-AP00			5000	0.04	0.96	13.89	23.60	4.35	0.17	33.7	Red
FD5020B4M-AP00			4000	0.03	0.72	10.95	18.60	2.83	0.11	29.4	Green
FD5020B4L-AP00			3000	0.02	0.48	8.03	13.64	1.62	0.06	23.9	Blue
FD5020B2U-AP00	12	6~14	6000	0.16	1.92	16.62	28.24	6.24	0.25	37.8	Black
FD5020B2H-AP00			5000	0.08	0.96	13.89	23.60	4.35	0.17	33.7	Red
FD5020B2M-AP00			4000	0.05	0.60	10.95	18.60	2.83	0.11	29.4	Green
FD5020B2L-AP00			3000	0.03	0.36	8.03	13.64	1.62	0.06	23.9	Blue
FD5020B1U-AP00	5	3.5~5.5	6000	0.20	1.00	16.62	28.24	6.24	0.25	37.8	Black
FD5020B1H-AP00			5000	0.15	0.75	13.89	23.60	4.35	0.17	33.7	Red
FD5020B1M-AP00			4000	0.10	0.50	10.95	18.60	2.83	0.11	29.4	Green
FD5020B1L-AP00			3000	0.06	0.30	8.03	13.64	1.62	0.06	23.9	Blue

Product Parameters

The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.

Parameter	Specification
Model	XY-GF200
Air Pressure	800Pa (Max)
Air Flow	15-50 CFM (Adjustable)
Voltage	DC 12/24/48V
Noise Level	35-50 dB(A)
Power Consumption	18W-60W
Protection Rating	IP55 (Dustproof & Water-resistant)
