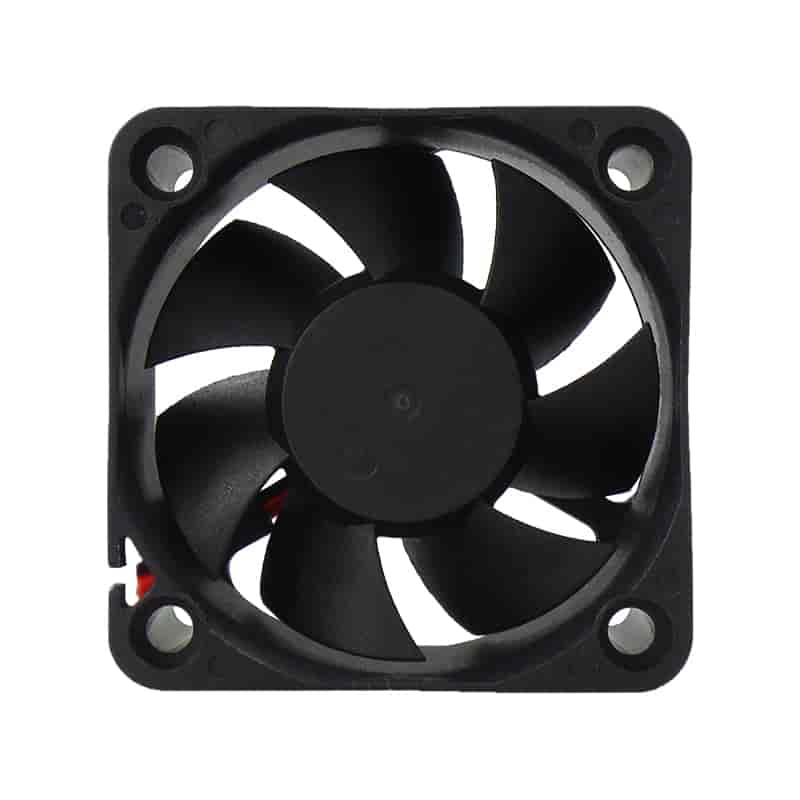

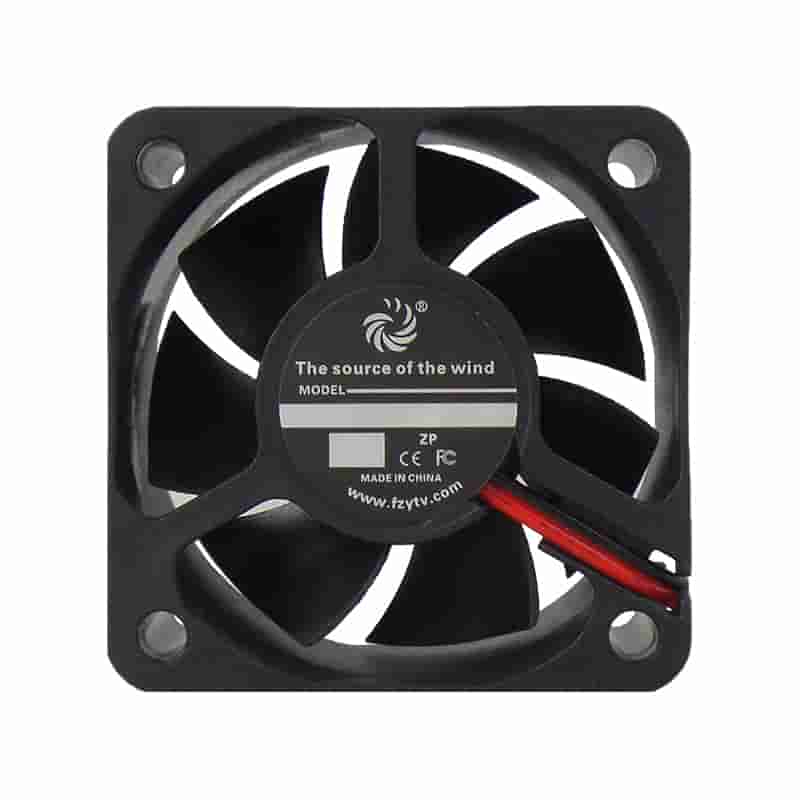

FD5025A

Size:50*50*25mm

Bearing: Hydraulic/Dual ball

Cable: supoort customization

Connector: support customization

IP Rating: IP54/IP55/IP67/IP68

Function: Reverse connection protection, automatic restart, PWM, FG, RD

Datasheet Download

Whatsapp: +86 153 6189 2827

Model	Rated voltage	Voltage range	Speed	Current	Power	Air volume		Air pressure		Noise	Curve	Weight
Model	VDC	VDC	RPM	A	W	CFM	M3/h	mmH2O	InH2O	dBA	Color	g
FD5025B4U-AP00	24	12~26.4	7000	0.05	1.20	19.07	32.40	7.45	0.29	42.8	Black	35
FD5025B4H-AP00			6000	0.04	0.96	16.45	27.95	5.54	0.22	38.2	Red
FD5025B4M-AP00			5000	0.03	0.72	13.91	23.63	3.91	0.15	34.0	Green
FD5025B4L-AP00			4000	0.02	0.48	11.06	18.79	2.55	0.10	30.5	Blue
FD5025B2U-AP00	12	6~14	7000	0.18	2.16	19.07	32.40	7.45	0.29	42.8	Black
FD5025B2H-AP00			6000	0.14	1.68	16.45	27.95	5.54	0.22	38.2	Red
FD5025B2M-AP00			5000	0.10	1.20	13.91	23.63	3.91	0.15	34.0	Green
FD5025B2L-AP00			4000	0.06	0.72	11.06	18.79	2.55	0.10	30.5	Blue
FD5025B1U-AP00	5	3.5~5.5	7000	0.35	1.75	19.07	32.40	7.45	0.29	42.8	Black
FD5025B1H-AP00			6000	0.25	1.25	16.45	27.95	5.54	0.22	38.2	Red
FD5025B1M-AP00			5000	0.15	0.75	13.91	23.63	3.91	0.15	34.0	Green
FD5025B1L-AP00			4000	0.10	0.50	11.06	18.79	2.55	0.10	30.5	Blue

Product Parameters

The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.

Parameter	Specification
Model	XY-GF200
Air Pressure	800Pa (Max)
Air Flow	15-50 CFM (Adjustable)
Voltage	DC 12/24/48V
Noise Level	35-50 dB(A)
Power Consumption	18W-60W
Protection Rating	IP55 (Dustproof & Water-resistant)
