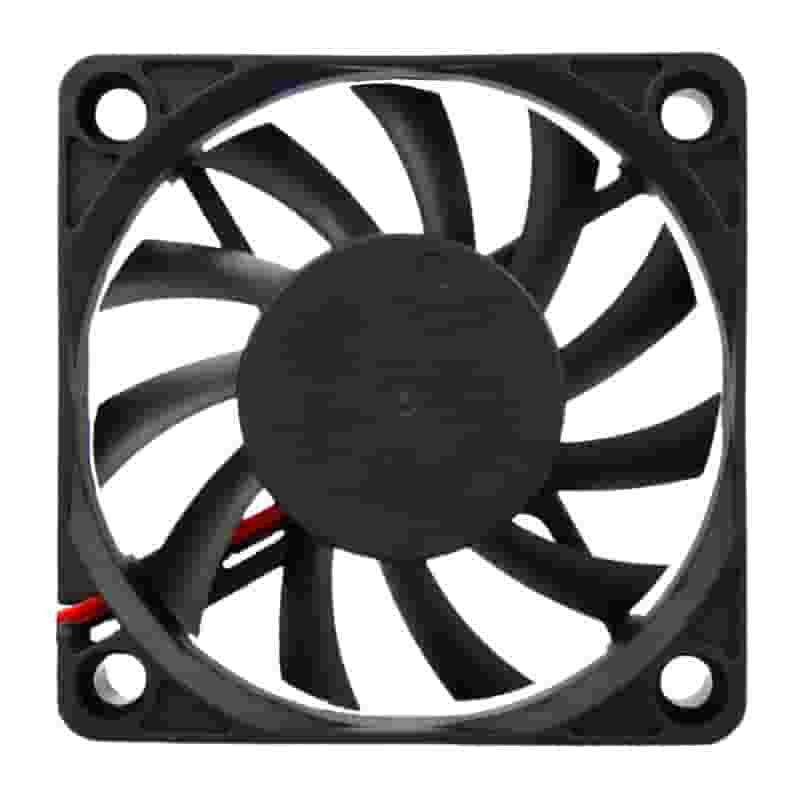

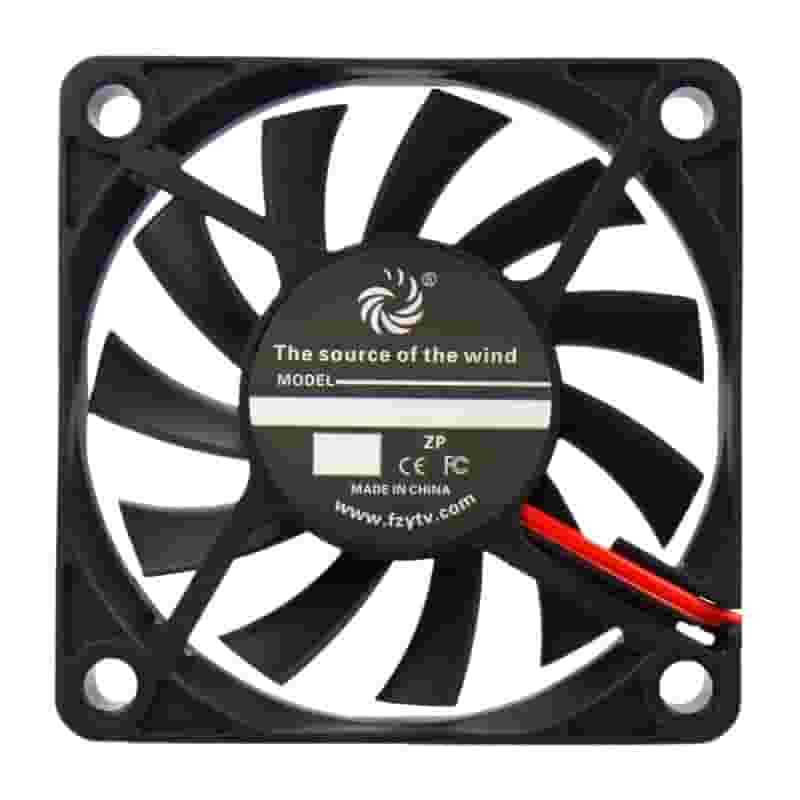

FD6010A

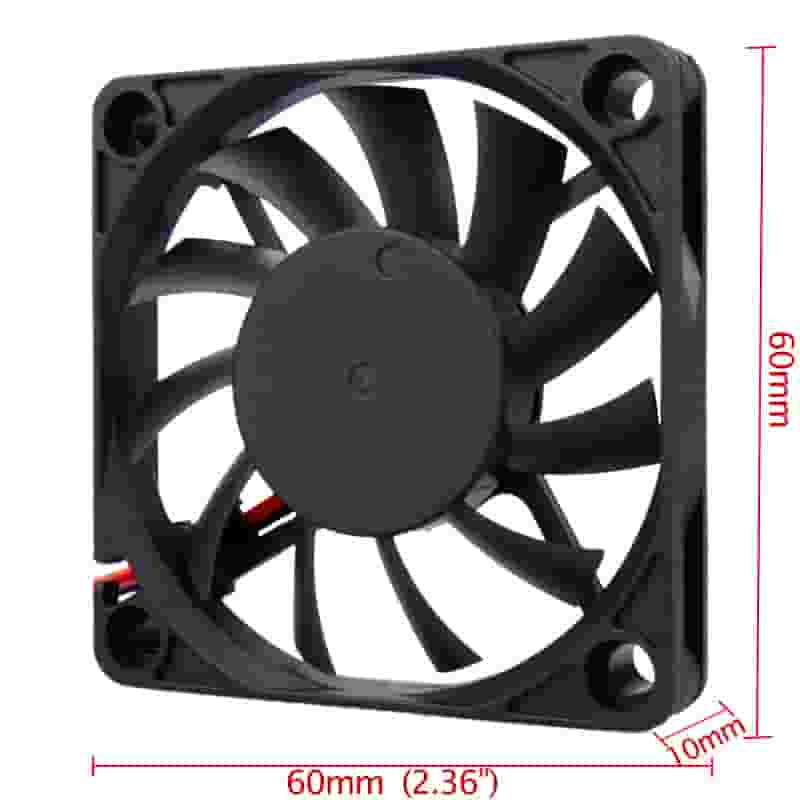

Size:60*60*10mm

Voltage:5V/12V/24V

Speed: L/M/H/U(3000-4500RPM)

Bearing: Hydraulic/Dual ball

Cable: supoort customization

Connector: support customization

IP Rating: IP54/IP55/IP67/IP68

Function: Reverse connection protection, automatic restart, PWM, FG, RD

Datasheet Download

Whatsapp: +86 153 6189 2827

Model	Rated voltage	Voltage range	Speed	Current	Power	Air volume		Air pressure		Noise	Curve	Weight
Model	VDC	VDC	RPM	A	W	CFM	M3/h	mmH2O	InH2O	dBA	Color	g
FD6010B4U-AP00	24	12~26.4	4500	0.10	2.40	16.76	28.48	2.82	0.11	36.5	Black	23
FD6010B4H-AP00			4000	0.04	0.96	14.74	25.04	2.28	0.09	32.3	Red
FD6010B4M-AP00			3500	0.03	0.72	12.94	21.99	1.70	0.07	29.2	Green
FD6010B4L-AP00			3000	0.02	0.48	10.77	18.30	1.22	0.05	26.7	Blue
FD6010B2U-AP00	12	6~14	4500	0.15	1.80	16.76	28.48	2.82	0.11	36.5	Black
FD6010B2H-AP00			4000	0.08	0.96	14.74	25.04	2.28	0.09	32.3	Red
FD6010B2M-AP00			3500	0.06	0.72	12.94	21.99	1.70	0.07	29.2	Green
FD6010B2L-AP00			3000	0.04	0.48	10.77	18.30	1.22	0.05	26.7	Blue
FD6010B1U-AP00	5	3.5~5.5	4500	0.25	1.25	16.76	28.48	2.82	0.11	36.5	Black
FD6010B1H-AP00			4000	0.20	1.00	14.74	25.04	2.28	0.09	32.3	Red
FD6010B1M-AP00			3500	0.12	0.60	12.94	21.99	1.70	0.07	29.2	Green
FD6010B1L-AP00			3000	0.08	0.40	10.77	18.30	1.22	0.05	26.7	Blue

Product Parameters

The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.

Parameter	Specification
Model	XY-GF200
Air Pressure	800Pa (Max)
Air Flow	15-50 CFM (Adjustable)
Voltage	DC 12/24/48V
Noise Level	35-50 dB(A)
Power Consumption	18W-60W
Protection Rating	IP55 (Dustproof & Water-resistant)
