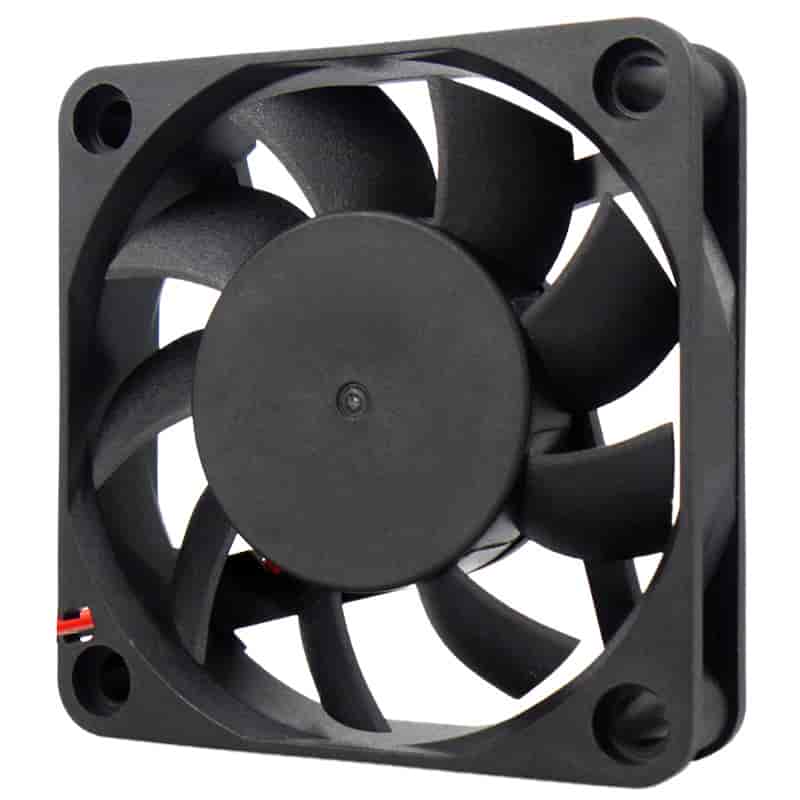

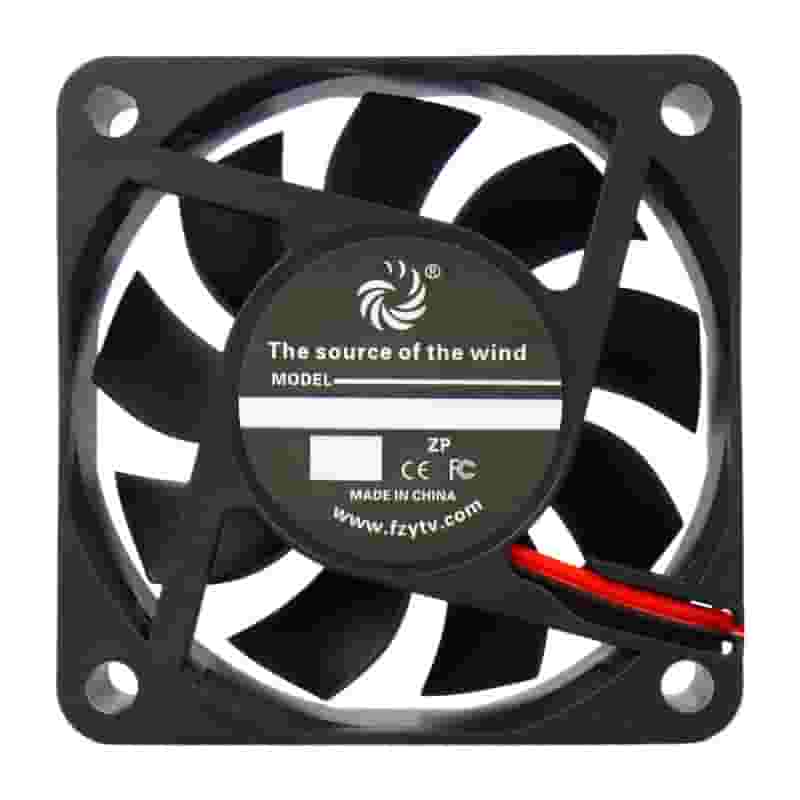

FD6015A

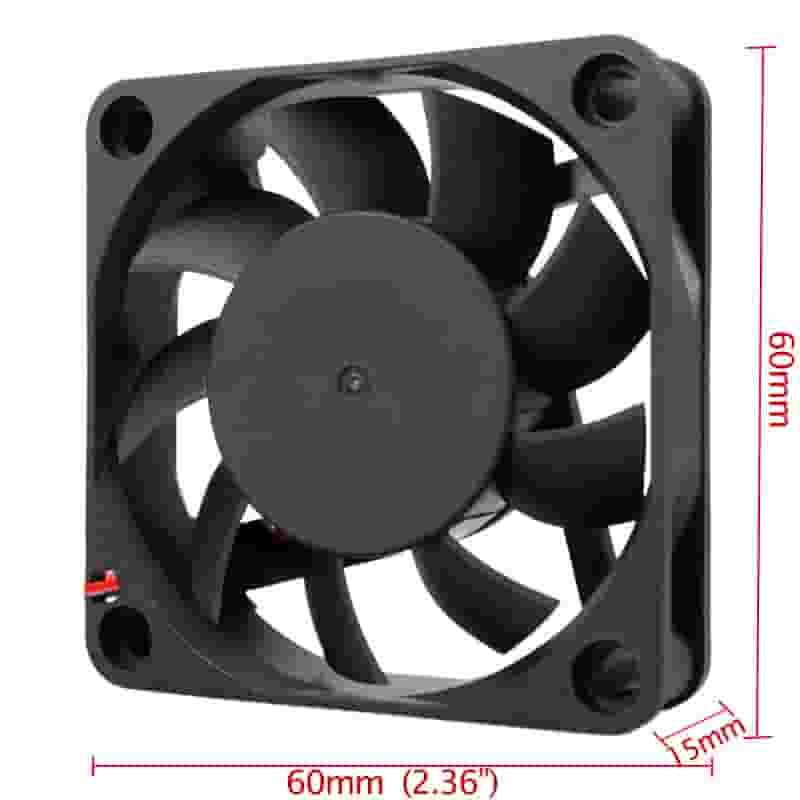

Size:60*60*15mm

Bearing: Hydraulic/Dual ball

Cable: supoort customization

Connector: support customization

IP Rating: IP54/IP55/IP67/IP68

Function: Reverse connection protection, automatic restart, PWM, FG, RD

Datasheet Download

Whatsapp: +86 153 6189 2827

Model	Rated voltage	Voltage range	Speed	Current	Power	Air volume		Air pressure		Noise	Curve	Weight
Model	VDC	VDC	RPM	A	W	CFM	M3/h	mmH2O	InH2O	dBA	Color	g
FD2010B2H	24	12~26.4	5000	0.12	2.88	23.11	39.26	4.94	0.19	39.3	Black	28
			4000	0.05	1.20	18.39	31.24	3.31	0.13	31.9	Red
			3500	0.04	0.96	16.46	27.97	2.44	0.10	28.8	Green
FD2010B2H			3000	0.03	0.72	13.96	23.72	1.71	0.07	25.6	Blue
FD2010B2H	12	6~14	5000	0.15	1.80	23.11	39.26	4.94	0.13	39.3	Black
FD2010B2H			4000	0.07	0.84	18.39	31.24	3.31	0.10	31.9	Red
FD6015B2L-AP00			3500	0.06	0.72	16.46	27.97	2.44	0.91	28.8	Green
FD6015B2L-AP00			3000	0.05	0.60	13.96	23.72	1.71	0.07	25.6	Blue
FD6015B1U-AP00	5	3.5~5.5	5000	0.30	1.50	23.11	39.26	4.94	0.19	39.3	Black
FD6015B1H-AP00			4000	0.20	1.00	18.39	31.24	3.31	0.13	31.9	Red
FD6015B1M-AP00			3500	0.15	0.75	16.46	27.97	2.44	0.10	28.8	Green
FD6015B1L-AP00			3000	0.10	0.50	13.96	23.72	1.71	0.07	25.6	Blue

Product Parameters

The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.

Parameter	Specification
Model	XY-GF200
Air Pressure	800Pa (Max)
Air Flow	15-50 CFM (Adjustable)
Voltage	DC 12/24/48V
Noise Level	35-50 dB(A)
Power Consumption	18W-60W
Protection Rating	IP55 (Dustproof & Water-resistant)
