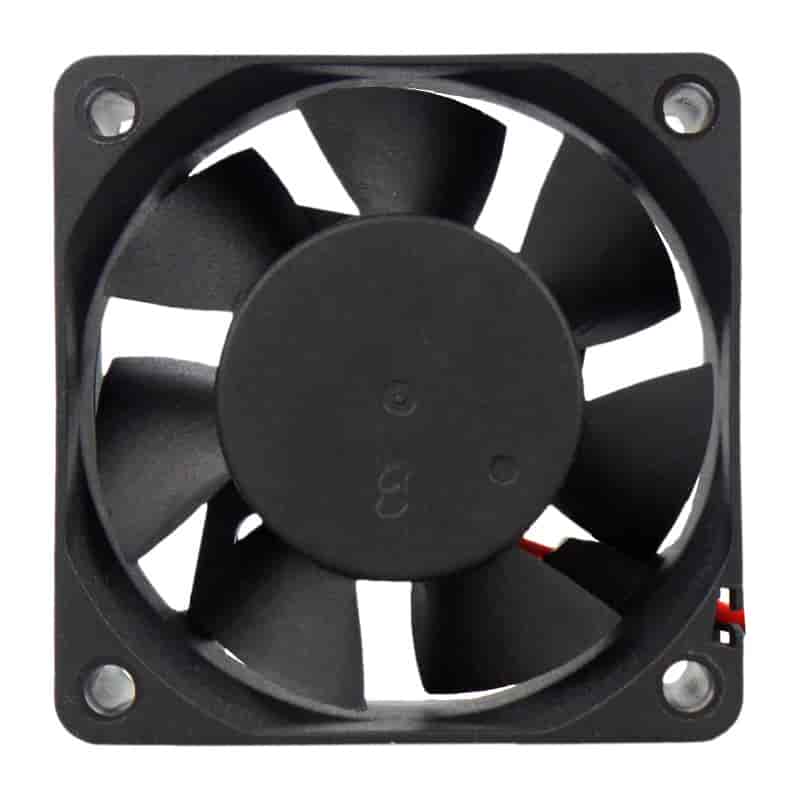

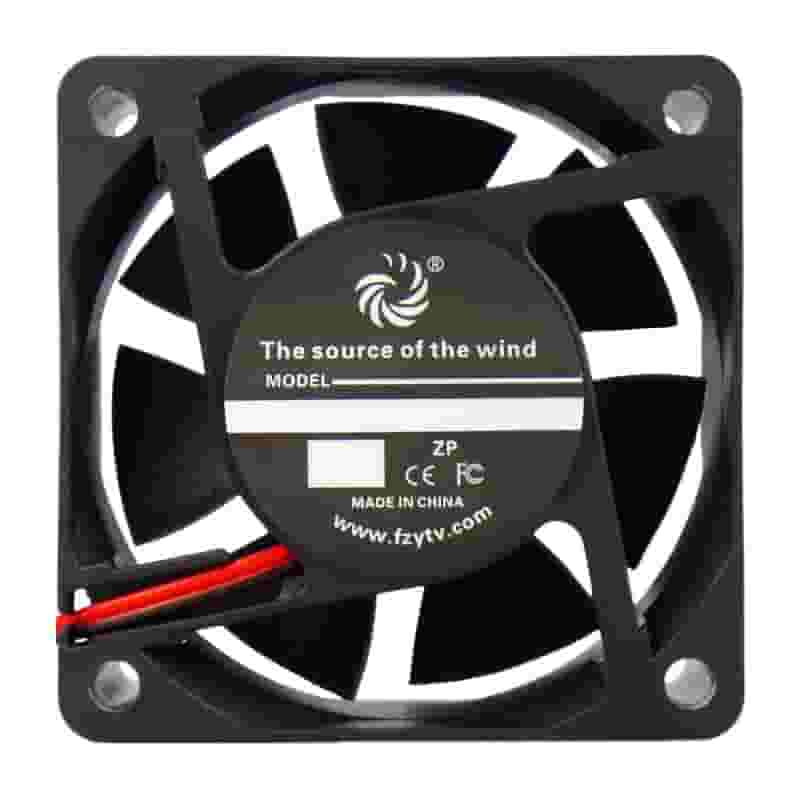

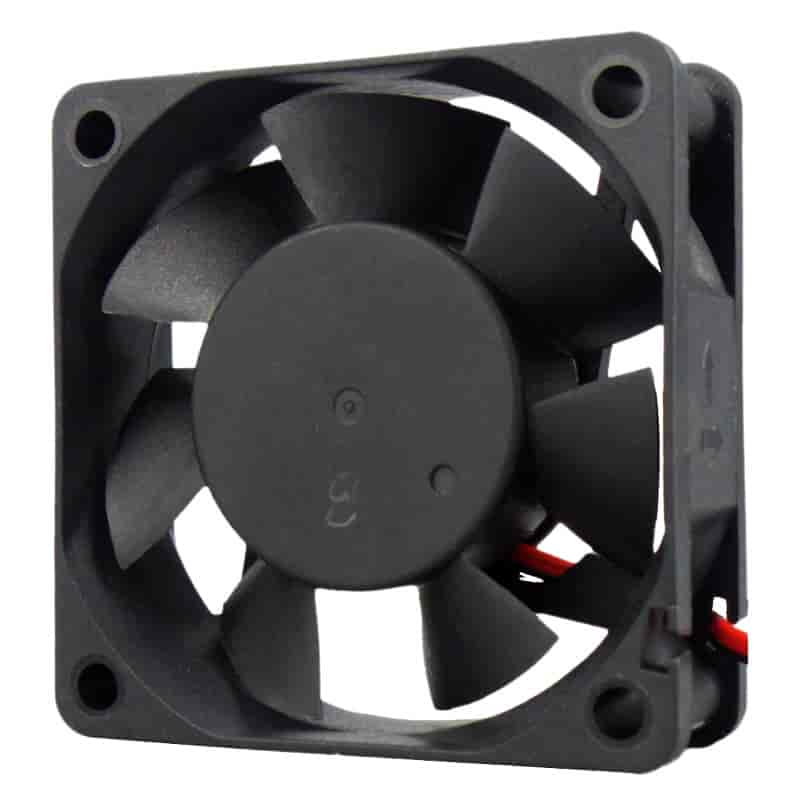

FD6020A
Size:60*60*20mm
Bearing: Hydraulic/Dual ball
Cable: supoort customization
Connector: support customization
IP Rating: IP54/IP55/IP67/IP68
Function: Reverse connection protection, automatic restart, PWM, FG, RD
| Model | Rated voltage | Voltage range | Speed | Current | Power | Air volume | Air pressure | Noise | Curve | Weight | ||
| VDC | VDC | RPM | A | W | CFM | M3/h | mmH2O | InH2O | dBA | Color | g | |
| FD6020B4U-AP00 | 24 | 12~26.4 | 6500 | 0.12 | 2.88 | 26.82 | 45.57 | 11.11 | 0.44 | 44.5 | Black | 48 |
| FD6020B4H-AP00 | 5500 | 0.09 | 2.16 | 22.57 | 38.35 | 7.97 | 0.31 | 39.2 | Red | |||
| FD6020B4M-AP00 | 4500 | 0.05 | 1.20 | 18.08 | 30.72 | 5.29 | 0.21 | 34.4 | Green | |||
| FD6020B4L-AP00 | 3500 | 0.03 | 0.72 | 13.9 | 23.62 | 3.15 | 0.12 | 28.8 | Blue | |||
| FD6020B2U-AP00 | 12 |
6~14 |
6500 | 0.22 | 2.64 | 26.82 | 45.57 | 11.11 | 0.44 | 44.5 | Black | |
| FD6020B2H-AP00 | 5500 | 0.15 | 1.80 | 22.57 | 38.35 | 7.97 | 0.31 | 39.2 | Red | |||
| FD6020B2M-AP00 | 4500 | 0.10 | 1.20 | 18.08 | 30.72 | 5.29 | 0.21 | 34.4 | Green | |||
| FD6020B2L-AP00 | 3500 | 0.06 | 0.72 | 13.9 | 23.62 | 3.15 | 0.12 | 28.8 | Blue | |||
| FD6020B1U-AP00 | 5 | 3.5~5.5 | 6500 | 0.50 | 2.50 | 26.82 | 45.57 | 11.11 | 0.44 | 44.5 | Black | |
| FD6020B1H-AP00 | 5500 | 0.35 | 1.75 | 22.57 | 38.35 | 7.97 | 0.31 | 39.2 | Red | |||
| FD6020B1M-AP00 | 4500 | 0.25 | 1.25 | 18.08 | 30.72 | 5.29 | 0.21 | 34.4 | Green | |||
| FD6020B1L-AP00 | 3500 | 0.15 | 0.75 | 13.9 | 23.62 | 3.15 | 0.12 | 28.8 | Blue | |||
Product Parameters
The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.
| Parameter | Specification |
| Model | XY-GF200 |
| Air Pressure | 800Pa (Max) |
| Air Flow | 15-50 CFM (Adjustable) |
| Voltage | DC 12/24/48V |
| Noise Level | 35-50 dB(A) |
| Power Consumption | 18W-60W |
| Protection Rating | IP55 (Dustproof & Water-resistant) |
