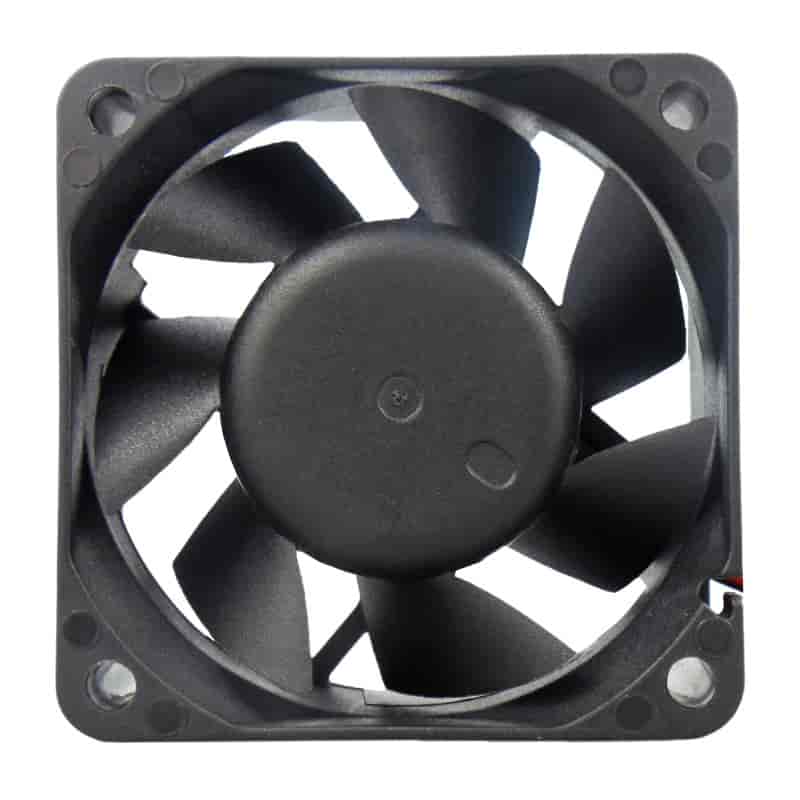

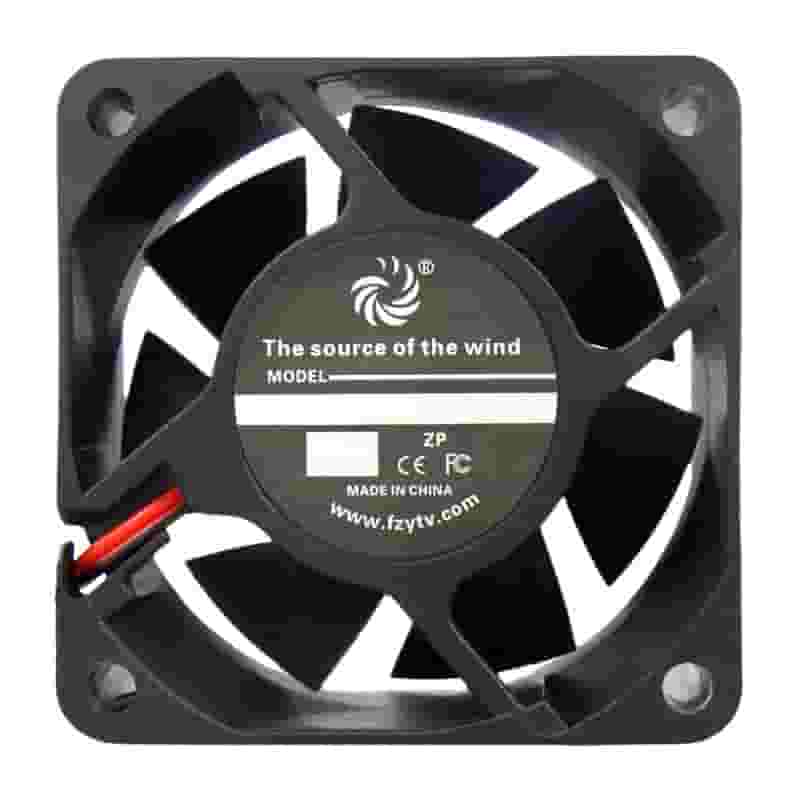

FD6025A

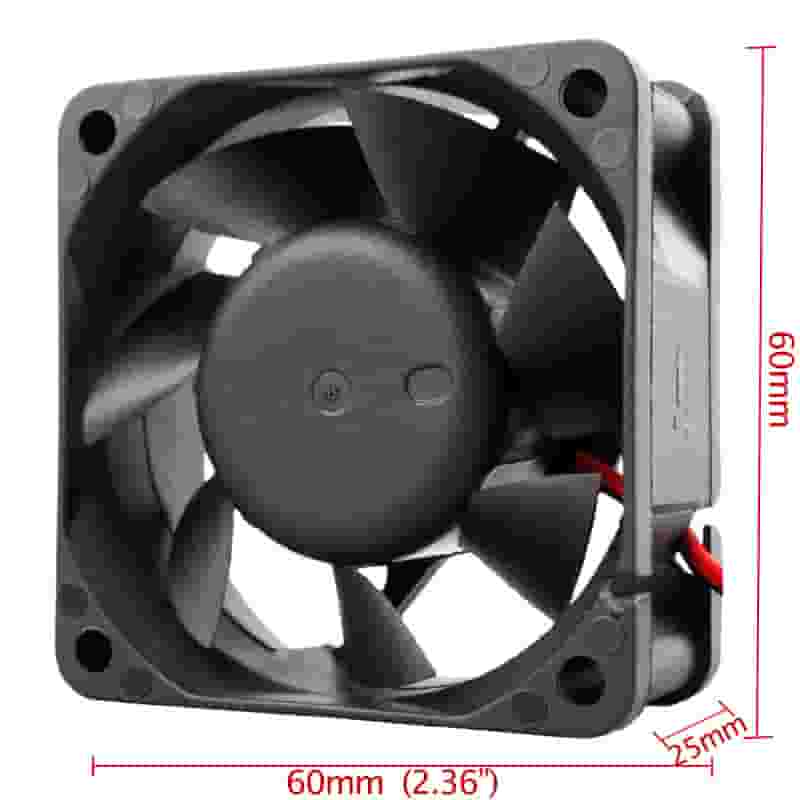

Size:60*60*25mm

Voltage:5V/12V/24V/48V

Speed: L/M/H/U(3000-6000RPM)

Bearing: Hydraulic/Dual ball

Cable: supoort customization

Connector: support customization

IP Rating: IP54/IP55/IP67/IP68

Function: Reverse connection protection, automatic restart, PWM, FG, RD

Datasheet Download

Whatsapp: +86 153 6189 2827

Model	Rated voltage	Voltage range	Speed	Power	Air volume	Air volume		Air pressure		Noise	Curve	Weight
Model	VDC	VDC	RPM	A	W	CFM	M3/h	mmH2O	mmH2O	dBA	Color	g
FD6025B6U-AP00	48	43.6~52.8	6000	0.12	5.76	28.16	47.84	9.97	0.39	42.7	Black	53
FD6025B6H-AP00			5000	0.07	3.36	24.43	41.51	7.04	0.28	36.3	Red
FD6025B6M-AP00			4000	0.04	1.92	19.26	32.72	4.49	0.18	30.6	Green
FD6025B6L-AP00			3000	0.02	0.96	14.68	24.94	2.49	0.10	25.9	Blue
FD6025B4U-AP00	24	12~26. 4	6000	0.20	4.80	28.16	47.84	9.97	0.39	42.7	Black
FD6025B4H-AP00			5000	0.12	2.88	24.43	41.51	7.04	0.28	36.3	Red
FD6025B4M-AP00			4000	0.06	1.44	19.26	32.72	4.49	0.18	30.6	Green
FD6025B4L-AP00			3000	0.03	0.72	14.68	24.94	2.49	0.10	25.9	Blue
FD6025B2U-AP00	12	6~14	6000	0.30	3.60	28.16	47.84	9.97	0.39	42.7	Black
FD6025B2H-AP00			5000	0.20	2.40	24.43	41.51	7.04	0.28	36.3	Red
FD6025B2M-AP00			4000	0.12	1.44	19.26	32.72	4.49	0.18	30.6	Green
FD6025B2L-AP00			3000	0.08	0.96	14.68	24.94	2.49	0.10	25.9	Blue
FD6025B1U-AP00	5	3.5~5.5	6000	0.55	2.75	28.16	47.84	9.97	0.39	42.7	Black
FD6025B1H-AP00			5000	0.35	1.75	24.43	41.51	7.04	0.28	36.3	Red
FD6025B1M-AP00			4000	0.20	1.00	19.26	32.72	4.49	0.18	30.6	Green
FD6025B1L-AP00			3000	0.12	0.60	14.68	24.94	2.49	0.10	25.9	Blue

Product Parameters

The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.

Parameter	Specification
Model	XY-GF200
Air Pressure	800Pa (Max)
Air Flow	15-50 CFM (Adjustable)
Voltage	DC 12/24/48V
Noise Level	35-50 dB(A)
Power Consumption	18W-60W
Protection Rating	IP55 (Dustproof & Water-resistant)
