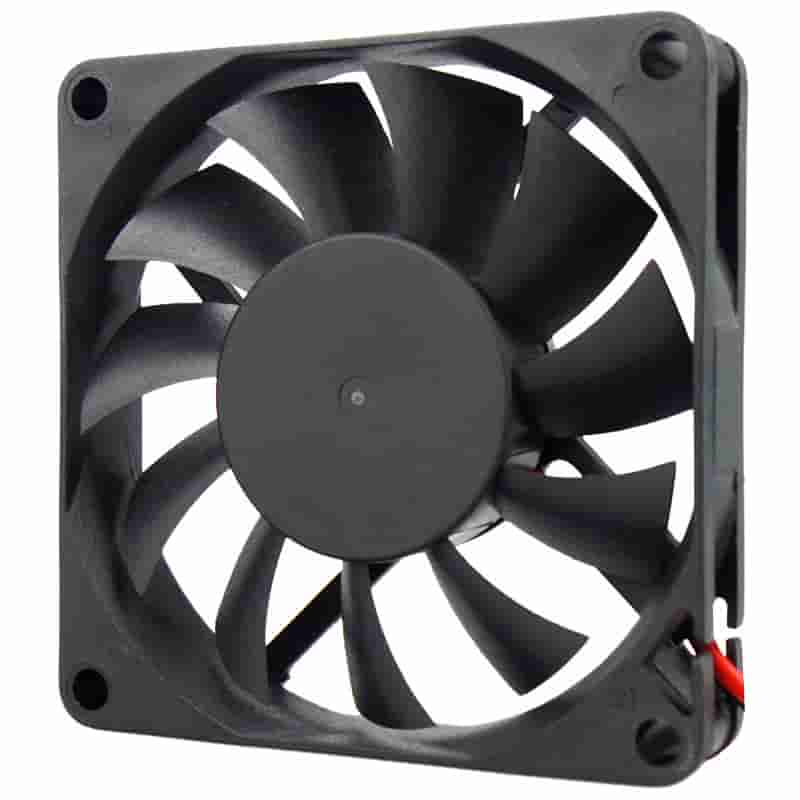

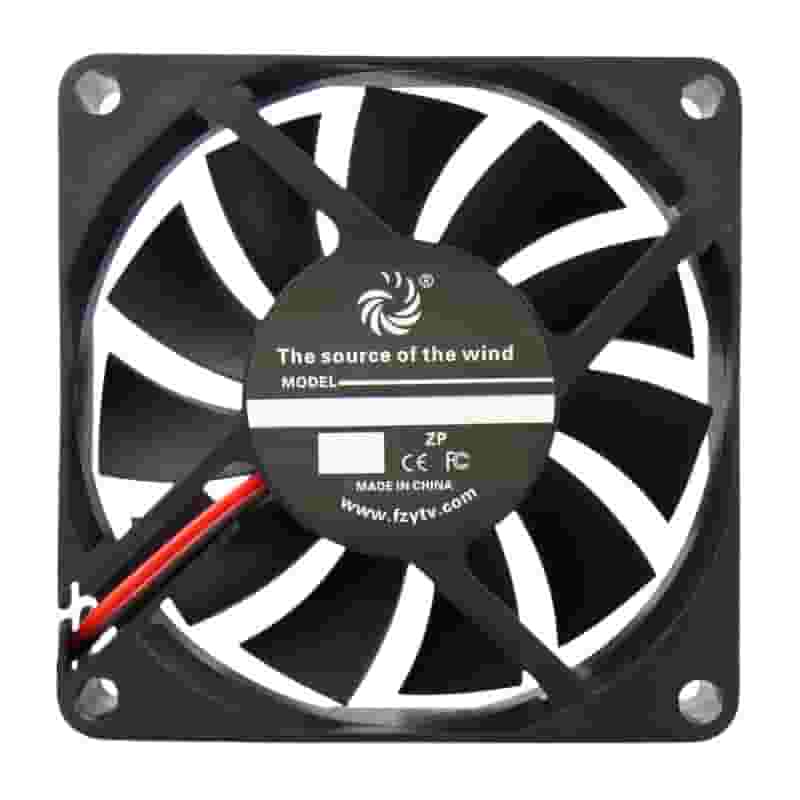

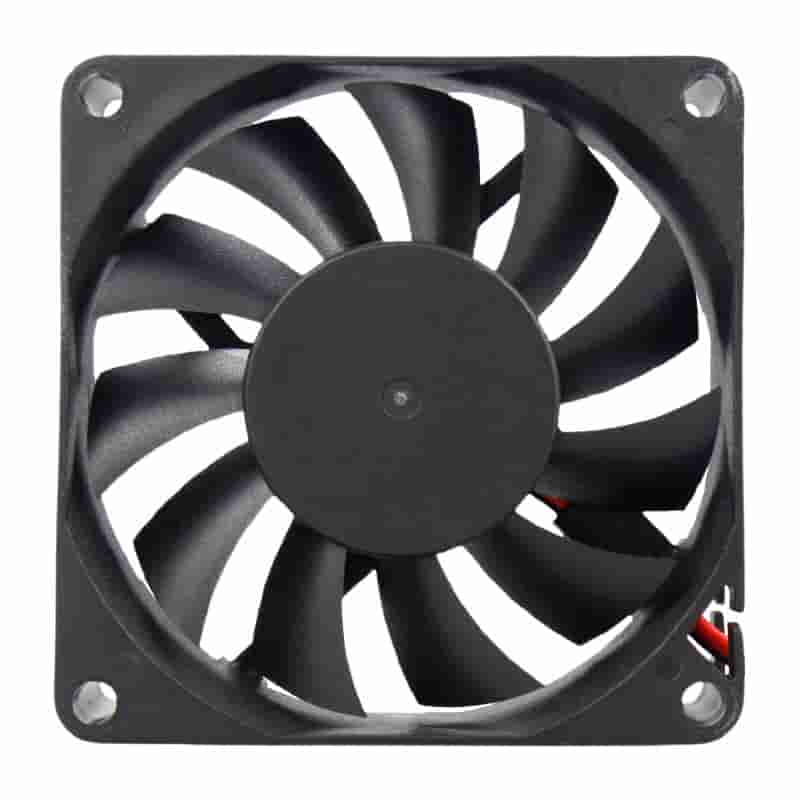

FD7015A
Size:70*70*15mm
Bearing: Hydraulic/Dual ball
Cable: supoort customization
Connector: support customization
IP Rating: IP54/IP55/IP67/IP68
Function: Reverse connection protection, automatic restart, PWM, FG, RD
Datasheet Download
| Model | Rated voltage | Voltage range | Speed | Current | Power | Air volume | Air pressure | Noise | Curve | Weight | ||
| VDC | VDC | RPM | A | W | CFM | M3/h | mmH2O | InH2O | dBA | Color | g | |
| FD7015B4U-AP00 | 24 | 12~26.4 | 4000 | 0.08 | 1.92 | 29.48 | 50.09 | 4.28 | 0.17 | 35.2 | Black | 45 |
| FD7015B4H-AP00 | 3500 | 0.06 | 1.44 | 25.46 | 43.26 | 3.28 | 0.13 | 32.7 | Red | |||
| FD7015B4M-AP00 | 3000 | 0.04 | 0.96 | 21.83 | 37.09 | 2.51 | 0.10 | 29.3 | Green | |||
| FD7015B4L-AP00 | 2500 | 0.02 | 0.48 | 18.1 | 30.75 | 1.73 | 0.07 | 25.8 | Blue | |||
| FD7015B2U-AP00 | 12 | 6~14 | 4000 | 0.14 | 1.68 | 29.48 | 50.09 | 4.28 | 0.17 | 35.2 | Black | |
| FD7015B2H-AP00 | 3500 | 0.12 | 1.44 | 25.46 | 43.26 | 3.28 | 0.13 | 32.7 | Red | |||
| FD7015B2M-AP00 | 3000 | 0.08 | 0.96 | 21.83 | 37.09 | 2.51 | 0.10 | 29.3 | Green | |||
| FD7015B2L-AP00 | 2500 | 0.05 | 0.60 | 18.1 | 30.75 | 1.73 | 0.07 | 25.8 | Blue | |||
| FD7015B1U-AP00 | 5 | 3.5~5.5 | 4000 | 0.35 | 1.75 | 29.48 | 50.09 | 4.28 | 0.17 | 35.2 | Black | |
| FD7015B1H-AP00 | 3500 | 0.25 | 1.25 | 25.46 | 43.26 | 3.28 | 0.13 | 32.7 | Red | |||
| FD7015B1M-AP00 | 3000 | 0.20 | 1.00 | 21.83 | 37.09 | 2.51 | 0.10 | 29.3 | Green | |||
| FD7015B1L-AP00 | 2500 | 0.10 | 0.50 | 18.1 | 30.75 | 1.73 | 0.07 | 25.8 | Blue | |||
Product Parameters
The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.
| Parameter | Specification |
| Model | XY-GF200 |
| Air Pressure | 800Pa (Max) |
| Air Flow | 15-50 CFM (Adjustable) |
| Voltage | DC 12/24/48V |
| Noise Level | 35-50 dB(A) |
| Power Consumption | 18W-60W |
| Protection Rating | IP55 (Dustproof & Water-resistant) |
