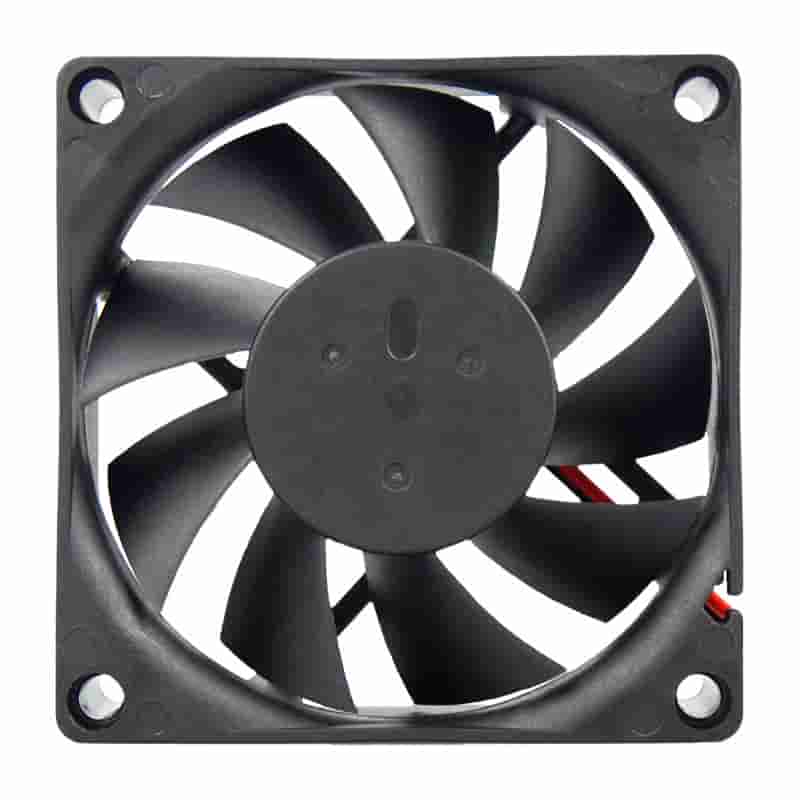

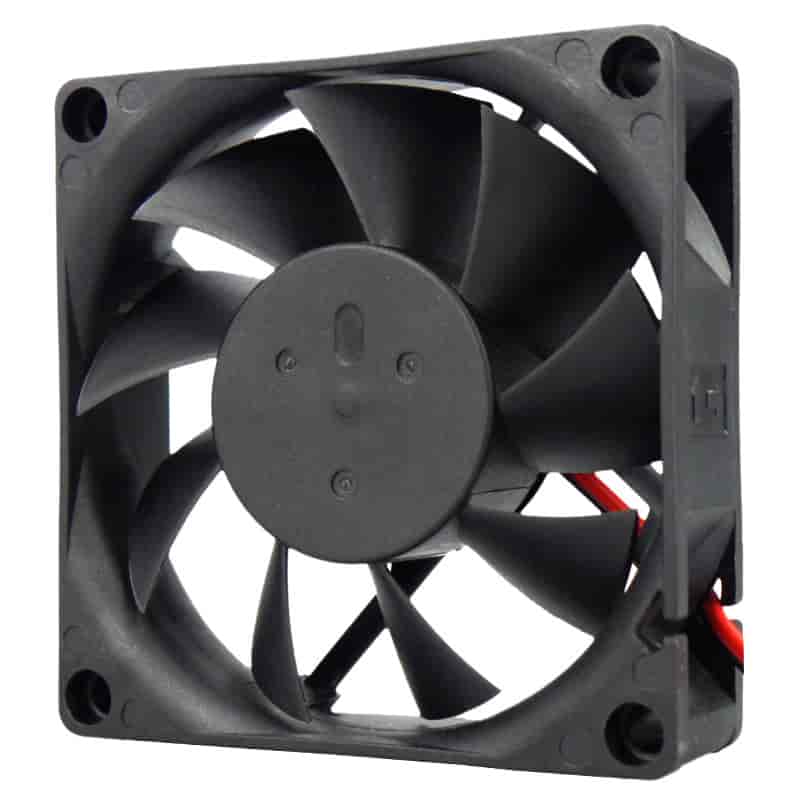

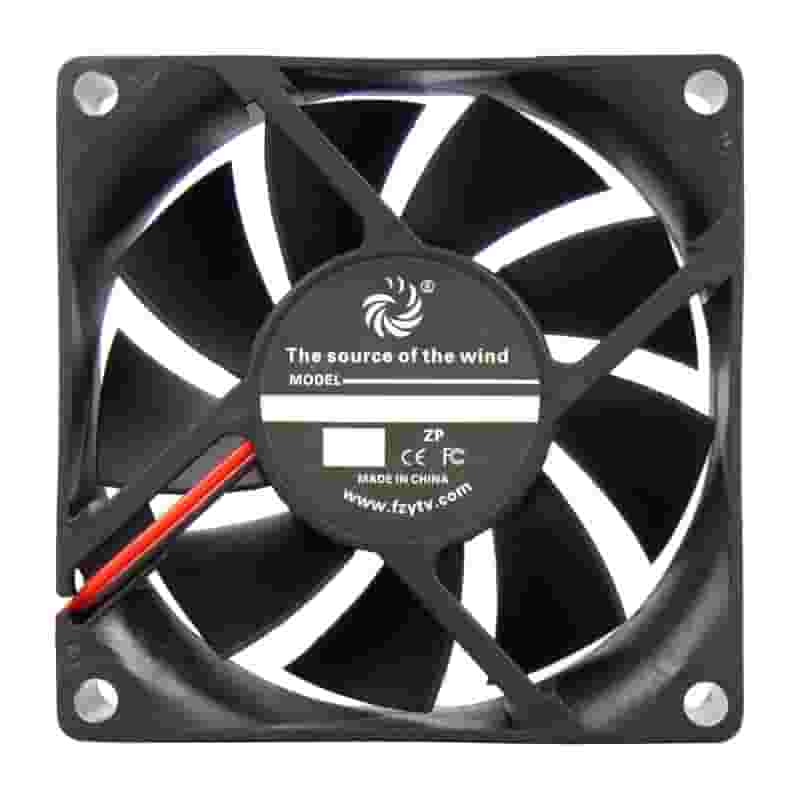

FD7020A

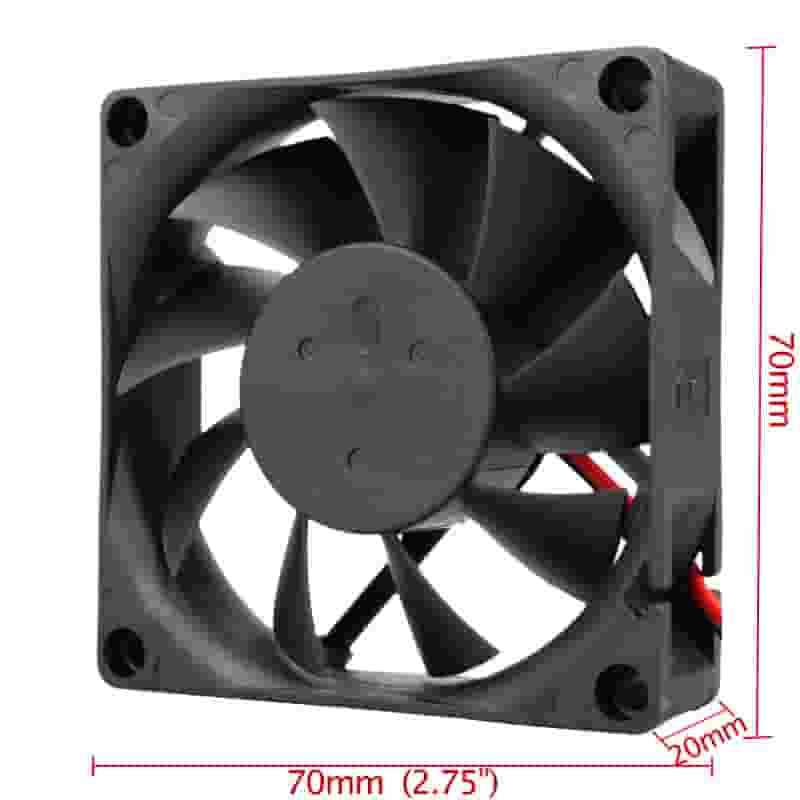

Size:70*70*20mm
Bearing: Hydraulic/Dual ball
Cable: supoort customization
Connector: support customization
IP Rating: IP54/IP55/IP67/IP68
Function: Reverse connection protection, automatic restart, PWM, FG, RD
Datasheet Download
| Model | Rated voltage | Voltage range | Speed | Current | Power | Air volume | Air pressure | Noise | Curve | Weight | ||
| VDC | VDC | RPM | A | W | CFM | M3/h | mmH2O | InH2O | dBA | Color | g | |
| FD7020B4U-AP00 |
24 |
12~26.4 | 4500 | 0.15 | 3.60 | 39.52 | 67.14 | 5.68 | 0.22 | 40.2 | Black | 56 |
| FD7020B4H-AP00 | 4000 | 0.09 | 2.16 | 35.01 | 59.48 | 4.50 | 0.18 | 37.3 | Red | |||
| FD7020B4M-AP00 | 3500 | 0.06 | 1.44 | 31.20 | 53.01 | 3.50 | 0.14 | 34.2 | Green | |||
| FD7020B4L-AP00 | 3000 | 0.04 | 0.96 | 26.12 | 44.38 | 2.51 | 0.10 | 30.5 | Blue | |||
| FD7020B2U-AP00 | 12 | 6~14 | 4500 | 0.3 | 3.60 | 39.52 | 67.14 | 5.68 | 0.22 | 40.2 | Black | |
| FD7020B2H-AP00 | 4000 | 0.2 | 2.40 | 35.01 | 59.48 | 4.50 | 0.18 | 37.3 | Red | |||
| FD7020B2M-AP00 | 3500 | 0.15 | 1.80 | 31.20 | 53.01 | 3.50 | 0.14 | 34.2 | Green | |||
| FD7020B2L-AP00 | 3000 | 0.08 | 0.96 | 26.12 | 44.38 | 2.51 | 0.10 | 30.5 | Blue | |||
| FD7020B1U-AP00 | 5 | 3.5~5.5 | 4500 | 0.50 | 2.50 | 39.52 | 67.14 | 5.68 | 0.22 | 40.2 | Black | |
| FD7020B1H-AP00 | 4000 | 0.35 | 1.75 | 35.01 | 59.48 | 4.50 | 0.18 | 37.3 | Red | |||
| FD7020B1M-AP00 | 3500 | 0.25 | 1.25 | 31.20 | 53.01 | 3.50 | 0.14 | 34.2 | Green | |||
| FD7020B1L-AP00 | 3000 | 0.15 | 0.75 | 26.12 | 44.38 | 2.51 | 0.10 | 30.5 | Blue | |||
Product Parameters
The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.
| Parameter | Specification |
| Model | XY-GF200 |
| Air Pressure | 800Pa (Max) |
| Air Flow | 15-50 CFM (Adjustable) |
| Voltage | DC 12/24/48V |
| Noise Level | 35-50 dB(A) |
| Power Consumption | 18W-60W |
| Protection Rating | IP55 (Dustproof & Water-resistant) |
