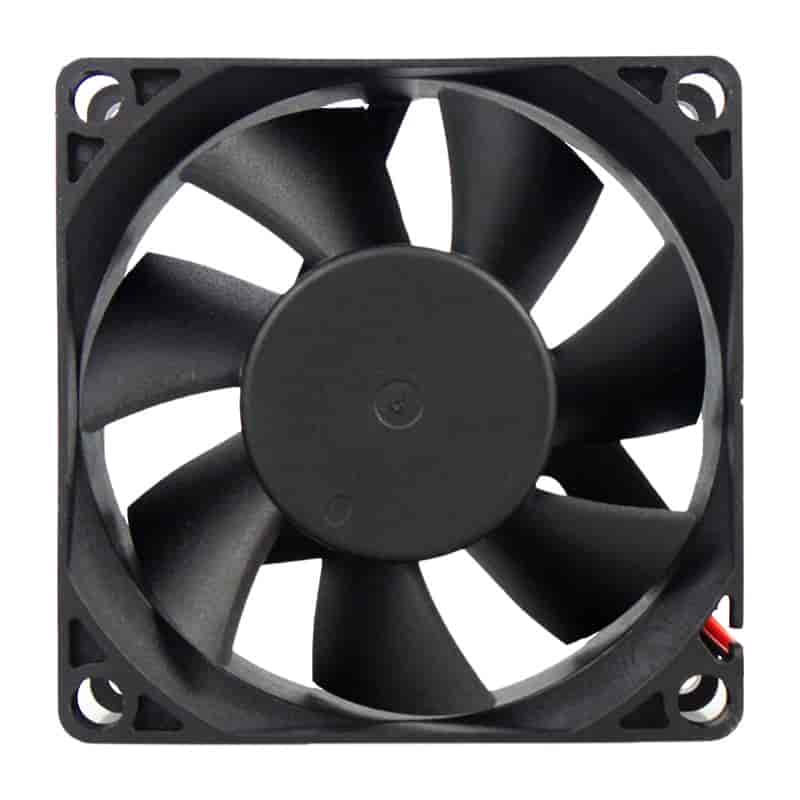

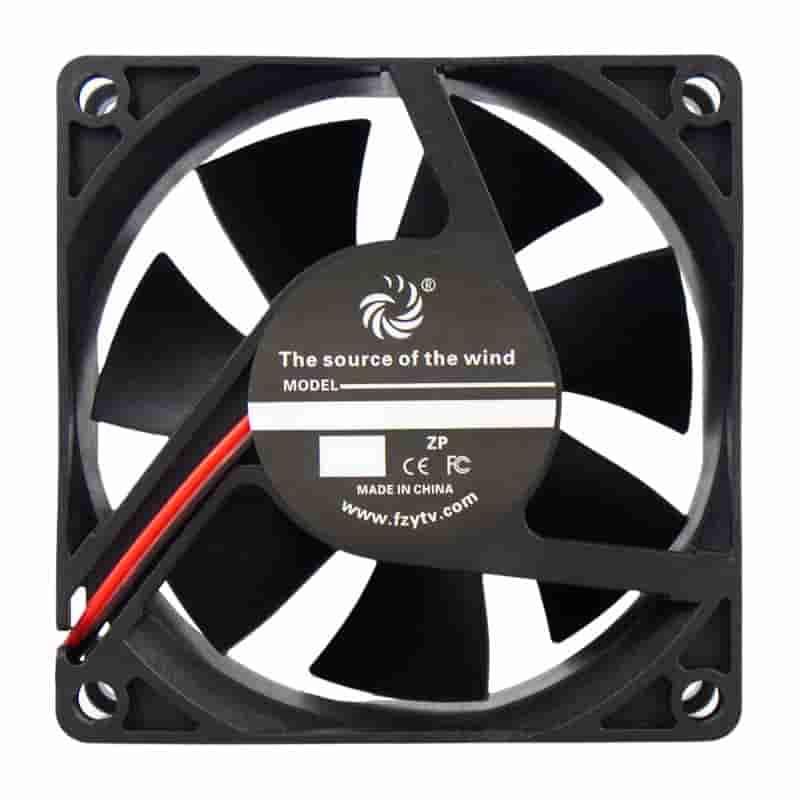

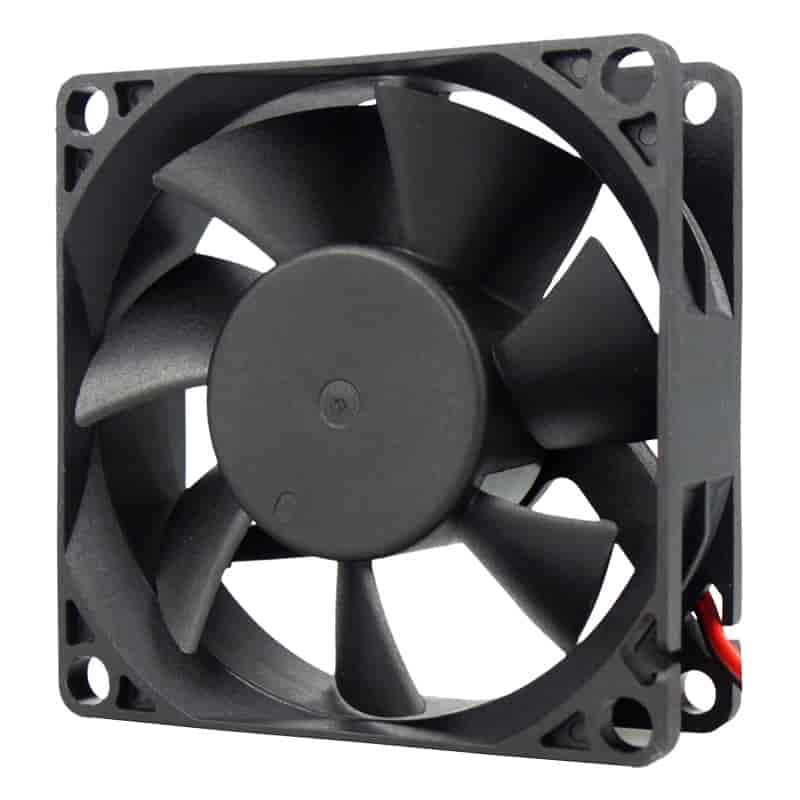

FD7025A

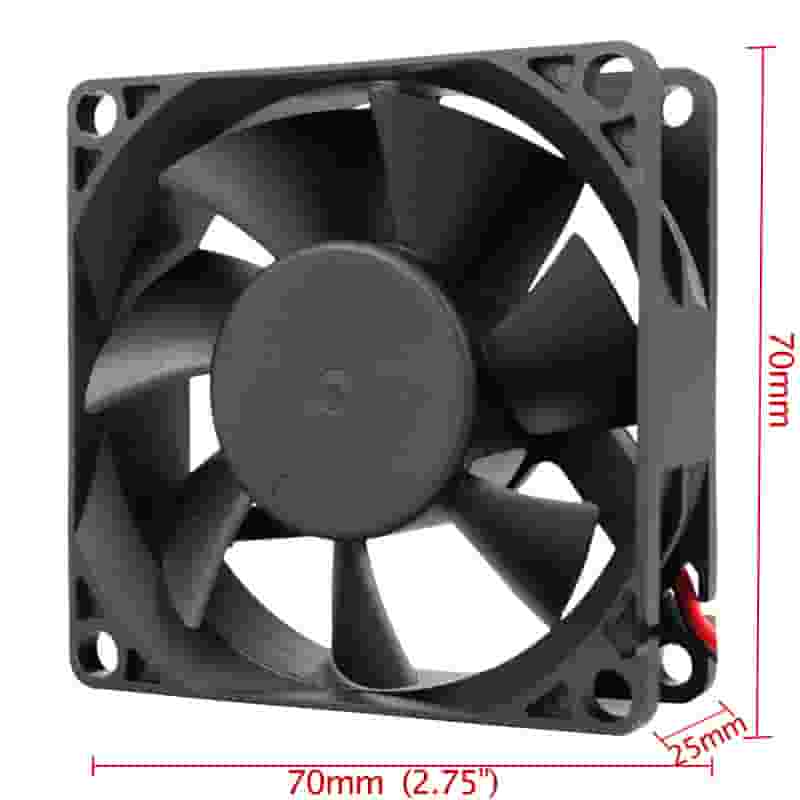

Size:70*70*25mm

Bearing: Hydraulic/Dual ball

Cable: supoort customization

Connector: support customization

IP Rating: IP54/IP55/IP67/IP68

Function: Reverse connection protection, automatic restart, PWM, FG, RD

Datasheet Download

Whatsapp: +86 153 6189 2827

Model	Rated voltage	Voltage range	Speed	Current	Power	Air volume		Air pressure		Noise	Curve	Weight
Model	VDC	VDC	RPM	A	W	CFM	M3/h	mmH2O	InH2O	dBA	Color	g
FD7025B6U-AP00	48	43.6~52.8	5500	0.15	7.20	43.78	74.38	10.45	0.41	47.5	Black	58
FD7025B6H-AP00			4500	0.10	4.80	36.00	61.16	7.19	0.28	41.7	Red
FD7025B6M-AP00			3500	0.05	2.40	28.04	47.64	4.38	0.17	35.4	Green
FD7025B6L-AP00			2500	0.03	1.44	19.78	33.61	2.28	0.09	28.8	Blue
FD7025B4U-AP00	24	12~26.4	5500	0.20	4.80	43.78	74.38	10.45	0.41	47.5	Black
FD7025B4H-AP00			4500	0.14	3.36	36.00	61.16	7.19	0.28	41.7	Red
FD7025B4M-AP00			3500	0.08	1.92	28.04	47.64	4.38	0.17	35.4	Green
FD7025B4L-AP00			2500	0.04	0.96	19.78	33.61	2.28	0.09	28.8	Blue
FD7025B2U-AP00	12	6~14	5500	0.30	3.60	43.78	74.38	10.45	0.41	47.5	Black
FD7025B2H-AP00			4500	0.20	2.40	36.00	61.16	7.19	0.28	41.7	Red
FD7025B2M-AP00			3500	0.12	1.44	28.04	47.64	4.38	0.17	35.4	Green
FD7025B2L-AP00			2500	0.06	0.72	19.78	33.61	2.28	0.09	28.8	Blue
FD7025B1U-AP00	5	3.5~5.5	5500	0.45	2.25	43.78	74.38	10.45	0.41	47.5	Black
FD7025B1H-AP00			4500	0.30	1.50	36.00	61.16	7.19	0.28	41.7	Red
FD7025B1M-AP00			3500	0.18	0.90	28.04	47.64	4.38	0.17	35.4	Green
FD7025B1L-AP00			2500	0.10	0.50	19.78	33.61	2.28	0.09	28.8	Blue

Product Parameters

The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.

Parameter	Specification
Model	XY-GF200
Air Pressure	800Pa (Max)
Air Flow	15-50 CFM (Adjustable)
Voltage	DC 12/24/48V
Noise Level	35-50 dB(A)
Power Consumption	18W-60W
Protection Rating	IP55 (Dustproof & Water-resistant)
