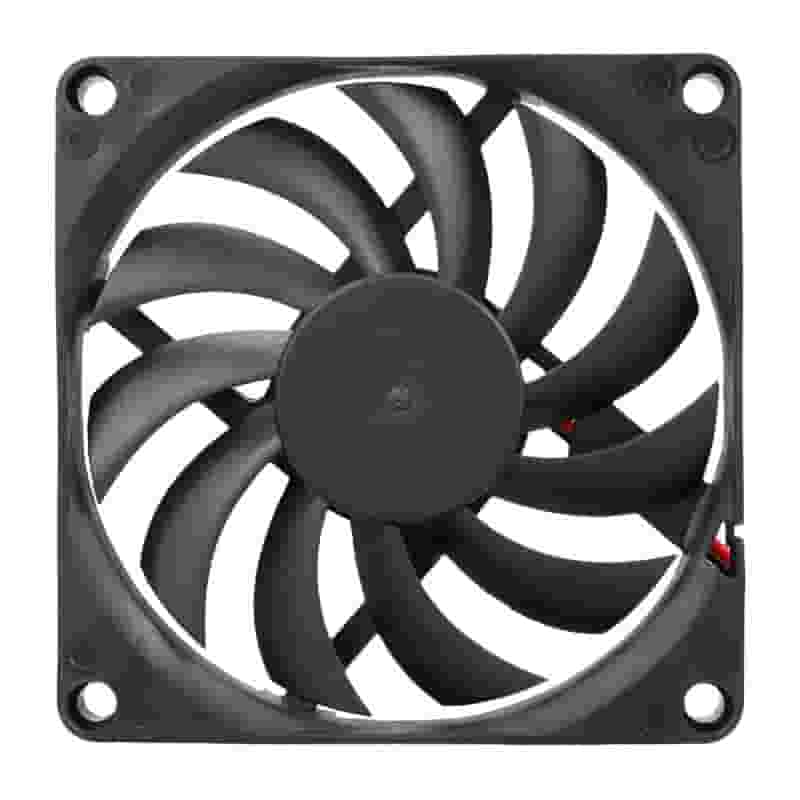

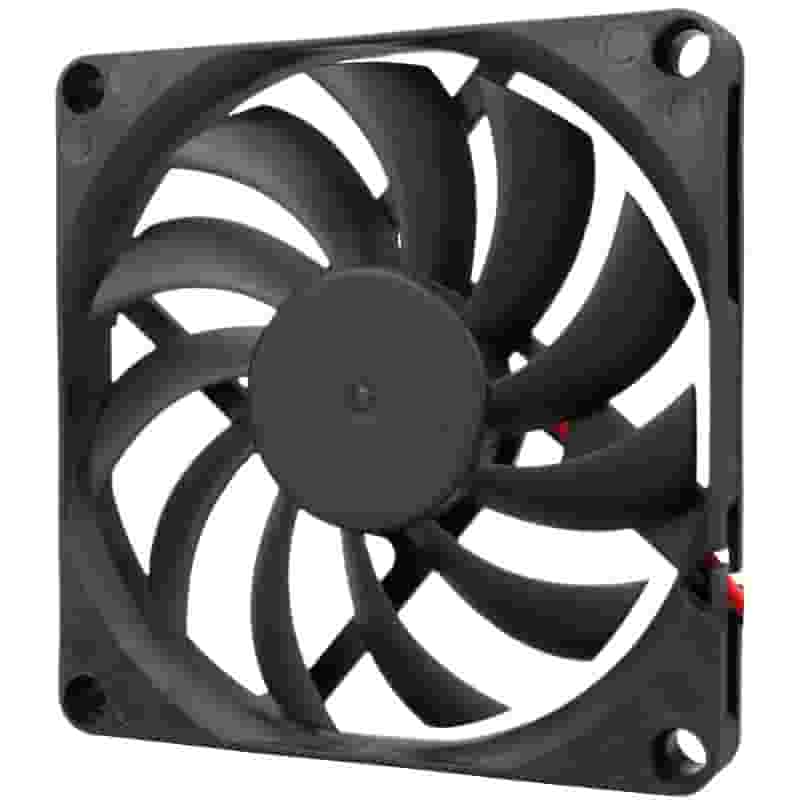

FD8010A

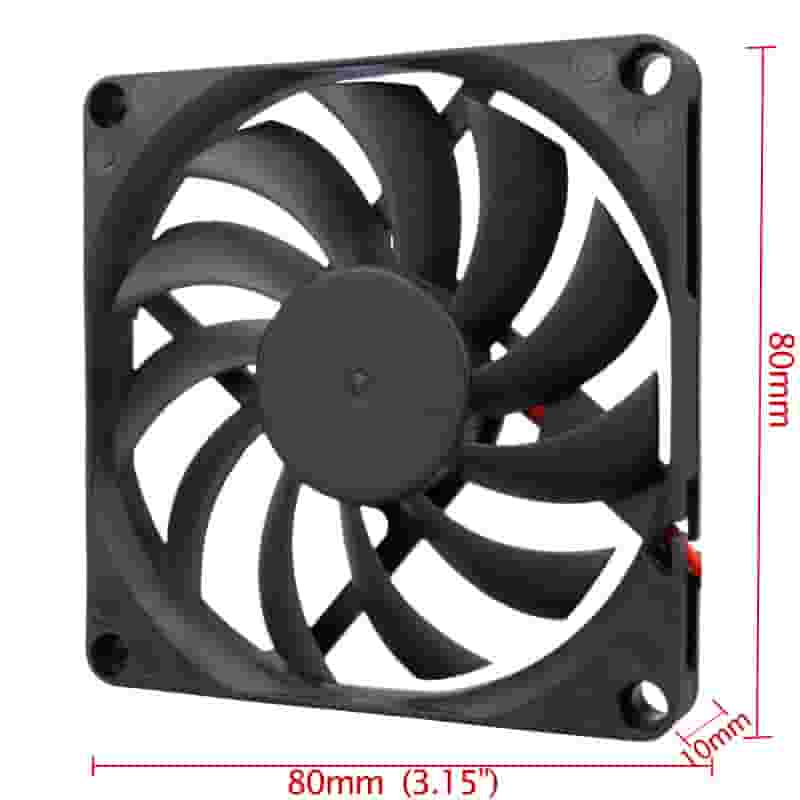

Size:80*80*10mm

Voltage:5V/12V/24V

Speed: L/M/H/U(2000-3500RPM)

Bearing: Hydraulic/Dual ball

Cable: supoort customization

Connector: support customization

IP Rating: IP54/IP55/IP67/IP68

Function: Reverse connection protection, automatic restart, PWM, FG, RD

Datasheet Download

Whatsapp: +86 153 6189 2827

Model	Rated voltage	Voltage range	Speed	Power	Air volume	Air volume		Air pressure		Noise	Curve	Weight
Model	VDC	VDC	RPM	A	W	CFM	M3/h	mmH2O	mmH2O	dBA	Color	G
FD8010B4U-AP00	24	12~26.4	3500	0.12	2.88	26.73	45.41	2.50	0.10	36.7	Black	35
FD8010B4H-AP00			3000	0.07	1.68	22.47	38.18	1.85	0.07	33.4	Red
FD8010B4M-AP00			2500	0.05	1.20	18.48	31.40	1.29	0.05	31.5	Green
FD8010B4L-AP00			2000	0.03	0.72	14.70	24.98	0.85	0.03	29.2	Blue
FD8010B2U-AP00	12	6~14	3500	0.18	2.16	26.73	45.41	2.50	0.10	36.7	Black
FD8010B2H-AP00			3000	0.12	1.44	22.47	38.18	1.85	0.07	33.4	Red
FD8010B2M-AP00			2500	0.08	0.96	18.48	31.40	1.29	0.05	31.5	Green
FD8010B2L-AP00			2000	0.04	0.48	14.70	24.98	0.85	0.03	29.2	Blue
FD8010B1U-AP00	5	3.5~5.5	3500	0.30	1.50	26.73	45.41	2.50	0.10	36.7	Black
FD8010B1H-AP00			3000	0.20	1.00	22.47	38.18	1.85	0.07	33.4	Red
FD8010B1M-AP00			2500	0.12	0.60	18.48	31.40	1.29	0.05	31.5	Green
FD8010B1L-AP00			2000	0.08	0.40	14.70	24.98	0.85	0.03	29.2	Blue

Product Parameters

The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.

Parameter	Specification
Model	XY-GF200
Air Pressure	800Pa (Max)
Air Flow	15-50 CFM (Adjustable)
Voltage	DC 12/24/48V
Noise Level	35-50 dB(A)
Power Consumption	18W-60W
Protection Rating	IP55 (Dustproof & Water-resistant)
