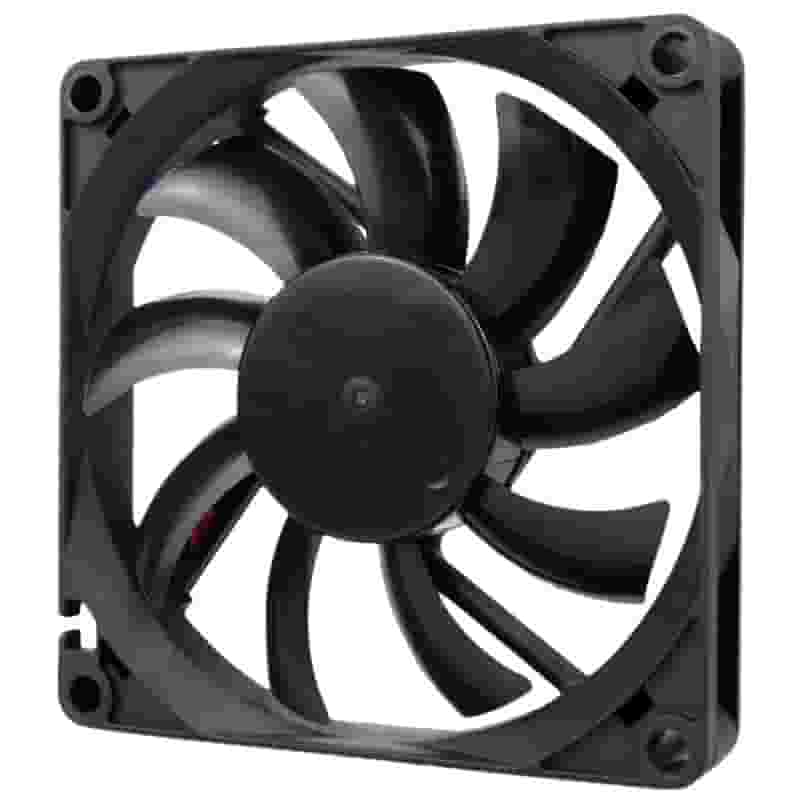

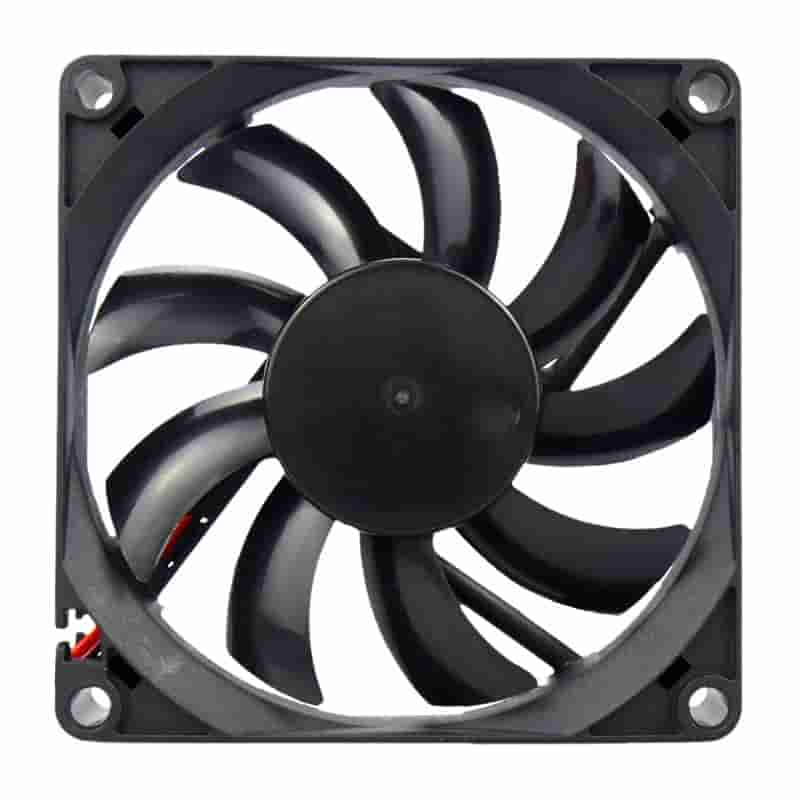

FD8015A

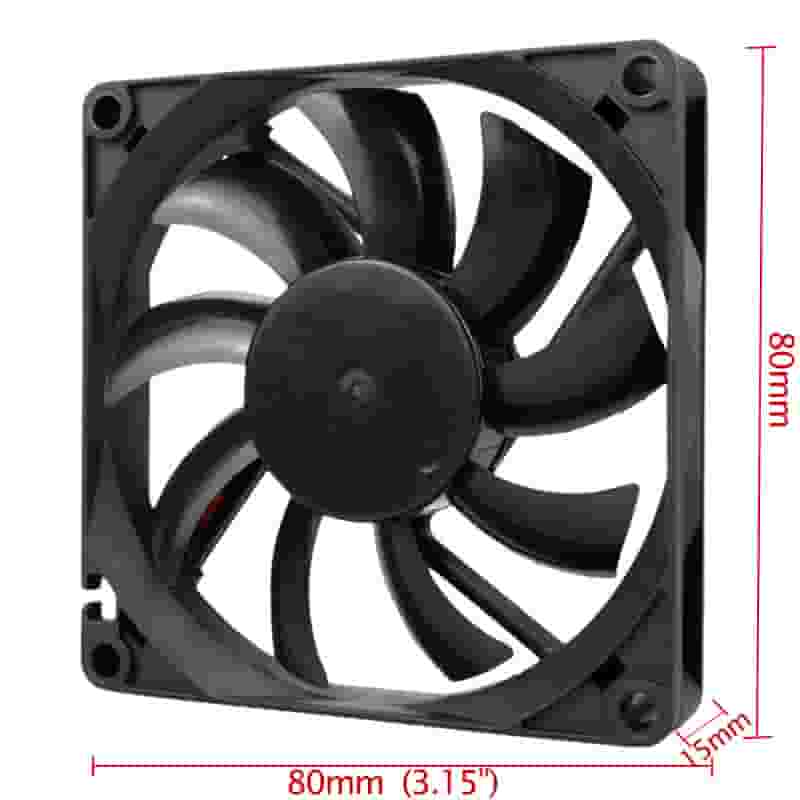

Size:80*80*15mm
Bearing: Hydraulic/Dual ball
Cable: supoort customization
Connector: support customization
IP Rating: IP54/IP55/IP67/IP68
Function: Reverse connection protection, automatic restart, PWM, FG, RD
Datasheet Download
| Model | Rated voltage | Voltage range | Speed | Current | Power | Air volume | Air pressure | Noise | Curve | Weight | ||
| VDC | VDC | RPM | A | W | CFM | M3/h | mmH2O | InH2O | dBA | Color | g | |
| FD8015B4U-AP00 | 24 | 12~26.4 | 4000 | 0.18 | 4.32 | 40.23 | 68.35 | 4.68 | 0.18 | 43.2 | Black | 40 |
| FD8015B4H-AP00 | 3500 | 0.14 | 3.36 | 34.69 | 58.94 | 3.59 | 0.14 | 39.7 | Red | |||
| FD8015B4M-AP00 | 3000 | 0.08 | 1.92 | 30.04 | 51.04 | 2.71 | 0.11 | 36.1 | Green | |||
| FD8015B4L-AP00 | 2500 | 0.05 | 1.20 | 24.70 | 41.97 | 1.89 | 0.07 | 31.4 | Blue | |||
| FD8015B2U-AP00 | 12 | 6~14 | 4000 | 0.25 | 3.00 | 40.23 | 68.35 | 4.68 | 0.18 | 43.2 | Black | |
| FD8015B2H-AP00 | 3500 | 0.18 | 2.16 | 34.69 | 58.94 | 3.59 | 0.14 | 39.7 | Red | |||
| FD8015B2M-AP00 | 3000 | 0.12 | 1.44 | 30.04 | 51.04 | 2.71 | 0.11 | 36.1 | Green | |||
| FD8015B2L-AP00 | 2500 | 0.08 | 0.96 | 24.7 | 41.97 | 1.89 | 0.07 | 31.4 | Blue | |||
| FD8015B1U-AP00 | 5 | 3.5~5.5 | 4000 | 0.45 | 2.25 | 40.23 | 68.35 | 4.68 | 0.18 | 43.2 | Black | |
| FD8015B1H-AP00 | 3500 | 0.35 | 1.75 | 34.69 | 58.94 | 3.59 | 0.14 | 39.7 | Red | |||
| FD8015B1M-AP00 | 3000 | 0.27 | 1.35 | 30.04 | 51.04 | 2.71 | 0.11 | 36.1 | Green | |||
| FD8015B1L-AP00 | 2500 | 0.20 | 1.00 | 24.70 | 41.97 | 1.89 | 0.07 | 31.4 | Blue | |||
Product Parameters
The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.
| Parameter | Specification |
| Model | XY-GF200 |
| Air Pressure | 800Pa (Max) |
| Air Flow | 15-50 CFM (Adjustable) |
| Voltage | DC 12/24/48V |
| Noise Level | 35-50 dB(A) |
| Power Consumption | 18W-60W |
| Protection Rating | IP55 (Dustproof & Water-resistant) |
