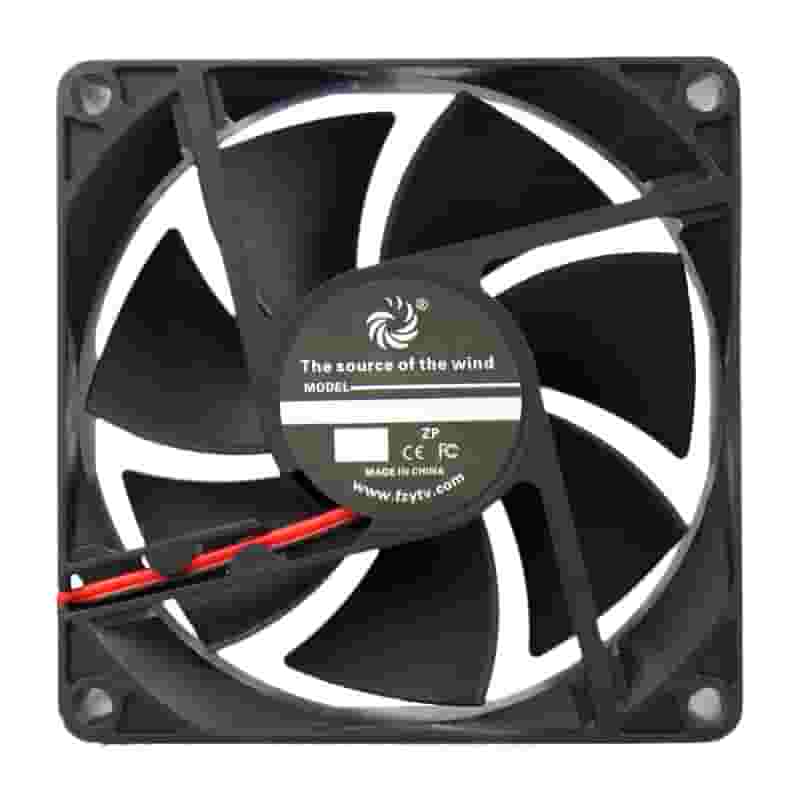

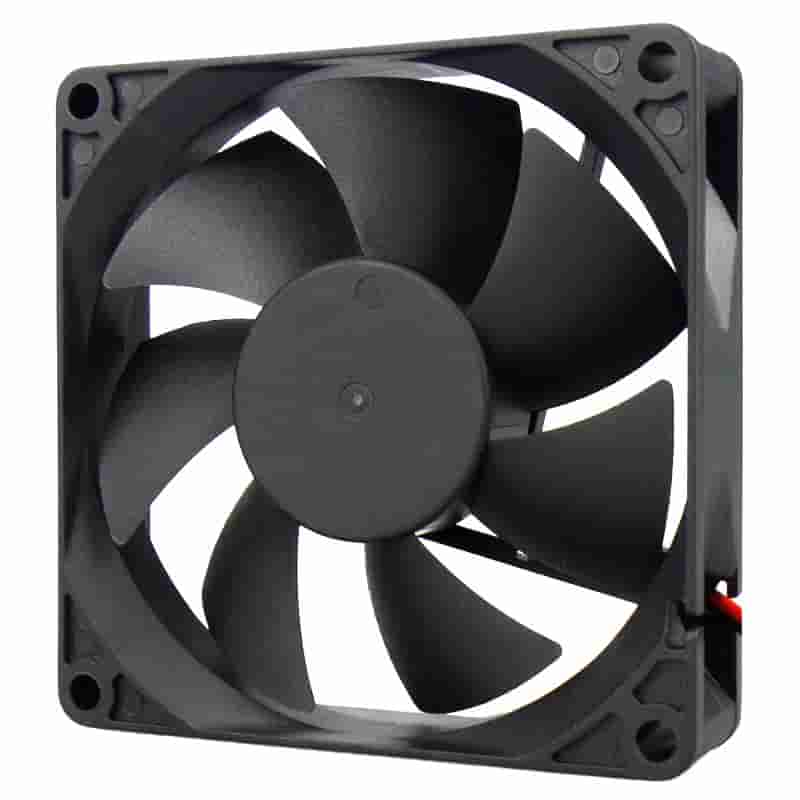

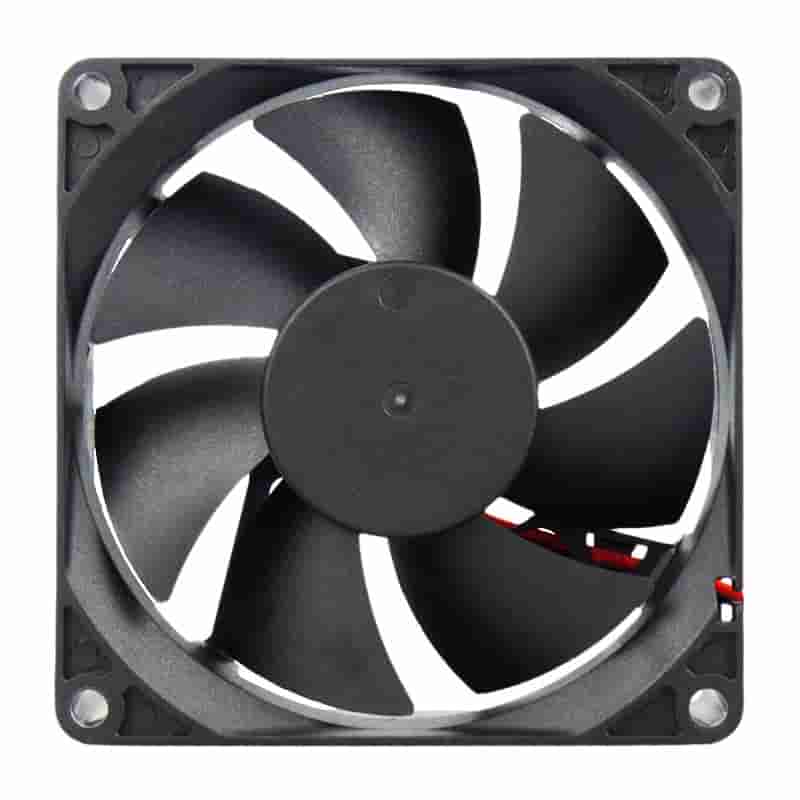

FD8020A

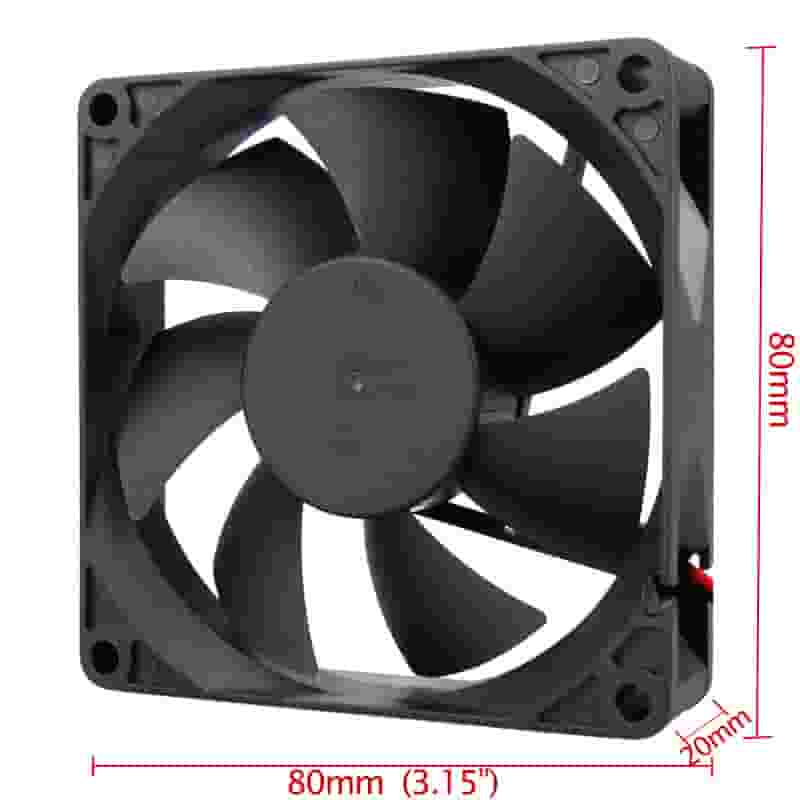

Size:80*80*20mm
Bearing: Hydraulic/Dual ball
Cable: supoort customization
Connector: support customization
IP Rating: IP54/IP55/IP67/IP68
Function: Reverse connection protection, automatic restart, PWM, FG, RD
Datasheet Download
| Model | Rated voltage | Voltage range | Speed | Current | Power | Air volume | Air pressure | Noise | Curve | Weight | ||
| VDC | VDC | RPM | A | W | CFM | M3/h | mmH2O | InH2O | dBA | Color | g | |
| FD8020B4U-AP00 | 24 | 12~26.4 | 5000 | 0.15 | 3.60 | 51.34 | 87.23 | 8.47 | 0.33 | 48.5 | Black | 64 |
| FD8020B4H-AP00 | 4000 | 0.09 | 2.16 | 41.16 | 69.93 | 5.57 | 0.22 | 42.7 | Red | |||
| FD8020B4M-AP00 | 3000 | 0.06 | 1.44 | 30.82 | 52.36 | 3.27 | 0.13 | 35.1 | Green | |||
| FD8020B4L-AP00 | 2000 | 0.03 | 0.72 | 20.13 | 34.20 | 1.57 | 0.06 | 26.3 | Blue | |||
| FD8020B2U-AP00 | 12 | 6~14 | 5000 | 0.30 | 3.60 | 51.34 | 87.23 | 8.47 | 0.33 | 48.5 | Black | |
| FD8020B2H-AP00 | 4000 | 0.20 | 2.40 | 41.16 | 69.93 | 5.57 | 0.22 | 42.7 | Red | |||
| FD8020B2M-AP00 | 3000 | 0.12 | 1.44 | 30.82 | 52.36 | 3.27 | 0.13 | 35.1 | Green | |||
| FD8020B2L-AP00 | 2000 | 0.04 | 0.48 | 20.13 | 34.2 | 1.57 | 0.06 | 26.3 | Blue | |||
| FD8020B1U-AP00 | 5 | 3.5~5.5 | 5000 | 0.45 | 2.25 | 51.34 | 87.23 | 8.47 | 0.33 | 48.5 | Black | |
| FD8020B1H-AP00 | 4000 | 0.30 | 1.50 | 42.16 | 69.93 | 5.57 | 0.22 | 42.7 | Red | |||
| FD8020B1M-AP00 | 3000 | 0.20 | 1.00 | 30.82 | 52.36 | 3.27 | 0.13 | 35.1 | Green | |||
| FD8020B1L-AP00 | 2000 | 0.10 | 0.50 | 20.13 | 34.20 | 1.57 | 0.06 | 26.3 | Blue | |||
Product Parameters
The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.
| Parameter | Specification |
| Model | XY-GF200 |
| Air Pressure | 800Pa (Max) |
| Air Flow | 15-50 CFM (Adjustable) |
| Voltage | DC 12/24/48V |
| Noise Level | 35-50 dB(A) |
| Power Consumption | 18W-60W |
| Protection Rating | IP55 (Dustproof & Water-resistant) |
