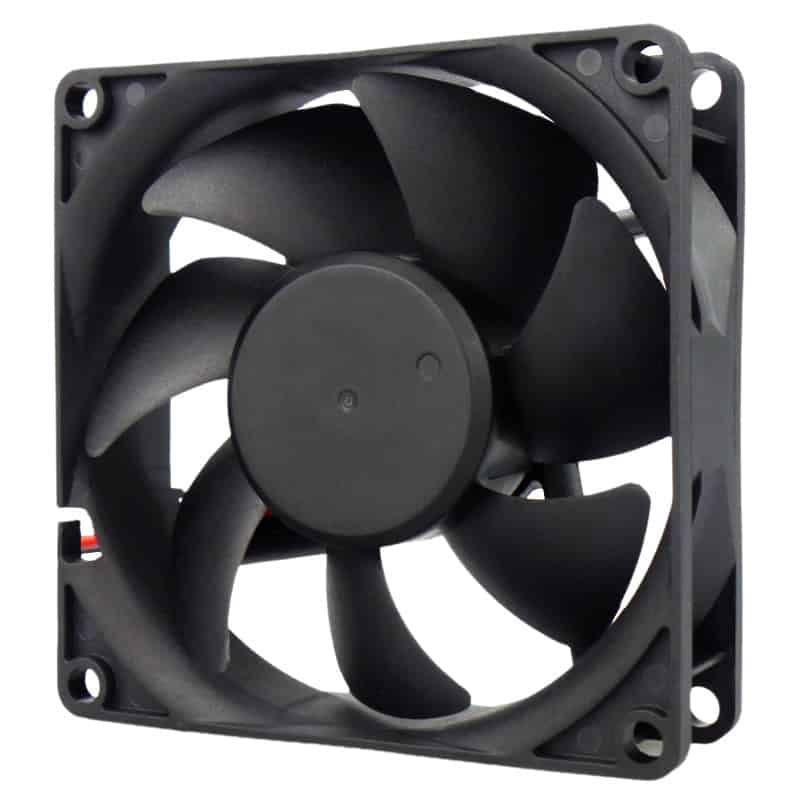

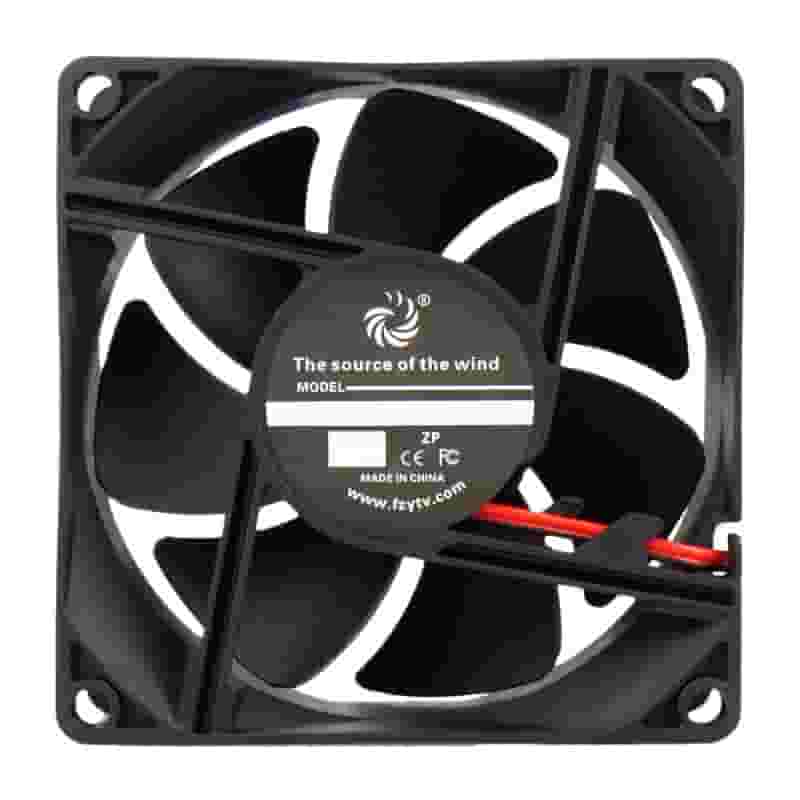

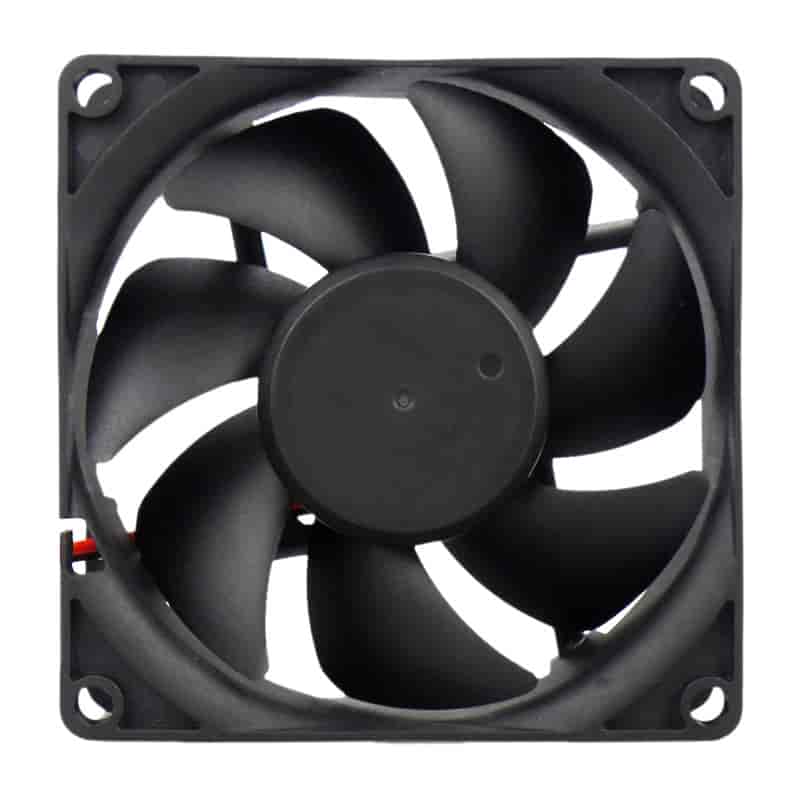

FD8025A

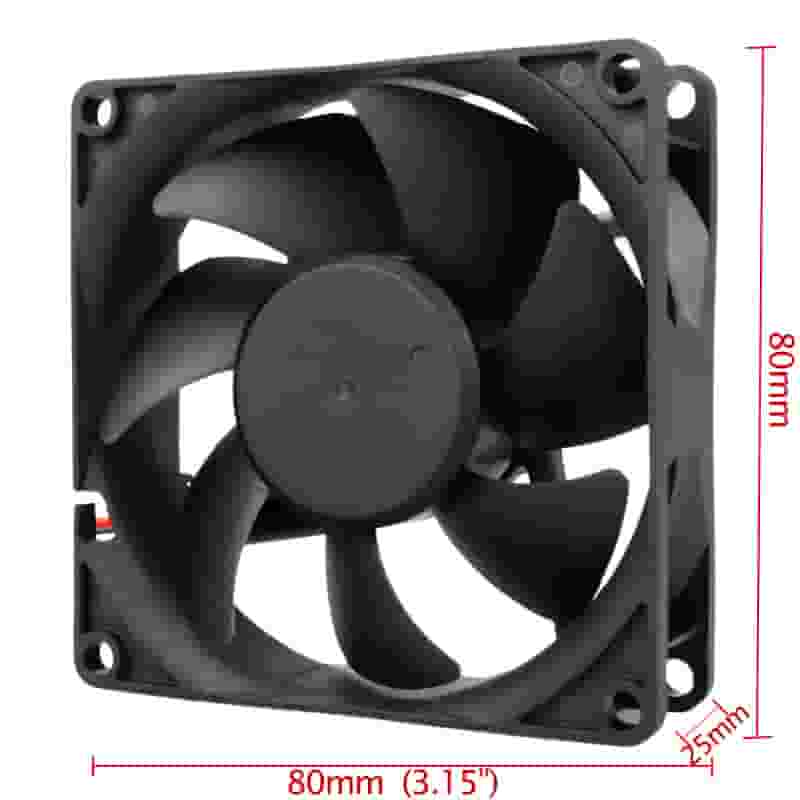

Size:80*80*25mm

Bearing: Hydraulic/Dual ball

Cable: supoort customization

Connector: support customization

IP Rating: IP54/IP55/IP67/IP68

Function: Reverse connection protection, automatic restart, PWM, FG, RD

Datasheet Download

Whatsapp: +86 153 6189 2827

Model	Rated voltage	Voltage range	Speed	Current	Power	Air volume		Air pressure		Noise	Curve	Weight
Model	VDC	VDC	RPM	A	W	CFM	M3/h	mmH2O	InH2O	dBA	Color	g
FD8025B6U-AP00	48	43.6~52.8	5000	0.15	0.15	61.55	104.57	8.29	0.33	44.3	Black	72
FD8025B6H-AP00			4000	0.09	0.09	49.26	83.69	5.69	0.22	38.4	Red
FD8025B6M-AP00			3000	0.06	0.06	36.21	61.52	3.39	0.13	33.2	Green
FD8025B6L-AP00			2000	0.03	0.03	23.71	40.28	1.64	0.06	26.6	Blue
FD8025B4U-AP00	24	12~26.4	5000	0.25	0.25	61.55	104.57	8.29	0.33	44.3	Black
FD8025B4H-AP00			4000	0.14	0.14	49.26	83.69	5.69	0.22	38.4	Red
FD8025B4M-AP00			3000	0.07	0.07	36.21	61.52	3.39	0.13	33.2	Green
FD8025B4L-AP00			2000	0.04	0.04	23.71	40.28	1.64	0.06	26.6	Blue
FD8025B2U-AP00	12	6~14	5000	0.40	0.40	61.55	104.57	8.29	0.33	44.3	Black
FD8025B2H-AP00			4000	0.24	0.24	49.26	83.69	5.69	0.22	38.4	Red
FD8025B2M-AP00			3000	0.12	0.12	36.21	61.52	3.39	0.13	33.2	Green
FD8025B2L-AP00			2000	0.08	0.08	23.71	40.28	1.64	0.06	26.6	Blue
FD8025B1U-AP00	5	3.5~5.5	5000	0.50	0.50	61.55	104.57	8.29	0.33	44.3	Black
FD8025B1H-AP00			4000	0.35	0.35	49.26	83.69	5.69	0.22	38.4	Red
FD8025B1M-AP00			3000	0.25	0.25	36.21	61.52	3.39	0.13	33.2	Green
FD8025B1L-AP00			2000	0.15	0.75	23.71	40.28	1.64	0.06	26.6	Blue

Product Parameters

The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.

Parameter	Specification
Model	XY-GF200
Air Pressure	800Pa (Max)
Air Flow	15-50 CFM (Adjustable)
Voltage	DC 12/24/48V
Noise Level	35-50 dB(A)
Power Consumption	18W-60W
Protection Rating	IP55 (Dustproof & Water-resistant)
