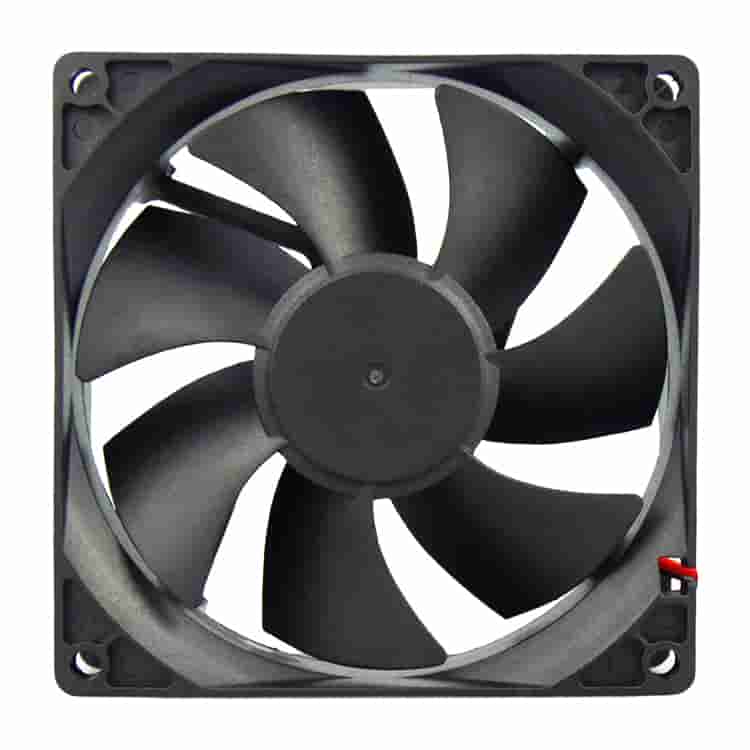

FD9225A

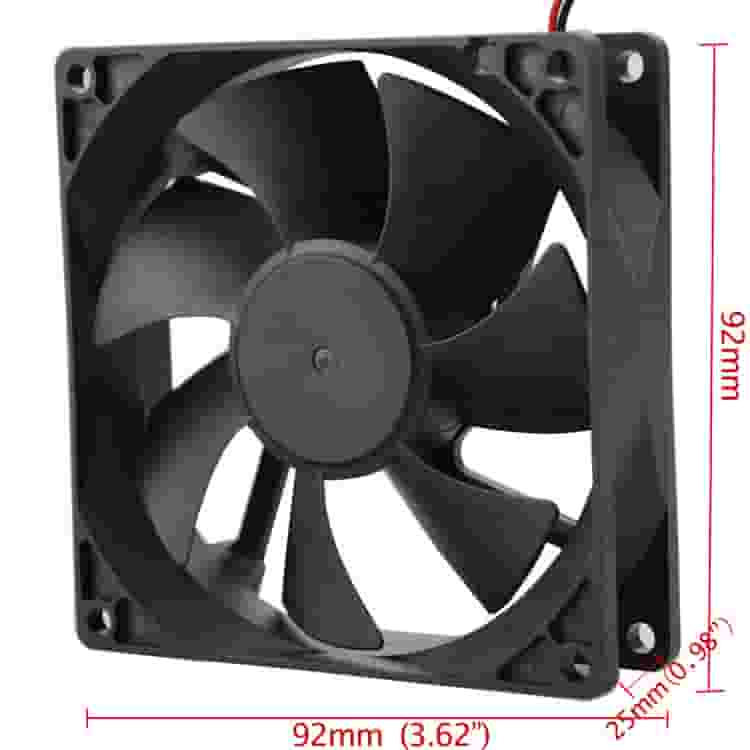

Size:92*92*25mm

Bearing: Hydraulic/Dual ball

Cable: supoort customization

Connector: support customization

IP Rating: IP54/IP55/IP67/IP68

Function: Reverse connection protection, automatic restart, PWM, FG, RD

Datasheet Download

Whatsapp: +86 153 6189 2827

Model	Rated voltage	Voltage range	Speed	Current	Power	Air volume		Air pressure		Noise	Curve	Weight
Model	VDC	VDC	RPM	A	W	CFM	M3/h	mmH2O	InH2O	dBA	Color	g
FD9225B6U-AP00	48	43.6~52.8	4500	0.20	9.60	73.40	124.71	6.49	0.26	52.4	Black	97
FD9225B6H-AP00			3500	0.15	7.20	57.40	97.52	4.47	0.18	44.3	Red
FD9225B6M-AP00			2500	0.04	1.92	40.78	69.29	2.54	0.10	34.8	Green
FD9225B6L-AP00			1500	0.02	0.96	24.03	40.83	1.00	0.04	25.6	Blue
FD9225B4U-AP00	24	12~26.4	4500	0.24	5.76	73.40	124.71	6.49	0.26	52.4	Black
FD9225B4H-AP00			3500	0.18	4.32	57.40	97.52	4.47	0.18	44.3	Red
FD9225B4M-AP00			2500	0.06	1.44	40.78	69.29	2.54	0.10	34.8	Green
FD9225B4L-AP00			1500	0.03	0.72	24.03	40.83	1.00	0.04	25.6	Blue
FD9225B2U-AP00	12	6~14	4500	0.45	5.40	73.40	124.71	6.49	0.26	52.4	Black
FD9225B2H-AP00			3500	0.24	2.88	57.40	97.52	4.47	0.18	44.3	Red
FD9225B2M-AP00			2500	0.15	1.80	40.78	69.29	2.54	0.10	34.8	Green
FD9225B2L-AP00			1500	0.04	0.48	24.03	40.83	1.00	0.04	25.6	Blue
FD9225B1U-AP00	5	3.5~5.5	4500	0.60	3.00	73.40	124.71	6.49	0.26	52.4	Black
FD9225B1H-AP00			3500	0.45	2.25	57.40	97.52	4.47	0.18	44.3	Red
FD9225B1M-AP00			2500	0.40	2.00	40.78	69.29	2.54	0.10	34.8	Green
FD9225B1L-AP00			1500	0.30	1.50	24.03	40.83	1.00	0.04	25.6	Blue

Product Parameters

The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.

Parameter	Specification
Model	XY-GF200
Air Pressure	800Pa (Max)
Air Flow	15-50 CFM (Adjustable)
Voltage	DC 12/24/48V
Noise Level	35-50 dB(A)
Power Consumption	18W-60W
Protection Rating	IP55 (Dustproof & Water-resistant)
