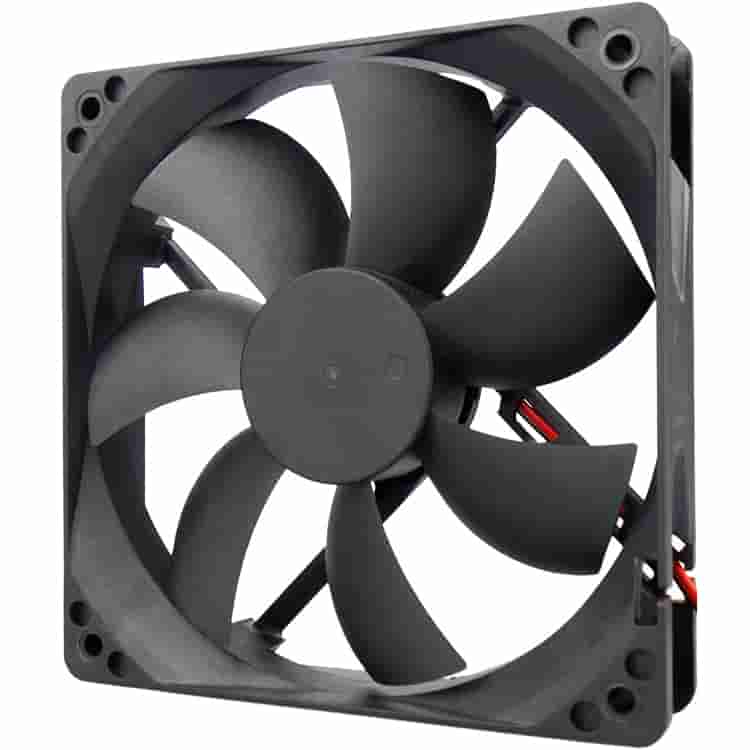

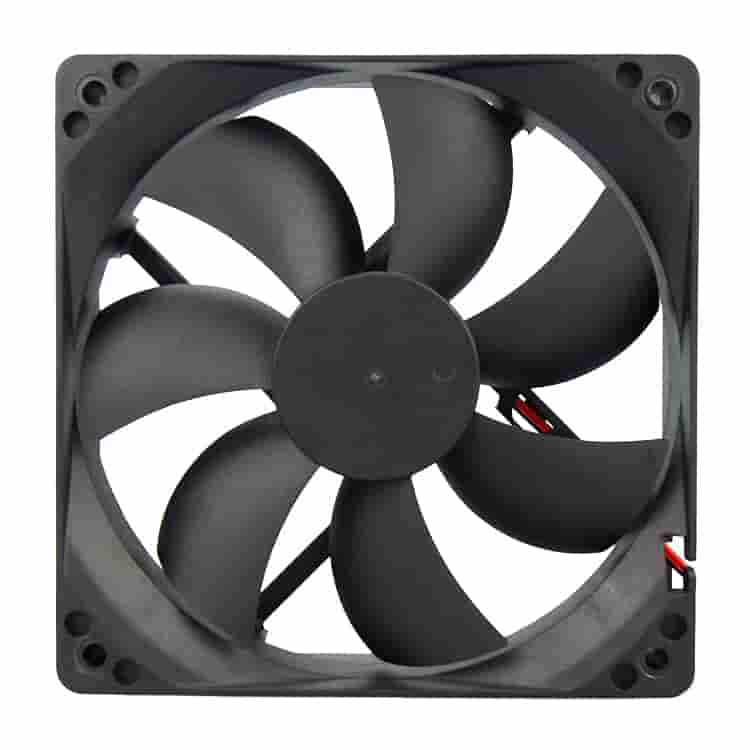

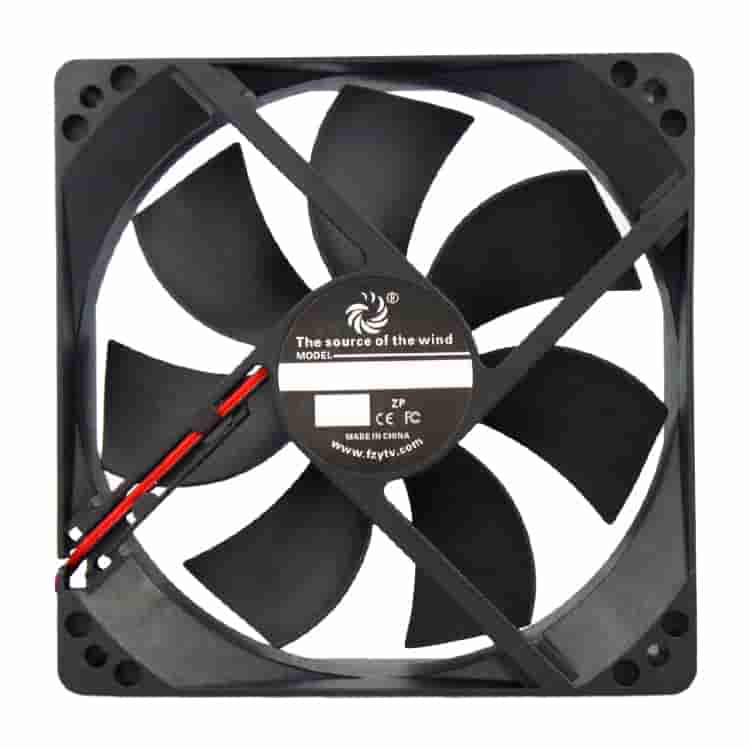

FD1225A-1

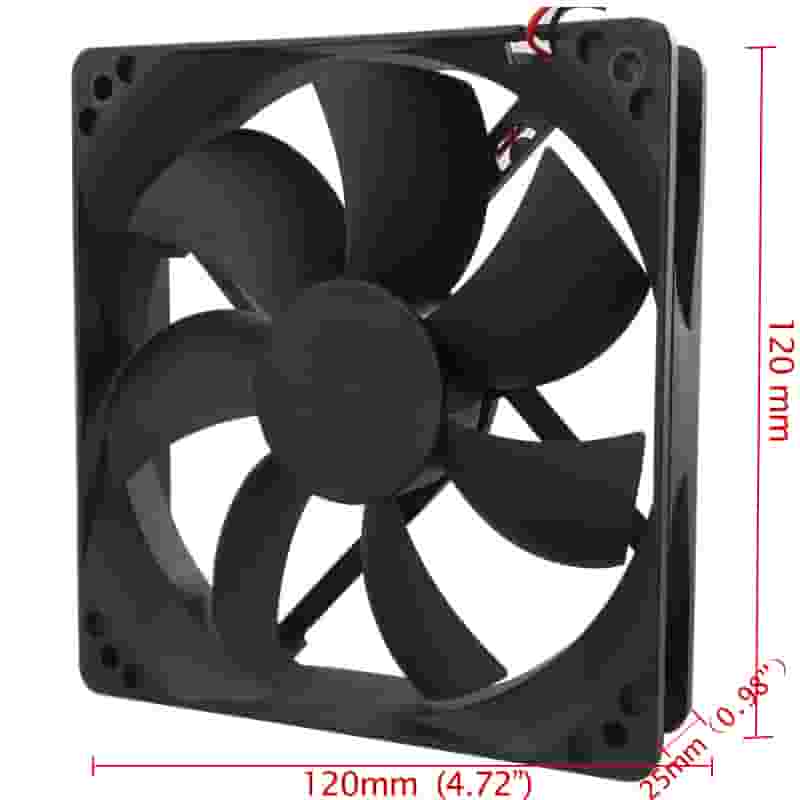

Size:120*120*25mm

Bearing: Hydraulic/Dual ball

Cable: supoort customization

Connector: support customization

IP Rating: IP54/IP55/IP67/IP68

Function: Reverse connection protection, automatic restart, PWM, FG, RD

Datasheet Download

Whatsapp: +86 153 6189 2827

Model	Rated voltage	Voltage range	Speed	Current	Power	Air volume		Air pressure		Noise	Curve	Weight
Model	VDC	VDC	RPM	A	W	CFM	M3/h	mmH2O	InH2O	dBA	Color	g
FD1225B6U-AP00	48	43.6~52.8	2700	0.15	7.20	100.77	171.21	5.45	0.21	44.3	Black	136
FD1225B6H-AP00			2400	0.10	4.80	90.07	153.03	4.37	0.17	40.7	Red
FD1225B6M-AP00			2000	0.06	2.88	71.41	121.33	2.73	0.11	36.5	Green
FD1225B6L-AP00			1500	0.03	1.44	53.59	91.05	1.79	0.07	29.4	Blue
FD1225B4U-AP00	24	12~26.4	2700	0.20	4.80	100.77	171.21	5.45	0.21	44.3	Black
FD1225B4H-AP00			2400	0.16	3.84	90.07	153.03	4.37	0.17	40.7	Red
FD1225B4M-AP00			2000	0.10	2.40	71.41	121.33	2.73	0.11	36.5	Green
FD1225B4L-AP00			1500	0.04	0.96	53.59	91.05	1.79	0.07	29.4	Blue
FD1225B2U-AP00	12	6~14	2700	0.32	3.84	100.77	171.21	5.45	0.21	44.3	Black
FD1225B2H-AP00			2400	0.24	2.88	90.07	153.03	4.37	0.17	40.7	Red
FD1225B2M-AP00			2000	0.20	2.40	71.41	121.33	2.73	0.11	36.5	Green
FD1225B2L-AP00			1500	0.10	1.20	53.59	91.05	1.79	0.07	29.4	Blue
FD1225B1U-AP00	5	3.5~5.5	2700	0.80	4.00	100.77	171.21	5.45	0.21	44.3	Black
FD1225B1H-AP00			2400	0.60	3.00	90.07	153.03	4.37	0.17	40.7	Red
FD1225B1M-AP00			2000	0.40	2.00	71.41	121.33	2.73	0.11	36.5	Green
FD1225B1L-AP00			1500	0.24	1.20	53.59	91.05	1.79	0.07	29.4	Blue

Product Parameters

The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.

Parameter	Specification
Model	XY-GF200
Air Pressure	800Pa (Max)
Air Flow	15-50 CFM (Adjustable)
Voltage	DC 12/24/48V
Noise Level	35-50 dB(A)
Power Consumption	18W-60W
Protection Rating	IP55 (Dustproof & Water-resistant)
