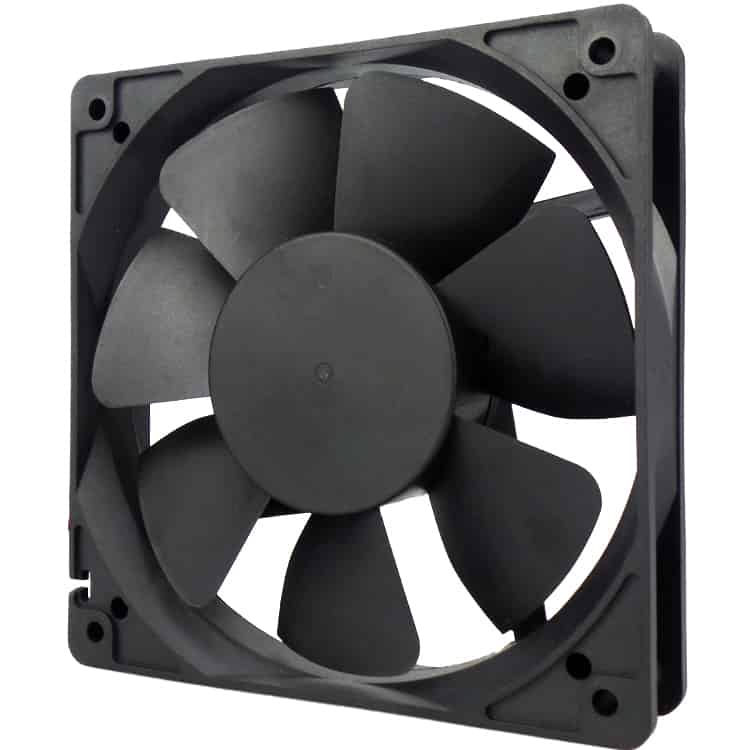

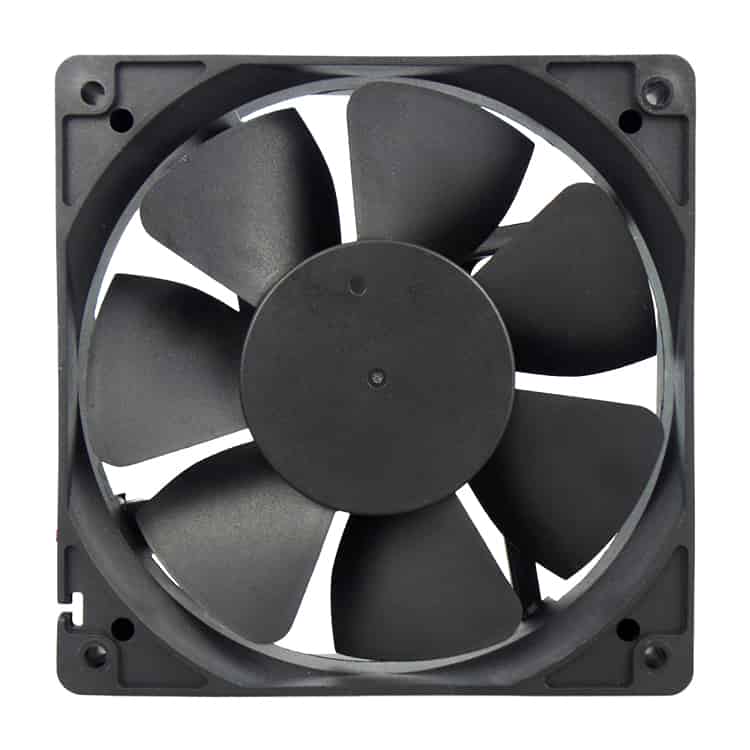

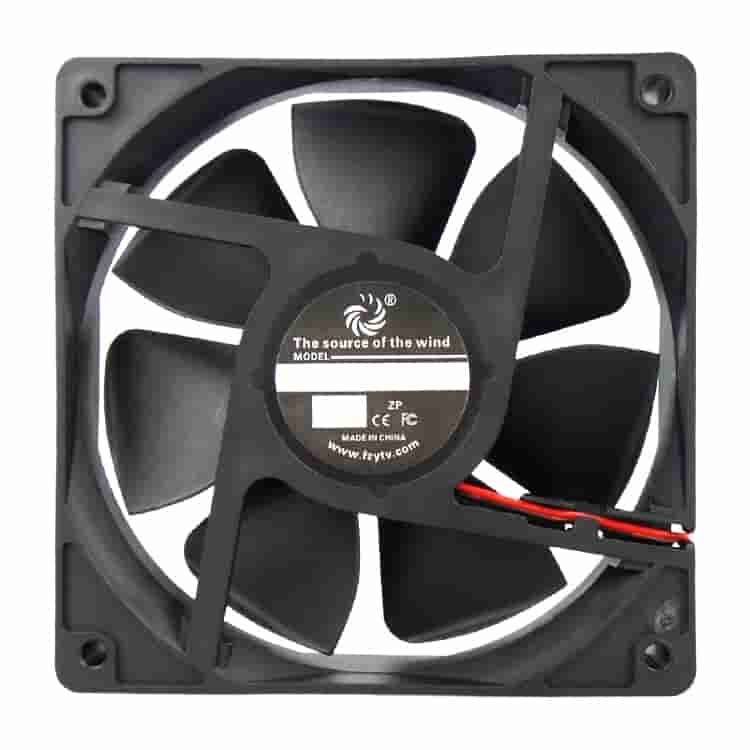

FD1225A-2

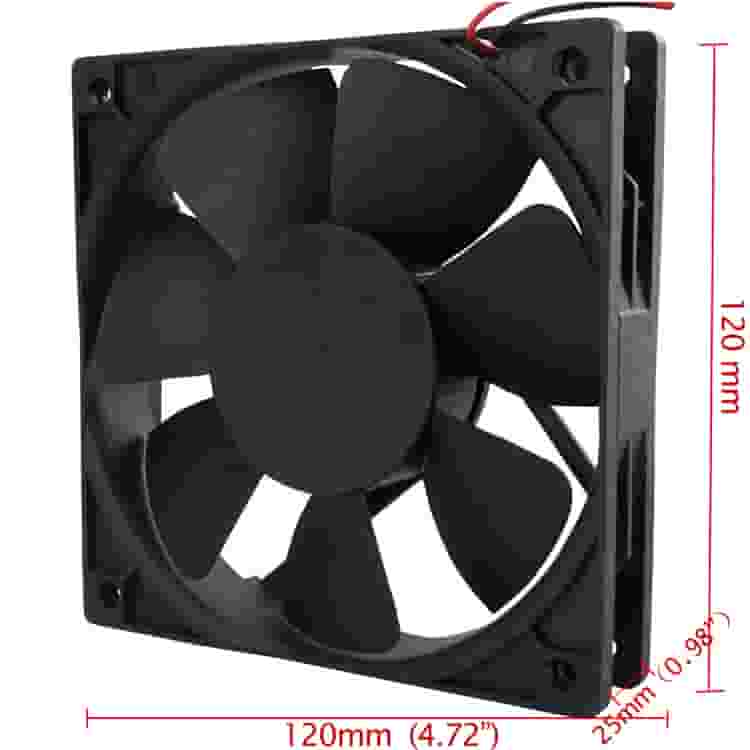

Size:120*120*25mm

Bearing: Hydraulic/Dual ball

Cable: supoort customization

Connector: support customization

IP Rating: IP54/IP55/IP67/IP68

Function: Reverse connection protection, automatic restart, PWM, FG, RD

Datasheet Download

Whatsapp: +86 153 6189 2827

Model	Rated voltage	Voltage range	Speed	Current	Power	Air volume		Air pressure		Noise	Curve	Weight
Model	VDC	VDC	RPM	A	W	CFM	M3/h	mmH2O	mmH2O	dBA	Color	g
FD1225B6U-AP00	48	43.6~52.8	5000	0.18	8.64	130.57	221.84	17.12	0.67	63.8	Black	182
FD1225B6H-AP00			4000	0.10	4.80	104.09	176.85	11.88	0.47	54.4	Red
FD1225B6M-AP00			3500	0.06	2.88	75.77	128.73	7.01	0.28	43.5	Green
FD1225B6L-AP00			3000	0.03	1.44	45.88	77.95	2.85	0.11	32.2	Blue
FD1225B4U-AP00	24	12~26.4	5000	0.50	12.00	130.57	221.84	17.12	0.67	63.8	Black
FD1225B4H-AP00			4000	0.25	6.00	104.09	176.85	11.88	0.47	54.4	Red
FD1225B4M-AP00			3500	0.15	3.60	75.77	128.73	7.01	0.28	43.5	Green
FD1225B4L-AP00			3000	0.10	2.40	45.88	77.95	2.85	0.11	32.2	Blue
FD1225B2U-AP00	12	6~14	5000	0.80	9.60	130.57	221.84	17.12	0.67	62.8	Black
FD1225B2H-AP00			4000	0.40	4.80	104.09	176.85	11.88	0.47	54.4	Red
FD1225B2M-AP00			3500	0.30	3.60	75.77	128.73	7.01	0.28	43.5	Green
FD1225B2L-AP00			3000	0.20	2.40	45.88	77.95	2.85	0.11	32.2	Blue

Product Parameters

The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.

Parameter	Specification
Model	XY-GF200
Air Pressure	800Pa (Max)
Air Flow	15-50 CFM (Adjustable)
Voltage	DC 12/24/48V
Noise Level	35-50 dB(A)
Power Consumption	18W-60W
Protection Rating	IP55 (Dustproof & Water-resistant)
