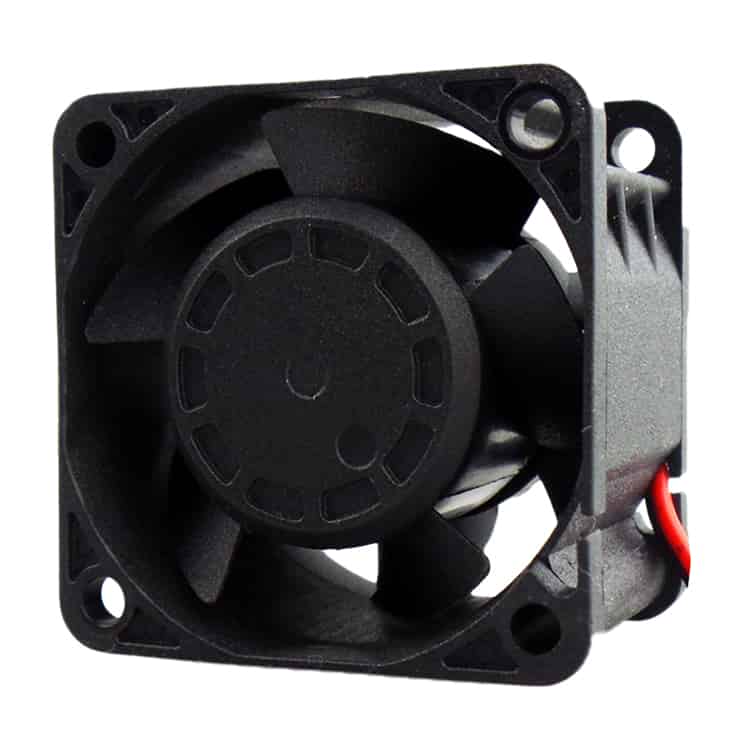

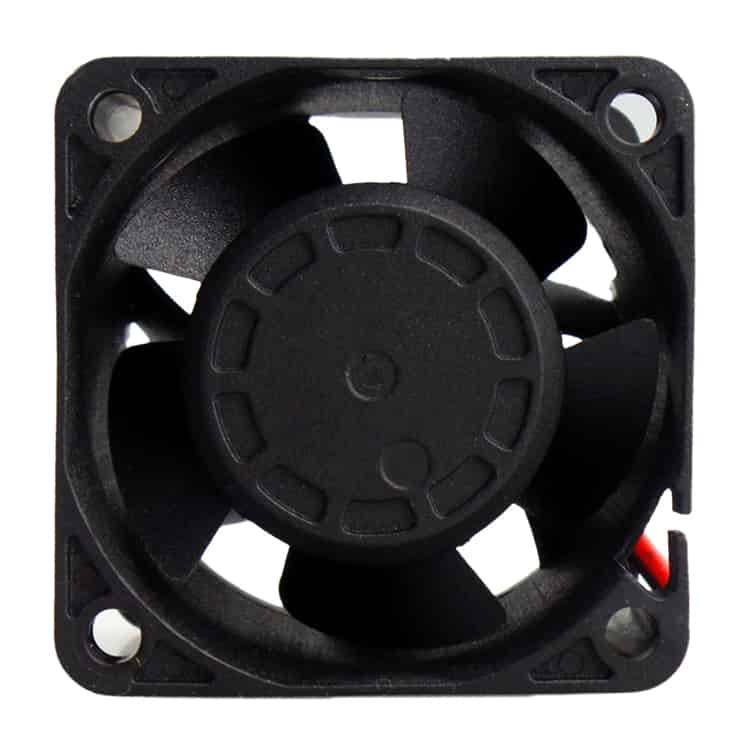

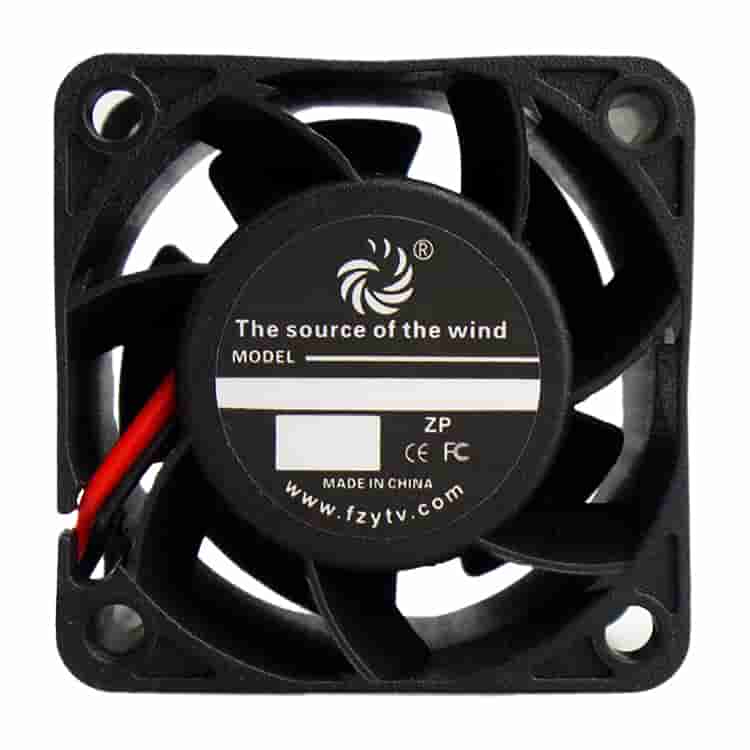

FD4028

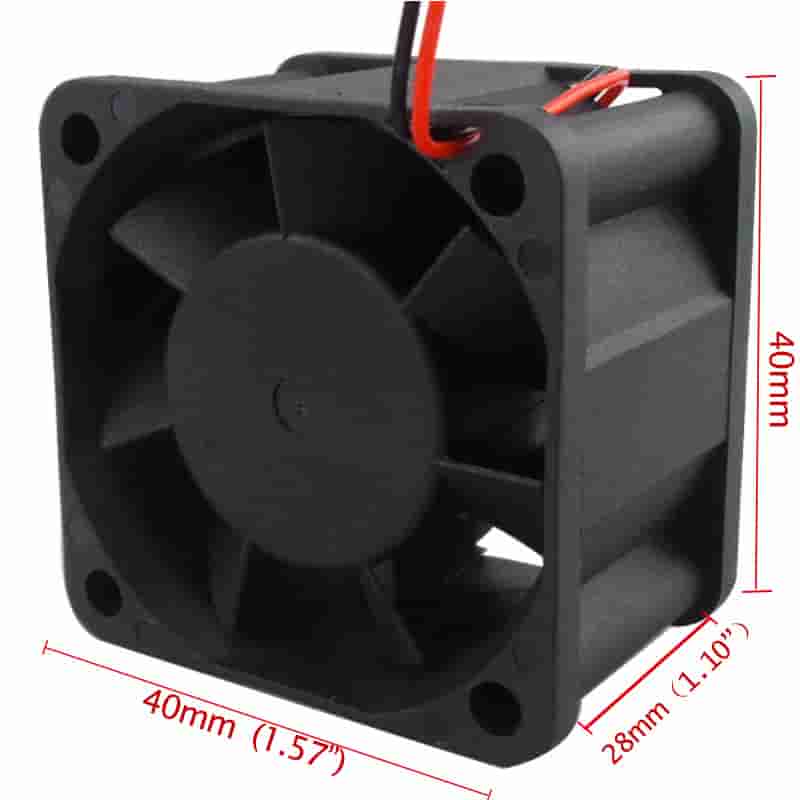

Size:40*40*28mm

Bearing: Hydraulic/Dual ball

Cable: supoort customization

Connector: support customization

IP Rating: IP54/IP55/IP67/IP68

Function: Reverse connection protection, automatic restart, PWM, FG, RD

Datasheet Download

Whatsapp: +86 153 6189 2827

Model	Rated voltage	Voltage range	Speed	Current	Power	Air volume		Air pressure		Noise	Curve	Weight
Model	VDC	VDC	RPM	A	W	CFM	M3/h	mmH2O	InH2O	dBA	Color	g
FD4028B4U-AT00	24	12~26.4	10000	0.12	2.88	13.73	23.33	13.66	0.54	44.30	Black	32
FD4028B4H-AT00			9000	0.09	2.16	12.12	20.59	10.51	0.41	41.60	Red
FD4028B4M-AT00			8000	0.06	1.44	10.74	18.25	8.23	0.32	38.50	Green
FD4028B4L-AT00			7000	0.04	0.96	9.64	16.38	6.47	0.25	35.20	Blue
FD4028B2U-AT00	12	6~14	10000	0.20	2.40	13.73	23.33	13.66	0.54	44.30	Black
FD4028B2H-AT00			9000	0.16	1.92	12.12	20.59	10.51	0.41	41.60	Red
FD4028B2M-AT00			8000	0.10	1.20	10.74	18.25	8.23	0.32	38.50	Green
FD4028B2L-AT00			7000	0.07	0.84	9.64	16.38	6.47	0.25	35.20	Blue

Product Parameters

The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.

Parameter	Specification
Model	XY-GF200
Air Pressure	800Pa (Max)
Air Flow	15-50 CFM (Adjustable)
Voltage	DC 12/24/48V
Noise Level	35-50 dB(A)
Power Consumption	18W-60W
Protection Rating	IP55 (Dustproof & Water-resistant)
