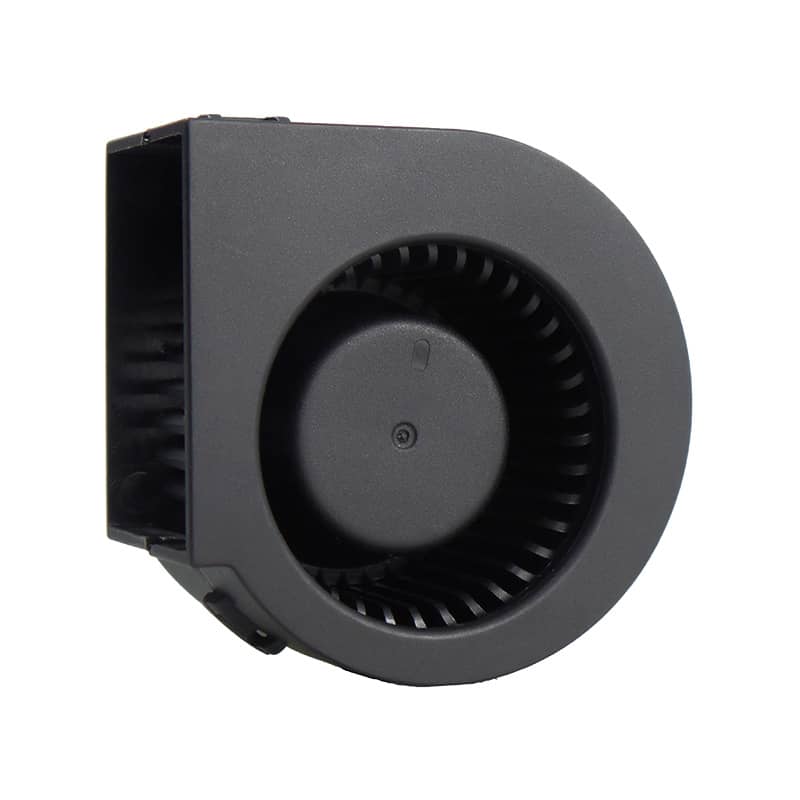

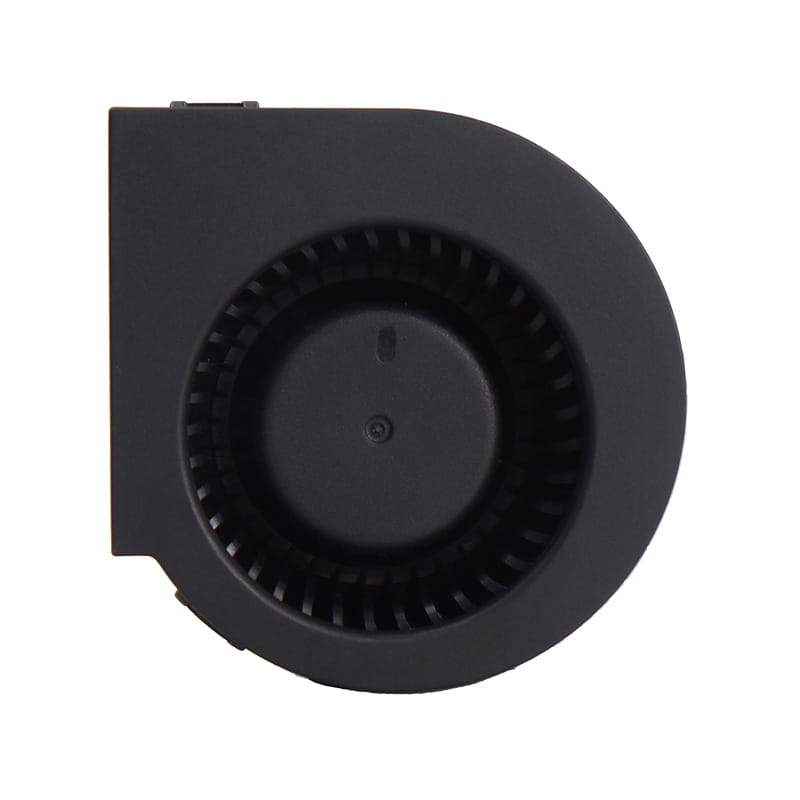

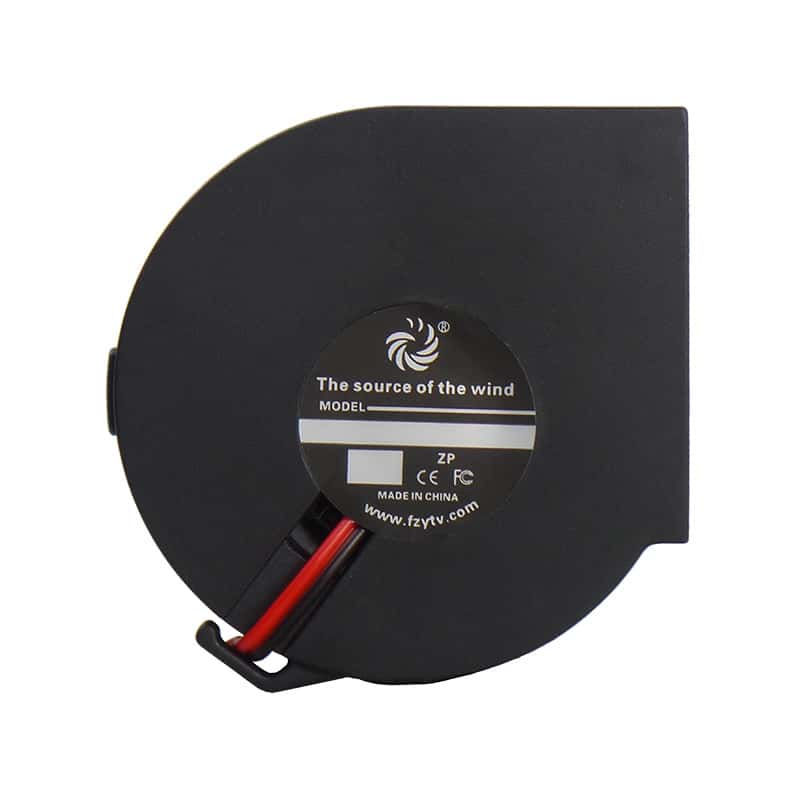

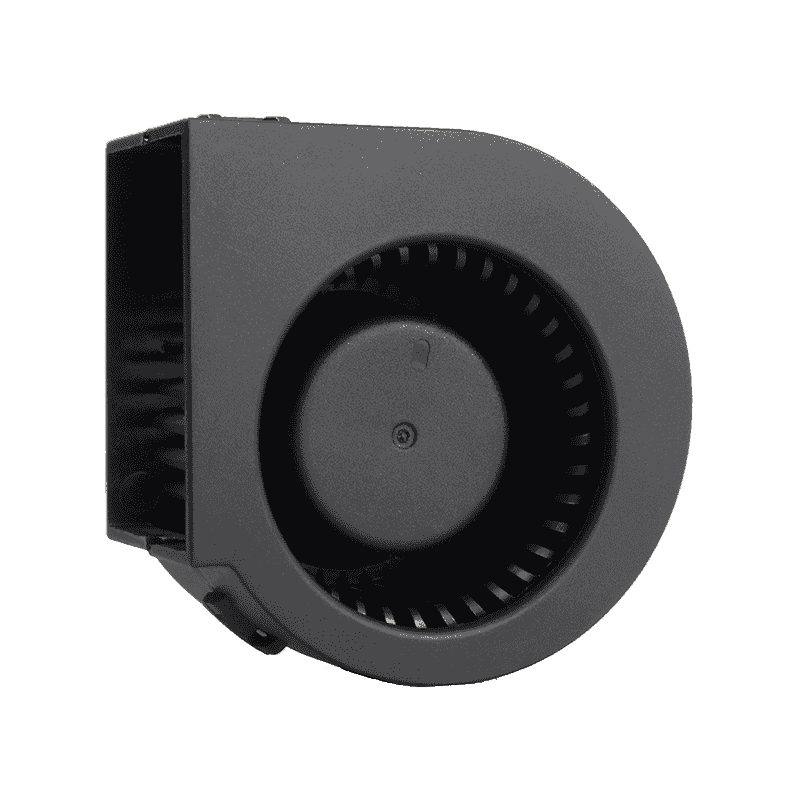

FD5025B-2

Size:50*50*25mm

Voltage:

Speed:

Bearing: Sleeve/Dual ball

Cable: supoort customization

Connector: support customization

IP Rating: IP54/IP55/IP67/IP68

Function: Reverse connection protection, automatic restart, PWM, FG, RD

Datasheet Download

Whatsapp: +86 153 6189 2827

Model	Rated voltage	Voltage range	Speed	Current	Power	Air Flow		Air pressure		Noise	Curve	Weight
Model	VDC	VDC	RPM	A	W	CFM	M3/h	mmH2O	InH2O	dBA	Color	G
FD5025B4U-BP00	24	12~26.4	6000	0.12	2.88	8.20	13.93	21.01	0.83	43.6	Black	33
FD5025B4H-BP00			5000	0.08	1.92	6.81	11.57	13.60	0.54	39.2	Red
FD5025B4M-BP00			4000	0.05	1.20	5.47	9.29	7.92	0.31	33.7	Green
FD5025B4L-BP00			3000	0.03	0.72	3.90	6.63	4.13	0.16	29.4	Blue
FD5025B2U-BP00	12	6~14	6000	0.24	2.88	8.20	13.93	21.01	0.83	43.6	Black
FD5025B2H-BP00			5000	0.15	1.80	6.81	11.57	13.60	0.54	39.2	Red
FD5025B2M-BP00			4000	0.10	1.20	5.47	9.29	7.92	0.31	33.7	Green
FD5025B2L-BP00			3000	0.06	0.72	3.90	6.63	4.13	0.16	29.4	Blue
FD5025B1U-BP00	5	3.5~5.5	6000	0.40	2.00	8.20	13.93	21.01	0.83	43.6	Black
FD5025B1H-BP00			5000	0.30	1.50	6.81	11.57	13.60	0.54	39.2	Red
FD5025B1M-BP00			4000	0.20	1.00	5.47	9.29	7.92	0.31	33.7	Green
FD5025B1L-BP00			3000	0.12	0.60	3.90	6.63	4.13	0.16	29.4	Blue

Product Parameters

The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.

Parameter	Specification
Model	XY-GF200
Air Pressure	800Pa (Max)
Air Flow	15-50 CFM (Adjustable)
Voltage	DC 12/24/48V
Noise Level	35-50 dB(A)
Power Consumption	18W-60W
Protection Rating	IP55 (Dustproof & Water-resistant)
