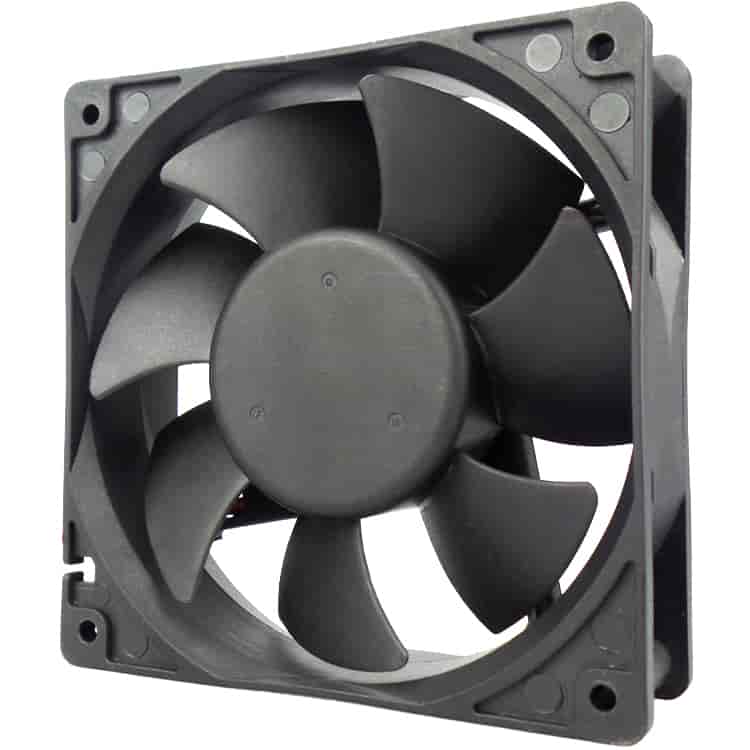

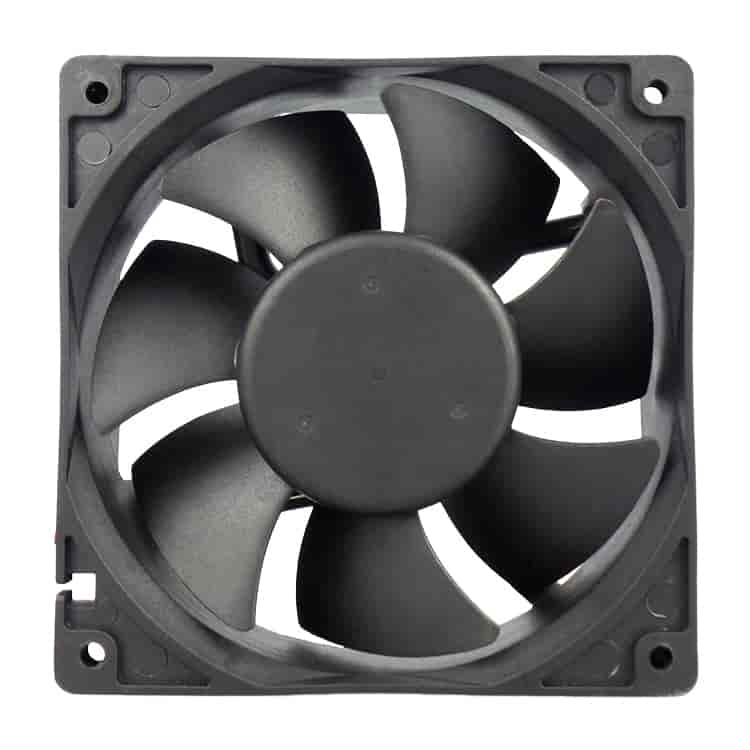

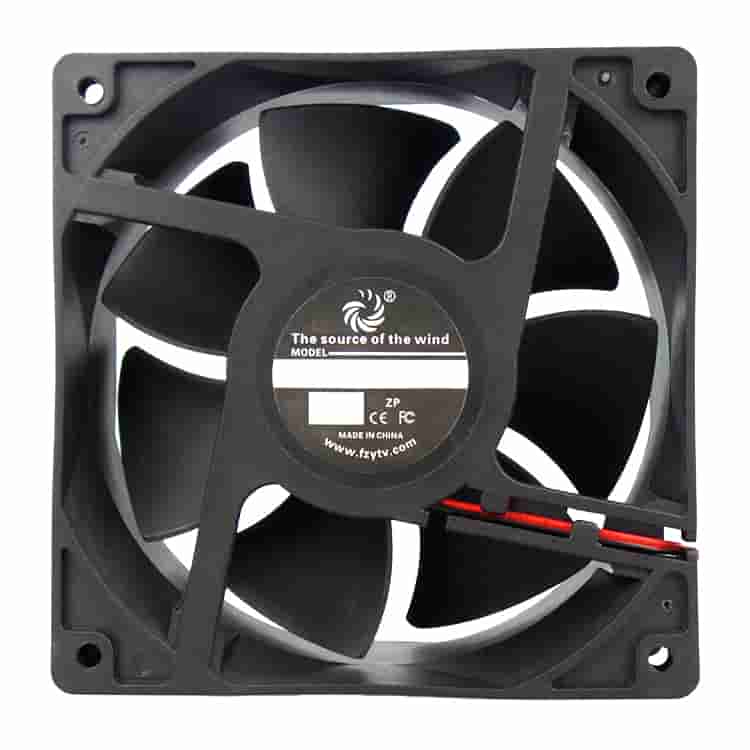

FD1238A

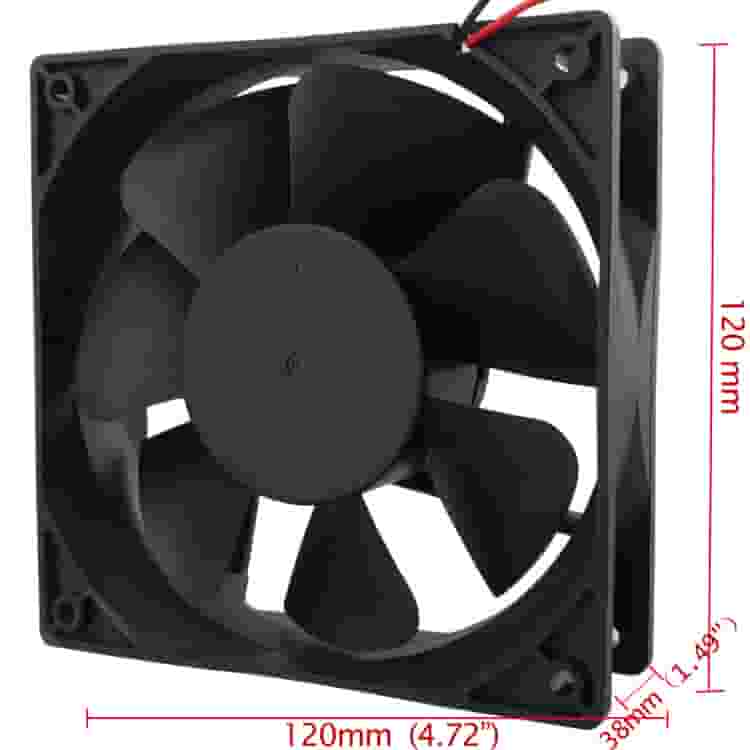

Size:120*120*38mm

Voltage:12V/24V/48v

Speed: L/M/H/U(3000-5000RPM)

Bearing: Hydraulic/Dual ball

Cable: supoort customization

Connector: support customization

IP Rating: IP54/IP55/IP67/IP68

Function: Reverse connection protection, automatic restart, PWM, FG, RD

Datasheet Download

Whatsapp: +86 153 6189 2827

Model	Rated voltage	Voltage range	Speed	Current	Power	Air volume		Air pressure		Noise	Curve	Weight
Model	VDC	VDC	RPM	A	W	CFM	M3/h	mmH2O	InH2O	dBA	Color	g
FD1238B6U-AP00	48	43.6~52.8	5000	0.50	24.00	182.34	309.8	20.87	0.82	63.7	Black	320
FD1238B6H-AP00			4000	0.40	19.20	146.56	249.01	14.37	0.57	55.5	Red
FD1238B6M-AP00			3500	0.30	14.40	126.70	215.26	11.10	0.44	50.4	Green
FD1238B6L-AP00			3000	0.20	9.60	111.06	188.69	8.51	0.34	46.1	Blue
FD1238B4U-AP00	24	12~26.4	5000	0.80	19.20	182.34	309.8	20.87	0.82	63.7	Black
FD1238B4H-AP00			4000	0.50	12.00	146.56	249.01	14.37	0.57	55.5	Red
FD1238B4M-AP00			3500	0.40	9.60	126.70	215.26	11.10	0.44	50.4	Green
FD1238B4L-AP00			3000	0.30	7.20	111.06	188.69	8.51	0.34	46.1	Blue
FD1238B1U-AP00	12	6~14	5000	1.00	12.00	182.34	309.8	20.87	0.82	63.7	Black
FD1238B1H-AP00			4000	0.70	8.40	146.56	249.01	14.37	0.57	55.5	Red
FD1238B1M-AP00			3500	0.50	6.00	126.70	215.26	11.10	0.44	50.4	Green
FD1238B1L-AP00			3000	0.40	4.80	111.06	188.69	8.51	0.34	46.1	Blue

Product Parameters

The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.

Parameter	Specification
Model	XY-GF200
Air Pressure	800Pa (Max)
Air Flow	15-50 CFM (Adjustable)
Voltage	DC 12/24/48V
Noise Level	35-50 dB(A)
Power Consumption	18W-60W
Protection Rating	IP55 (Dustproof & Water-resistant)
