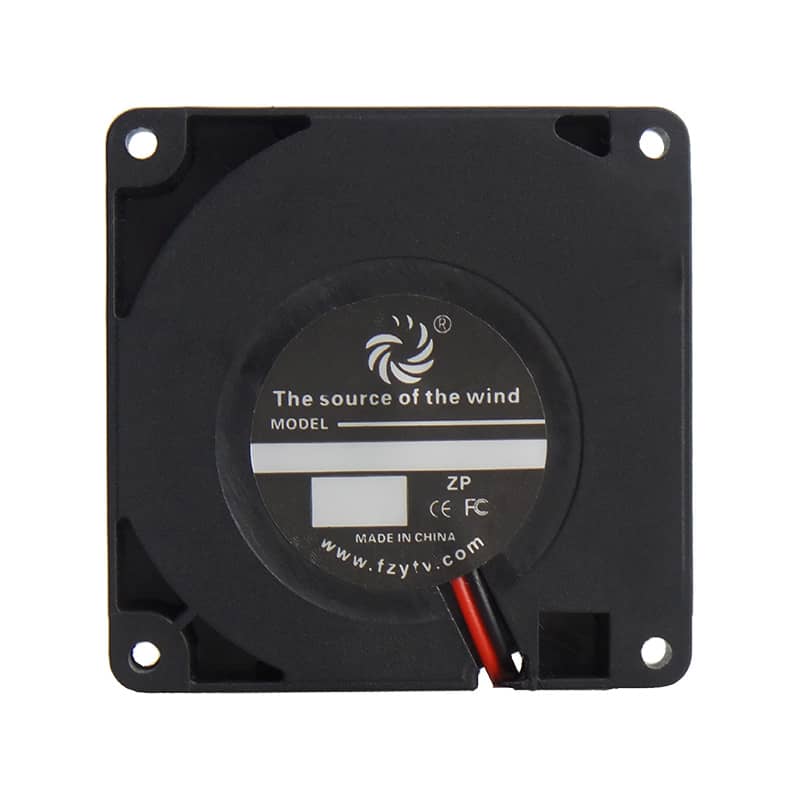

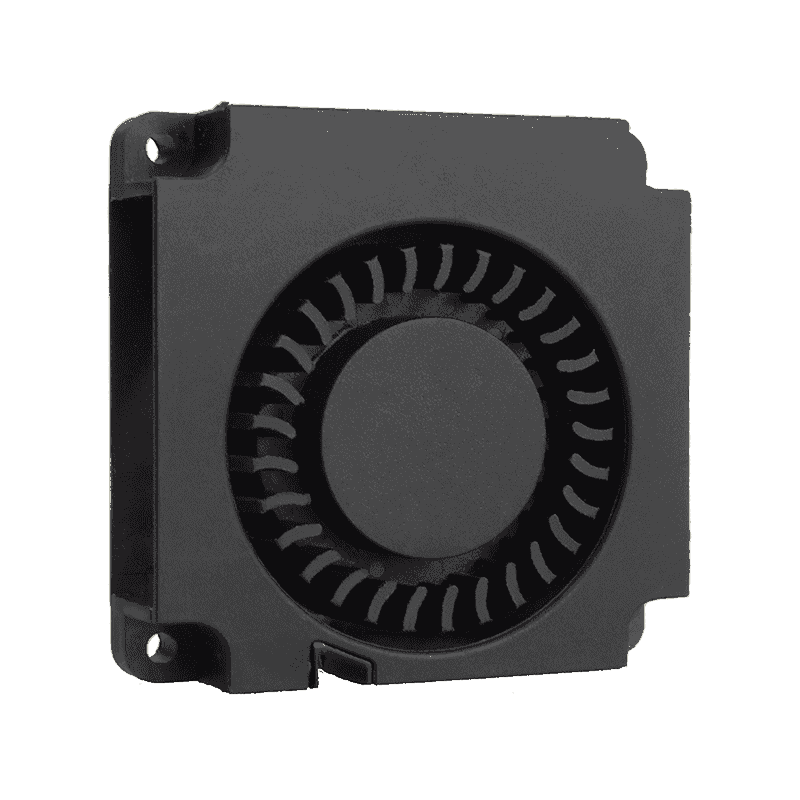

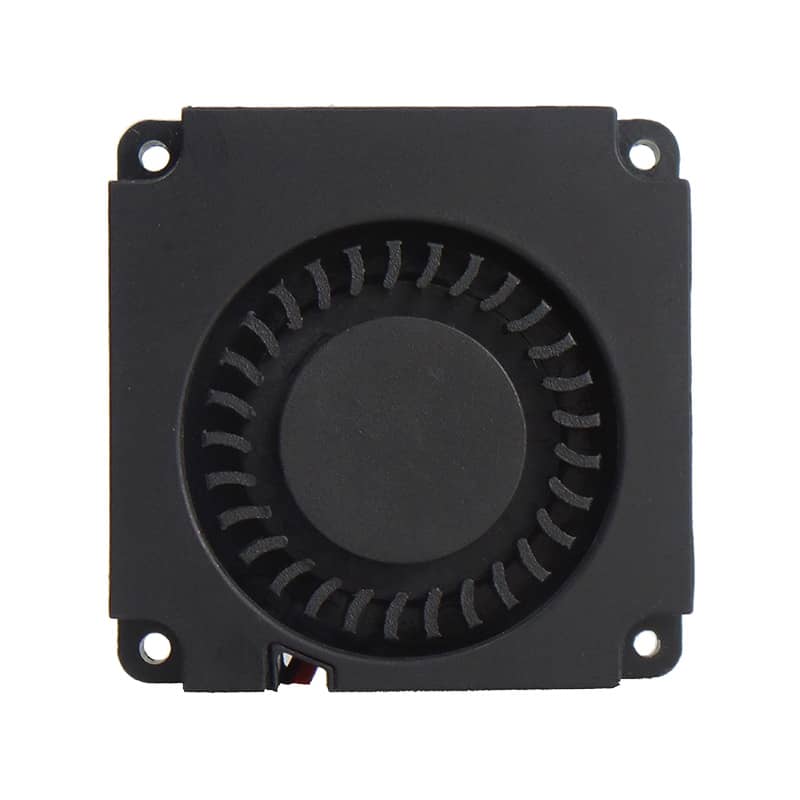

FD4010B

Size:40*40*10mm

Voltage:5V/12V/24V

Speed: L/M/H/U(5000-8000RPM)

Bearing: hydraulic/Dual ball

Cable: supoort customization

Connector: support customization

IP Rating: IP54/IP55/IP67/IP68

Function: Reverse connection protection, automatic restart, PWM, FG, RD

Datasheet Download

Whatsapp: +86 153 6189 2827

Model	Rated voltage	Voltage range	Speed	Current	Power	Air Flow		Air pressure		Noise	Curve	Weight
Model	VDC	VDC	RPM	A	W	CFM	M3/h	mmH2O	InH2O	dBA	Color	G
FD4010B4U-BP00	24	12~26.4	8000	0.12	2.88	2.51	4.26	13.27	0.52	35.2	Black	11
FD4010B4H-BP00			7000	0.06	1.44	2.19	3.72	9.85	0.39	30.4	Red
FD4010B4M-BP00			6000	0.04	0.96	1.85	3.14	6.44	0.25	26.6	Green
FD4010B4L-BP00			5000	0.02	0.48	1.55	2.63	3.25	0.13	22.7	Blue
FD4010B2U-BP00	12	6~14	8000	0.15	1.80	2.51	4.26	13.27	0.52	35.2	Black
FD4010B2H-BP00			7000	0.08	0.96	2.19	3.72	9.85	0.39	30.4	Red
FD4010B2M-BP00			6000	0.06	0.72	1.85	3.14	6.44	0.25	26.6	Green
FD4010B2L-BP00			5000	0.04	0.48	1.55	2.63	3.25	0.13	22.7	Blue
FD4010B1U-BP00	5	3.5~5.5	8000	0.24	1.20	2.51	4.26	13.27	0.52	35.2	Black
FD4010B1H-BP00			7000	0.18	0.90	2.19	3.72	9.85	0.39	30.4	Red
FD4010B1M-BP00			6000	0.12	0.60	1.85	3.14	6.44	0.25	26.6	Green
FD4010B1L-BP00			5000	0.08	0.40	1.55	2.63	3.25	0.13	22.7	Blue

Product Parameters

The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.

Parameter	Specification
Model	XY-GF200
Air Pressure	800Pa (Max)
Air Flow	15-50 CFM (Adjustable)
Voltage	DC 12/24/48V
Noise Level	35-50 dB(A)
Power Consumption	18W-60W
Protection Rating	IP55 (Dustproof & Water-resistant)
