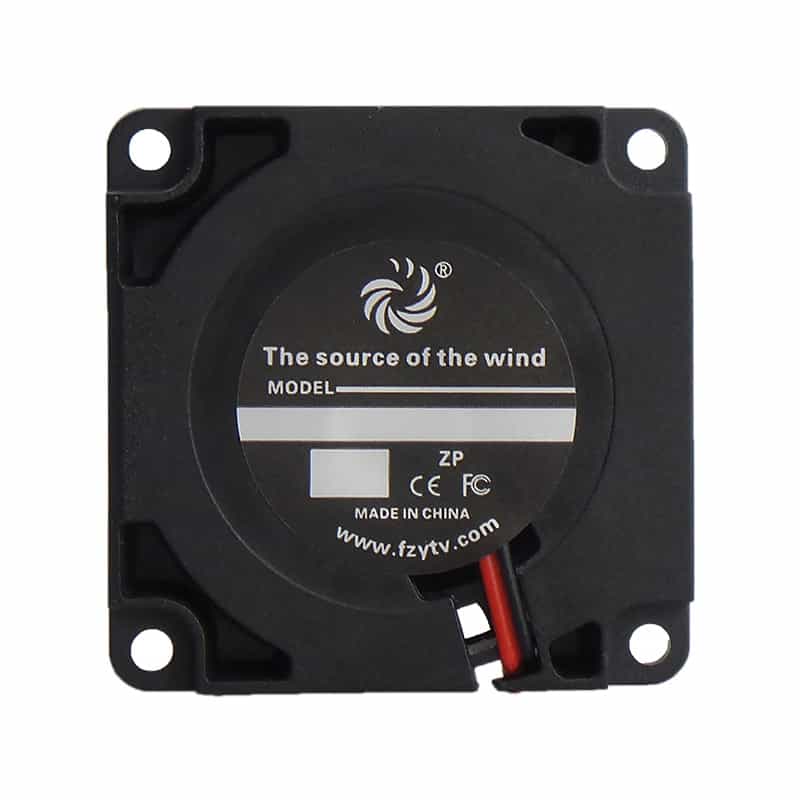

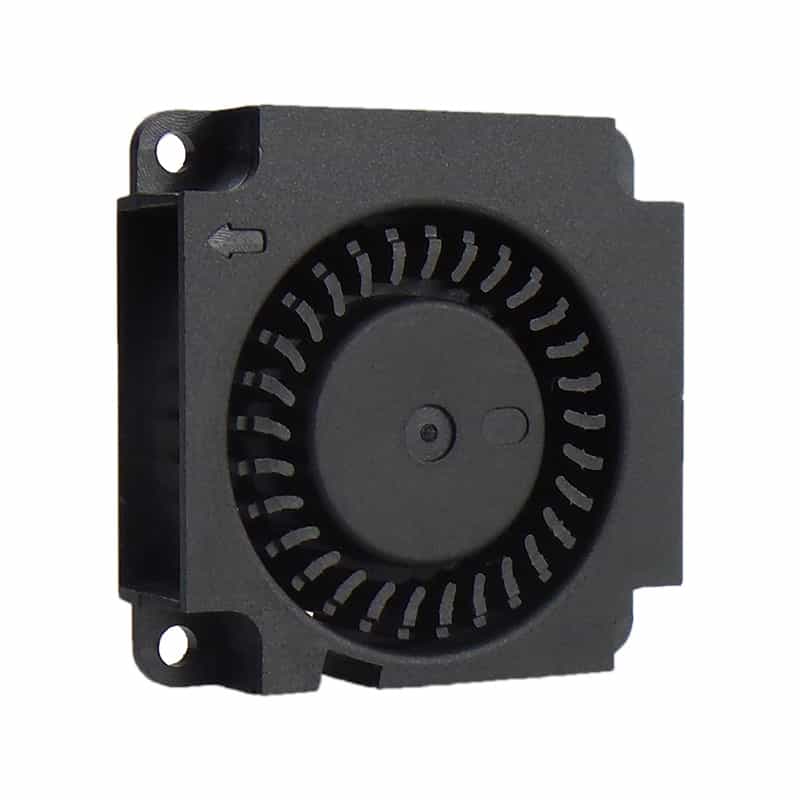

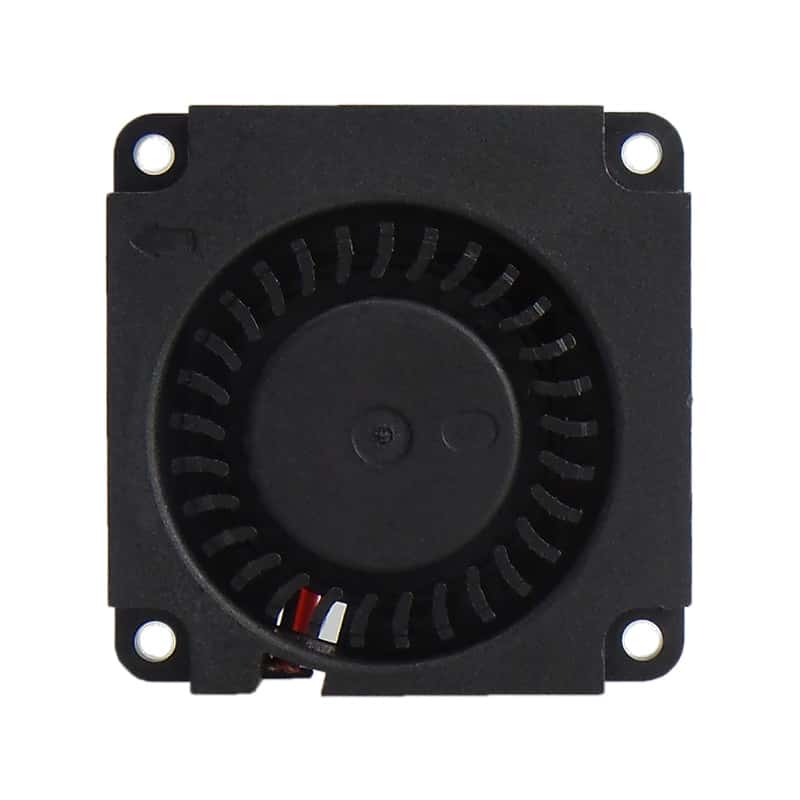

FD3510B

Size:35*35*10mm

Voltage:5V/12V

Speed: L/M/H/U(5000-11000RPM)

Bearing: Sleeve/Dual ball

Cable: supoort customization

Connector: support customization

IP Rating: IP54/IP55/IP67/IP68

Function: Reverse connection protection, automatic restart, PWM, FG, RD

Datasheet Download

Whatsapp: +86 153 6189 2827

Model	Rated voltage	Voltage range	Speed	Current	Power	Air Flow		Air pressure		Noise	Curve	Weight
Model	VDC	VDC	RPM	A	W	CFM	M3/h	mmH2O	InH2O	dBA	Color	G
FD3510B2U-BP00	12	6~14	11000	0.20	2.40	2.14	3.64	16.03	0.63	41.8	Black	10
FD3510B2H-BP00			9000	0.12	1.44	1.83	3.11	8.42	0.33	35.3	Red
FD3510B2M-BP00			7000	0.08	0.96	1.48	2.51	4.21	0.17	28.6	Green
FD3510B2L-BP00			5000	0.04	0.48	1.12	1.90	2.54	0.10	22.4	Blue
FD3510B1U-BP00	5	3.5~5.5	11000	0.25	1.25	2.14	3.64	16.03	0.63	41.8	Black
FD3510B1H-BP00			9000	0.15	0.75	1.83	3.11	8.42	0.33	35.3	Red
FD3510B1M-BP00			7000	0.10	0.50	1.48	2.51	4.21	0.17	28.6	Green
FD3510B1L-BP00			5000	0.07	0.35	1.12	1.90	2.54	0.10	22.4	Blue

Product Parameters

The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.

Parameter	Specification
Model	XY-GF200
Air Pressure	800Pa (Max)
Air Flow	15-50 CFM (Adjustable)
Voltage	DC 12/24/48V
Noise Level	35-50 dB(A)
Power Consumption	18W-60W
Protection Rating	IP55 (Dustproof & Water-resistant)
