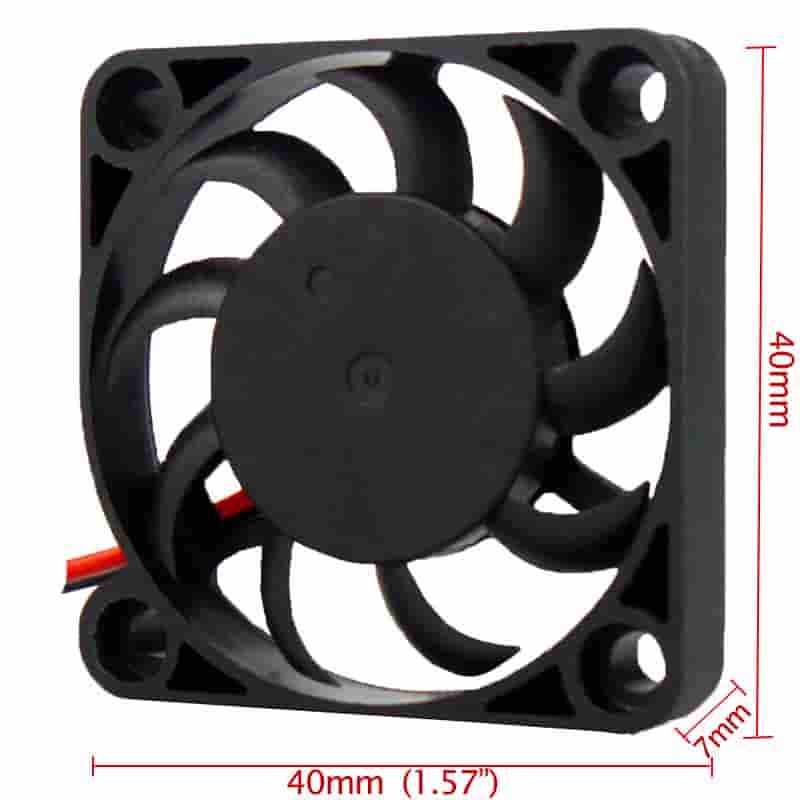

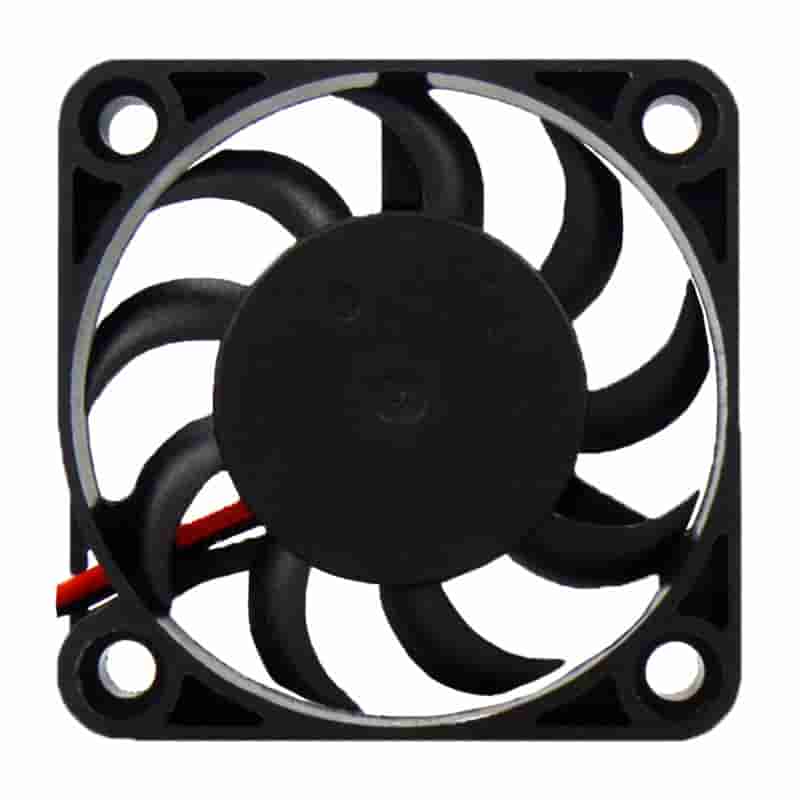

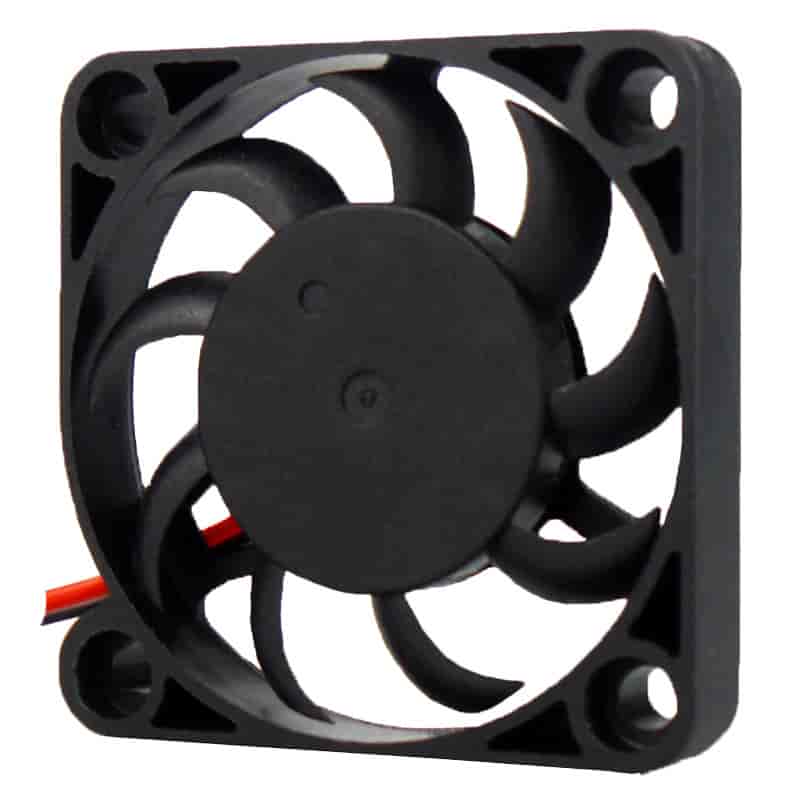

FD4007A

Size:40*40*7mm

Voltage:5V/12V

Speed: L/M/H/U(5000-8000RPM)

Bearing: Hydraulic

Cable: supoort customization

Connector: support customization

IP Rating: IP54/IP55/IP67/IP68

Function: Reverse connection protection, automatic restart, PWM, FG, RD

Datasheet Download

Whatsapp: +86 153 6189 2827

Model	Rated voltage	Voltage range	Speed	Current	Power	Air volume		Air pressure		Noise	Curve	Weight
Model	VDC	VDC	RPM	A	W	CFM	M3/h	mmH2O	InH2O	dBA	Color	G
FD4007S2U-AP00	12	6~14	8000	0.07	0.84	6.02	10.23	2.90	0.11	30.4	Black	10
FD4007S2H-AP00			7000	0.06	0.72	5.20	8.83	2.26	0.09	27.3	Red
FD4007S2M-AP00			6000	0.05	0.60	4.19	7.12	1.66	0.07	23.8	Green
FD4007S2L-AP00			5000	0.04	0.48	3.41	5.79	1.17	0.05	21.2	Blue
FD4007S1U-AP00	5	3.5~5.5	8000	0.20	1.00	6.02	10.23	2.90	0.11	30.4	Black
FD4007S1H-AP00			7000	0.18	0.90	5.20	8.83	2.26	0.09	27.3	Red
FD4007S1M-AP00			6000	0.15	0.75	4.19	7.12	1.66	0.07	23.8	Green
FD4007S1L-AP00			5000	0.12	0.60	3.41	5.79	1.17	0.05	21.2	Blue

Product Parameters

The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.

Parameter	Specification
Model	XY-GF200
Air Pressure	800Pa (Max)
Air Flow	15-50 CFM (Adjustable)
Voltage	DC 12/24/48V
Noise Level	35-50 dB(A)
Power Consumption	18W-60W
Protection Rating	IP55 (Dustproof & Water-resistant)
