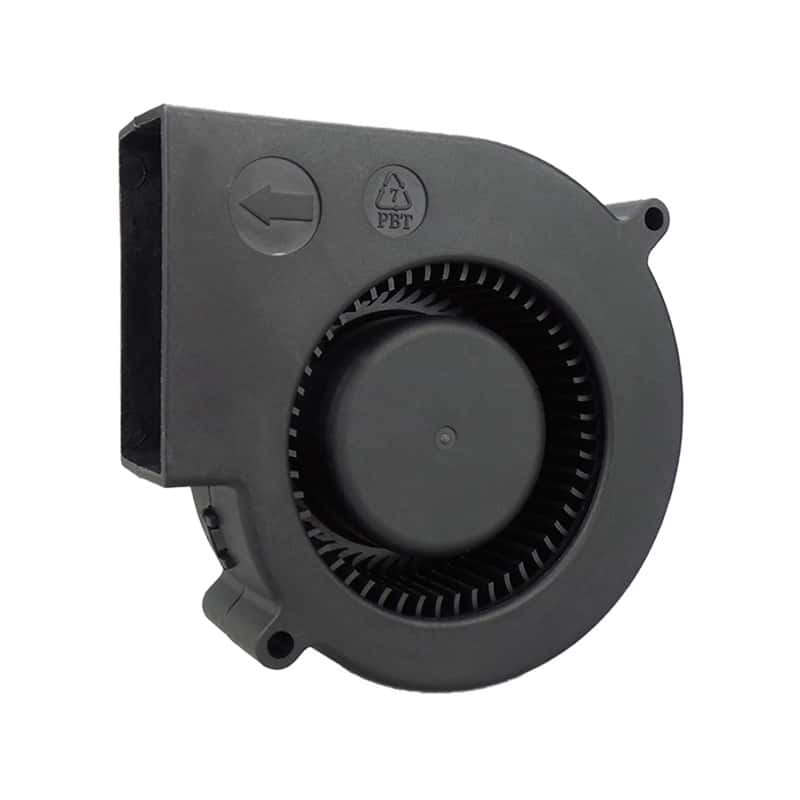

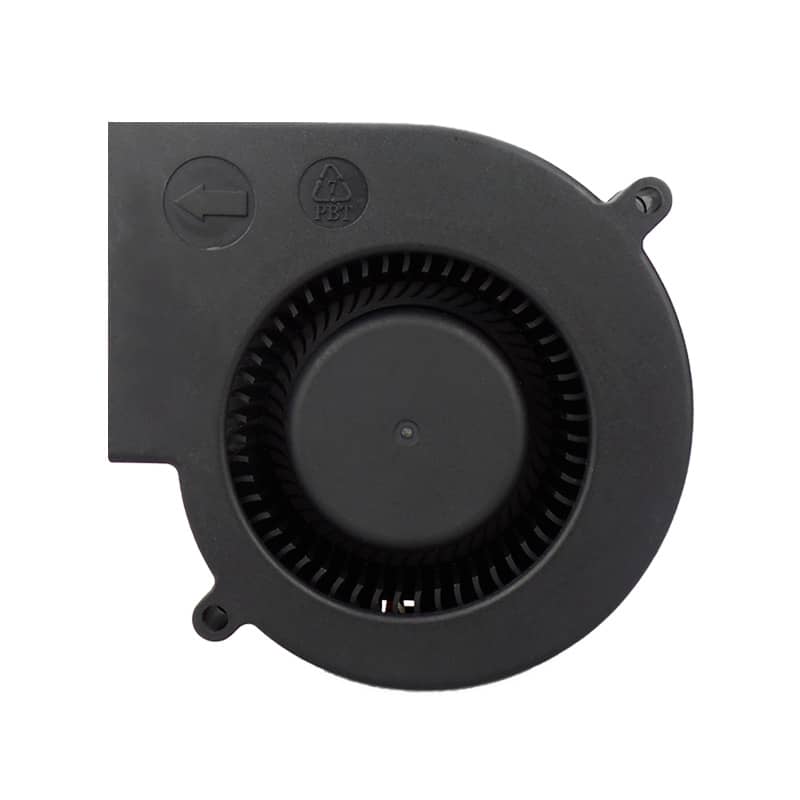

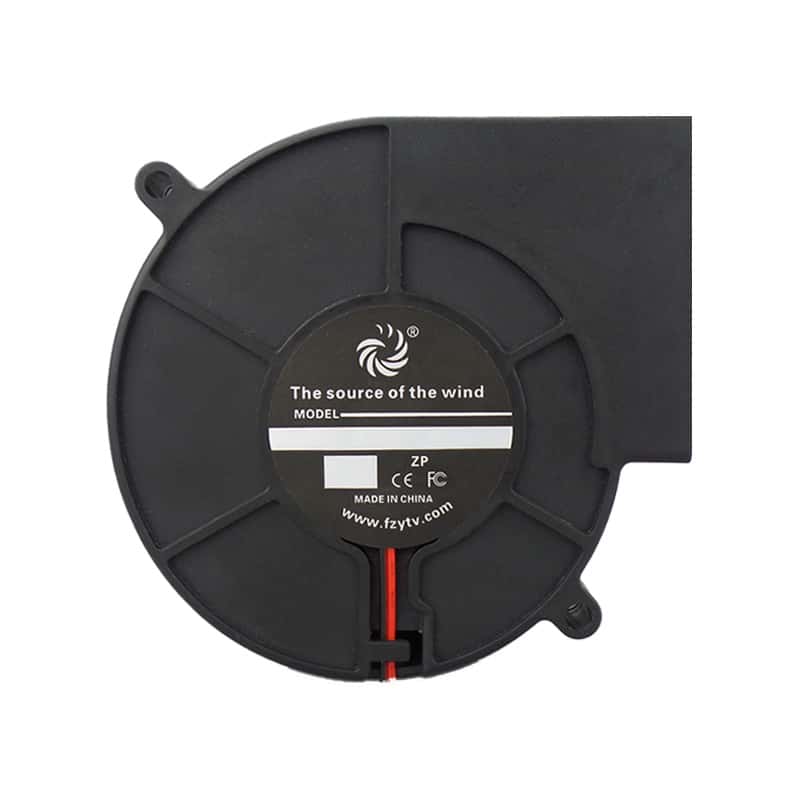

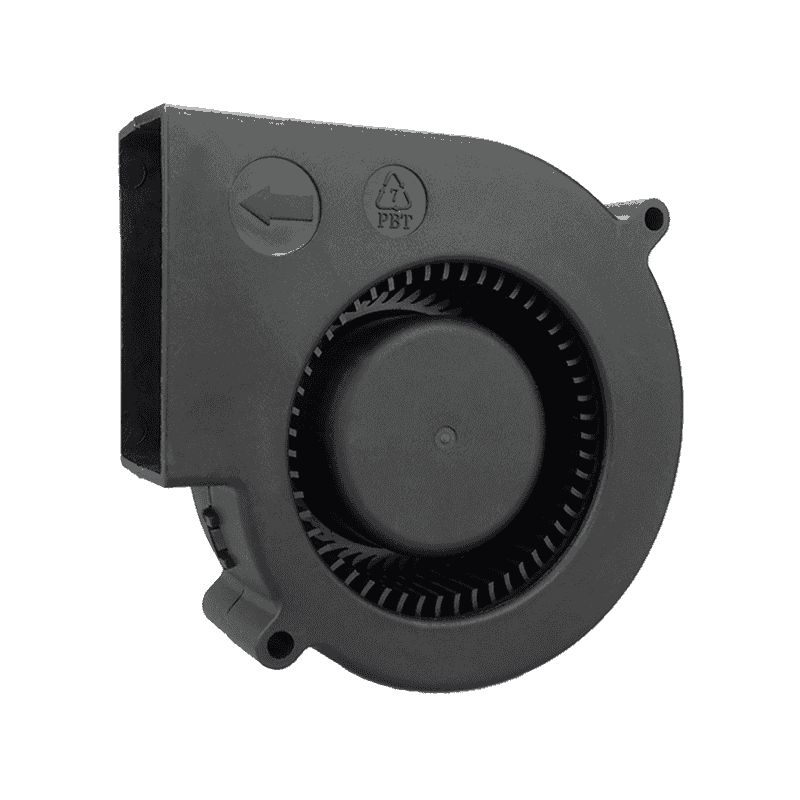

FD9733B

Size:97*97*33mm

Bearing: Sleeve/Dual ball

Cable: supoort customization

Connector: support customization

IP Rating: IP54/IP55/IP67/IP68

Function: Reverse connection protection, automatic restart, PWM, FG, RD

Datasheet Download

Whatsapp: +86 153 6189 2827

Model	Rated voltage	Voltage range	Speed	Current	Power	Air Flow		Air pressure		Noise	Curve	Weight
Model	VDC	VDC	RPM	A	W	CFM	M3/h	mmH2O	InH2O	dBA	Color	G
FD9733B6U-BP00	48	43.6~52.8	5000	0.20	9.60	29.80	50.63	39.58	1.56	61.4	Black	100
FD9733B6H-BP00			4000	0.10	4.80	23.78	40.40	22.86	0.90	57.1	Red
FD9733B6M-BP00			3000	0.05	2.40	17.77	30.19	11.84	0.47	50.6	Green
FD9733B6L-BP00			2000	0.03	1.44	12.60	21.41	5.09	0.20	41.3	Blue
FD9733B4U-BP00	24	12~26.4	5000	0.50	12.00	29.80	50.63	39.58	1.56	61.4	Black
FD9733B4H-BP00			4000	0.35	8.40	23.78	40.40	22.86	0.90	57.1	Red
FD9733B4M-BP00			3000	0.10	2.40	17.77	30.19	11.84	0.47	50.6	Green
FD9733B4L-BP00			2000	0.04	0.96	12.60	21.41	5.09	0.20	41.3	Blue
FD9733B2U-BP00	12	6~14	5000	1.20	14.40	29.80	50.63	39.58	1.56	61.4	Black
FD9733B2H-BP00			4000	0.60	7.20	23.78	40.40	22.86	0.90	57.1	Red
FD9733B2M-BP00			3000	0.18	2.16	17.77	30.19	11.84	0.47	50.6	Green
FD9733B2L-BP00			2000	0.09	1.08	12.60	21.41	5.09	0.20	41.3	Blue

Product Parameters

The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.

Parameter	Specification
Model	XY-GF200
Air Pressure	800Pa (Max)
Air Flow	15-50 CFM (Adjustable)
Voltage	DC 12/24/48V
Noise Level	35-50 dB(A)
Power Consumption	18W-60W
Protection Rating	IP55 (Dustproof & Water-resistant)
