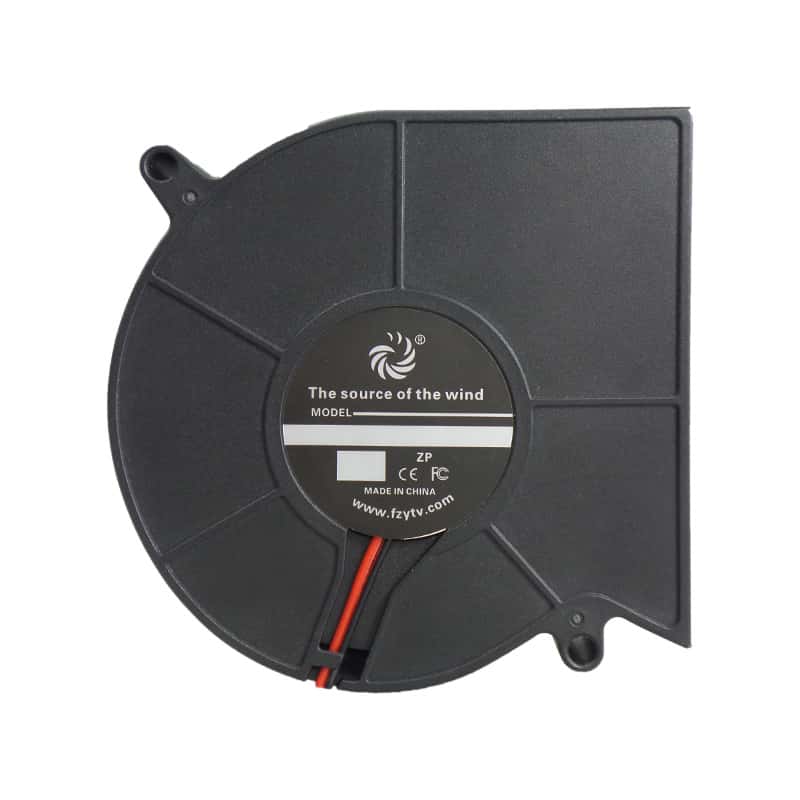

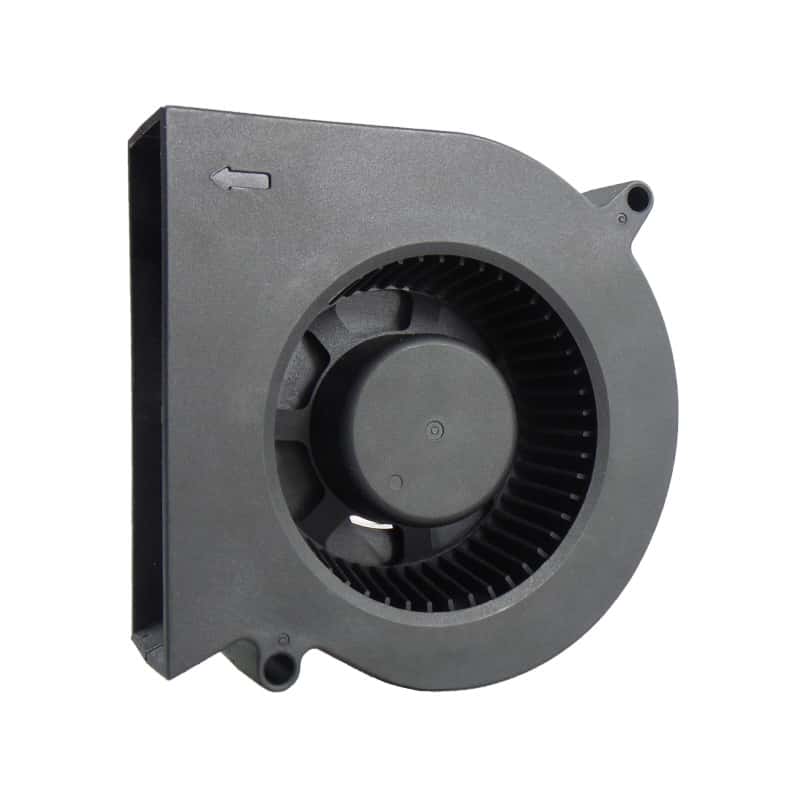

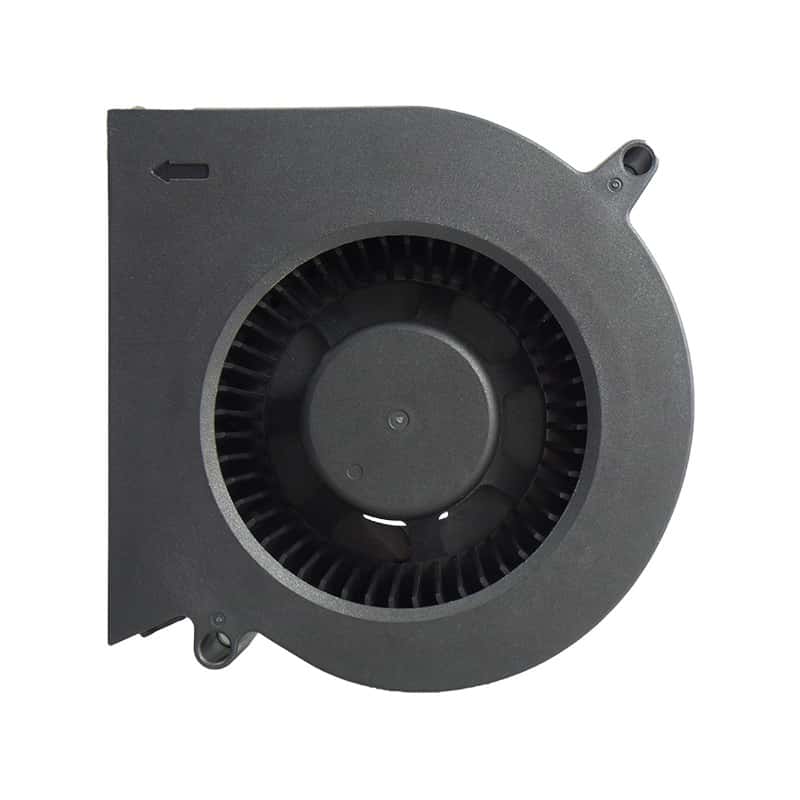

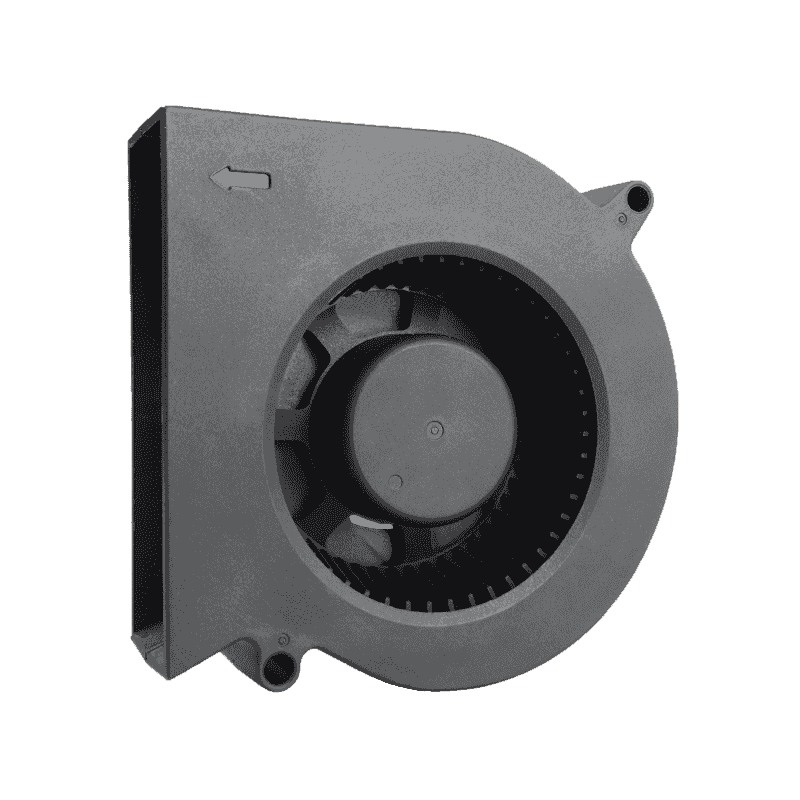

FD9330B-3

Size:93*93*30mm

Bearing: Sleeve/Dual ball

Cable: supoort customization

Connector: support customization

IP Rating: IP54/IP55/IP67/IP68

Function: Reverse connection protection, automatic restart, PWM, FG, RD

Datasheet Download

Whatsapp: +86 153 6189 2827

Model	Rated voltage	Voltage range	Speed	Current	Power	Air Flow		Air pressure		Noise	Curve	Weight
Model	VDC	VDC	RPM	A	W	CFM	M3/h	mmH2O	InH2O	dBA	Color	G
FD9330B4U-BP00	24	12~26.4	3500	0.25	6.00	25.42	43.19	30.80	1.21	46.2	Black	105
FD9330B4H-BP00			3000	0.15	3.60	21.47	36.48	17.29	0.68	42.3	Red
FD9330B4M-BP00			2500	0.10	2.40	18.43	31.31	11.54	0.45	39.2	Green
FD9330B4L-BP00			2000	0.06	1.44	14.51	24.65	6.86	0.27	34.8	Blue
FD9330B2U-BP00	12	6~14	3500	0.65	7.80	25.42	43.19	30.80	1.21	46.2	Black
FD9330B2H-BP00			3000	0.50	6.00	21.47	36.48	17.29	0.68	42.3	Red
FD9330B2M-BP00			2500	0.40	4.80	18.43	31.31	11.54	0.45	39.2	Green
FD9330B2L-BP00			2000	0.20	2.40	14.51	24.65	6.86	0.27	34.8	Blue

Product Parameters

The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.

Parameter	Specification
Model	XY-GF200
Air Pressure	800Pa (Max)
Air Flow	15-50 CFM (Adjustable)
Voltage	DC 12/24/48V
Noise Level	35-50 dB(A)
Power Consumption	18W-60W
Protection Rating	IP55 (Dustproof & Water-resistant)
