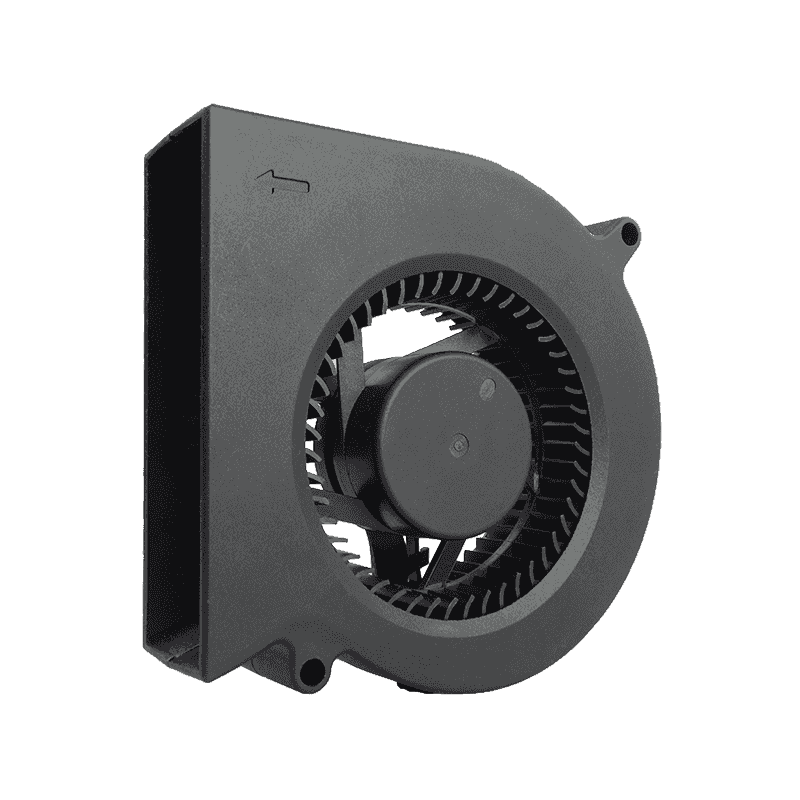

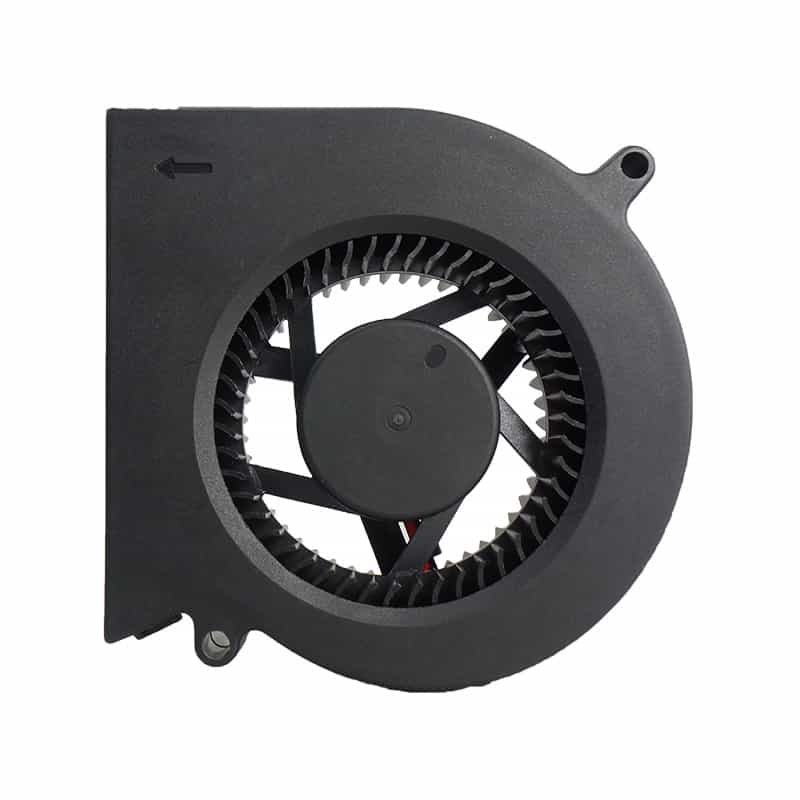

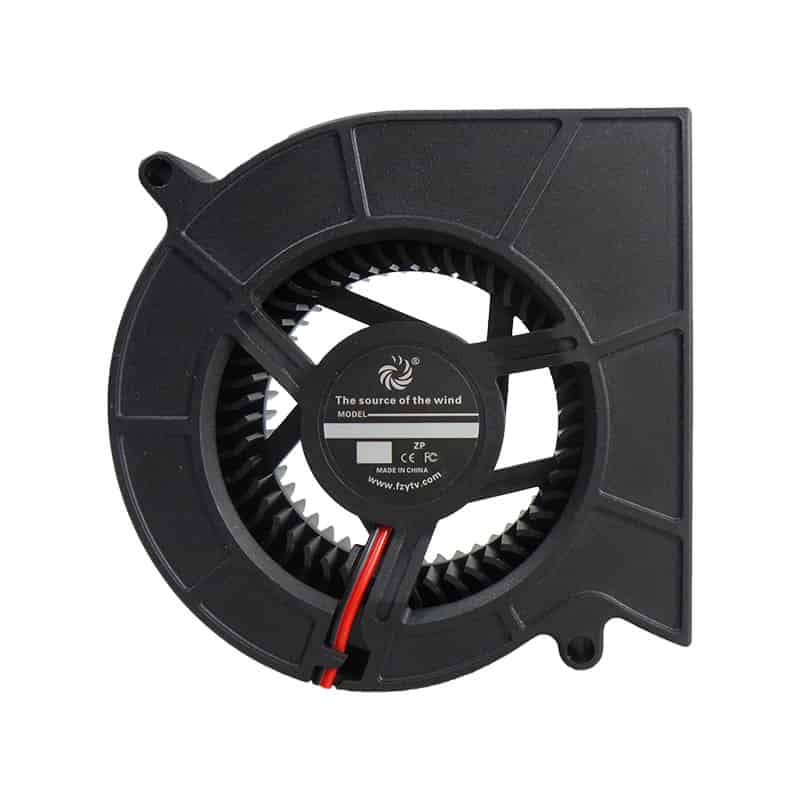

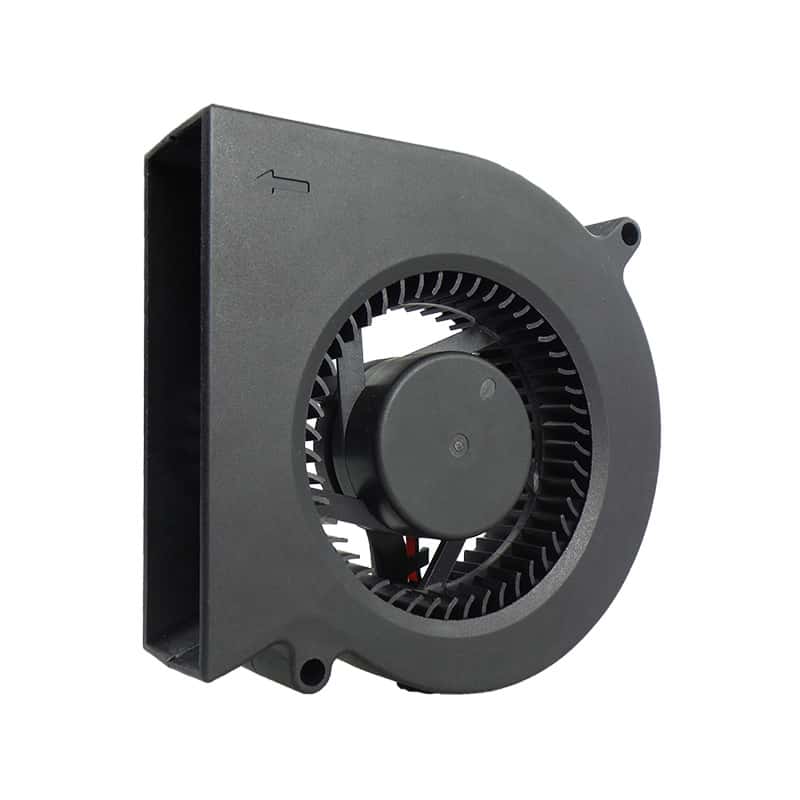

FD9330B-2

Size:93*93*30mm

Voltage:5V/12V/24V

Cable: supoort customization

Connector: support customization

IP Rating: IP54/IP55/IP67/IP68

Function: Reverse connection protection, automatic restart, PWM, FG, RD

Datasheet Download

Whatsapp: +86 153 6189 2827

Model	Rated voltage	Voltage range	Speed	Current	Power	Air volume		Air pressure		Noise	Curve	Weight
Model	VDC	VDC	RPM	A	W	CFM	M3/h	mmH2O	InH2O	dBA	Color	G
FD9330B4U-BP00	24	12~26.4	3000	0.25	6.00	21.70	36.89	20.08	0.79	45.3	Black	105
FD9330B4H-BP00			2500	0.15	3.60	18.00	30.60	12.07	0.48	40.0	Red
FD9330B4M-BP00			2000	0.08	1.92	14.21	24.16	6.81	0.27	33.7	Green
FD9330B4L-BP00			1500	0.05	1.20	10.35	17.60	3.00	0.12	27.0	Blue
FD9330B2U-BP00	12	6~14	3000	0.40	4.80	21.70	36.89	20.08	0.79	45.3	Black
FD9330B2H-BP00			2500	0.20	2.40	18.00	30.60	12.07	0.48	40.0	Red
FD9330B2M-BP00			2000	0.16	1.92	14.21	24.16	6.81	0.27	33.7	Green
FD9330B2L-BP00			1500	0.07	0.84	10.35	17.60	3.00	0.12	27.0	Blue

Product Parameters

The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.

Parameter	Specification
Model	XY-GF200
Air Pressure	800Pa (Max)
Air Flow	15-50 CFM (Adjustable)
Voltage	DC 12/24/48V
Noise Level	35-50 dB(A)
Power Consumption	18W-60W
Protection Rating	IP55 (Dustproof & Water-resistant)
