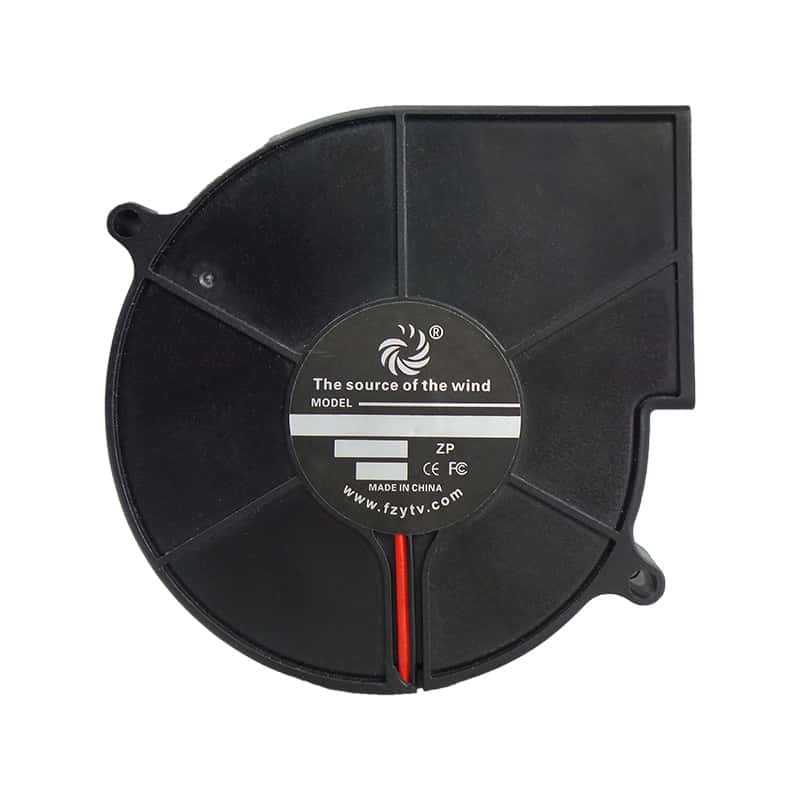

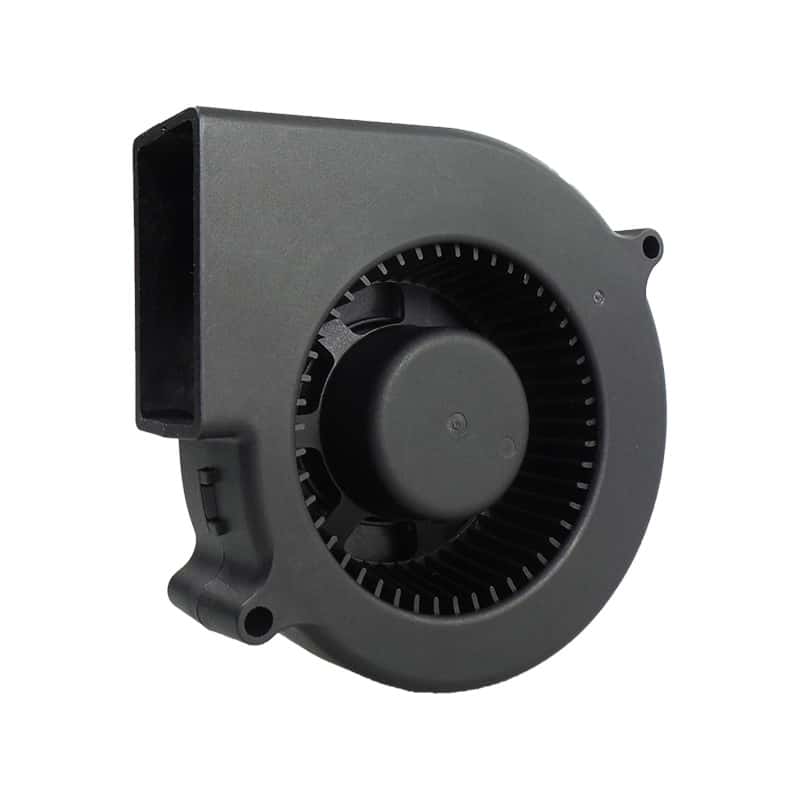

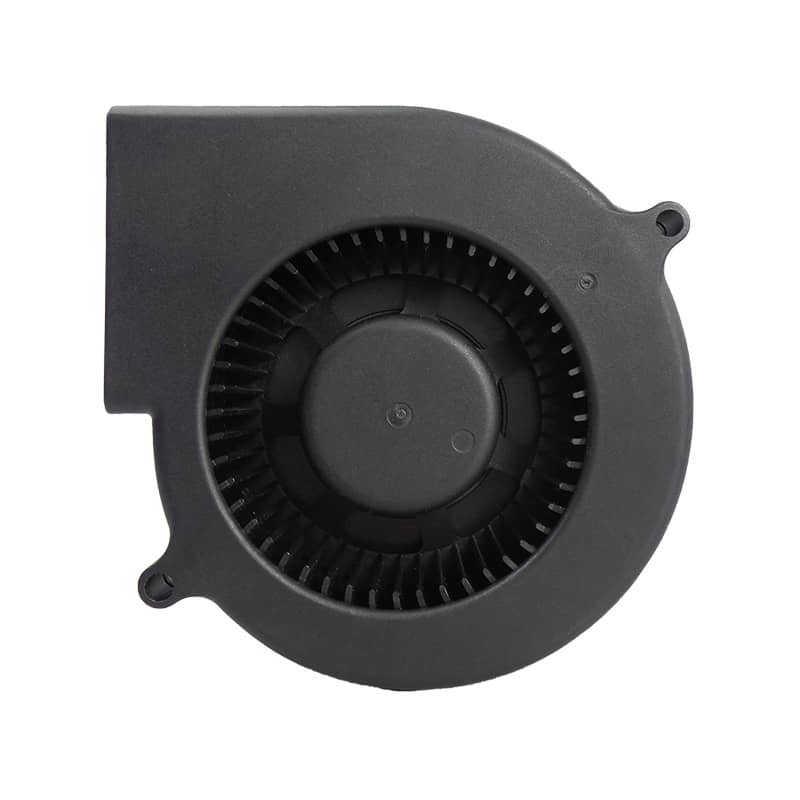

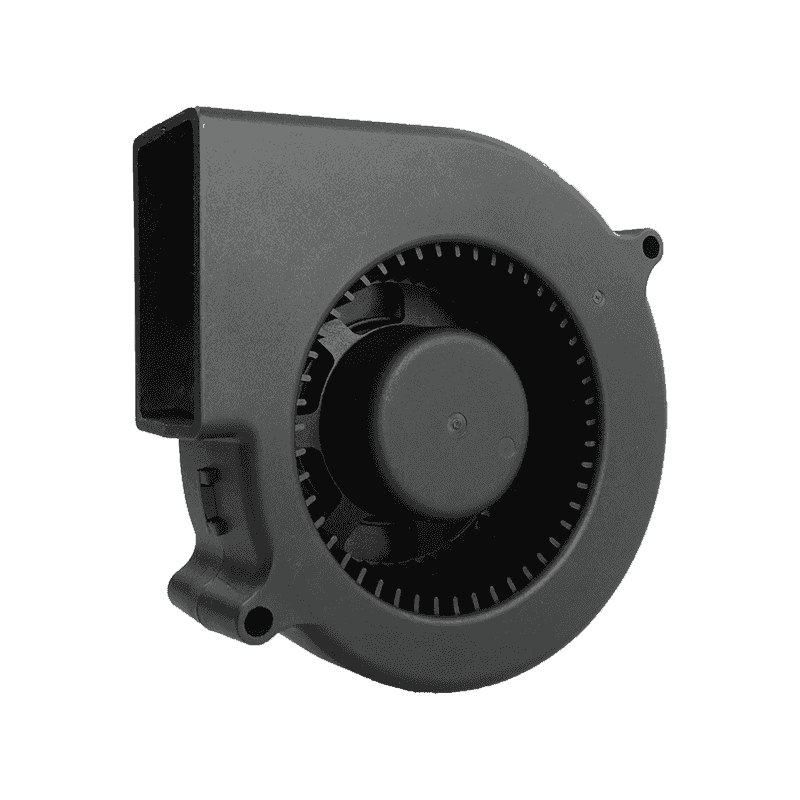

FD9330B-1

Size:93*93*30mm

Bearing: Hydraulic/Dual Ball

Cable: supoort customization

Connector: support customization

IP Rating: IP54/IP55/IP67/IP68

Function: Reverse connection protection, automatic restart, PWM, FG, RD

Datasheet Download

Whatsapp: +86 153 6189 2827

Model	Rated voltage	Voltage range	Speed	Current	Power	Air Flow		Air pressure		Noise	Curve	Weight
Model	VDC	VDC	RPM	A	W	CFM	M3/h	mmH2O	InH2O	dBA	Color	G
FD9330B4U-BP00	24	12~26.4	3500	0.25	6.00	20.22	34.35	33.55	1.32	47.6	Black	112
FD9330B4H-BP00			3000	0.15	3.60	17.24	29.29	22.28	0.88	44.7	Red
FD9330B4M-BP00			2500	0.10	2.40	14.26	24.23	13.84	0.55	41.6	Green
FD9330B4L-BP00			2000	0.06	1.44	11.53	19.59	7.67	0.30	37.2	Blue
FD9330B2U-BP00	12	6~14	3500	0.50	6.00	20.22	34.35	33.55	1.32	47.6	Black
FD9330B2H-BP00			3000	0.35	4.20	17.24	29.29	22.28	0.88	44.7	Red
FD9330B2M-BP00			2500	0.25	3.00	14.26	24.23	13.84	0.55	41.6	Green
FD9330B2L-BP00			2000	0.15	1.80	11.53	19.59	7.67	0.30	37.2	Blue

Product Parameters

The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.

Parameter	Specification
Model	XY-GF200
Air Pressure	800Pa (Max)
Air Flow	15-50 CFM (Adjustable)
Voltage	DC 12/24/48V
Noise Level	35-50 dB(A)
Power Consumption	18W-60W
Protection Rating	IP55 (Dustproof & Water-resistant)
