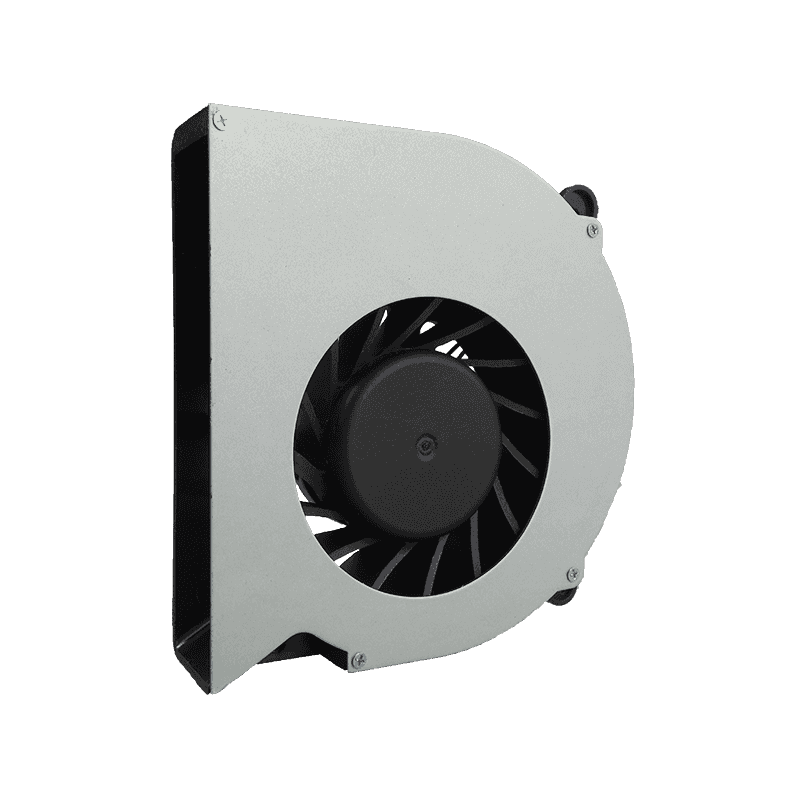

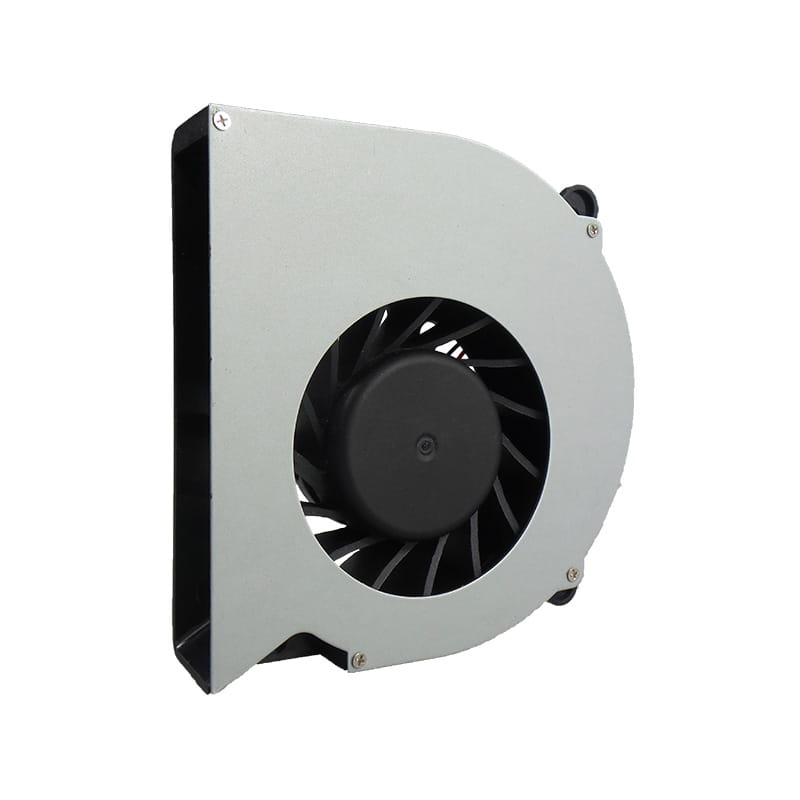

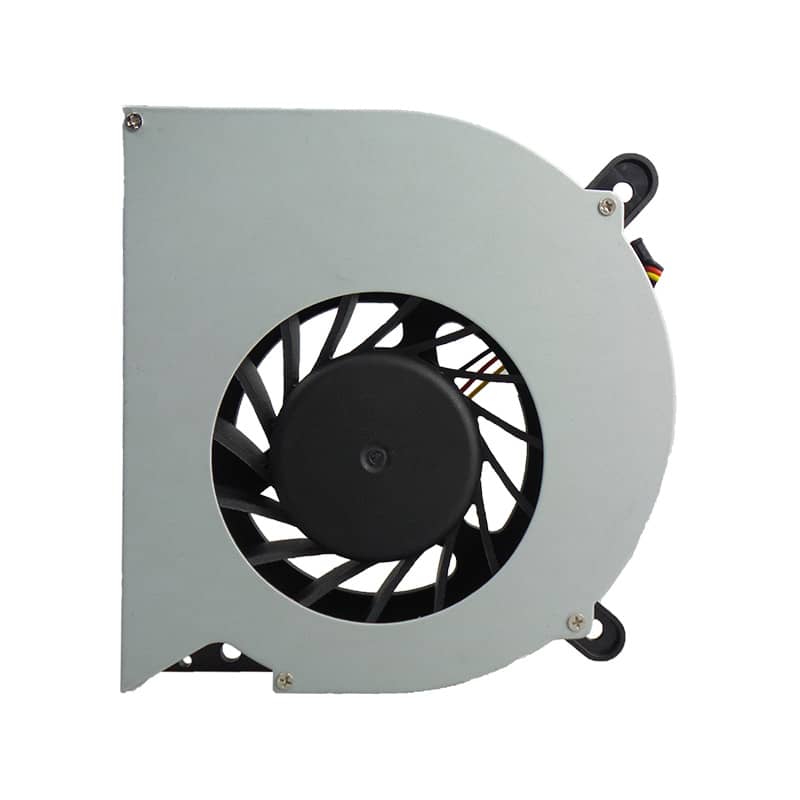

FD9020B
Size:90*90*20mm
Bearing: Dual Ball
Cable: supoort customization
Connector: support customization
IP Rating: IP54/IP55/IP67/IP68
Function: Reverse connection protection, automatic restart, PWM, FG, RD
Datasheet Download
| Model | Rated voltage | Voltage range | Speed | Current | Power | Air Flow | Air pressure | Noise | Curve | Weight | ||
| VDC | VDC | RPM | A | W | CFM | M3/h | mmH2O | InH2O | dBA | Color | G | |
| FD9020B4U-BP00 | 24 | 12~26.4 | 4000 | 0.14 | 3.36 | 18.36 | 31.19 | 17.48 | 0.69 | 48.2 | Black | 90 |
| FD9020B4H-BP00 | 3500 | 0.09 | 2.16 | 16.66 | 28.31 | 13.74 | 0.54 | 44.5 | Red | |||
| FD9020B4M-BP00 | 3000 | 0.06 | 1.44 | 14.51 | 24.65 | 8.95 | 0.35 | 39.4 | Green | |||
| FD9020B4L-BP00 | 2500 | 0.04 | 0.96 | 11.72 | 19.91 | 5.54 | 0.22 | 33.6 | Blue | |||
| FD9020B2U-BP00 | 12 | 6~14 | 4000 | 0.30 | 3.60 | 18.36 | 31.19 | 17.48 | 0.69 | 48.2 | Black | |
| FD9020B2H-BP00 | 3500 | 0.25 | 3.00 | 16.66 | 28.31 | 13.74 | 0.54 | 44.5 | Red | |||
| FD9020B2M-BP00 | 3000 | 0.14 | 1.68 | 14.51 | 24.65 | 8.95 | 0.35 | 39.4 | Green | |||
| FD9020B2L-BP00 | 2500 | 0.10 | 1.20 | 11.72 | 19.91 | 5.54 | 0.22 | 33.6 | Blue | |||
| FD9020B1U-BP00 | 5 | 3.5~5.5 | 4000 | 0.65 | 3.25 | 18.36 | 31.19 | 17.48 | 0.69 | 48.2 | Black | |
| FD9020B1H-BP00 | 3500 | 0.45 | 2.25 | 16.66 | 28.31 | 13.74 | 0.54 | 44.5 | Red | |||
| FD9020B1M-BP00 | 3000 | 0.30 | 1.50 | 14.51 | 24.65 | 8.95 | 0.35 | 39.4 | Green | |||
| FD9020B1L-BP00 | 2500 | 0.20 | 1.00 | 11.72 | 19.91 | 5.54 | 0.22 | 33.6 | Blue | |||
Product Parameters
The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.
| Parameter | Specification |
| Model | XY-GF200 |
| Air Pressure | 800Pa (Max) |
| Air Flow | 15-50 CFM (Adjustable) |
| Voltage | DC 12/24/48V |
| Noise Level | 35-50 dB(A) |
| Power Consumption | 18W-60W |
| Protection Rating | IP55 (Dustproof & Water-resistant) |
