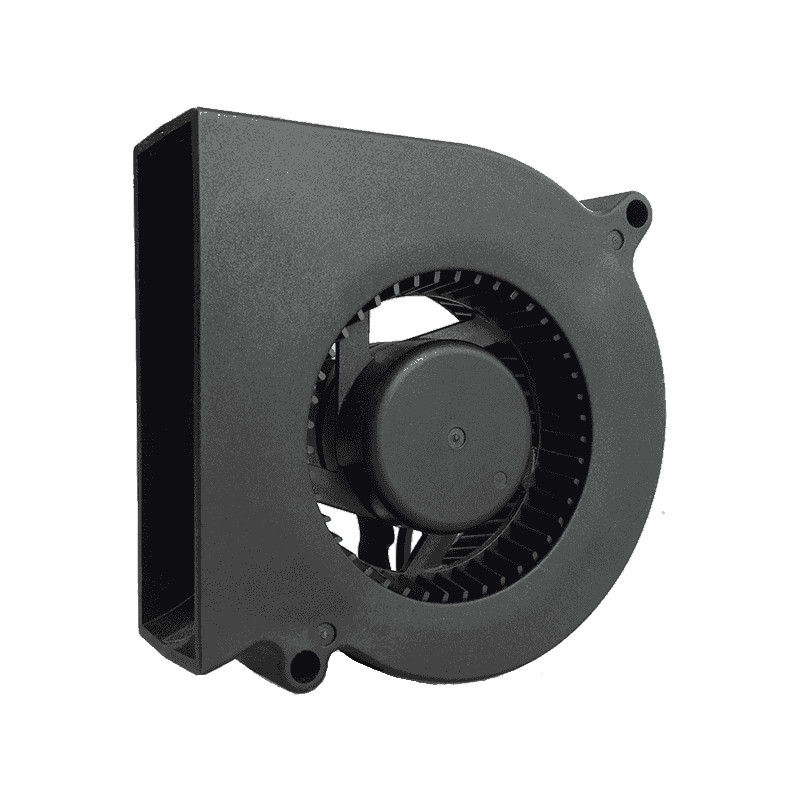

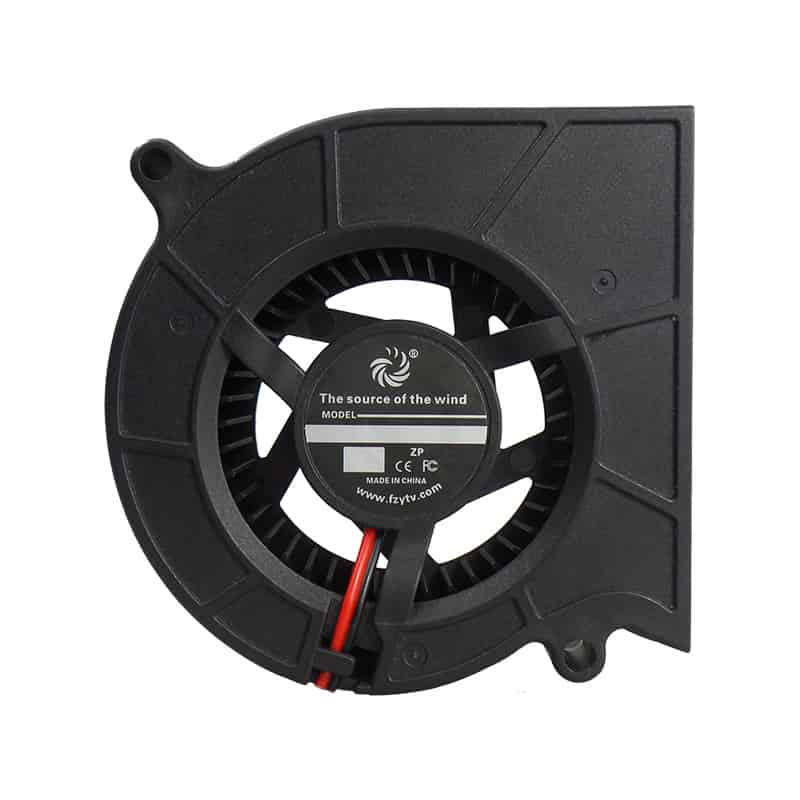

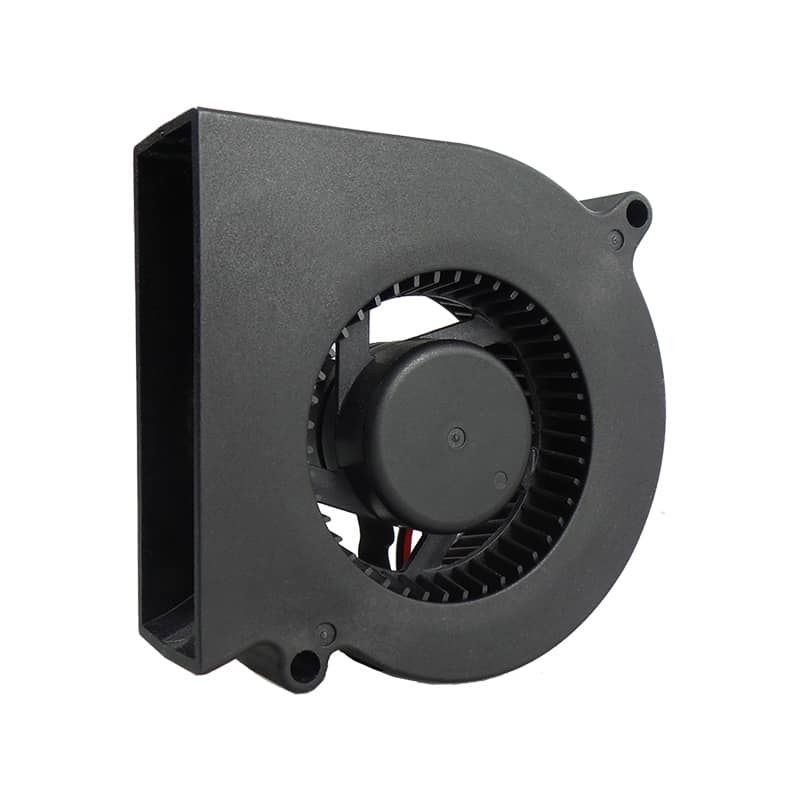

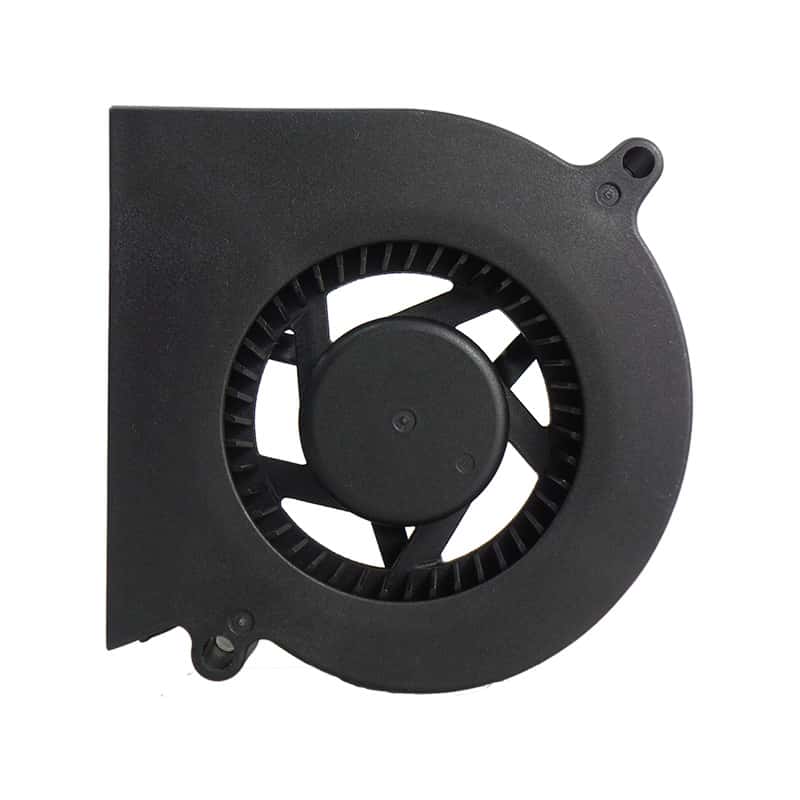

FD8030B
Size:80*80*30mm
Bearing: Hydraulic/Dual Ball
Cable: supoort customization
Connector: support customization
IP Rating: IP54/IP55/IP67/IP68
Function: Reverse connection protection, automatic restart, PWM, FG, RD
Datasheet Download
| Model | Rated voltage | Voltage range | Speed | Current | Power | Air Flow | Air pressure | Noise | Curve | Weight | ||
| VDC | VDC | RPM | A | W | CFM | M3/h | mmH2O | InH2O | dBA | Color | G | |
| FD8030B4U-BP00 | 24 | 12~26.4 | 3500 | 0.16 | 3.84 | 21.03 | 35.73 | 19.87 | 0.78 |
42.4 |
Black | 70 |
| FD8030B4H-BP00 | 3000 | 0.12 | 2.88 | 18.06 | 30.68 | 13.69 | 0.54 | 38.6 | Red | |||
| FD8030B4M-BP00 | 2500 | 0.08 | 1.92 | 14.77 | 25.09 | 8.24 | 0.32 | 33.1 | Green | |||
| FD8030B4L-BP00 | 2000 | 0.05 | 1.20 | 11.95 | 20.30 | 5.36 | 0.21 | 29.2 | Blue | |||
| FD8030B2U-BP00 | 12 | 6~14 | 3500 | 0.40 | 4.80 | 21.03 | 35.73 | 19.87 | 0.78 | 42.4 | Black | |
| FD8030B2H-BP00 | 3000 | 0.30 | 3.60 | 18.06 | 30.68 | 13.69 | 0.54 | 38.6 | Red | |||
| FD8030B2M-BP00 | 2500 | 0.18 | 2.16 | 14.77 | 25.09 | 8.24 | 0.32 | 33.1 | Green | |||
| FD8030B2L-BP00 | 2000 | 0.14 | 1.68 | 11.95 | 20.30 | 5.36 | 0.21 | 29.2 | Blue | |||
| FD8030B1U-BP00 | 5 | 3.5~5.5 | 3500 | 0.70 | 3.50 | 21.03 | 35.73 | 19.87 | 0.78 | 42.4 | Black | |
| FD8030B1H-BP00 | 3000 | 0.50 | 2.50 | 18.06 | 30.68 | 13.69 | 0.54 | 38.6 | Red | |||
| FD8030B1M-BP00 | 2500 | 0.30 | 1.50 | 14.77 | 25.09 | 8.24 | 0.32 | 33.1 | Green | |||
| FD8030B1L-BP00 | 2000 | 0.20 | 1.00 | 11.95 | 20.30 | 5.36 | 0.21 | 29.2 | Blue | |||
Product Parameters
The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.
| Parameter | Specification |
| Model | XY-GF200 |
| Air Pressure | 800Pa (Max) |
| Air Flow | 15-50 CFM (Adjustable) |
| Voltage | DC 12/24/48V |
| Noise Level | 35-50 dB(A) |
| Power Consumption | 18W-60W |
| Protection Rating | IP55 (Dustproof & Water-resistant) |
