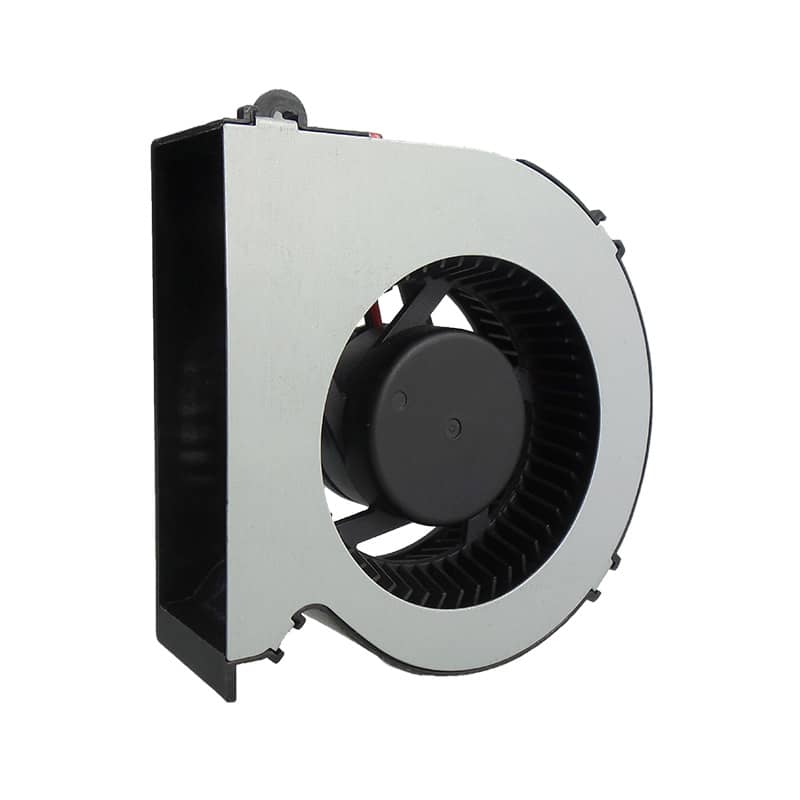

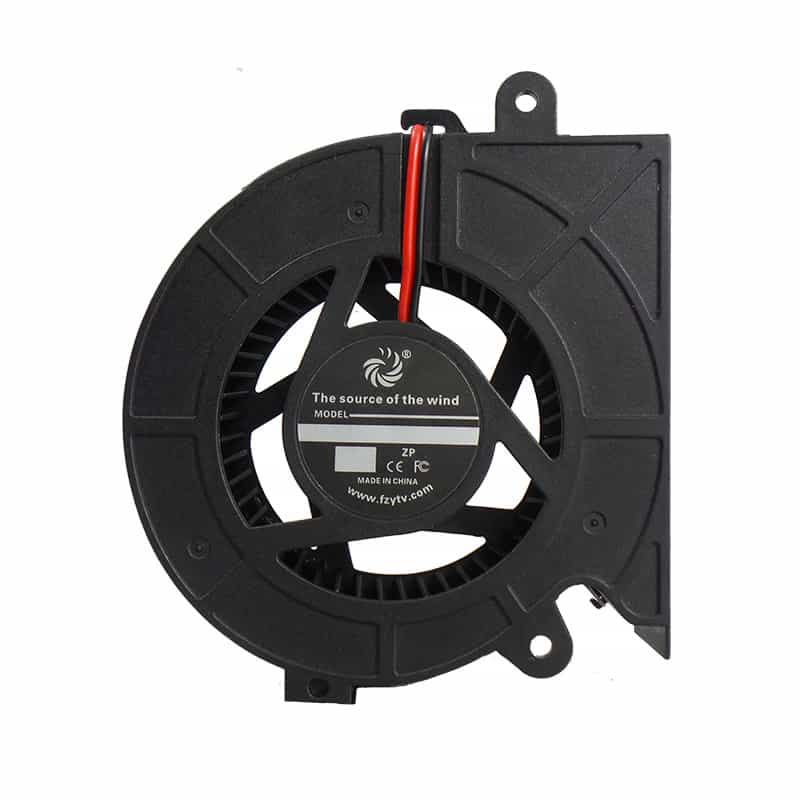

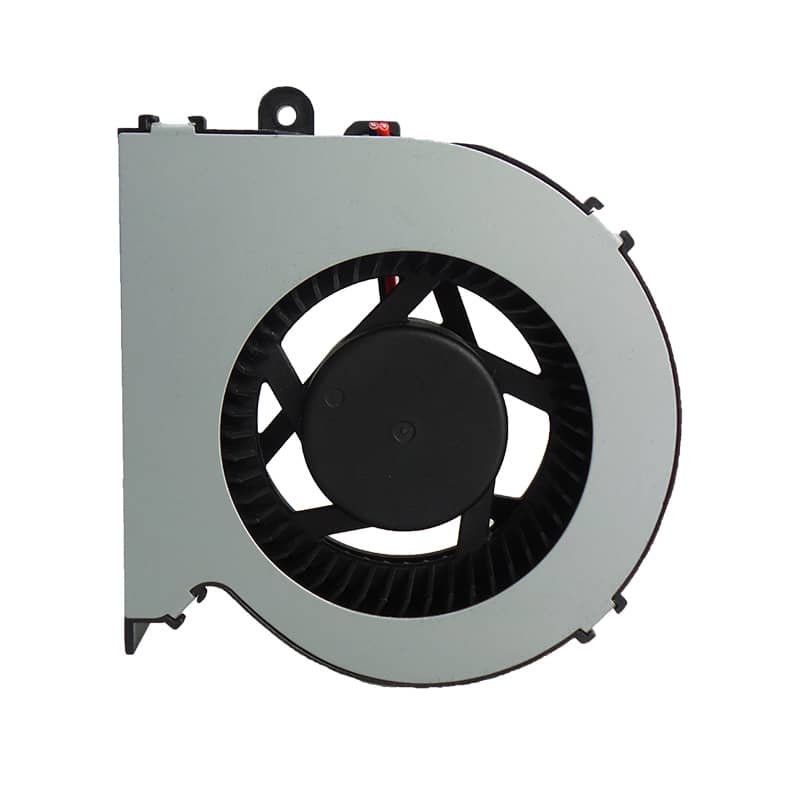

FD8025B
Size:80*80*25mm
Bearing: Hydraulic/Dual Ball
Cable: supoort customization
Connector: support customization
IP Rating: IP54/IP55/IP67/IP68
Function: Reverse connection protection, automatic restart, PWM, FG, RD
Datasheet Download
| Model | Rated voltage | Voltage range | Speed | Current | Power | Air Flow | Air pressure | Noise | Curve | Weight | ||
| VDC | VDC | RPM | A | W | CFM | M3/h | mmH2O | InH2O | dBA | Color | G | |
| FD8025B4U-BP00 | 24 | 12~26.4 | 4000 | 0.20 | 4.80 | 20.57 | 34.95 | 20.15 | 0.79 | 43.6 | Black | 60 |
| FD8025B4H-BP00 | 3500 | 0.14 | 3.36 | 17.99 | 30.57 | 13.71 | 0.54 | 38.7 | Red | |||
| FD8025B4M-BP00 | 3000 | 0.09 | 2.16 | 14.85 | 25.23 | 8.85 | 0.35 | 32.8 | Green | |||
| FD8025B4L-BP00 | 2500 | 0.05 | 1.20 | 12.65 | 21.49 | 5.81 | 0.23 | 25.4 | Blue | |||
| FD8025B2U-BP00 | 12 | 6~14 | 4000 | 0.50 | 6.00 | 20.57 | 34.95 | 20.15 | 0.79 | 43.6 | Black | |
| FD8025B2H-BP00 | 3500 | 0.35 | 4.20 | 17.99 | 30.57 | 13.71 | 0.54 | 38.7 | Red | |||
| FD8025B2M-BP00 | 3000 | 0.20 | 2.40 | 14.85 | 25.23 | 8.85 | 0.35 | 32.8 | Green | |||
| FD8025B2L-BP00 | 2500 | 0.15 | 1.80 | 12.65 | 21.49 | 5.81 | 0.23 | 25.4 | Blue | |||
| FD8025B1U-BP00 | 5 | 3.5~5.5 | 4000 | 0.75 | 3.75 | 20.57 | 34.95 | 20.15 | 0.79 | 43.6 | Black | |
| FD8025B1H-BP00 | 3500 | 0.50 | 2.50 | 17.99 | 30.57 | 13.71 | 0.54 | 38.7 | Red | |||
| FD8025B1M-BP00 | 3000 | 0.35 | 1.75 | 14.85 | 25.23 | 8.85 | 0.35 | 32.8 | Green | |||
| FD8025B1L-BP00 | 2500 | 0.25 | 1.25 | 12.65 | 21.49 | 5.81 | 0.23 | 25.4 | Blue | |||
Product Parameters
The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.
| Parameter | Specification |
| Model | XY-GF200 |
| Air Pressure | 800Pa (Max) |
| Air Flow | 15-50 CFM (Adjustable) |
| Voltage | DC 12/24/48V |
| Noise Level | 35-50 dB(A) |
| Power Consumption | 18W-60W |
| Protection Rating | IP55 (Dustproof & Water-resistant) |
