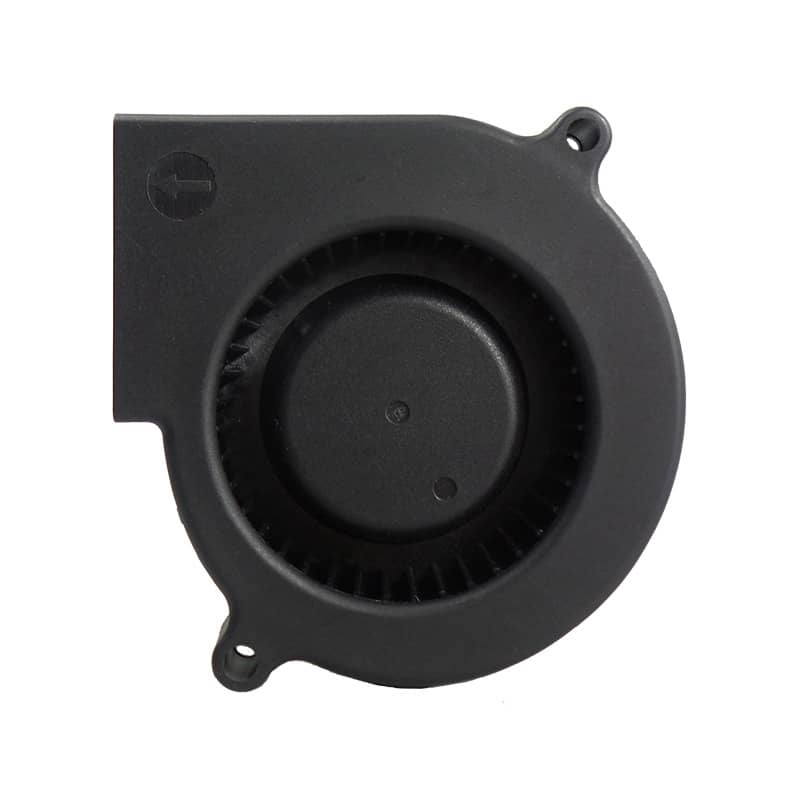

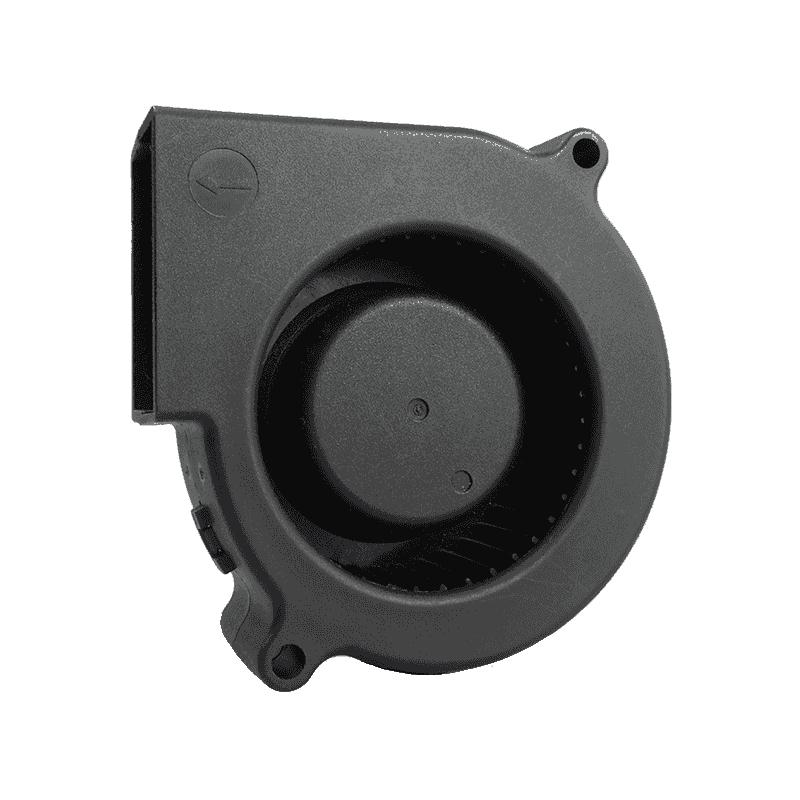

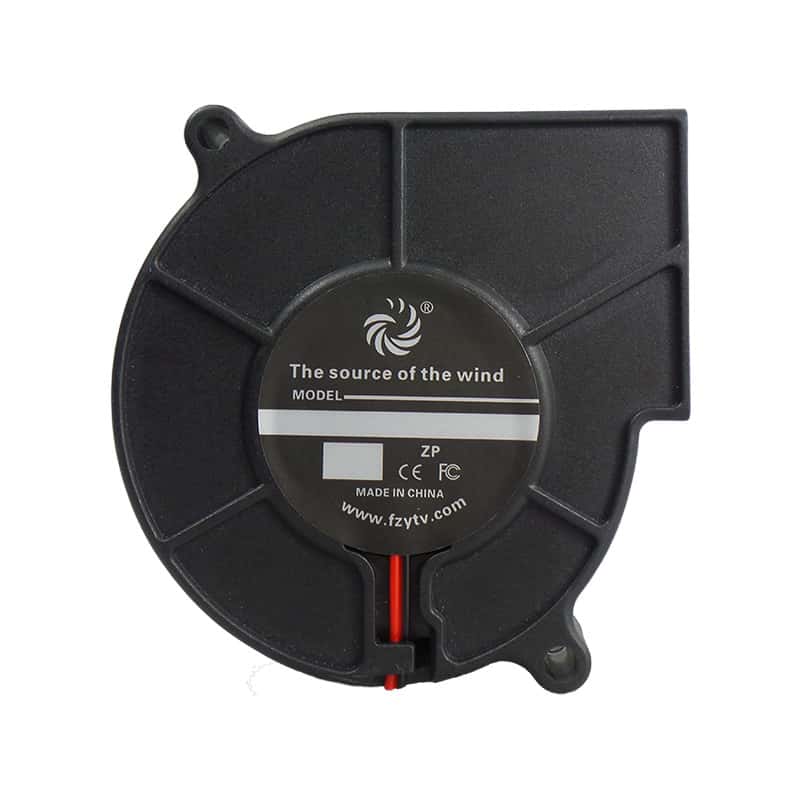

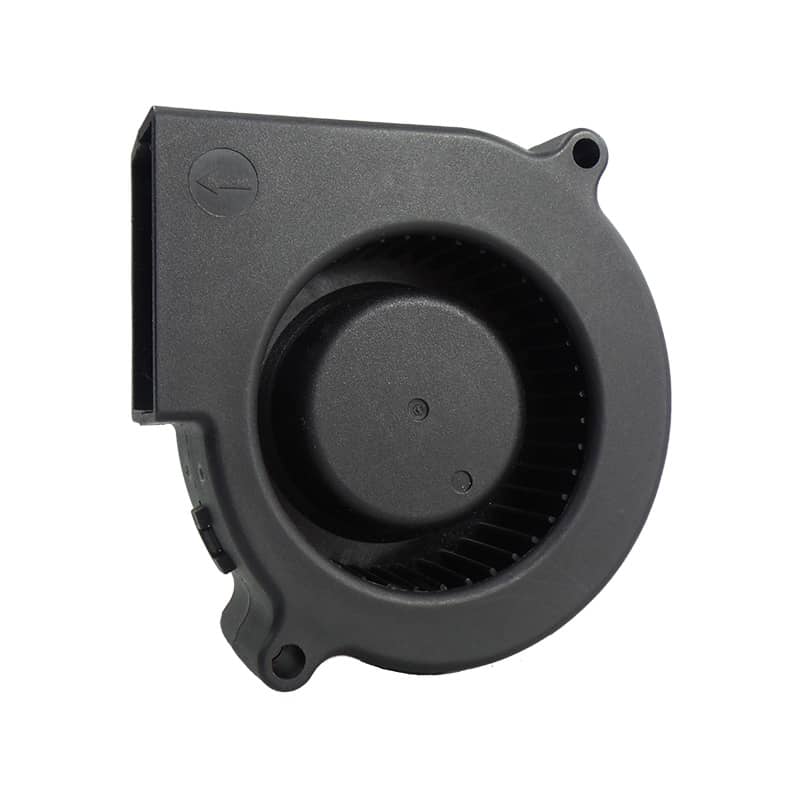

FD7530B

Size:75*75*30mm

Bearing: Dual Ball

Cable: supoort customization

Connector: support customization

IP Rating: IP54/IP55/IP67/IP68

Function: Reverse connection protection, automatic restart, PWM, FG, RD

Whatsapp: +86 153 6189 2827

Model	Rated voltage	Voltage range	Speed	Current	Power	Air Flow		Air pressure		Noise	Curve	Weight
Model	VDC	VDC	RPM	A	W	CFM	M3/h	mmH2O	InH2O	dBA	Color	G
FD7530B6U-BP00	48	43.6~52.8	5000	0.15	7.20	18.18	30.89	29.72	1.17	53.4	Black	79
FD7530B6H-BP00			4000	0.08	3.84	14.80	25.15	16.56	0.65	48.5	Red
FD7530B6M-BP00			3000	0.04	1.92	11.76	19.98	8.11	0.32	42.3	Green
FD7530B6L-BP00			2000	0.02	0.96	5.74	9.75	2.39	0.09	34.1	Blue
FD7530B4U-BP00	24	12~26.4	5000	0.35	8.40	18.18	30.89	29.72	1.17	53.4	Black
FD7530B4H-BP00			4000	0.25	6.00	14.80	25.15	16.56	0.65	48.5	Red
FD7530B4M-BP00			3000	0.06	1.44	11.76	19.98	8.11	0.32	42.3	Green
FD7530B4L-BP00			2000	0.03	0.72	5.74	9.75	2.39	0.09	34.1	Blue
FD7530B2U-BP00	12	6~14	5000	0.70	8.40	18.18	30.89	29.72	1.17	53.4	Black
FD7530B2H-BP00			4000	0.36	4.32	14.80	25.15	16.56	0.65	48.4	Red
FD7530B2M-BP00			3000	0.15	1.80	11.76	19.98	8.11	0.32	42.3	Green
FD7530B2L-BP00			2000	0.10	1.20	5.74	9.75	2.39	0.09	34.1	Blue
FD7530B1U-BP00	5	3.5~5.5	5000	0.90	4.50	18.18	30.89	29.72	1.17	53.4	Black
FD7530B1H-BP00			4000	0.50	2.50	14.80	25.15	16.56	0.65	48.5	Red
FD7530B1M-BP00			3000	0.25	1.25	11.76	19.98	8.11	0.32	42.3	Green
FD7530B1L-BP00			2000	0.18	0.90	5.74	9.75	2.39	0.09	34.1	Blue

Product Parameters

The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.

Parameter	Specification
Model	XY-GF200
Air Pressure	800Pa (Max)
Air Flow	15-50 CFM (Adjustable)
Voltage	DC 12/24/48V
Noise Level	35-50 dB(A)
Power Consumption	18W-60W
Protection Rating	IP55 (Dustproof & Water-resistant)
