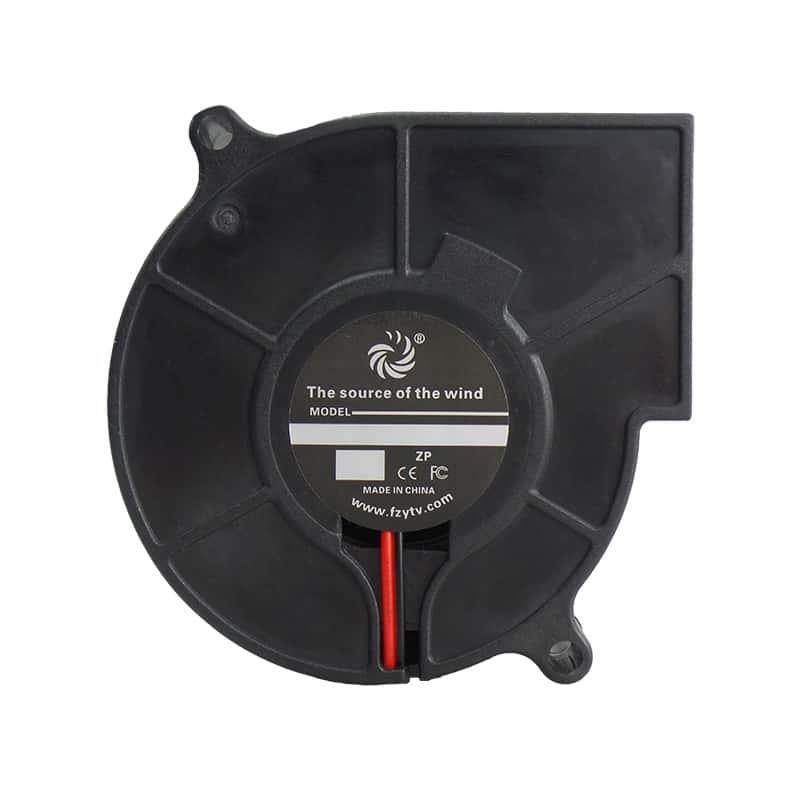

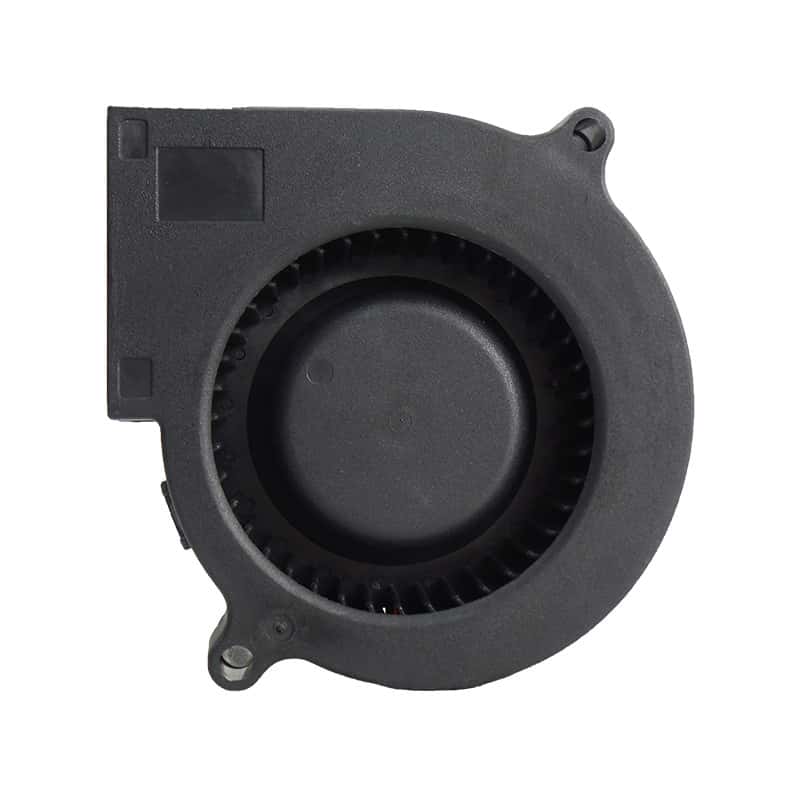

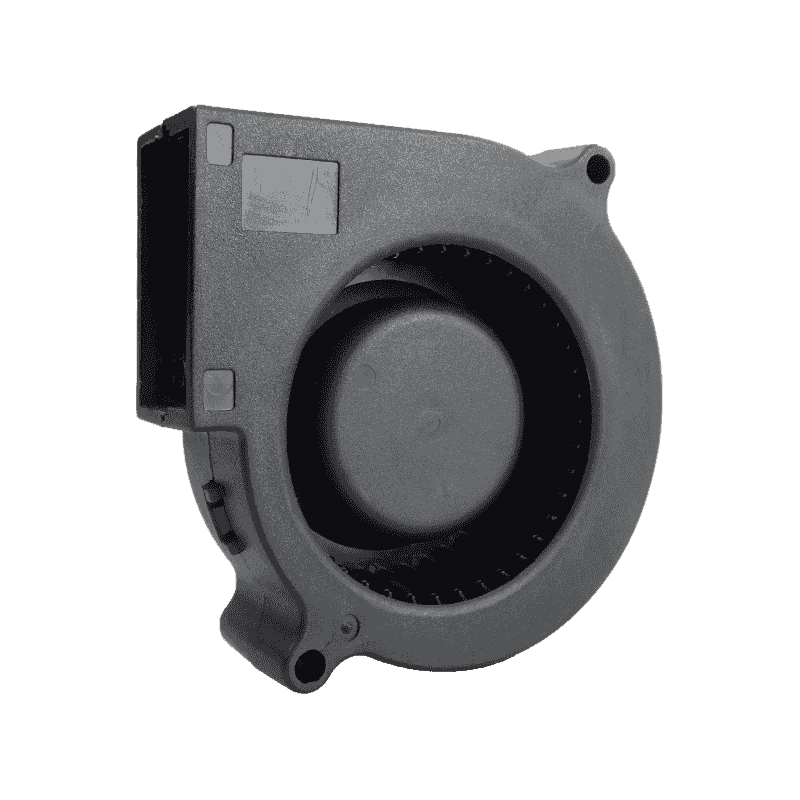

FD7525B-1

Size:75*75*25mm

Bearing:dual ball

Cable: supoort customization

Connector: support customization

IP Rating: IP54/IP55/IP67/IP68

Function: Reverse connection protection, automatic restart, PWM, FG, RD

Datasheet Download

Whatsapp: +86 153 6189 2827

Model	Rated voltage	Voltage range	Speed	Current	Power	Air Flow		Air pressure		Noise	Curve	Weight
Model	VDC	VDC	RPM	A	W	CFM	M3/h	mmH2O	InH2O	dBA	Color	G
FD7525B6U-BP00	48	43.6~52.8	5500	0.14	6.72	15.69	26.66	37.33	1.47	55.2	Black	66
FD7525B6H-BP00			4500	0.09	4.32	13.25	22.51	25.88	1.02	48.4	Red
FD7525B6M-BP00			3500	0.06	2.88	11.83	20.10	14.01	0.55	42.2	Green
FD7525B6L-BP00			2500	0.03	1.44	7.38	12.54	6.43	0.25	35.6	Blue
FD7525B4U-BP00	24	12~26.4	5500	0.30	7.20	15.69	26.66	37.33	1.47	55.2	Black
FD7525B4H-BP00			4500	0.20	4.80	13.25	22.51	25.88	1.02	48.4	Red
FD7525B4M-BP00			3500	0.10	2.40	11.83	20.10	14.01	0.55	42.2	Green
FD7525B4L-BP00			2500	0.05	1.20	7.38	12.54	6.43	0.25	35.6	Blue
FD7525B2U-BP00	12	6~14	5500	0.60	7.20	15.69	26.66	37.33	1.47	55.2	Black
FD7525B2H-BP00			4500	0.25	3.00	13.25	22.51	25.88	1.02	48.4	Red
FD7525B2M-BP00			3500	0.15	1.80	11.83	20.10	14.01	0.55	42.2	Green
FD7525B2L-BP00			2500	0.07	0.84	7.38	12.54	6.43	0.25	35.6	Blue
FD7525B1U-BP00	5	3.5~5.5	5500	0.80	4.00	15.69	26.66	37.33	1.47	55.2	Black
FD7525B1H-BP00			4500	0.40	2.00	13.25	22.51	25.88	1.02	48.4	Red
FD7525B1M-BP00			3500	0.25	1.25	11.83	20.10	14.01	0.55	42.2	Green
FD7525B1L-BP00			2500	0.15	0.75	7.38	12.54	6.43	0.25	35.6	Blue

Product Parameters

The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.

Parameter	Specification
Model	XY-GF200
Air Pressure	800Pa (Max)
Air Flow	15-50 CFM (Adjustable)
Voltage	DC 12/24/48V
Noise Level	35-50 dB(A)
Power Consumption	18W-60W
Protection Rating	IP55 (Dustproof & Water-resistant)
