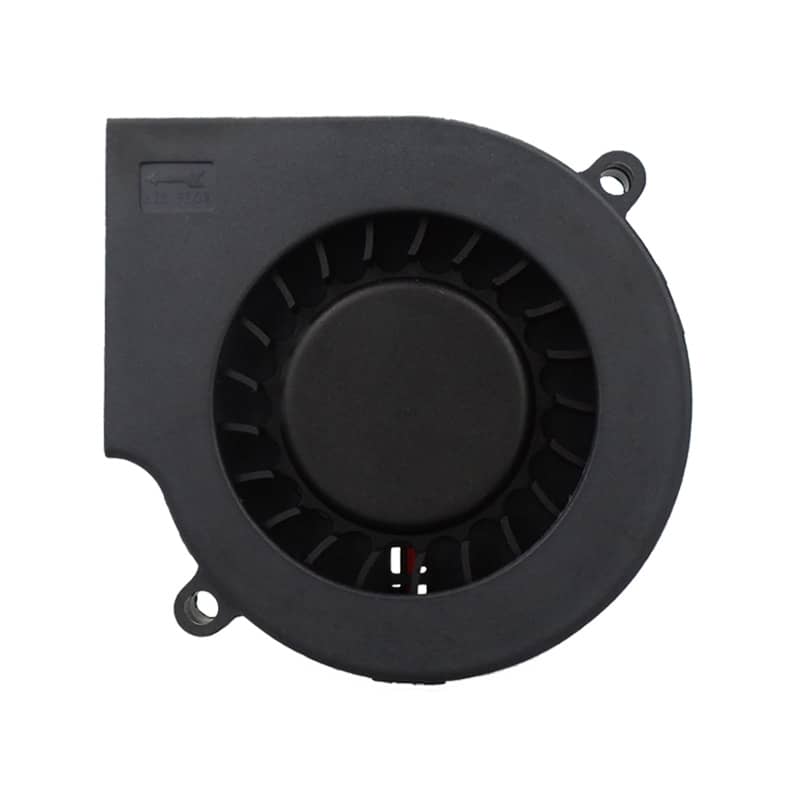

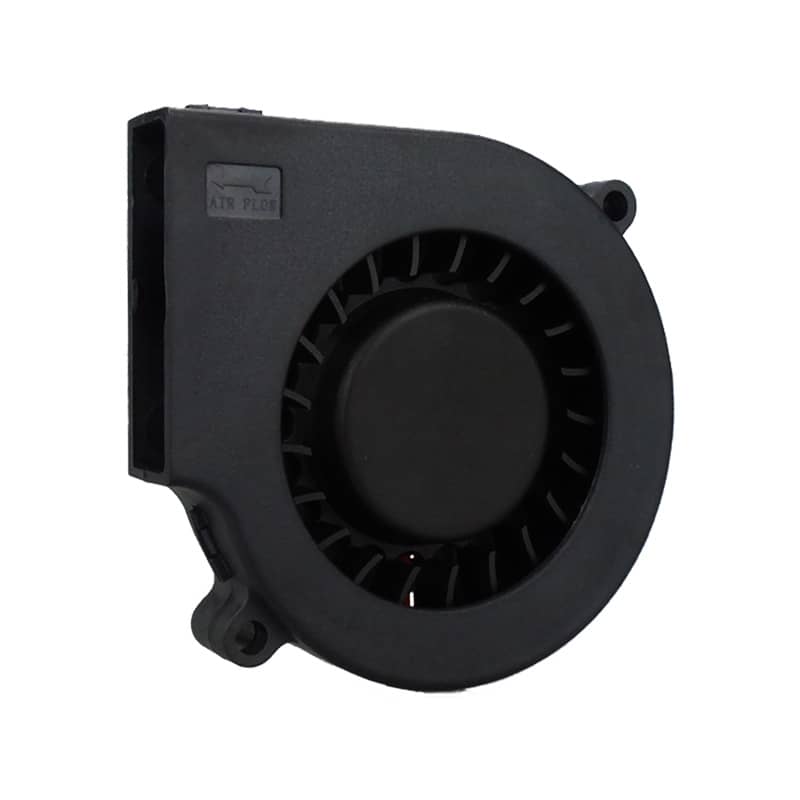

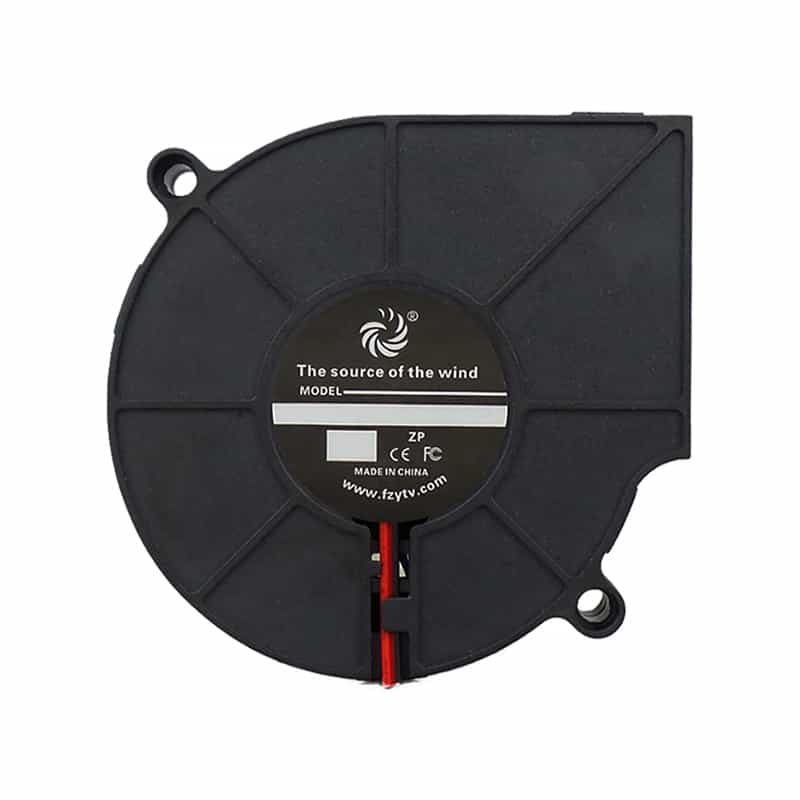

FD7515B
Size:75*75*15mm
Bearing: Dual ball
Cable: supoort customization
Connector: support customization
IP Rating: IP54/IP55/IP67/IP68
Function: Reverse connection protection, automatic restart, PWM, FG, RD
Datasheet Download
| Model | Rated voltage | Voltage range | Speed | Current | Power | Air Flow | Air pressure | Noise | Curve | Weight | ||
| VDC | VDC | RPM | A | W | CFM | M3/h | mmH2O | InH2O | dBA | Color | G | |
| FD7515B4U-BP00 | 24 | 12~26.4 | 4000 | 0.15 | 3.60 | 8.43 | 14.32 | 22.09 | 0.87 | 45.8 | Black | 50 |
| FD7515B4H-BP00 | 3500 | 0.12 | 2.88 | 7.37 | 12.52 | 17.04 | 0.67 | 41.2 | Red | |||
| FD7515B4M-BP00 | 3000 |
0.08 |
1.92 | 6.37 | 10.82 | 11.15 | 0.44 | 36.4 | Green | |||
| FD7515B4L-BP00 | 2500 | 0.04 | 0.96 | 5.29 | 8.99 | 7.70 | 0.30 | 32.5 | Blue | |||
| FD7515B2U-BP00 | 12 | 6~14 | 4000 | 0.30 | 3.60 | 8.43 | 14.32 | 22.09 | 0.87 | 45.8 | Black | |
| FD7515B2H-BP00 | 3500 | 0.20 | 2.40 | 7.37 | 12.52 | 17.04 | 0.67 | 41.2 | Red | |||
| FD7515B2M-BP00 | 3000 | 0.12 | 1.44 | 6.37 | 10.82 | 11.15 | 0.44 | 36.4 | Green | |||
| FD7515B2L-BP00 | 2500 | 0.09 | 1.08 | 5.29 | 8.99 | 7.70 | 0.30 | 32.5 | Blue | |||
| FD7515B1U-BP00 | 5 | 3.5~5.5 | 4000 | 0.50 | 2.50 | 8.43 | 14.32 | 22.09 | 0.87 | 45.8 | Black | |
| FD7515B1H-BP00 | 3500 | 0.35 | 1.75 | 7.37 | 12.52 | 17.04 | 0.67 | 41.2 | Red | |||
| FD7515B1M-BP00 | 3000 | 0.24 | 1.20 | 6.37 | 10.82 | 11.15 | 0.44 | 36.4 | Green | |||
| FD7515B1L-BP00 | 2500 | 0.16 | 0.80 | 5.29 | 8.99 | 7.70 | 0.30 | 32.5 | Blue | |||
Product Parameters
The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.
| Parameter | Specification |
| Model | XY-GF200 |
| Air Pressure | 800Pa (Max) |
| Air Flow | 15-50 CFM (Adjustable) |
| Voltage | DC 12/24/48V |
| Noise Level | 35-50 dB(A) |
| Power Consumption | 18W-60W |
| Protection Rating | IP55 (Dustproof & Water-resistant) |
