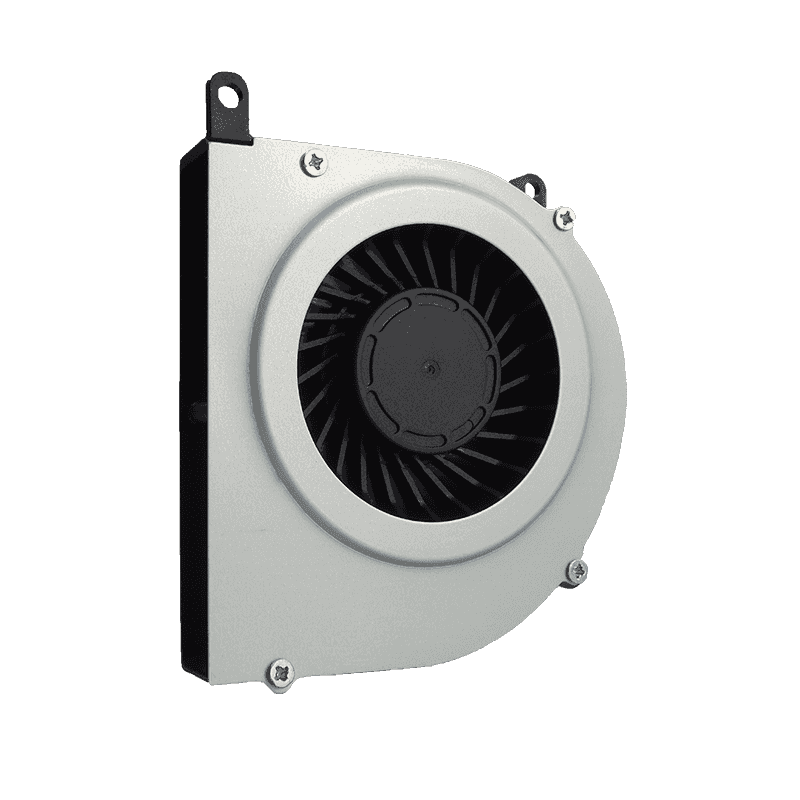

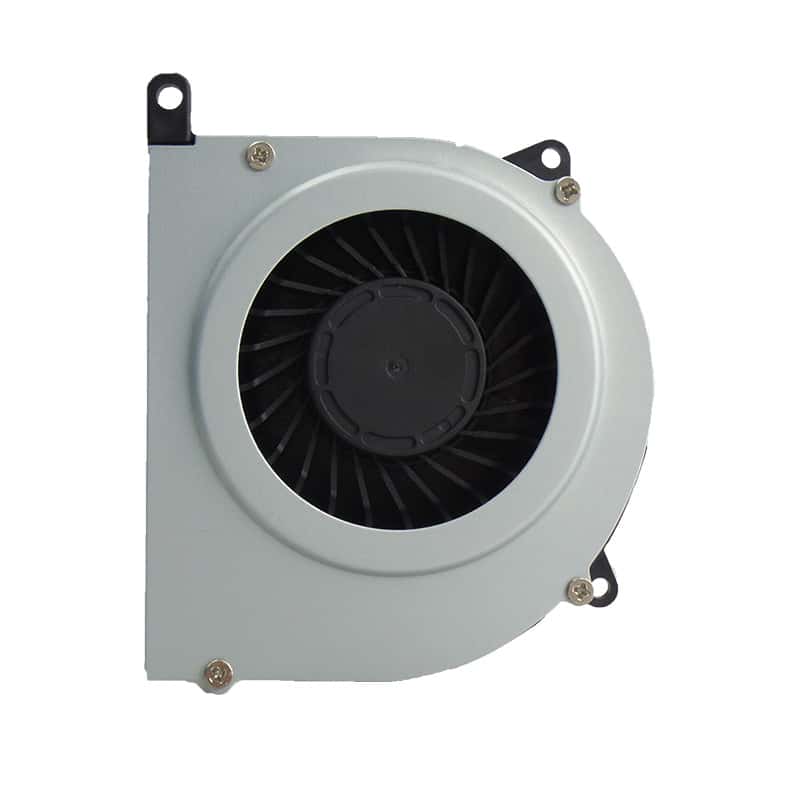

FD7015B-1

Size:70*70*15mm

Voltage:

Speed:

Bearing: Hydraulic

Cable: supoort customization

Connector: support customization

IP Rating: IP54/IP55/IP67/IP68

Function: Reverse connection protection, automatic restart, PWM, FG, RD

Whatsapp: +86 153 6189 2827

Model	Rated voltage	Voltage range	Speed	Current	Power	Air Flow		Air pressure		Noise	Curve	Weight
Model	VDC	VDC	RPM	A	W	CFM	M3/h	mmH2O	InH2O	dBA	Color	G
FD7015S4U-BP00	24	12~26.4	4000	0.14	3.36	9.64	16.38	17.15	0.68	42.5	Black	42
FD7015S4H-BP00			3500	0.10	2.40	8.63	14.66	13.20	0.52	39.0	Red
FD7015S4M-BP00			3000	0.07	1.68	7.20	12.23	8.73	0.34	35.4	Green
FD7015S4L-BP00			2500	0.04	0.96	6.08	10.33	5.76	0.23	30.3	Blue
FD7015S2U-BP00	12	6~14	4000	0.30	3.60	9.64	16.38	17.15	0.68	42.5	Black
FD7015S2H-BP00			3500	0.20	2.40	8.63	14.66	13.20	0.52	39.0	Red
FD7015S2M-BP00			3000	0.12	1.44	7.20	12.23	8.73	0.34	35.4	Green
FD7015S2L-BP00			2500	0.10	1.20	6.08	10.33	5.76	0.23	30.3	Blue
FD7015S1U-BP00	5	3.5~5.5	4000	0.40	2.00	9.64	16.38	17.15	0.68	42.5	Black
FD7015S1H-BP00			3500	0.32	1.60	8.63	14.66	13.20	0.52	39.0	Red
FD7015S1M-BP00			3000	0.24	1.20	7.20	12.23	8.73	0.34	35.4	Green
FD7015S1L-BP00			2500	0.18	0.90	6.08	10.33	5.76	0.23	30.3	Blue

Product Parameters

The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.

Parameter	Specification
Model	XY-GF200
Air Pressure	800Pa (Max)
Air Flow	15-50 CFM (Adjustable)
Voltage	DC 12/24/48V
Noise Level	35-50 dB(A)
Power Consumption	18W-60W
Protection Rating	IP55 (Dustproof & Water-resistant)
