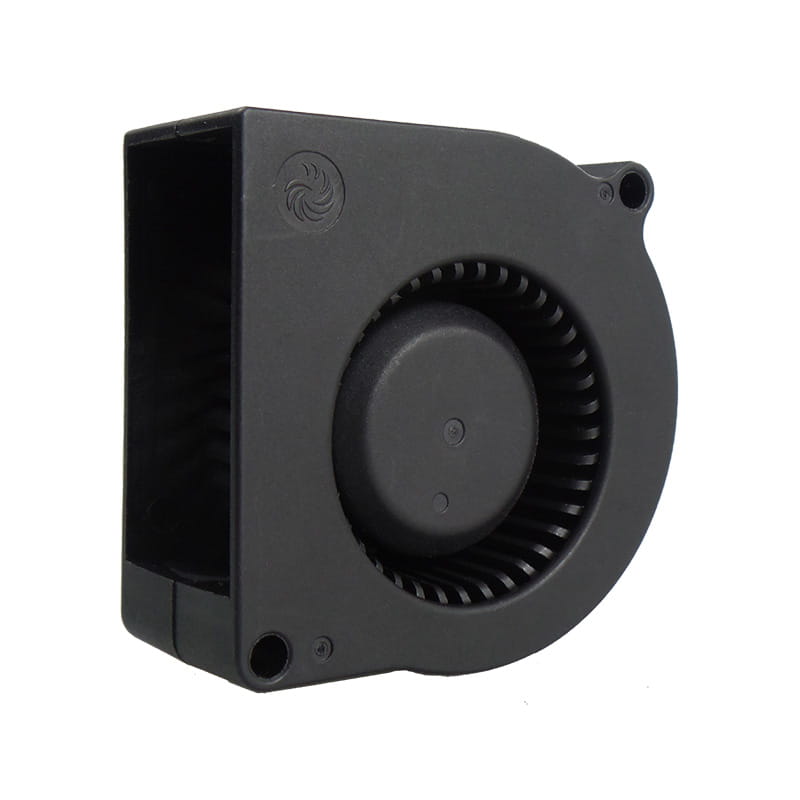

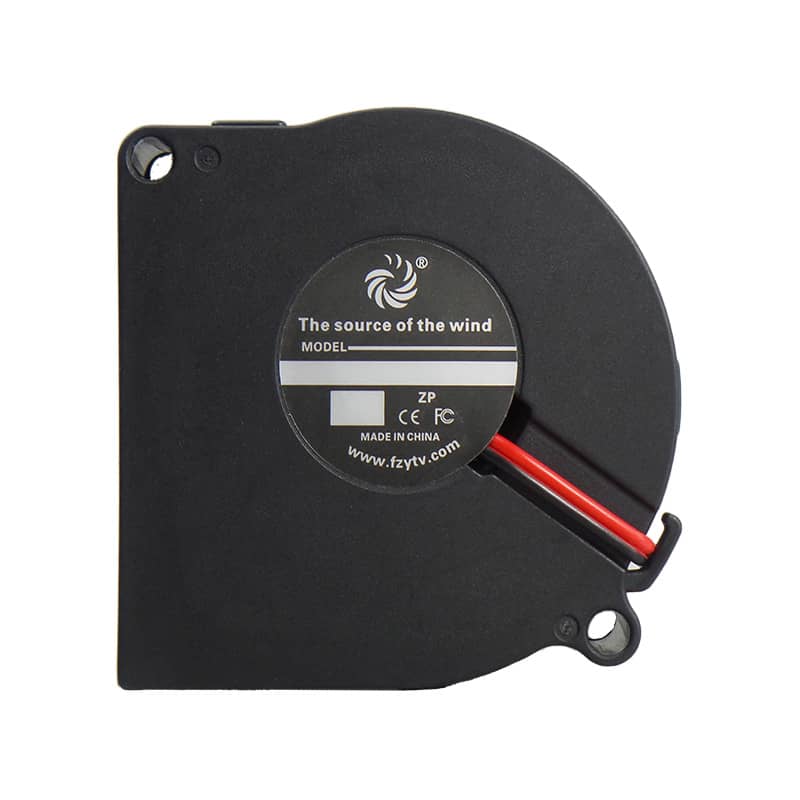

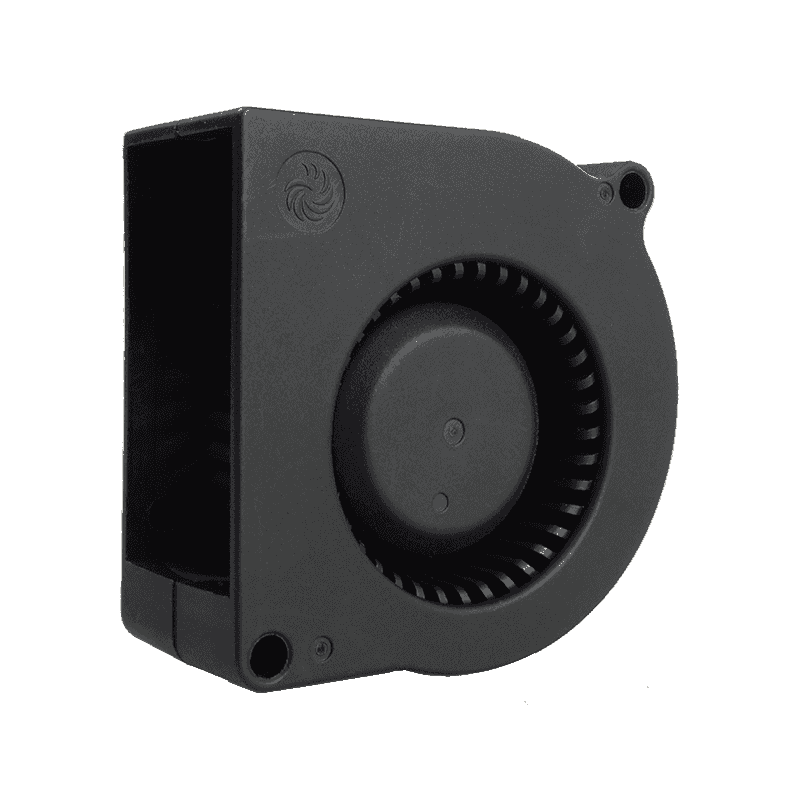

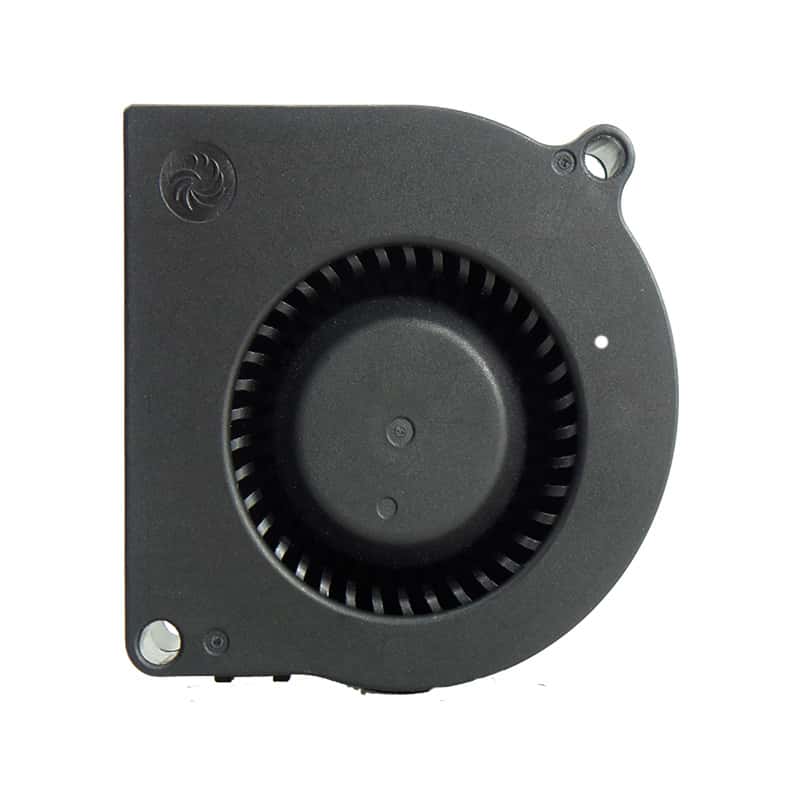

FD6028B-2

Size:60*60*28mm

Voltage:

Speed:

Bearing: Dual ball

Cable: supoort customization

Connector: support customization

IP Rating: IP54/IP55/IP67/IP68

Function: Reverse connection protection, automatic restart, PWM, FG, RD

Datasheet Download

Whatsapp: +86 153 6189 2827

Model	Rated voltage	Voltage range	Speed	Current	Power	Air Flow		Air pressure		Noise	Curve	Weight
Model	VDC	VDC	RPM	A	W	CFM	M3/h	mmH2O	InH2O	dBA	Color	G
FD6028B4U-BP00	24	12~26.4	4500	0.10	2.40	8.91	15.14	13.99	0.55	40.8	Black	43
FD6028B4H-BP00			4000	0.07	1.68	7.84	13.32	10.15	0.40	35.1	Red
FD6028B4M-BP00			3500	0.05	1.20	6.76	11.49	7.43	0.29	31.7	Green
FD6028B4L-BP00			3000	0.03	0.72	5.72	9.72	4.96	0.20	29.2	Blue
FD6028B2U-BP00	12	6~14	4500	0.21	2.52	8.91	15.14	13.99	0.55	40.8	Black
FD6028B2H-BP00			4000	0.18	2.16	7.84	13.32	10.15	0.40	35.1	Red
FD6028B2M-BP00			3500	0.10	1.20	6.76	11.49	7.43	0.29	31.7	Green
FD6028B2L-BP00			3000	0.08	0.96	5.72	9.72	4.96	0.20	29.2	Blue
FD6028B1U-BP00	5	3.5~5.5	4500	0.40	2.00	8.91	15.14	13.99	0.55	40.8	Black
FD6028B1H-BP00			4000	0.32	1.60	7.84	13.32	10.15	0.40	35.1	Red
FD6028B1M-BP00			3500	0.25	1.25	6.76	11.49	7.43	0.29	31.7	Green
FD6028B1L-BP00			3000	0.15	0.75	5.72	9.72	4.96	0.20	29.2	Blue

Product Parameters

The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.

Parameter	Specification
Model	XY-GF200
Air Pressure	800Pa (Max)
Air Flow	15-50 CFM (Adjustable)
Voltage	DC 12/24/48V
Noise Level	35-50 dB(A)
Power Consumption	18W-60W
Protection Rating	IP55 (Dustproof & Water-resistant)
