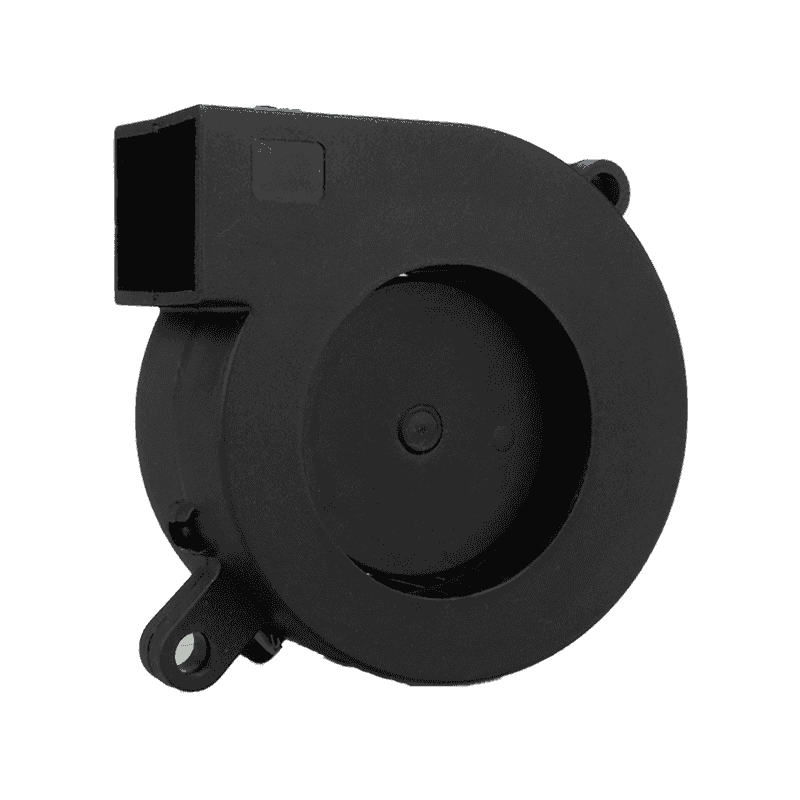

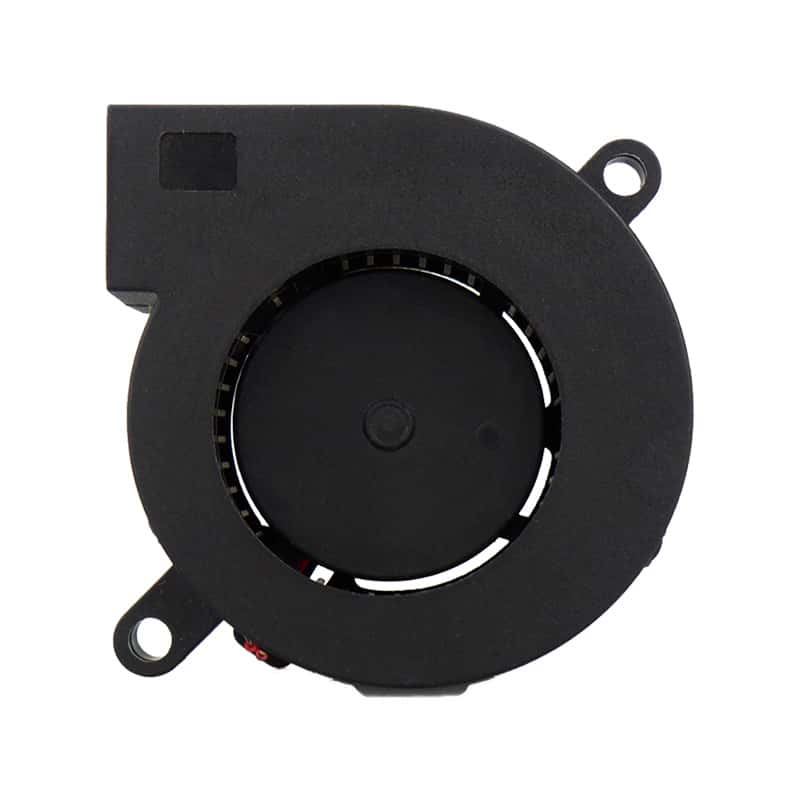

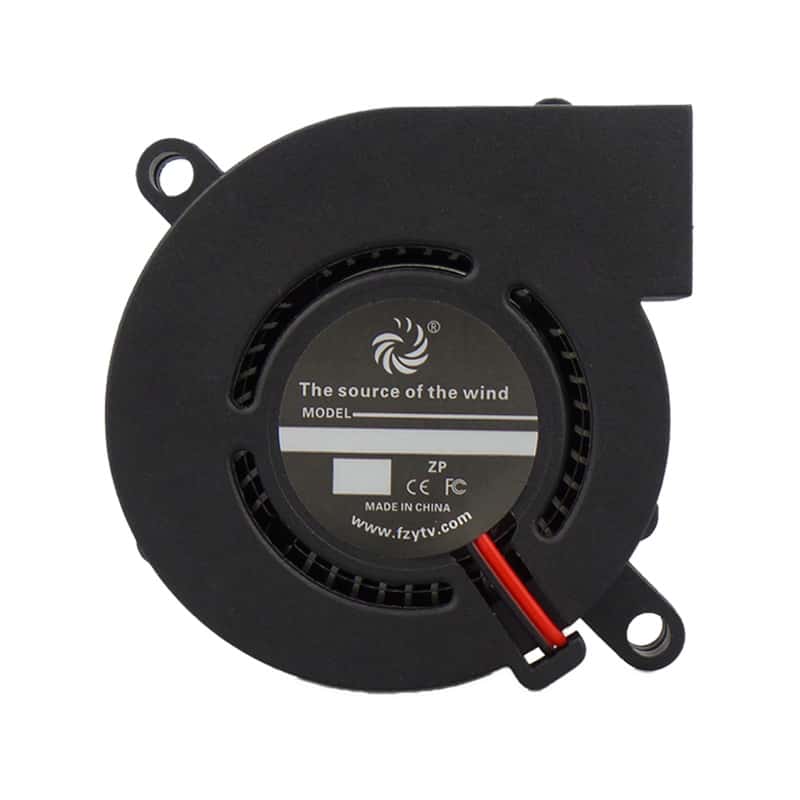

FD6025B

Size:60*60*25mm

Voltage:

Speed:

Bearing: Dual ball

Cable: supoort customization

Connector: support customization

IP Rating: IP54/IP55/IP67/IP68

Function: Reverse connection protection, automatic restart, PWM, FG, RD

Datasheet Download

Whatsapp: +86 153 6189 2827

Model	Rated voltage	Voltage range	Speed	Current	Power	Air Flow		Air pressure		Noise	Curve	Weight
Model	VDC	VDC	RPM	A	W	CFM	M3/h	mmH2O	InH2O	dBA	Color	G
FD6025B4U-BP00	24	12~26.4	6000	0.25	6.00	12.31	20.91	37.37	1.47	52.3	Black	51
FD6025B4H-BP00			5000	0.12	2.88	10.21	17.35	23.70	0.93	47.6	Red
FD6025B4M-BP00			4000	0.06	1.44	8.10	13.76	13.50	0.53	42.4	Green
FD6025B4L-BP00			3000	0.03	0.72	5.88	9.99	6.17	0.24	36.2	Blue
FD6025B2U-BP00	12	6~14	6000	0.30	3.60	12.31	20.91	37.37	1.47	52.3	Black
FD6025B2H-BP00			5000	0.25	3.00	10.21	17.35	23.70	0.93	47.6	Red
FD6025B2M-BP00			4000	0.15	1.80	8.10	13.76	13.50	0.53	42.4	Green
FD6025B2L-BP00			3000	0.08	0.96	5.88	9.99	6.17	0.24	36.2	Blue
FD6025B1U-BP00	5	3.5~5.5	6000	0.50	2.50	12.31	20.91	37.37	1.47	52.3	Black
FD6025B1H-BP00			5000	0.35	1.75	10.21	17.35	23.70	0.93	47.6	Red
FD6025B1M-BP00			4000	0.25	1.25	8.10	13.76	13.50	0.53	42.4	Green
FD6025B1L-BP00			3000	0.15	0.75	5.88	9.99	6.17	0.24	36.2	Blue

Product Parameters

The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.

Parameter	Specification
Model	XY-GF200
Air Pressure	800Pa (Max)
Air Flow	15-50 CFM (Adjustable)
Voltage	DC 12/24/48V
Noise Level	35-50 dB(A)
Power Consumption	18W-60W
Protection Rating	IP55 (Dustproof & Water-resistant)
