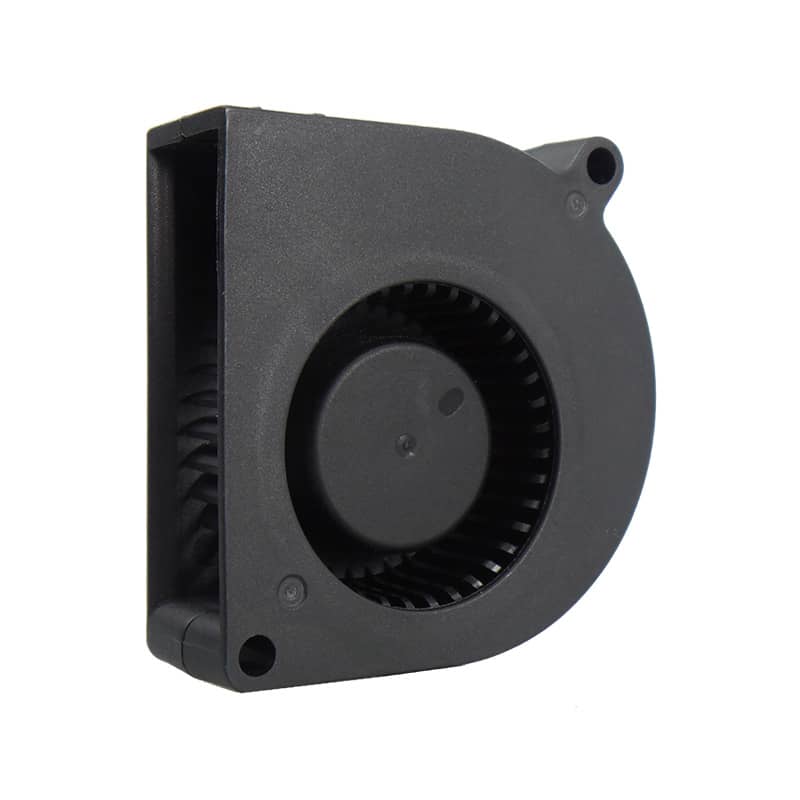

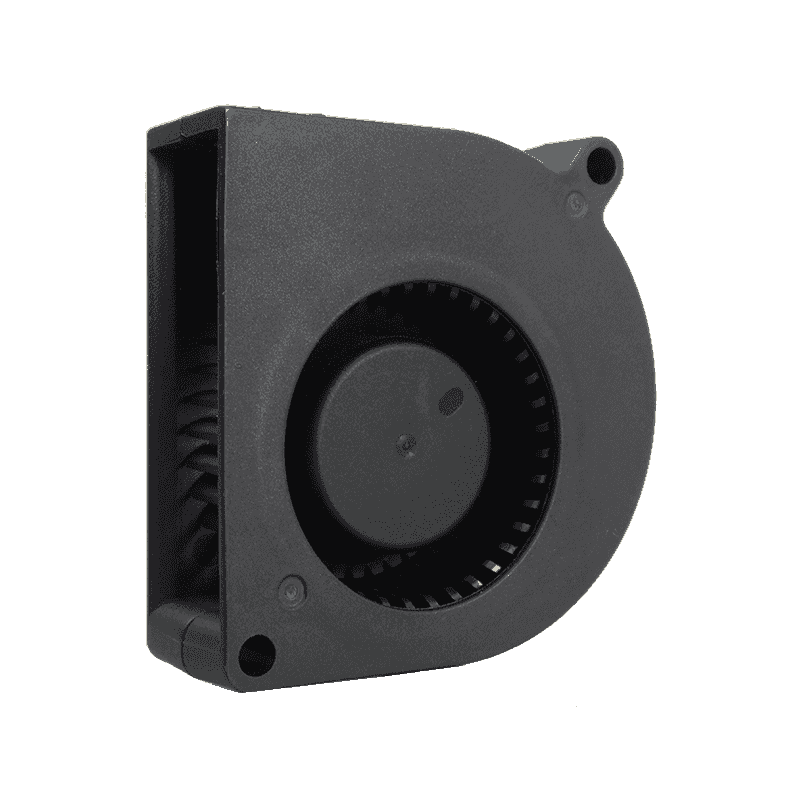

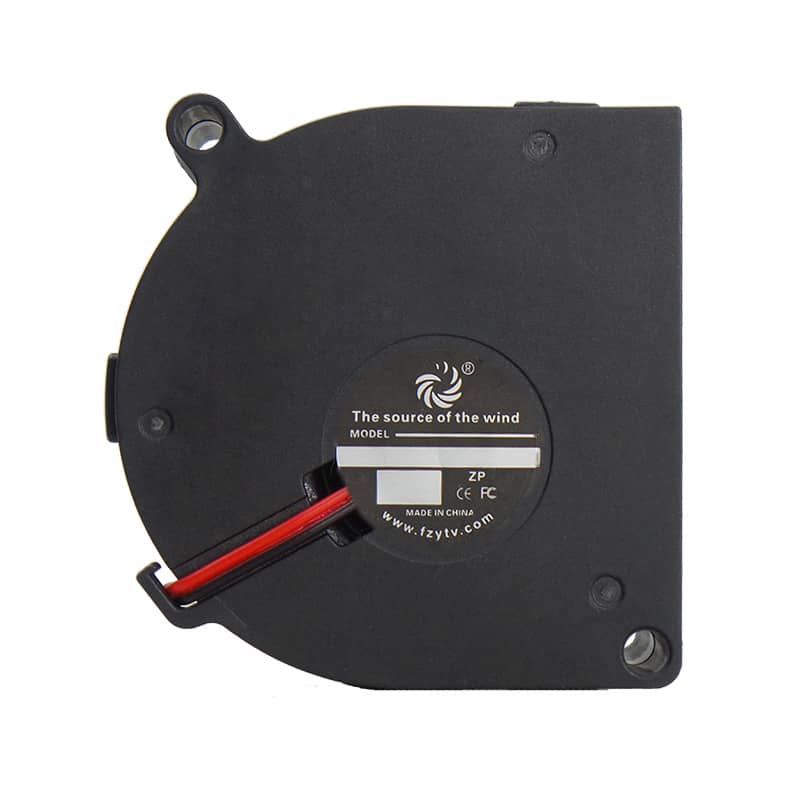

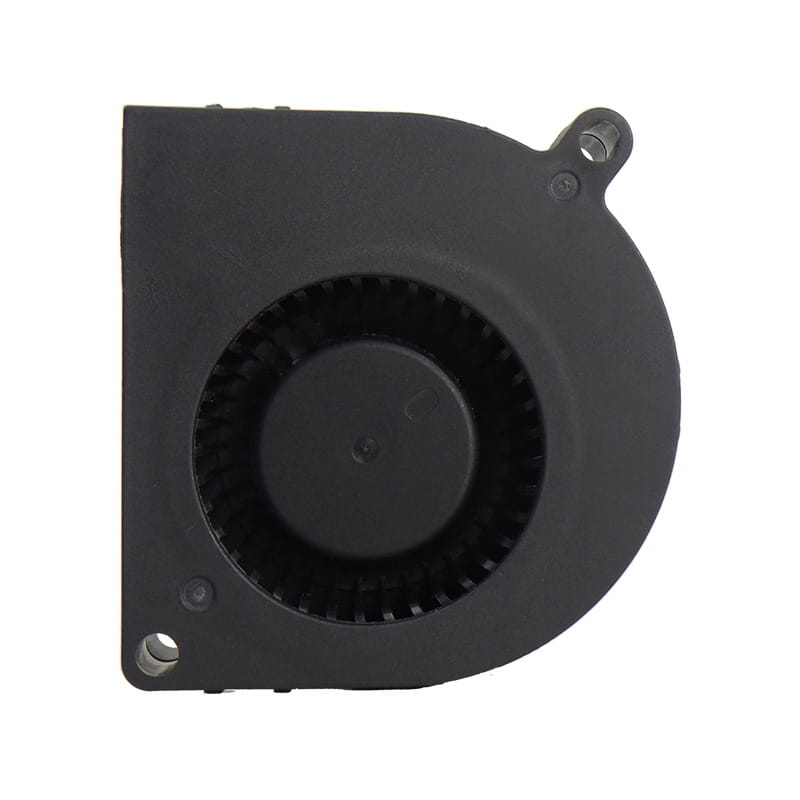

FD6020B

Size:60*60*20mm

Voltage:

Speed:

Bearing: Dual ball

Cable: supoort customization

Connector: support customization

IP Rating: IP54/IP55/IP67/IP68

Function: Reverse connection protection, automatic restart, PWM, FG, RD

Datasheet Download

Whatsapp: +86 153 6189 2827

Model	Rated voltage	Voltage range	Speed	Current	Power	Air Flow		Air pressure		Noise	Curve	Weight
Model	VDC	VDC	RPM	A	W	CFM	M3/h	mmH2O	InH2O	DBA	Color	G
FD6020B4U-BP00	24	12~26.4	4500	0.10	2.40	8.23	13.98	15.23	0.60	38.6	Black	35
FD6020B4H-BP00			4000	0.07	1.68	7.77	13.20	9.90	0.39	34.2	Red
FD6020B4M-BP00			3500	0.05	1.20	6.85	11.64	7.47	0.29	30.3	Green
FD6020B4L-BP00			3000	0.03	0.72	5.25	8.92	5.07	0.20	27.4	Blue
FD6020B2U-BP00	12	6~14	4500	0.18	2.16	8.23	13.98	15.23	0.60	38.6	Black
FD6020B2H-BP00			4000	0.14	1.68	7.77	13.20	9.90	0.39	34.2	Red
FD6020B2M-BP00			3500	0.08	0.96	6.85	11.64	7.47	0.29	30.3	Green
FD6020B2L-BP00			3000	0.06	0.72	5.25	8.92	5.07	0.20	27.4	Blue
FD6020B1U-BP00	5	3.5~5.5	4500	0.45	2.25	8.23	13.98	15.23	0.60	38.6	Black
FD6020B1H-BP00			4000	0.35	1.75	7.77	13.20	9.90	0.39	34.2	Red
FD6020B1M-BP00			3500	0.25	1.25	6.85	11.64	7.47	0.29	30.3	Green
FD6020B1L-BP00			3000	0.20	1.00	5.25	8.92	5.07	0.20	27.4	Blue

Product Parameters

The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.

Parameter	Specification
Model	XY-GF200
Air Pressure	800Pa (Max)
Air Flow	15-50 CFM (Adjustable)
Voltage	DC 12/24/48V
Noise Level	35-50 dB(A)
Power Consumption	18W-60W
Protection Rating	IP55 (Dustproof & Water-resistant)
