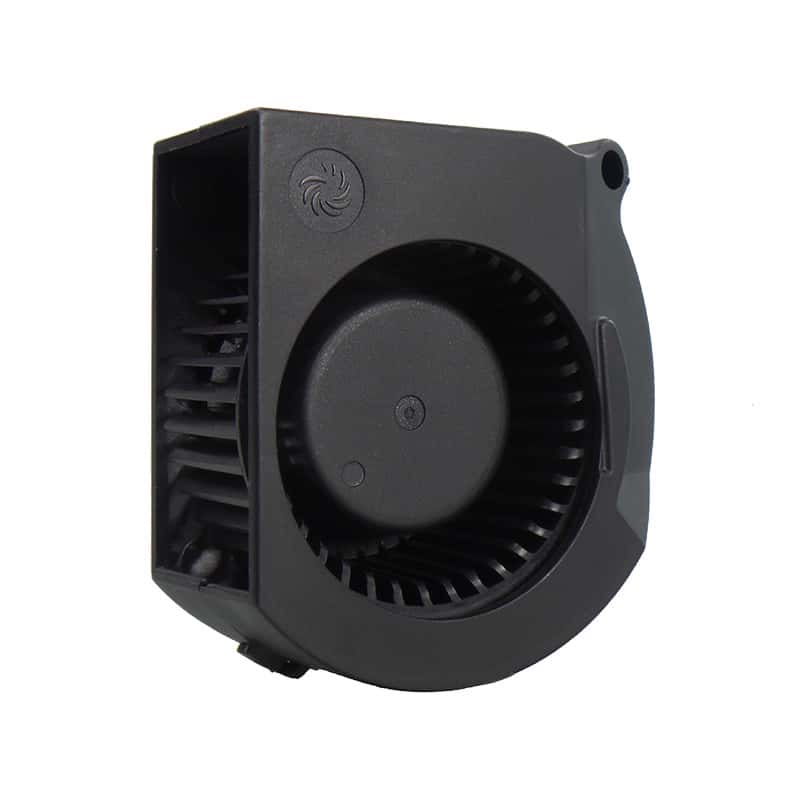

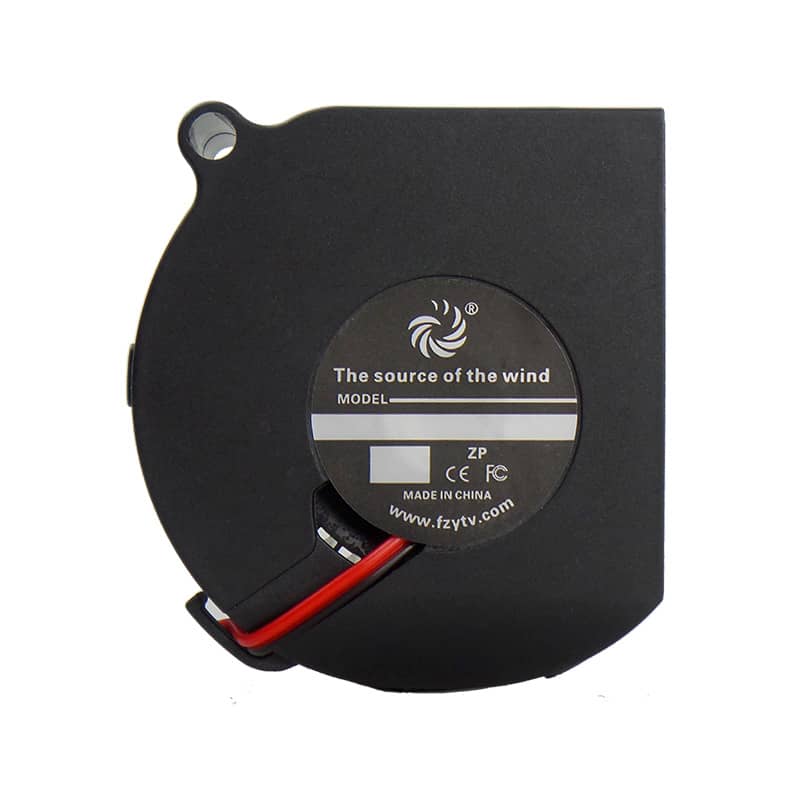

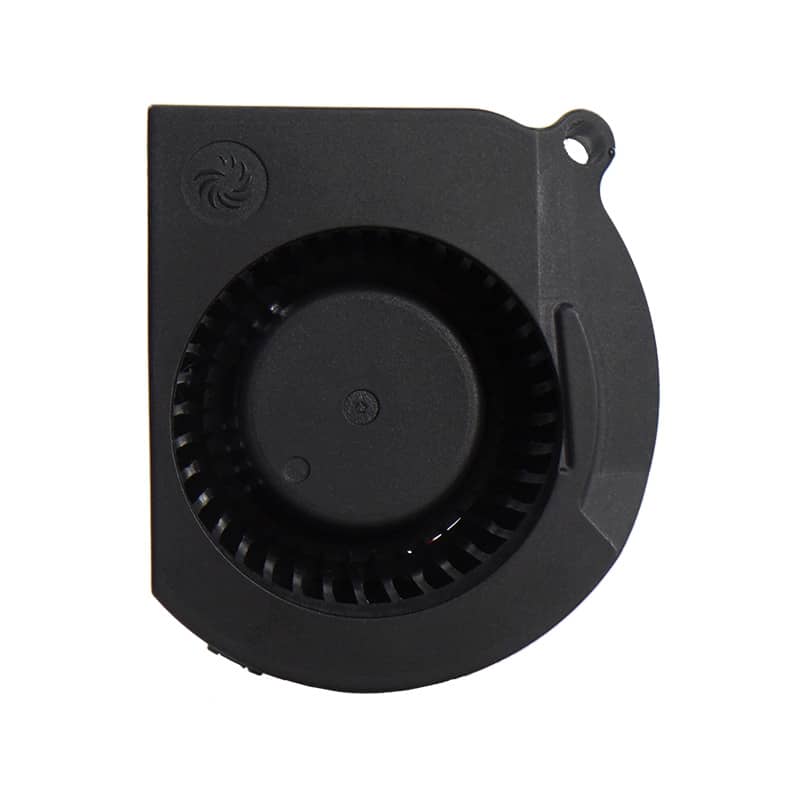

FD5528B

Size:50*50*28mm

Voltage:

Speed:

Bearing: Sleeve/Dual ball

Cable: supoort customization

Connector: support customization

IP Rating: IP54/IP55/IP67/IP68

Function: Reverse connection protection, automatic restart, PWM, FG, RD

Datasheet Download

Whatsapp: +86 153 6189 2827

Model	Rated voltage	Voltage range	Speed	Current	Power	Air Flow		Air pressure		Noise	Curve	Weight
Model	VDC	VDC	RPM	A	W	CFM	M3/h	mmH2O	InH2O	dBA	Color	G
FD5528S4U-BP00	24	12~26.4	5000	0.16	3.84	7.72	13.12	14.47	0.57	43.4	Black	36
FD5528S4H-BP00			4500	0.12	2.88	6.96	11.83	11.22	0.44	38.4	Red
FD5528S4M-BP00			4000	0.09	2.16	6.11	10.38	7.98	0.31	34.2	Green
FD5528S4L-BP00			3500	0.05	1.20	5.41	9.19	5.63	0.22	30.3	Blue
FD5528S2U-BP00	12	6~14	5000	0.30	3.60	7.72	13.12	14.47	0.57	43.4	Black
FD5528S2H-BP00			4500	0.20	2.40	6.96	11.83	11.22	0.44	38.4	Red
FD5528S2M-BP00			4000	0.15	1.80	6.11	10.38	7.98	0.31	34.2	Green
FD5528S2L-BP00			3500	0.10	1.20	5.41	9.19	5.63	0.22	30.3	Blue
FD5528S1U-BP00	5	3.5~5.5	5000	0.45	2.25	7.72	13.12	14.47	0.57	43.4	Black
FD5528S1H-BP00			4500	0.36	1.80	6.96	11.83	11.22	0.44	38.4	Red
FD5528S1M-BP00			4000	0.25	1.25	6.11	10.38	7.98	0.31	34.2	Green
FD5528S1L-BP00			3500	0.18	0.90	5.41	9.19	5.63	0.22	30.3	Blue

Product Parameters

The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.

Parameter	Specification
Model	XY-GF200
Air Pressure	800Pa (Max)
Air Flow	15-50 CFM (Adjustable)
Voltage	DC 12/24/48V
Noise Level	35-50 dB(A)
Power Consumption	18W-60W
Protection Rating	IP55 (Dustproof & Water-resistant)
