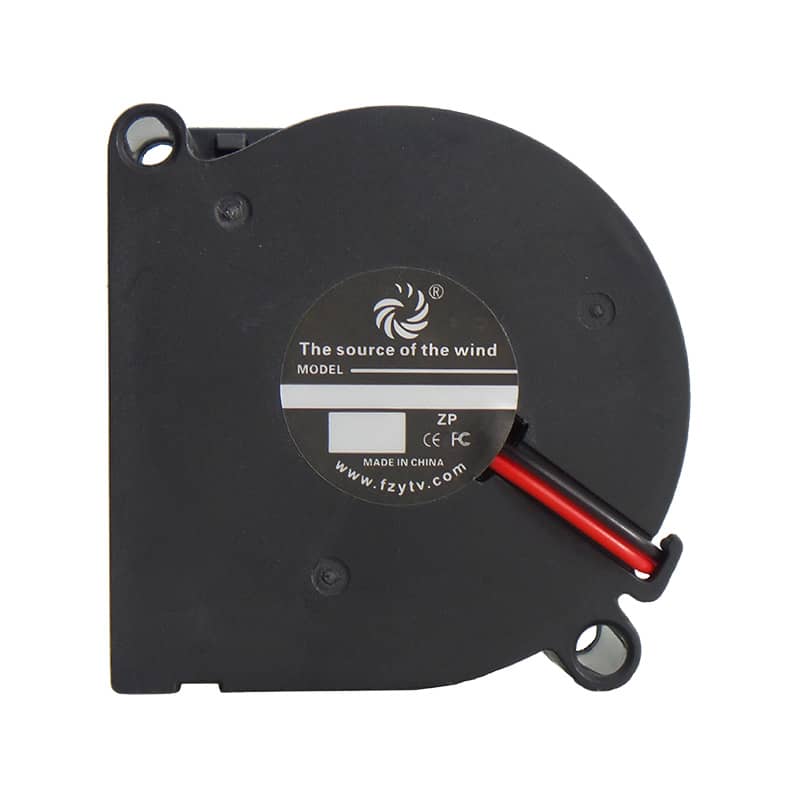

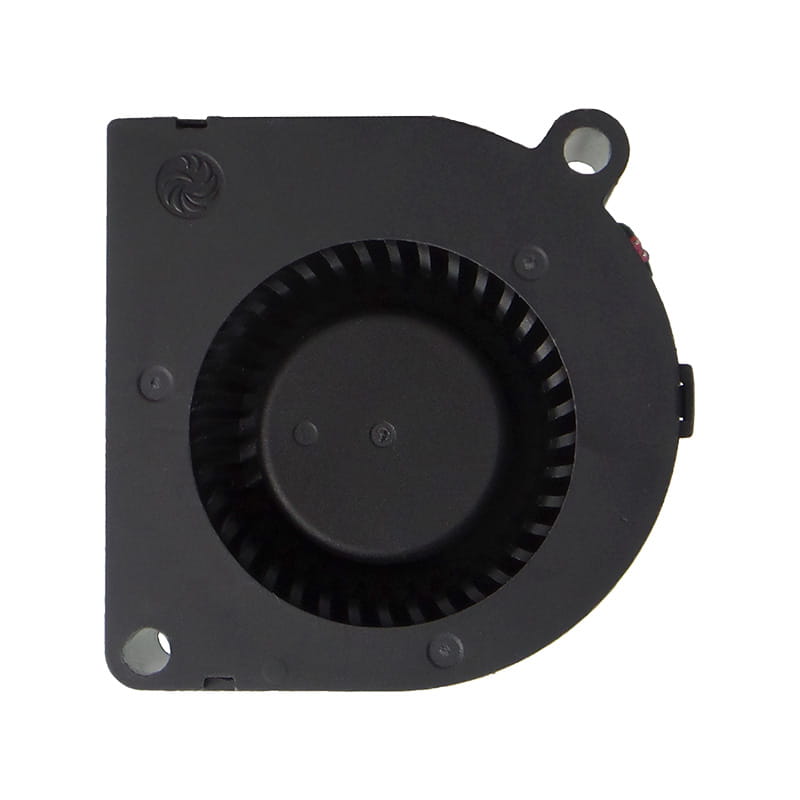

FD5020B-1

Size:50*50*20mm

Voltage:5V/12V/24V

Speed: L/M/H/U(3000-6000RPM)

Bearing: Sleeve/Dual ball

Cable: supoort customization

Connector: support customization

IP Rating: IP54/IP55/IP67/IP68

Function: Reverse connection protection, automatic restart, PWM, FG, RD

Datasheet Download

Whatsapp: +86 153 6189 2827

Model	Rated voltage	Voltage range	Speed	Current	Power	Air Flow		Air pressure		Noise	Curve	Weight
Model	VDC	VDC	RPM	A	W	CFM	M3/h	mmH2O	InH2O	dBA	Color	G
FD5020B4U-BP00	24	12~26.4	6000	0.09	2.16	6.22	10.57	13.75	0.54	37.6	Black	29
FD5020B4H-BP00			5000	0.6	1.44	5.12	8.70	11.06	0.44	33.4	Red
FD5020B4M-BP00			4000	0.04	0.96	3.90	6.63	5.89	0.23	28.9	Green
FD5020B4L-BP00			3000	0.03	0.72	3.09	5.25	2.97	0.12	25.3	Blue
FD5020B2U-BP00	12	6~14	6000	0.18	2.16	6.22	10.57	13.75	0.54	37.6	Black
FD5020B2H-BP00			5000	0.12	1.44	5.12	8.70	11.06	0.44	33.4	Red
FD5020B2M-BP00			4000	0.09	1.08	3.90	6.63	5.89	0.23	28.9	Green
FD5020B2L-BP00			3000	0.04	0.48	3.09	5.25	2.97	0.12	25.3	Blue
FD5020B1U-BP00	5	3.5~5.5	6000	0.305	1.75	6.22	10.57	13.57	0.54	37.6	Black
FD5020B1H-BP00			5000	0.25	1.25	5.12	8.70	11.06	0.44	33.4	Red
FD5020B1M-BP00			4000	0.20	1.00	3.90	6.63	5.89	0.23	28.9	Green
FD5020B1L-BP00			3000	0.10	0.50	3.09	5.25	2.97	0.12	25.3	Blue

Product Parameters

The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.

Parameter	Specification
Model	XY-GF200
Air Pressure	800Pa (Max)
Air Flow	15-50 CFM (Adjustable)
Voltage	DC 12/24/48V
Noise Level	35-50 dB(A)
Power Consumption	18W-60W
Protection Rating	IP55 (Dustproof & Water-resistant)
