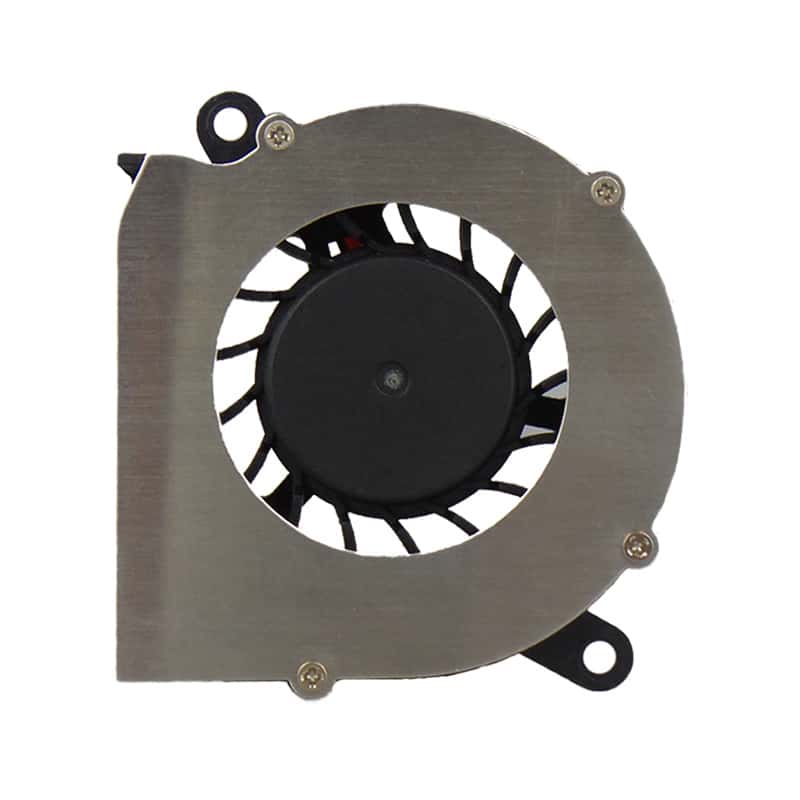

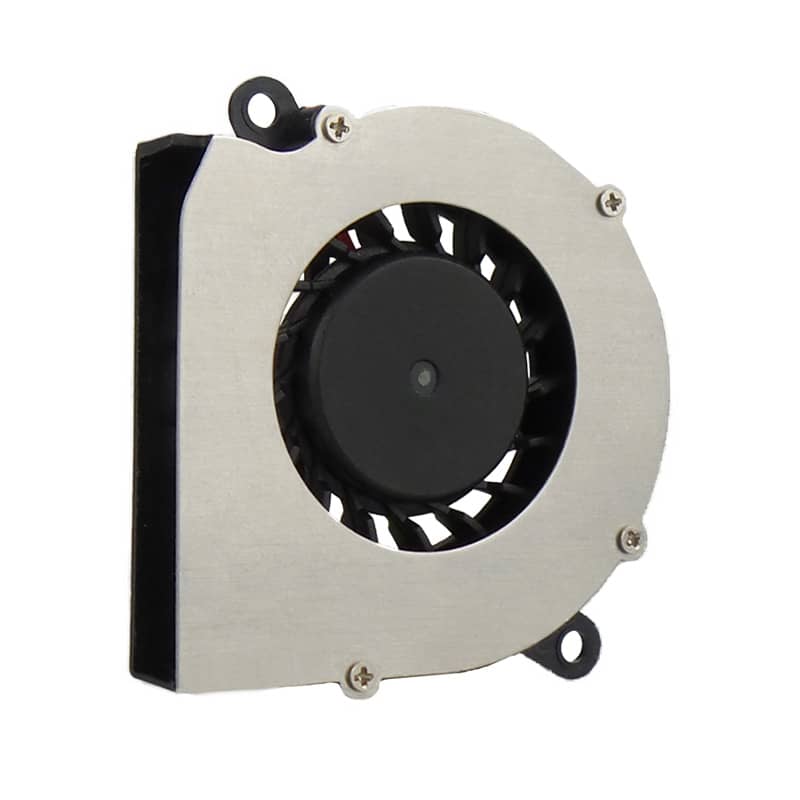

FD5010B-3

Size:20*20*10mm

Voltage:5V/12V/24V

Speed: L/M/H/U(4000-7000RPM)

Bearing: Hydraulic

Cable: supoort customization

Connector: support customization

IP Rating: IP54/IP55/IP67/IP68

Function: Reverse connection protection, automatic restart, PWM, FG, RD

Datasheet Download

Whatsapp: +86 153 6189 2827

Model	Rated voltage	Voltage range	Speed	Current	Power	Air Flow		Air pressure		Noise	Curve	Weight
Model	VDC	VDC	RPM	A	W	CFM	M3/h	mmH2O	InH2O	dBA	Color	G
FD5010S4U-BP00	24	12~26.4	7000	0.12	2.88	4.53	7.70	21.06	0.83	40.3	Black	16
FD5010S4H-BP00			6000	0.08	1.92	3.84	6.52	14.84	0.58	34.5	Red
FD5010S4M-BP00			5000	0.05	1.20	3.21	5.45	9.39	0.37	29.4	Green
FD5010S4L-BP00			4000	0.03	0.72	2.68	4.55	5.85	0.23	25.2	Blue
FD5010S2U-BP00	12	6~14	7000	0.25	3.00	4.53	7.70	21.06	0.83	40.3	Black
FD5010S2H-BP00			6000	0.20	2.40	3.84	6.52	14.84	0.58	34.5	Red
FD5010S2M-BP00			5000	0.15	1.80	3.21	5.45	9.39	0.37	29.4	Green
FD5010S2L-BP00			4000	0.10	1.20	2.68	4.55	5.85	0.23	25.2	Blue
FD5010S1U-BP00	5	3.5~5.5	7000	0.30	1.50	4.53	7.70	21.06	0.83	40.3	Black
FD5010S1H-BP00			6000	0.24	1.20	3.84	6.52	14.84	0.58	34.5	Red
FD5010S1M-BP00			5000	0.18	0.90	3.21	5.45	9.39	0.37	29.4	Green
FD5010S1L-BP00			4000	0.12	0.60	2.68	4.55	5.85	0.23	25.2	Blue

Product Parameters

The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.

Parameter	Specification
Model	XY-GF200
Air Pressure	800Pa (Max)
Air Flow	15-50 CFM (Adjustable)
Voltage	DC 12/24/48V
Noise Level	35-50 dB(A)
Power Consumption	18W-60W
Protection Rating	IP55 (Dustproof & Water-resistant)
