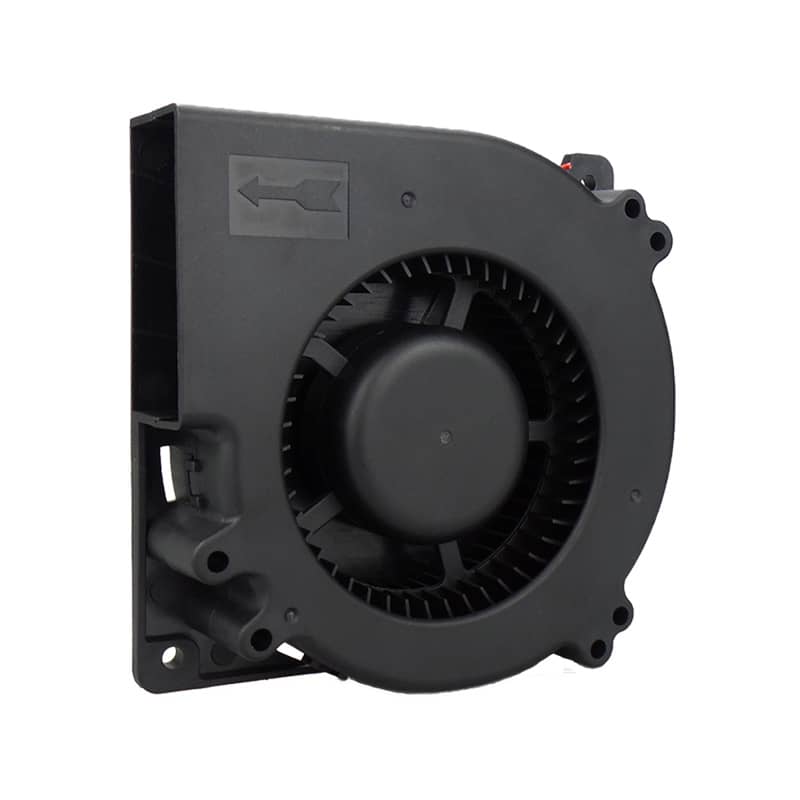

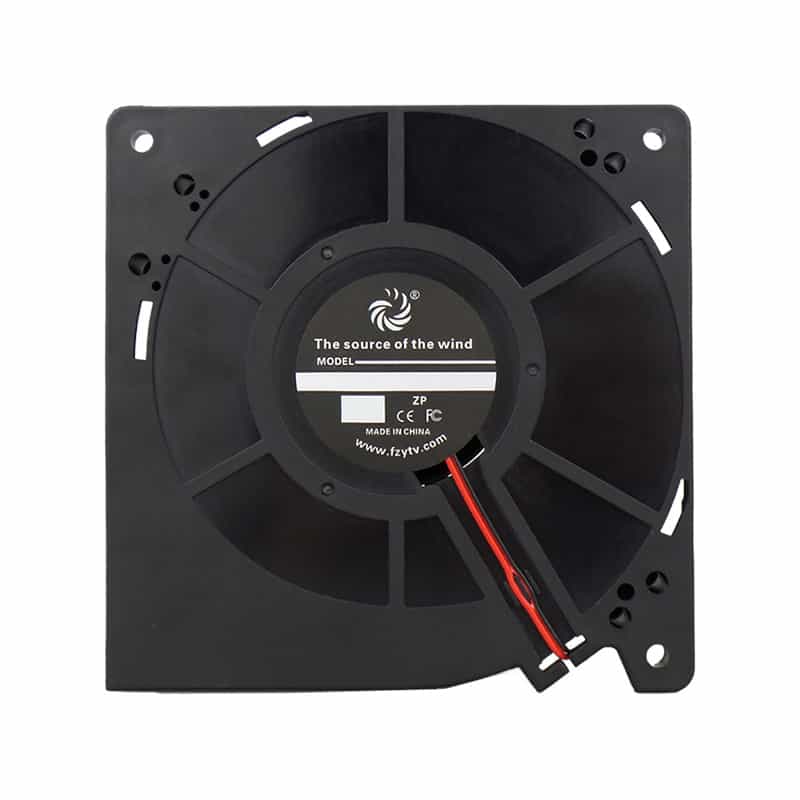

FD1232B
Size:120*120*32mm
Bearing: Dual ball
Cable: supoort customization
Connector: support customization
IP Rating: IP54/IP55/IP67/IP68
Function: Reverse connection protection, automatic restart, PWM, FG, RD
Datasheet Download
| Model | Rated voltage | Voltage range | Speed | Current | Power | Air Flow | Air pressure | Noise | Curve | Weight | ||
| VDC | VDC | RPM | A | W | CFM | M3/h | mmH2O | InH2O | dBA | Color | G | |
| FD1232B6U-BP00 | 48 | 43.6~52.8 | 3500 | 0.30 | 14.40 | 32.66 | 55.49 | 33.39 | 1.32 | 56.4 | Black | 212 |
| FD1232B6H-BP00 | 3000 | 0.20 | 9.60 | 27.79 | 47.22 | 22.89 | 0.90 | 52.7 | Red | |||
| FD1232B6M-BP00 | 2500 | 0.10 | 4.80 | 23.44 | 39.82 | 14.86 | 0.59 | 47.5 | Green | |||
| FD1232B6L-BP00 | 2000 | 0.05 | 2.40 | 18.66 | 31.70 | 8.90 | 0.35 | 44.3 | Blue | |||
| FD1232B4U-BP00 | 24 | 12~26.4 | 3500 | 0.80 | 19.20 | 32.66 | 55.49 |
33.39 |
1.32 | 56.4 | Black | |
| FD1232B4H-BP00 | 3000 | 0.50 | 12.00 | 27.79 | 47.22 | 22.89 | 0.90 | 52.7 | Red | |||
| FD1232B4M-BP00 | 2500 | 0.25 | 6.00 | 23.44 | 39.82 | 14.86 | 0.59 | 47.5 | Green | |||
| FD1232B4L-BP00 | 2000 | 0.10 | 2.40 | 18.66 | 31.70 | 8.90 | 0.35 | 44.3 | Blue | |||
| FD1232B2U-BP00 | 12 | 6~14 | 3500 | 1.30 | 15.60 | 32.66 | 55.49 | 33.39 | 1.32 | 56.4 | Black | |
| FD1232B2H-BP00 | 3000 | 0.70 | 8.40 | 27.79 | 47.22 | 22.89 | 0.90 | 52.7 | Red | |||
| FD1232B2M-BP00 | 2500 | 0.40 | 4.80 | 23.44 | 39.82 | 14.86 | 0.59 | 47.5 | Green | |||
| FD1232B2L-BP00 | 2000 | 0.25 | 3.00 | 18.66 | 31.70 | 8.90 | 0.35 | 44.3 | Blue | |||
Product Parameters
The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.
| Parameter | Specification |
| Model | XY-GF200 |
| Air Pressure | 800Pa (Max) |
| Air Flow | 15-50 CFM (Adjustable) |
| Voltage | DC 12/24/48V |
| Noise Level | 35-50 dB(A) |
| Power Consumption | 18W-60W |
| Protection Rating | IP55 (Dustproof & Water-resistant) |
