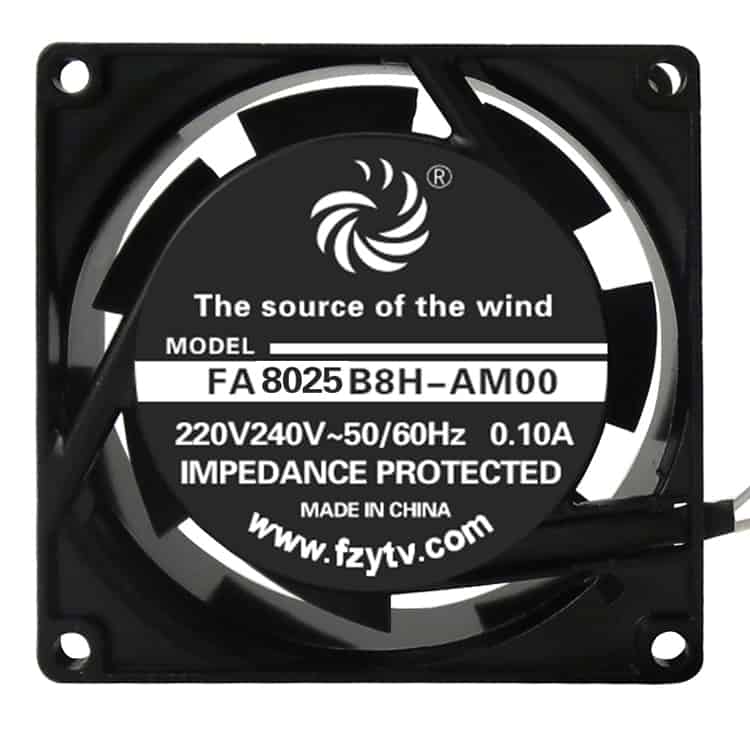

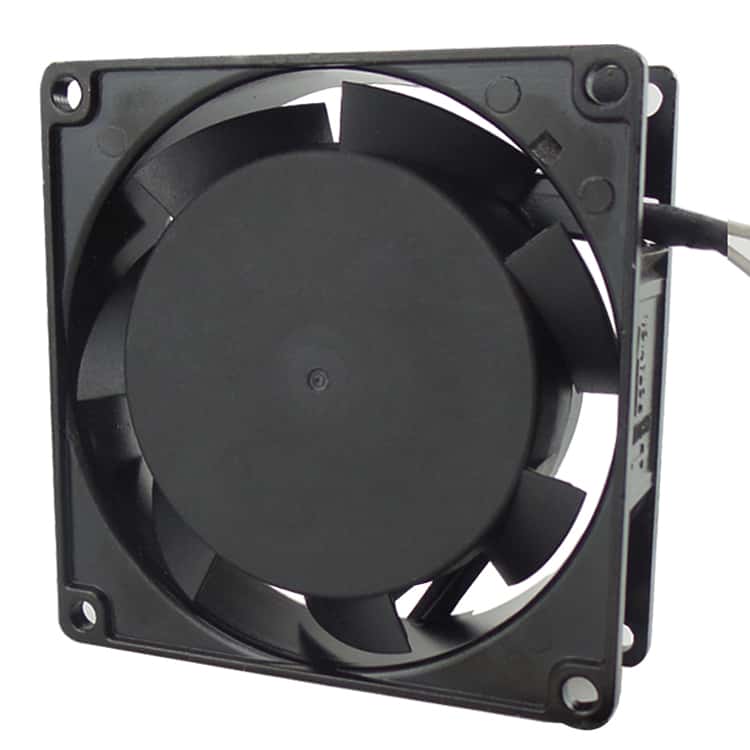

FD8025AC

Size: 80*80*25mm

Frame: Aluminum alloy

Wire: High-quality thick copper wire

Blade: High-quality PBT

Whatsapp: +86 153 6189 2827

Model	Bearing	Rated voltage	Frequency	Current	Power	Speed	Air Flow	Air Pressure	Noise
Model	Bearing	V	Hz	A	W	RPM	CFM	mmH2O	dBA
FA8025S7H-AM00	Sleeve	110	50~60	0.11~0.13	9.5~12.0	2450~2900	17~21	1.70~1.90	28.2~33
FA8025B7H-AM00	Dual Ball	110	50~60	0.11~0.13	9.6~12.0	2550~3000	18~22	1.78~2.0	28.2~33
FA8025S8H-AM00	Sleeve	220	50~60	0.08~0.09	12.5~15.5	2450~2900	17~21	1.70~1.90	28.2~33
FA8025B8H-AM00	Dual Ball	220	50~60	0.08~0.09	12.5~15.5	2550~3000	18~22	1.78~2.0	28.2~33

Product Parameters

The company is committed to providing integrated services of R&D, production, testing and maintenance with intelligent equipment as the leading factor.

Parameter	Specification
Model	XY-GF200
Air Pressure	800Pa (Max)
Air Flow	15-50 CFM (Adjustable)
Voltage	DC 12/24/48V
Noise Level	35-50 dB(A)
Power Consumption	18W-60W
Protection Rating	IP55 (Dustproof & Water-resistant)
